SharkBite UAB26084LF Description

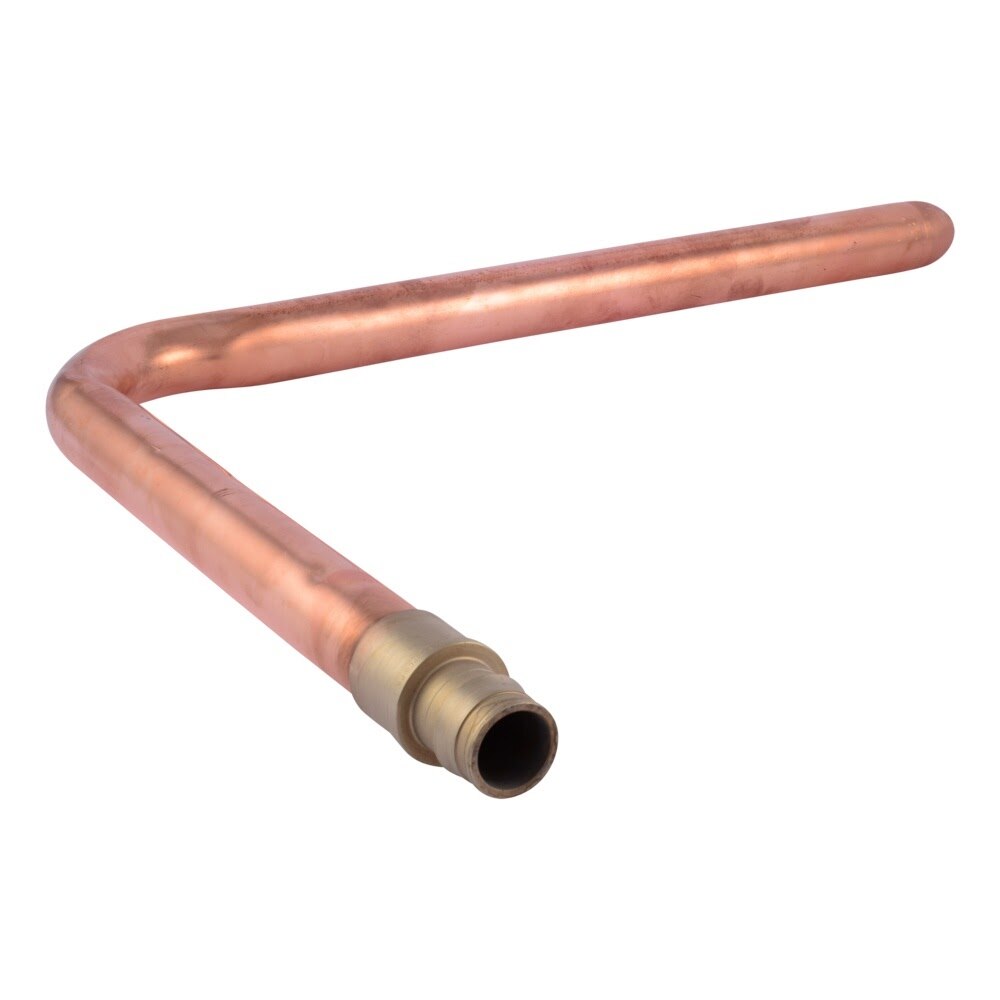

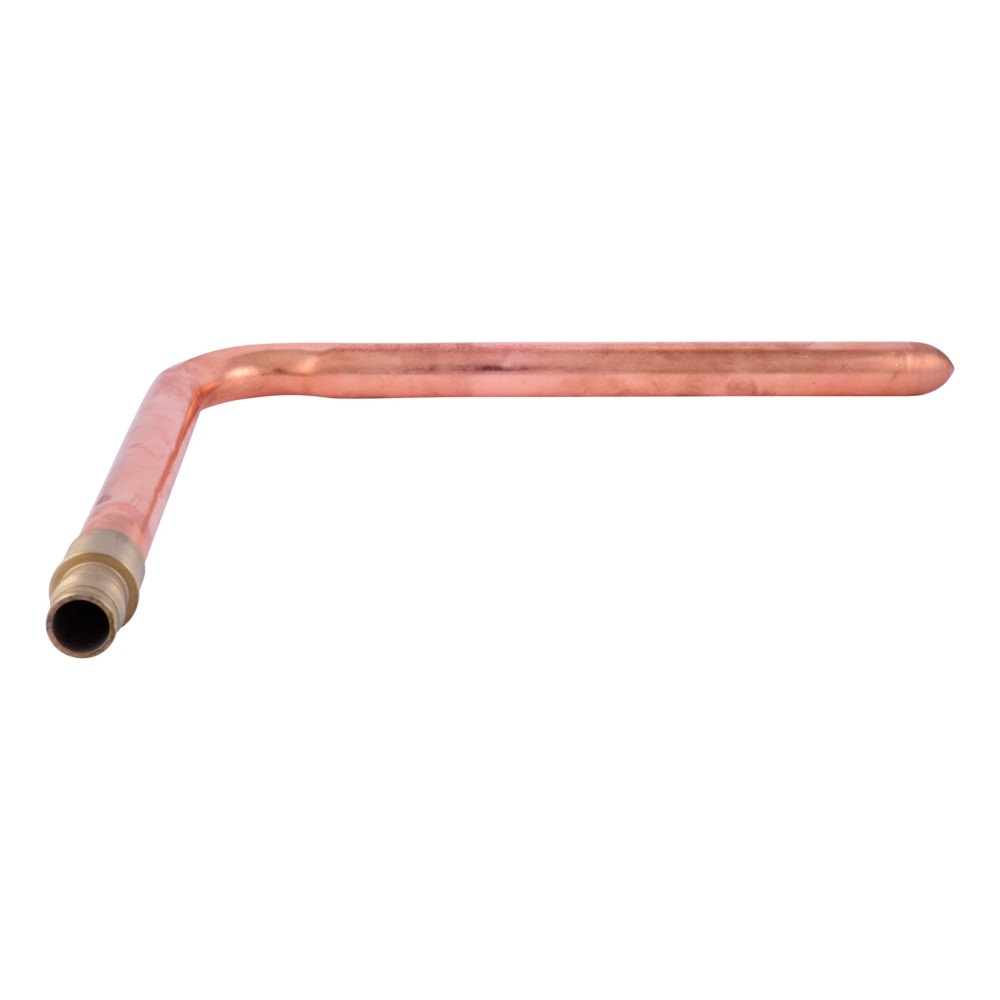

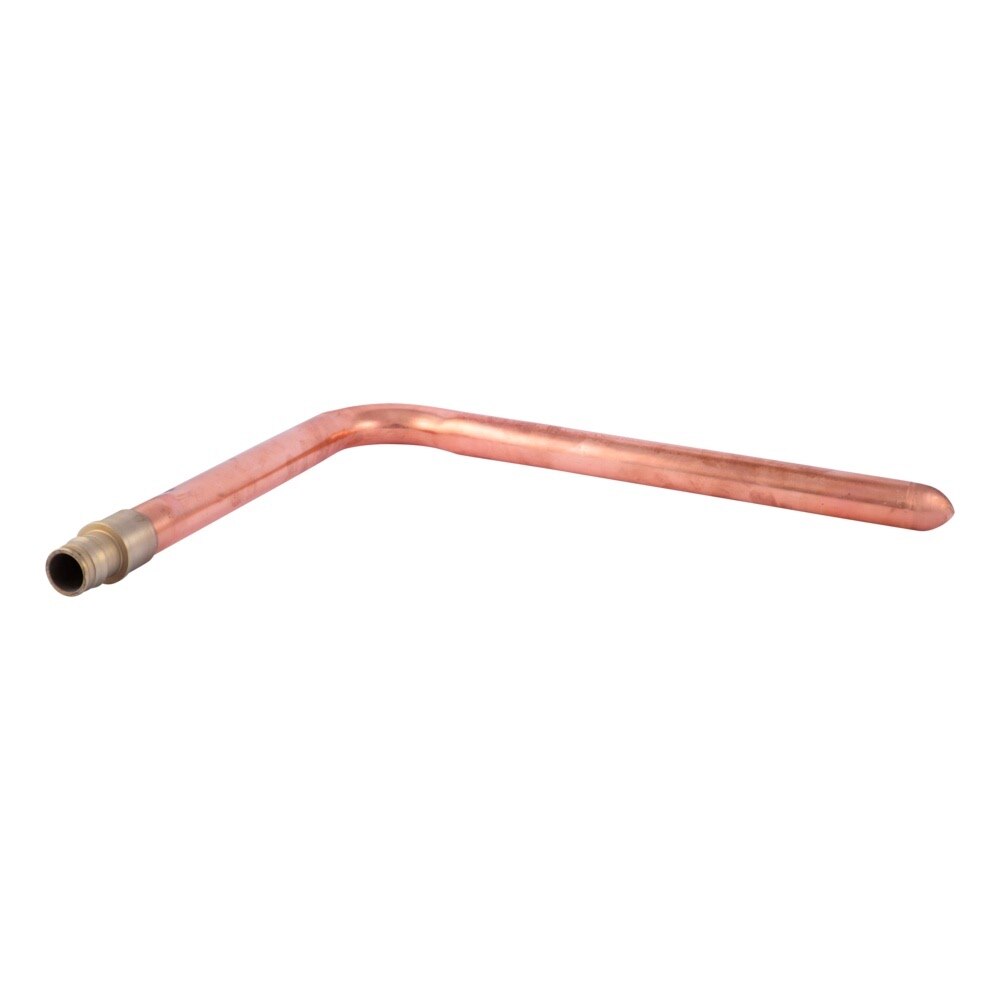

The SharkBite UAB26084LF is a 1 in. PEX-A copper stub out with a 13 in. x 16 in. configuration. It combines a copper stub-out body with a lead-free DZR brass fitting and is designed for use with PEX-a tubing in potable water, recirculation, reclaimed water, hydronic heating and cooling, and direct burial applications.
SharkBite UAB26084LF Includes
- (1) 1 in. PEX-A Copper Stub Out
SharkBite UAB26084LF Features
- Designed for use with PEX-a tubing
- 1 in. connection size with 13 in. x 16 in. stub-out configuration
- Copper stub-out body with lead-free DZR brass fitting
- Compatible with SharkBite expansion rings
- Suitable for residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating and cooling, and direct burial
- Rated up to 160 psi at 73.4 F, 100 psi at 180 F, and 80 psi at 200 F
- Certified to ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, and NSF/ANSI/CAN 372
SharkBite UAB26084LF Specifications
| Brand | SharkBite |
| Product Type | Copper Stub Out |
| Connection Type | PEX-A |
| Nominal Size | 1 in. |
| Configuration | 13 in. x 16 in. |
| Stub-Out Material | Copper |
| Fitting Material | Lead-Free DZR Brass |
| Max Working Pressure | 80 psi at 200 F; 100 psi at 180 F; 160 psi at 73.4 F |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling up to 50% glycol concentration, and direct burial |
| Certifications | ASTM F1960; ASTM F877; CSA B137.5; NSF/ANSI 14; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372; ASTM E84; CAN/ULC S102.2; ASTM E119; CAN/ULC S101 |
| Product Length (in) | 16.14 |
| Product Height (in) | 12.99 |
| Product Width (in) | 1.12 |
| Shipping Weight (lb) | 1.35 |
Toolup Part # :
882834
