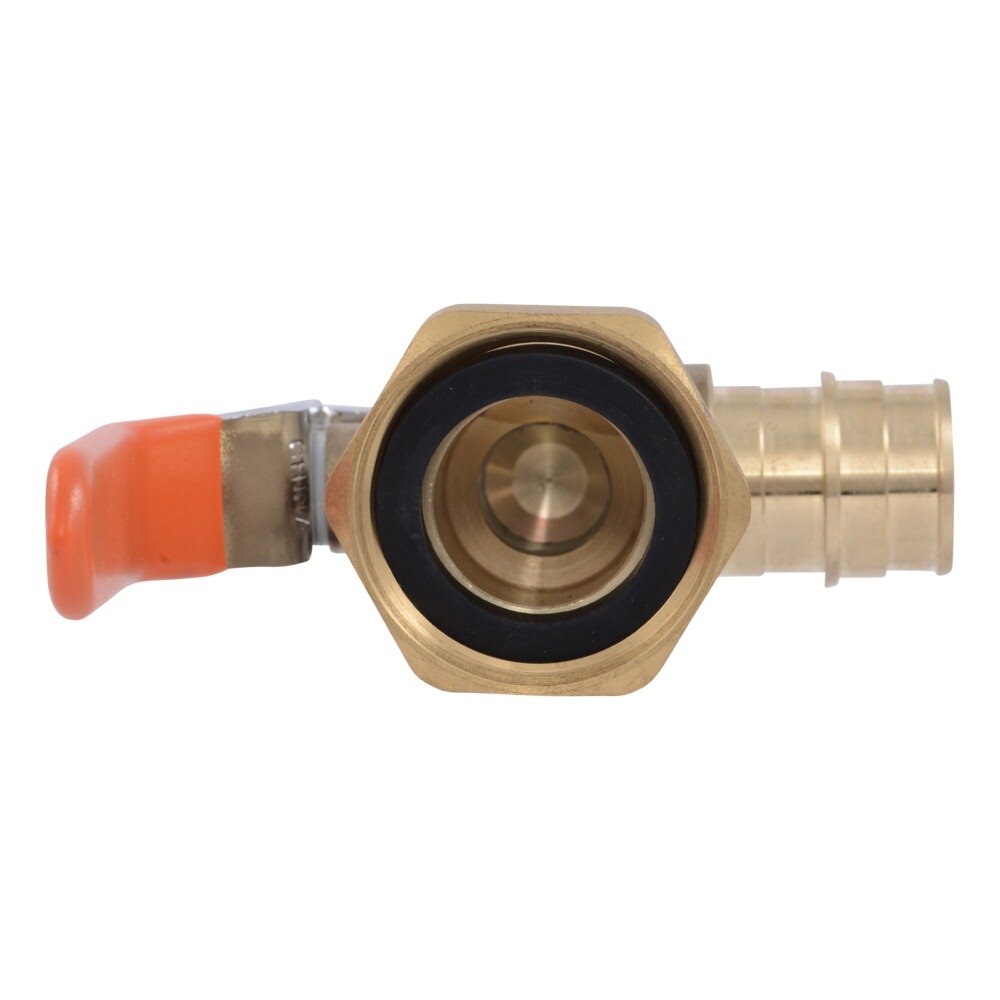

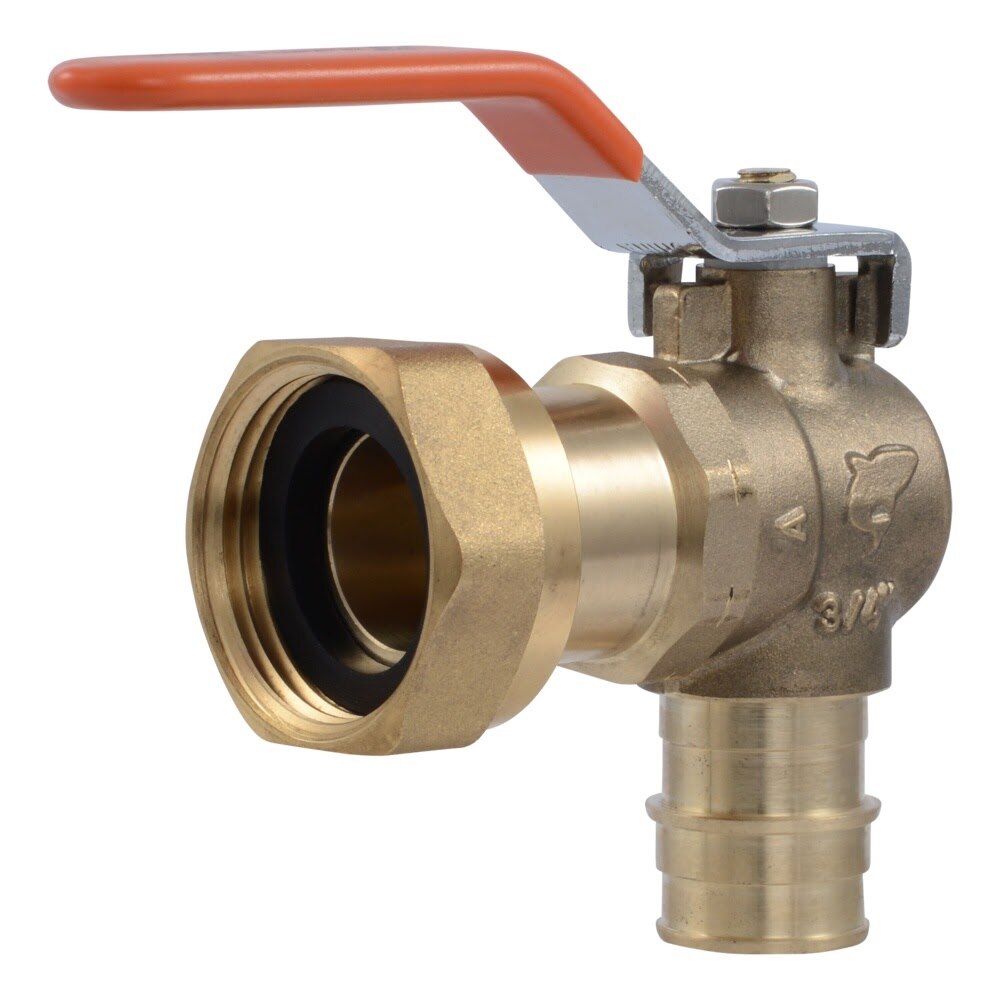

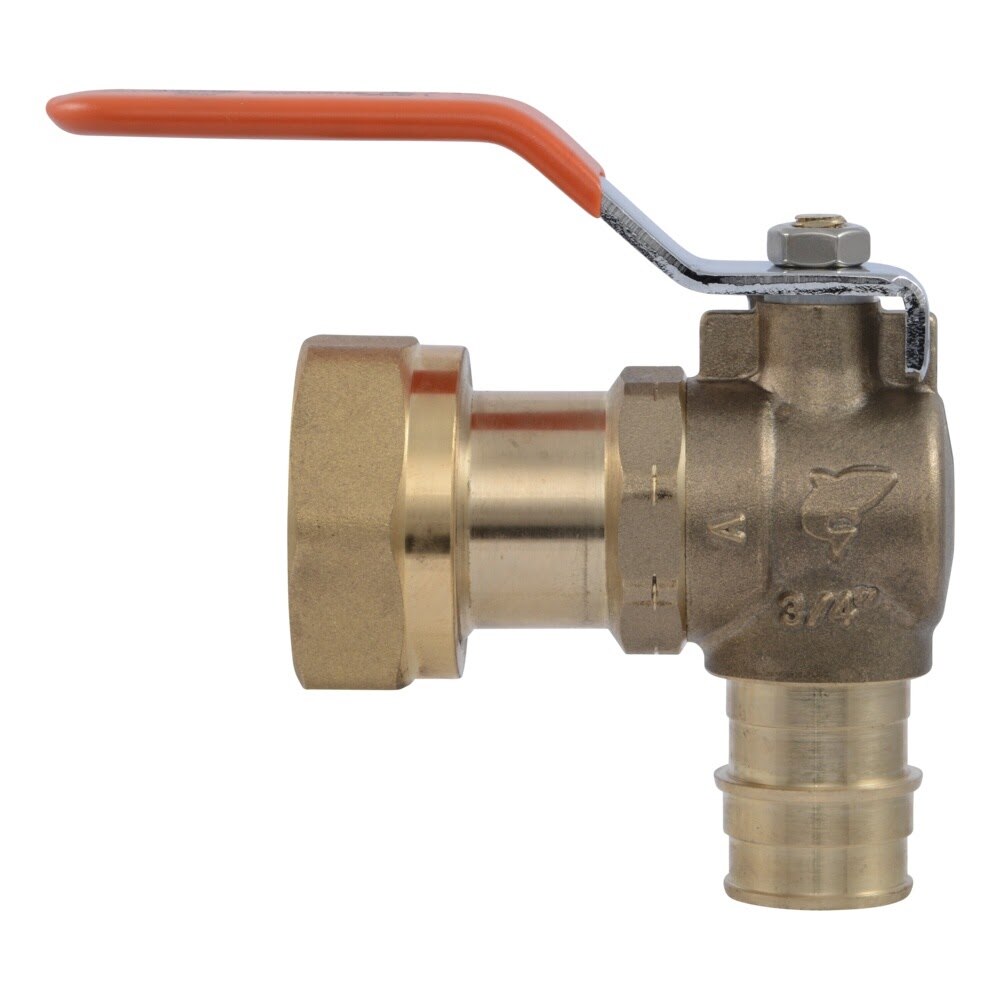

SharkBite UABWMVL22 Description
The SharkBite UABWMVL22 is a brass 90 Degree elbow water meter valve designed to connect 3/4 in. PEX-a F1960 tubing to a 1 in. NPSM water meter connection. It combines a quarter-turn shutoff valve with a compact transition fitting for potable water installations.
SharkBite UABWMVL22 Includes
- (1) Brass expansion elbow water meter valve
SharkBite UABWMVL22 Features
- 3/4 in. PEX-a F1960 expansion connection for direct use with PEX-a tubing
- 1 in. NPSM swivel connection is designed for water meter hookups
- 90 Degree elbow configuration helps fit tight installation spaces
- Quarter-turn lever handle provides convenient shutoff control
- Corrosion-resistant lead-free DZR brass construction
- Suitable for potable water applications
- Rated for up to 160 PSI
SharkBite UABWMVL22 Specifications
| Brand | SharkBite |
| Material | Brass |
| Valve Type | Water Meter Valve |
| Configuration | 90 Degree Elbow |
| PEX Connection Size | 3/4 in. |
| PEX Connection Type | PEX-a F1960 Expansion |
| Thread Connection Size | 1 in. |
| Thread Connection Type | NPSM |
| Application | Potable Water |
| Maximum Pressure | 160 PSI |
| Drain/Vent | No |
| Package Quantity | 1 |
| Product Length (in) | 1.57 |
| Product Width (in) | 7.09 |
| Product Height (in) | 7.09 |
| Product Weight (lb) | 0.62 |
Toolup Part # :
883711
