SharkBite UABWMVL28 Description

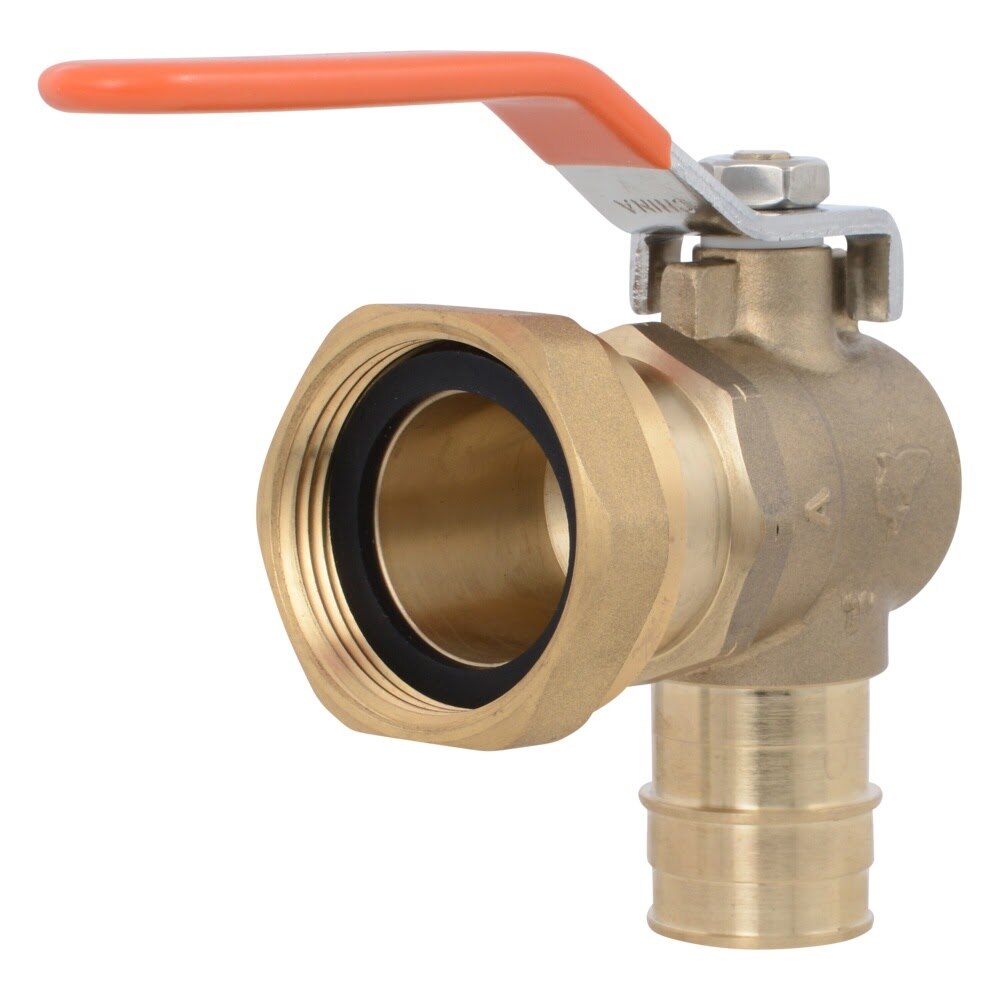

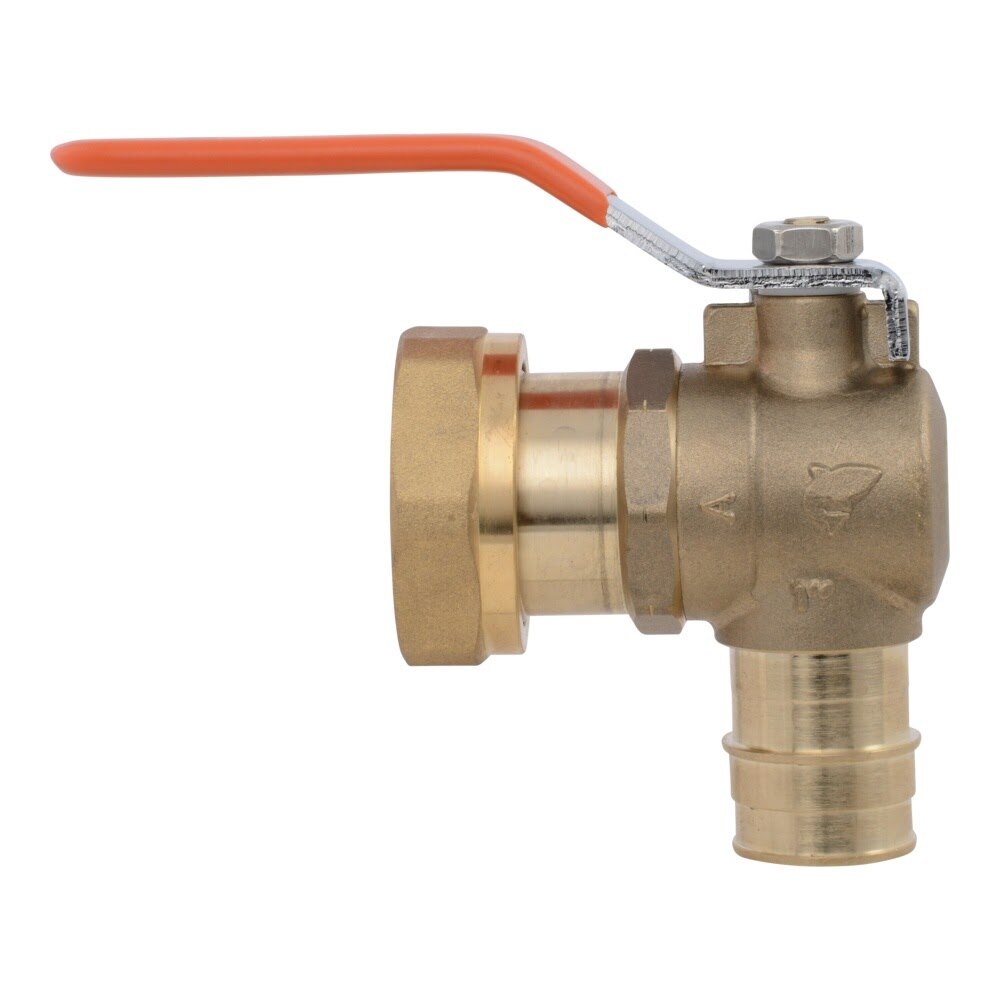

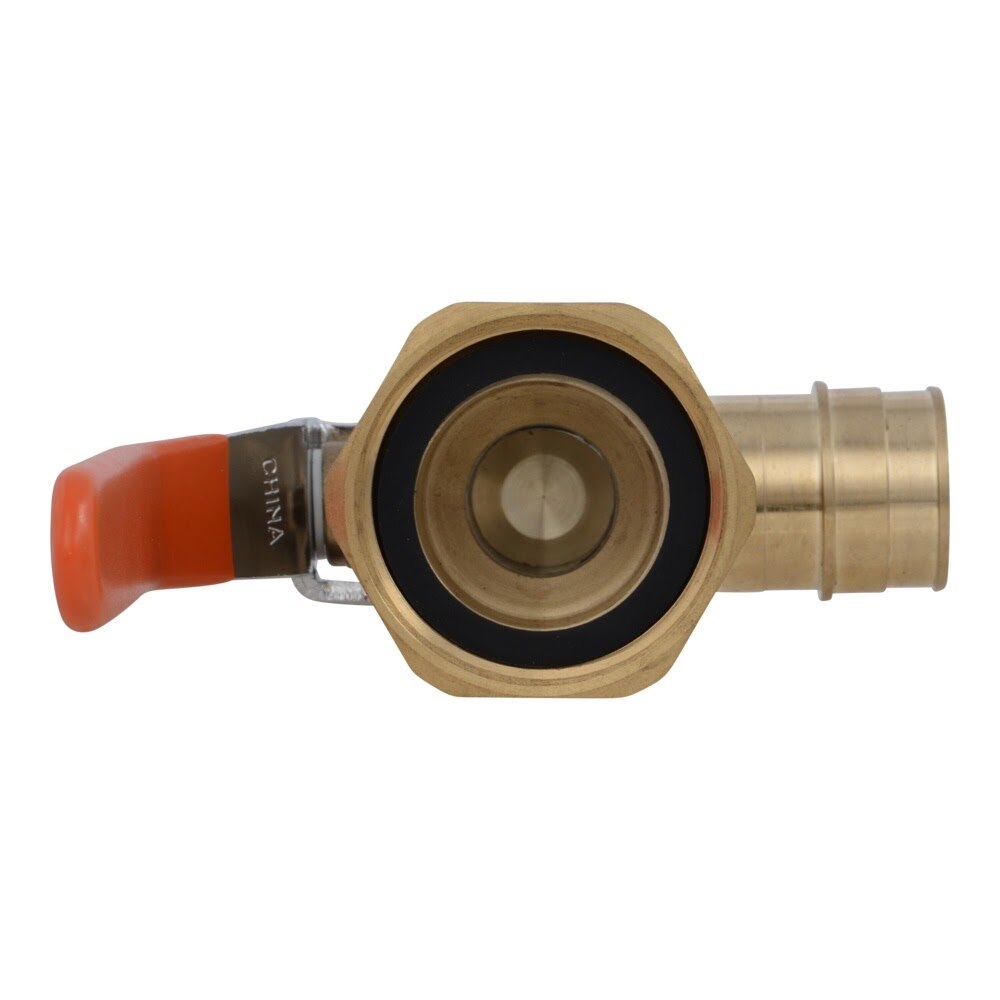

This brass expansion elbow water meter valve connects 1 in. PEX-a pipe to a 1-1/4 in. NPSM water meter connection and provides shut-off control for servicing and repairs. Made from high-performance DZR lead-free brass, it is certified for potable water and hydronic heating systems.
SharkBite UABWMVL28 Includes
- (1) Brass Expansion Elbow Water Meter Valve
SharkBite UABWMVL28 Features
- Made with high-performance DZR lead-free brass
- Elbow valve design for water meter connections
- Connects 1 in. PEX-a pipe to 1-1/4 in. NPSM meter threads
- Installs to PEX-a pipe with expansion rings
- Provides shut-off control at the meter for service and repairs
- Certified for potable water and hydronic heating systems
- Minimum working temperature: 33 DegreeF @ 160 psi
- Maximum working temperature: 200 DegreeF @ 80 psi
SharkBite UABWMVL28 Specifications
| Material | DZR lead-free brass |
| Valve Type | Water meter valve |
| Configuration | Elbow |
| Connection 1 | 1 in. PEX F1960 |
| Connection 2 | 1-1/4 in. NPSM |
| Application | Potable water and hydronic heating systems |
| Minimum Working Temperature | 33 DegreeF @ 160 psi |
| Maximum Working Temperature | 200 DegreeF @ 80 psi |
| Product Length (in) | 1.97 |
| Product Width (in) | 7.09 |
| Product Height (in) | 7.09 |
| Product Weight (lb) | 1.04 |
Toolup Part # :
883095
