SharkBite UAMPT28224OW Description

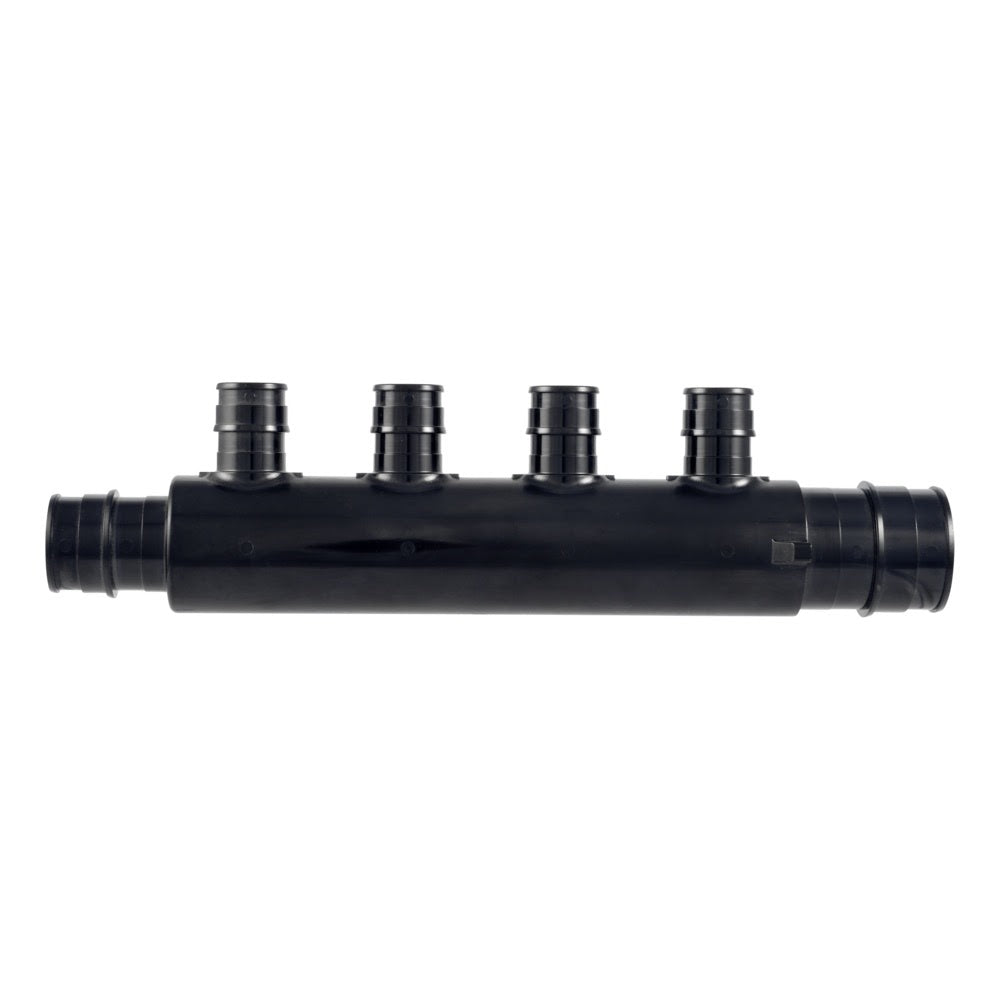

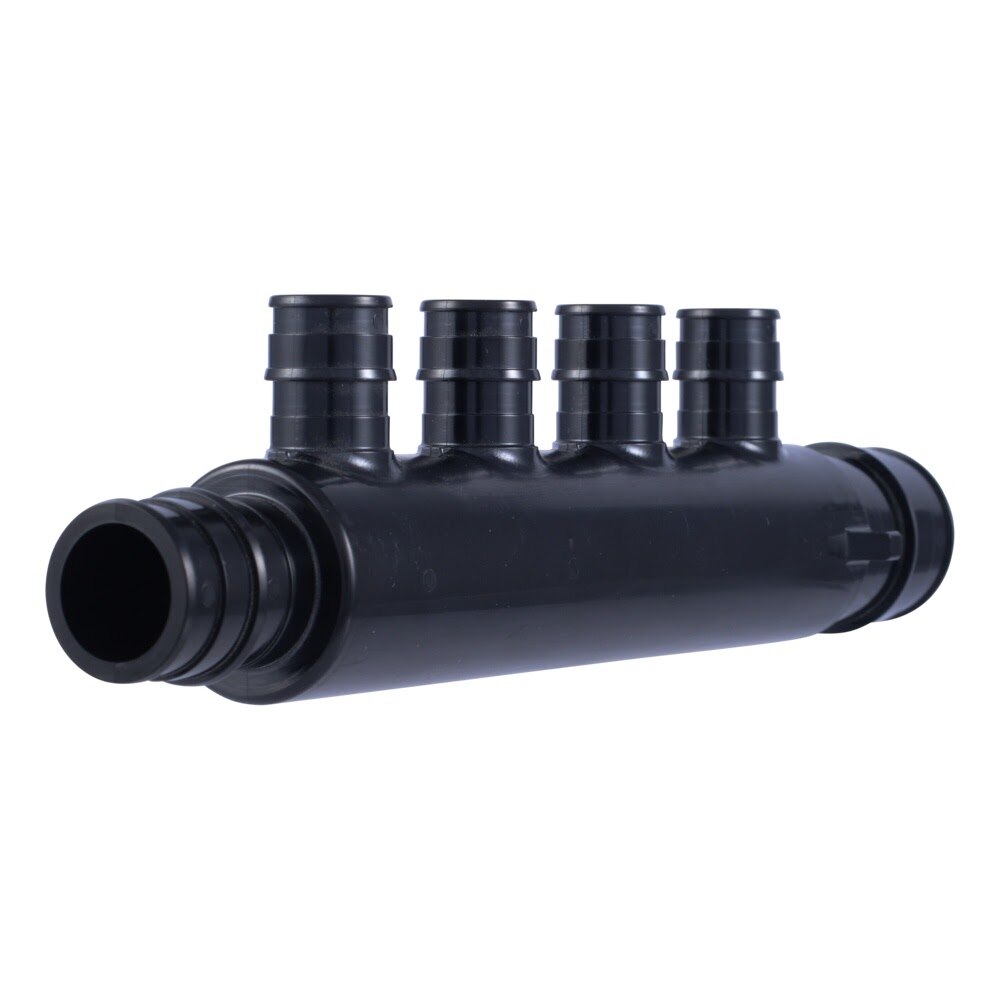

This SharkBite open poly expansion multi-port tee is a PPSU PEX-A fitting sized 1 in. x 3/4 in. with four 1/2 in. outlets for efficient water distribution. It is approved for residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating and cooling applications up to 50% glycol concentration, and direct burial.
SharkBite UAMPT28224OW Includes
- (1) Open Poly Expansion Multi-Port Tee
SharkBite UAMPT28224OW Features
- Open multi-port tee design with four 1/2 in. outlets
- 1 in. x 3/4 in. PEX-A fitting for water distribution applications
- Durable PPSU body material
- Approved for residential and commercial potable water systems
- Suitable for recirculation and reclaimed water systems
- Compatible with hydronic heating and cooling applications up to 50% glycol concentration
- Approved for direct burial installations
- Designed for use with PEX-A tubing
- Must be used with SharkBite expansion rings
- Pressure rated to 160 psi at 73.4 DegreeF, 100 psi at 180 DegreeF, and 80 psi at 200 DegreeF
SharkBite UAMPT28224OW Specifications
| Product Type | Open Multi-Port Tee |
| Main Size | 1 in. x 3/4 in. |
| Outlet Count | 4 |
| Outlet Size | 1/2 in. |
| Connection Type | PEX-A |
| Body Material | PPSU |
| Max Working Pressure | 80 psi at 200 DegreeF; 100 psi at 180 DegreeF; 160 psi at 73.4 DegreeF |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling up to 50% glycol concentration, and direct burial |
| Certifications | ASTM F1960; ASTM F877; CSA B137.5; NSF/ANSI 14; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372; ASTM E84; CAN/ULC S102.2; ASTM E119; CAN/ULC S101 |
| Product Length (in) | 7.14 |
| Product Height (in) | 1.50 |
| Product Width (in) | 1.84 |
| Shipping Weight (lb) | 0.13 |
