SharkBite UAMPT284OW Description

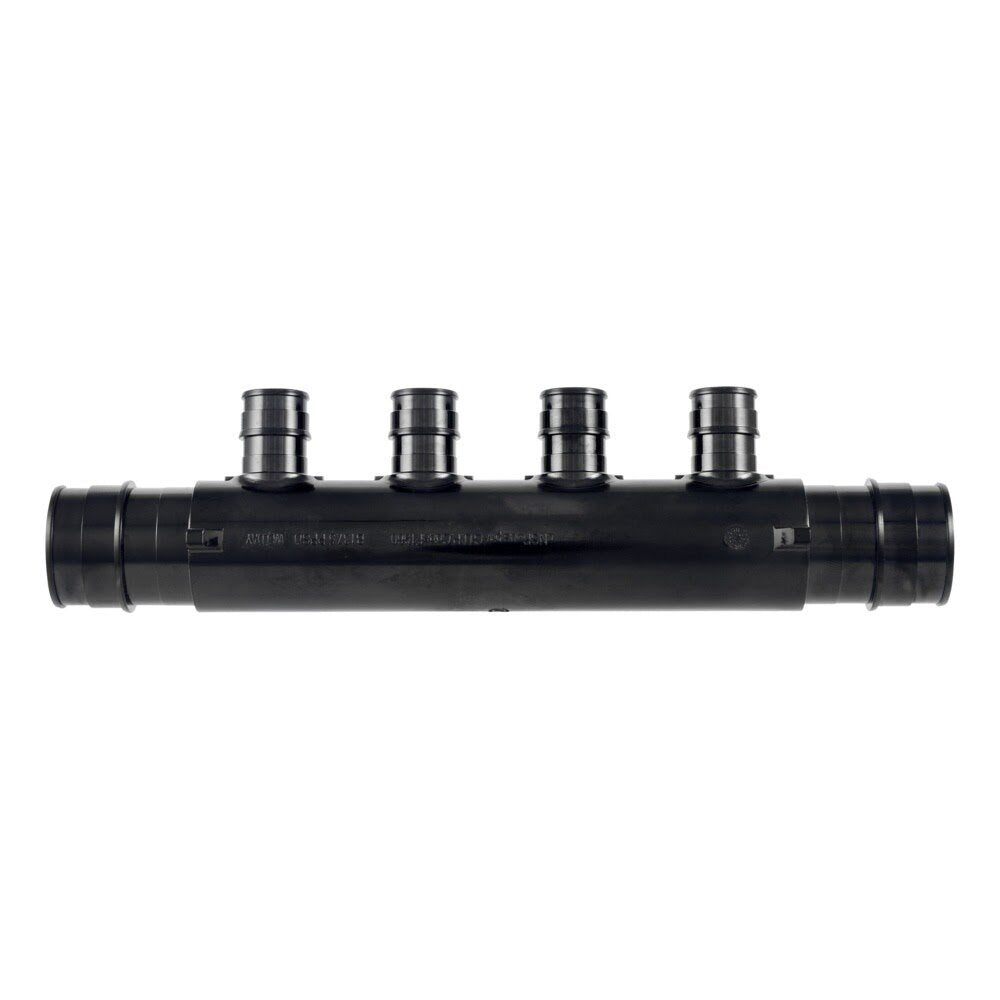

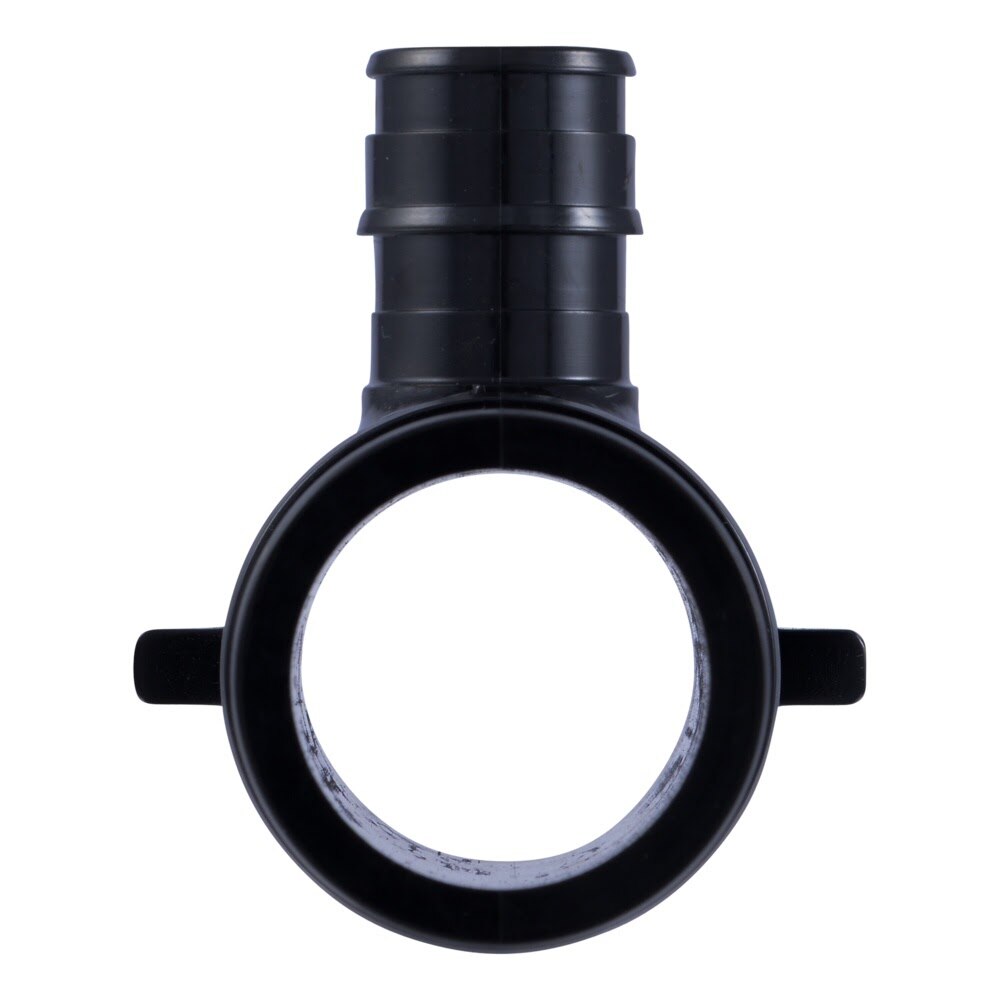

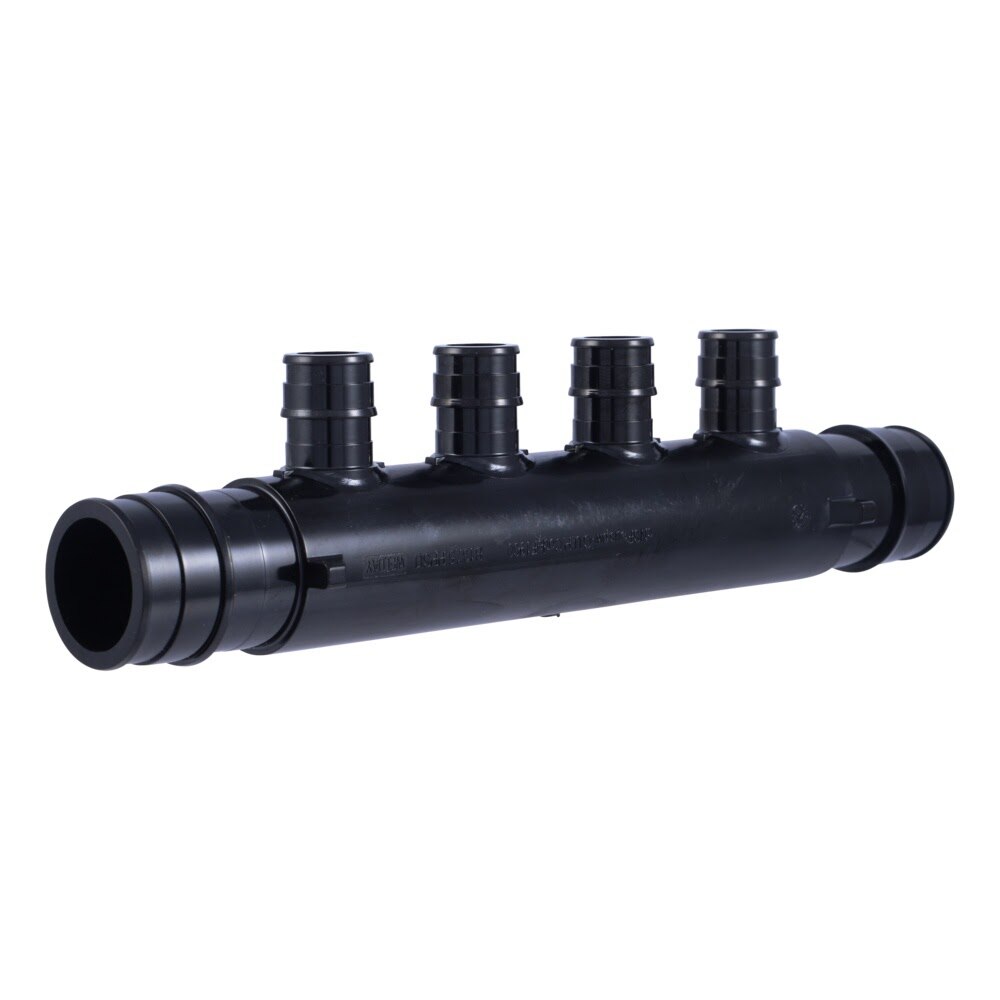

The SharkBite UAMPT284OW is a 1 in. x 1/2 in. PEX-A poly open multi-port tee designed to distribute flow from a 1 in. main line to four 1/2 in. branch outlets. Made from PPSU, it is suitable for residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating and cooling applications, and direct burial installations.
SharkBite UAMPT284OW Includes
- (1) 1 in. x 1/2 in. PEX-A Poly Open Multi-Port Tee with Four Outlets
SharkBite UAMPT284OW Features
- Open multi-port tee design with one 1 in. trunk and four 1/2 in. outlets
- Compatible with PEX-A tubing systems
- PPSU poly body offers corrosion-resistant performance
- Designed for use with SharkBite expansion rings
- Suitable for potable water, recirculation, reclaimed water, and hydronic heating and cooling systems
- Approved for direct burial applications
- Maximum working pressure rated up to 160 psi at 73.4 F
SharkBite UAMPT284OW Specifications
| Brand | SharkBite |
| Part Number | UAMPT284OW |
| Product Type | Open Multi-Port Tee |
| Size | 1 in. x 1/2 in. |
| Main Connection Size | 1 in. |
| Outlet Connection Size | 1/2 in. |
| Number of Outlets | 4 |
| Connection Type | PEX-A Expansion |
| Material | PPSU |
| Product Length (in) | 7.37 |
| Product Width (in) | 1.84 |
| Product Height (in) | 1.50 |
| Product Weight (lb) | 0.15 |
| Max Working Pressure at 73.4 F | 160 psi |
| Max Working Pressure at 180 F | 100 psi |
| Max Working Pressure at 200 F | 80 psi |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling up to 50% glycol concentration, and direct burial |
| Certifications and Listings | ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101 |
