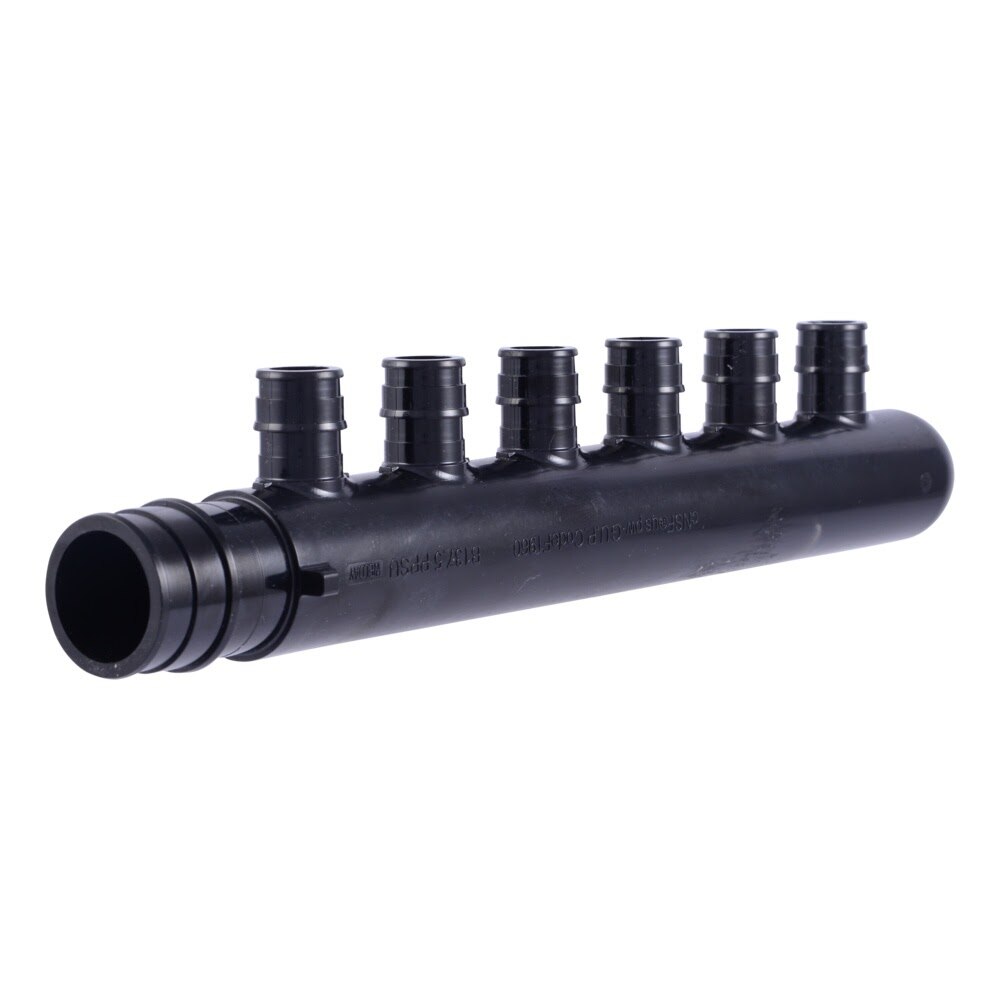

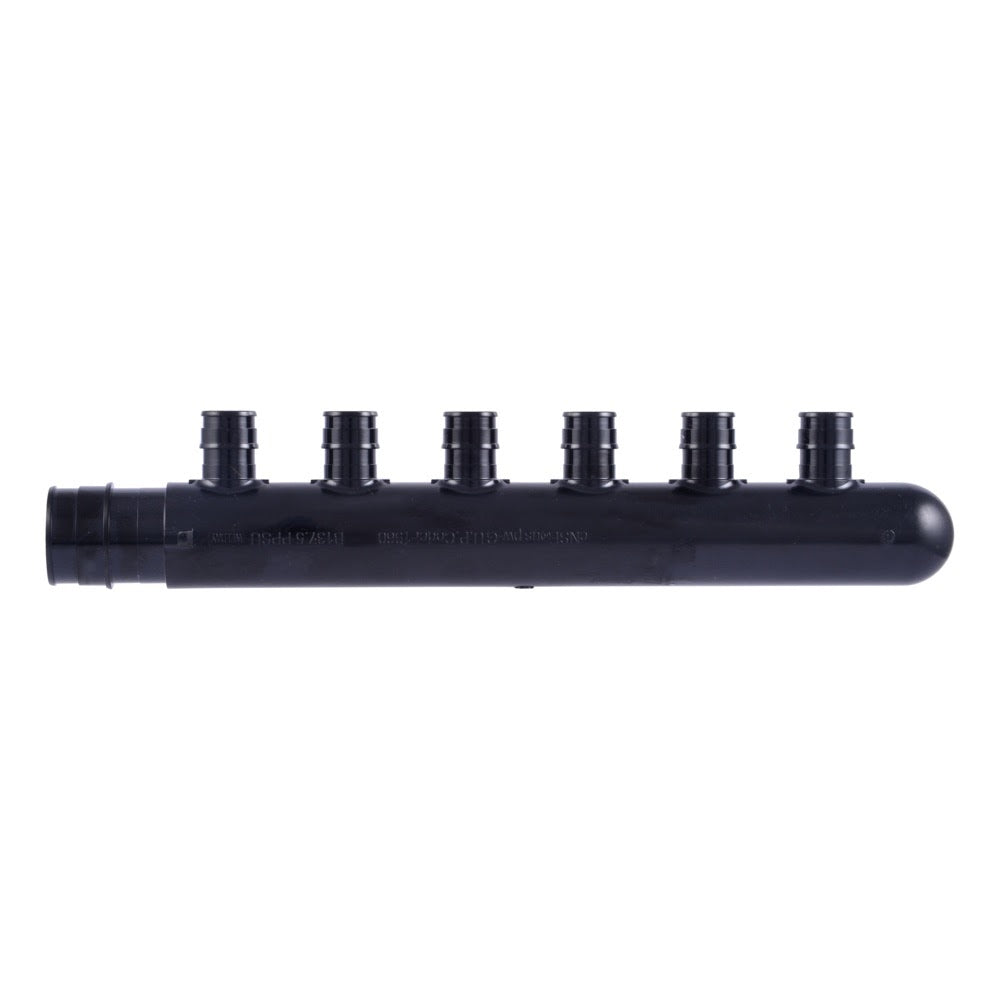

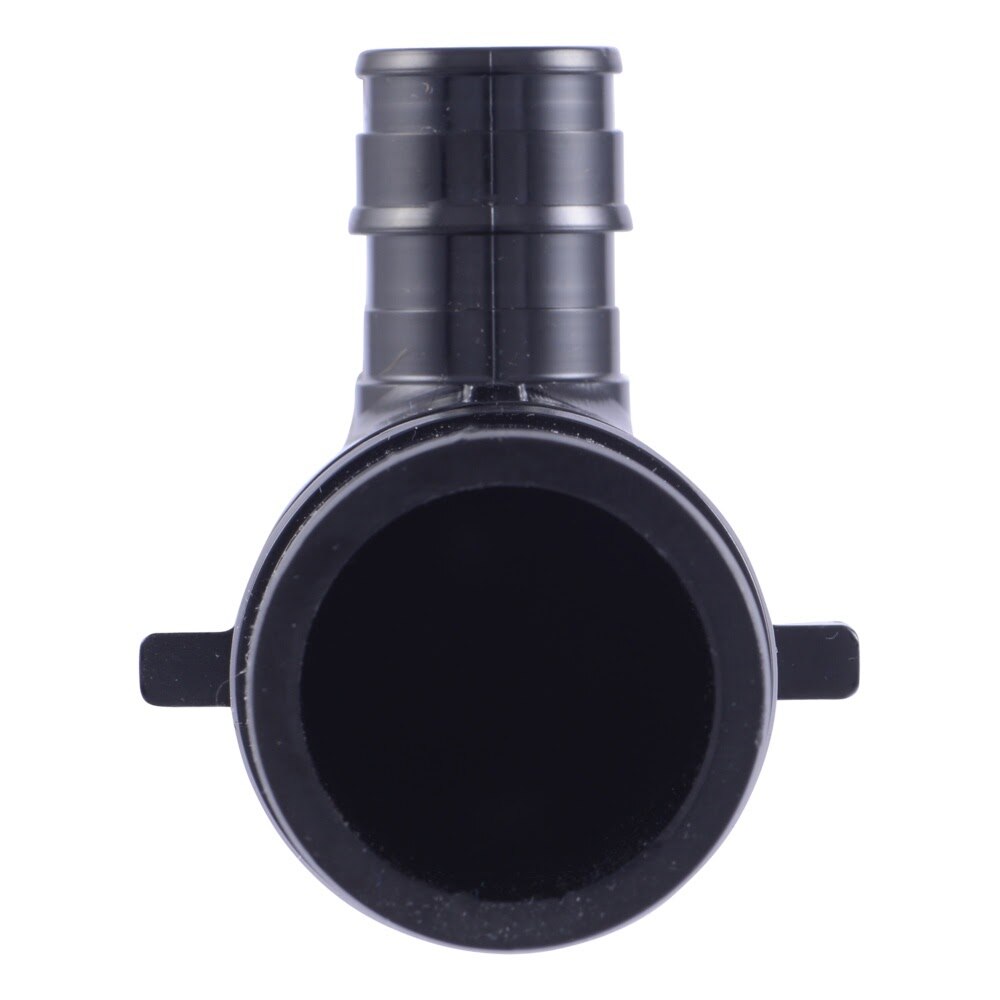

SharkBite UAMPT286CW Description
The SharkBite UAMPT286CW is a closed poly expansion multi-port tee designed for PEX-a systems. It features one 1 in. inlet and six 1/2 in. outlets in a PPSU body for potable water, recirculation, reclaimed water, hydronic heating and cooling, and direct burial applications.
SharkBite UAMPT286CW Includes
- (1) 6-Port Closed Poly Expansion Multi-Port Tee
SharkBite UAMPT286CW Features
- Designed for use with PEX-a tubing
- One 1 in. inlet with six 1/2 in. outlets
- Closed end multi-port tee configuration
- PPSU body construction
- Compatible with SharkBite expansion rings
- Approved for potable water, recirculation, reclaimed water, hydronic heating and cooling, and direct burial applications
- Suitable for hydronic systems with up to 50% glycol concentration
- Pressure rated up to 160 psi at 73.4 DegreeF
- Meets ASTM, CSA, and NSF standards
SharkBite UAMPT286CW Specifications
| Product Type | Multi-Port Tee |
| Configuration | 6-Port Closed |
| Inlet Size | 1 in. |
| Outlet Size | 1/2 in. |
| Number of Outlets | 6 |
| Connection Type | PEX-A |
| Body Material | PPSU |
| Maximum Working Pressure at 200 DegreeF | 80 psi |
| Maximum Working Pressure at 180 DegreeF | 100 psi |
| Maximum Working Pressure at 73.4 DegreeF | 160 psi |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling up to 50% glycol concentration, and direct burial |
| Certifications | ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101 |
| Product Length (in) | 9.42 |
| Product Width (in) | 1.84 |
| Product Height (in) | 1.50 |
| Shipping Weight (lb) | 0.21 |
Toolup Part # :
884697
