SharkBite UAMPT288SCW Description

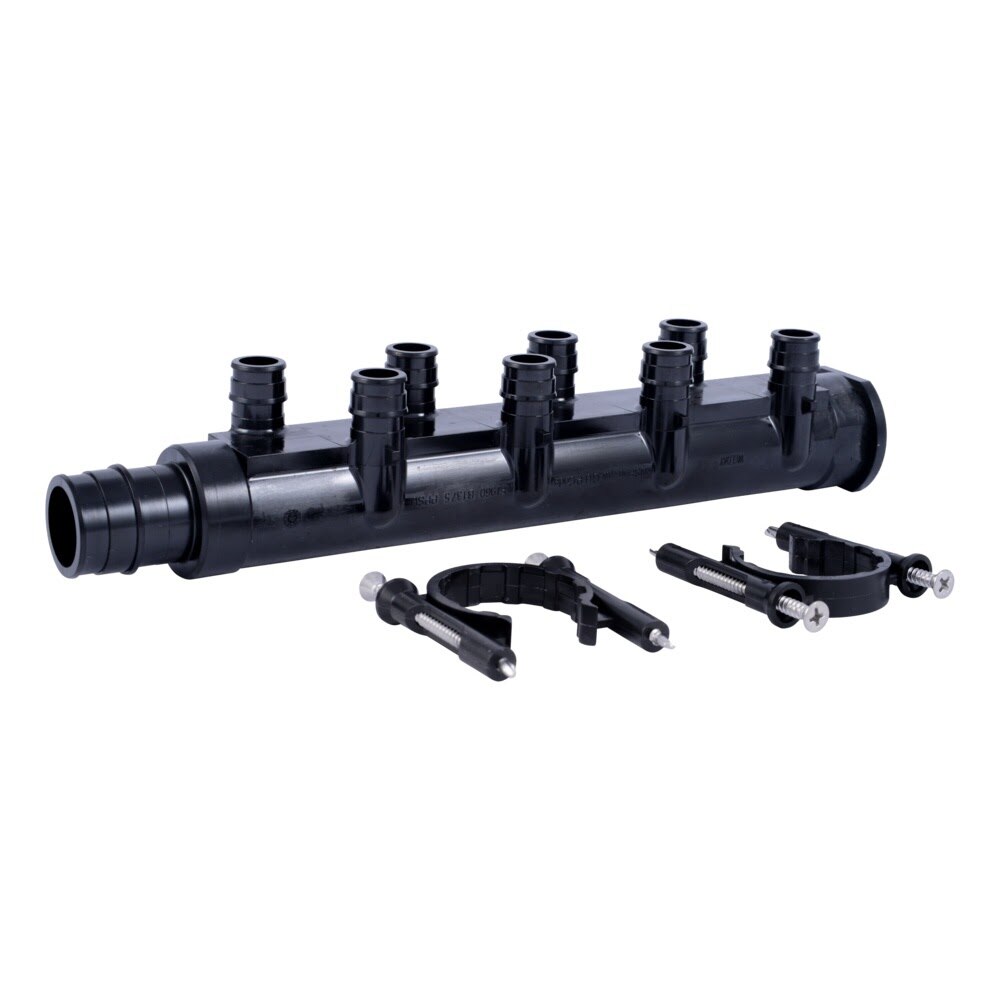

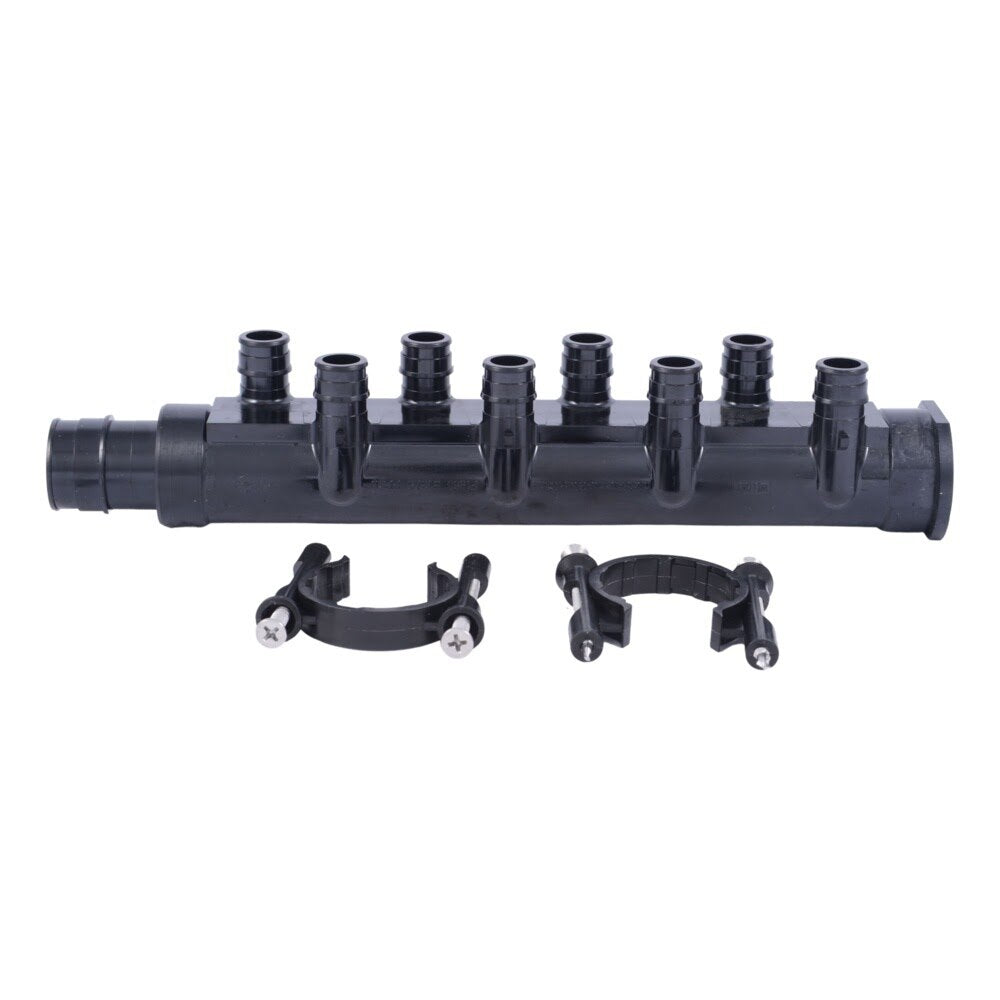

The SharkBite poly expansion multi-port tee is a PPSU PEX-A fitting designed to distribute water from a 1 in. inlet to eight 1/2 in. outlets. This closed-end manifold includes mounting clips for secure installation and is suitable for potable water, hydronic heating and cooling, reclaimed water systems, and direct burial applications.
SharkBite UAMPT288SCW Includes
- (1) Poly Expansion Multi-Port Tee
- (2) Mounting Clips with Screws
SharkBite UAMPT288SCW Features
- Distributes from one 1 in. inlet to eight 1/2 in. outlets
- Closed-end multi-port tee design
- Constructed from durable PPSU material
- Designed for use with PEX-A tubing
- Includes mounting clips for secure installation
- Suitable for potable water, reclaimed water, hydronic heating and cooling, and direct burial
- Compatible with SharkBite expansion rings
- Backed by a 25-year system warranty when used with SharkBite PEX-a tubing
SharkBite UAMPT288SCW Specifications
| Brand | SharkBite |
| Part Number | UAMPT288SCW |
| Product Type | Multi-Port Tee |
| Inlet Size | 1 in. |
| Outlet Size | 1/2 in. |
| Number of Outlets | 8 |
| End Style | Closed |
| Connection Type | PEX-A |
| Material | PPSU |
| Max Working Pressure | 80 psi at 200 DegreeF; 100 psi at 180 DegreeF; 160 psi at 73.4 DegreeF |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling up to 50% glycol concentration, and direct burial |
| Certifications | ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101 |
| Product Length | 9.77 in. |
| Product Width | 2.04 in. |
| Product Height | 1.77 in. |
| Product Weight | 0.32 lb |
