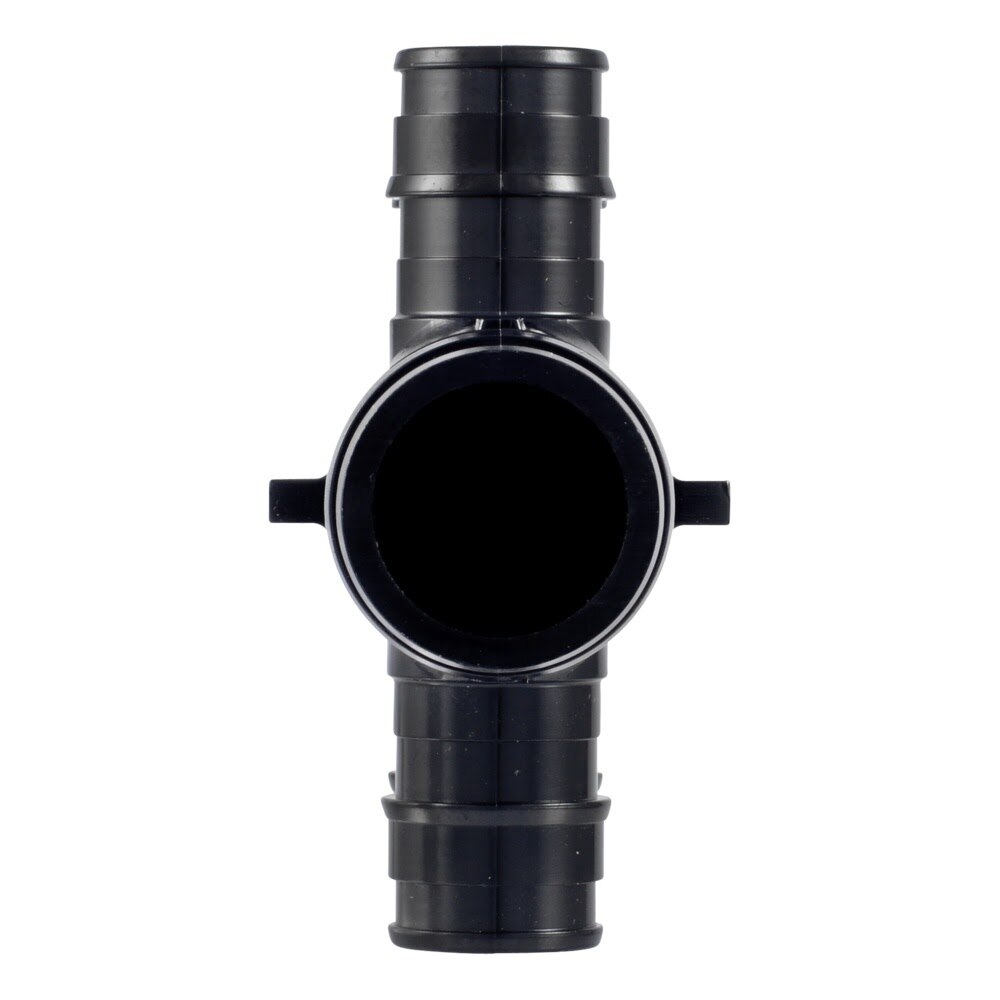

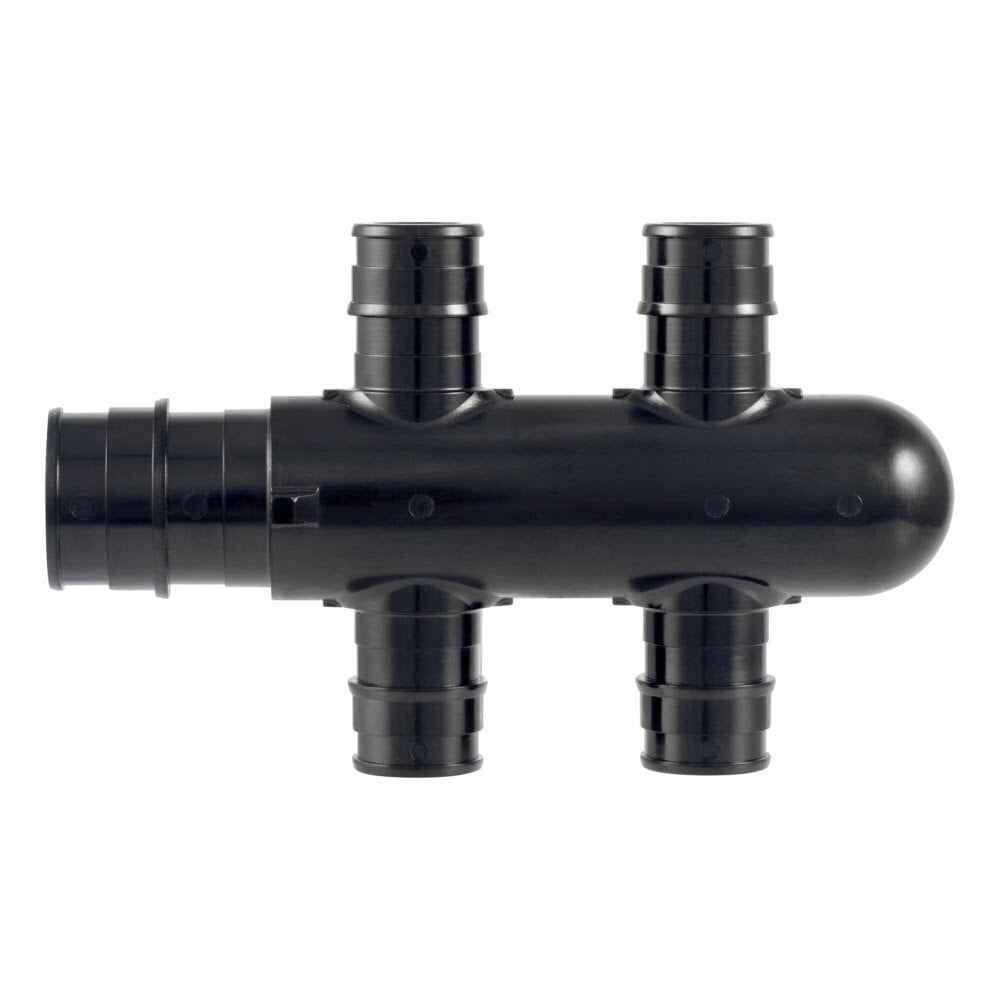

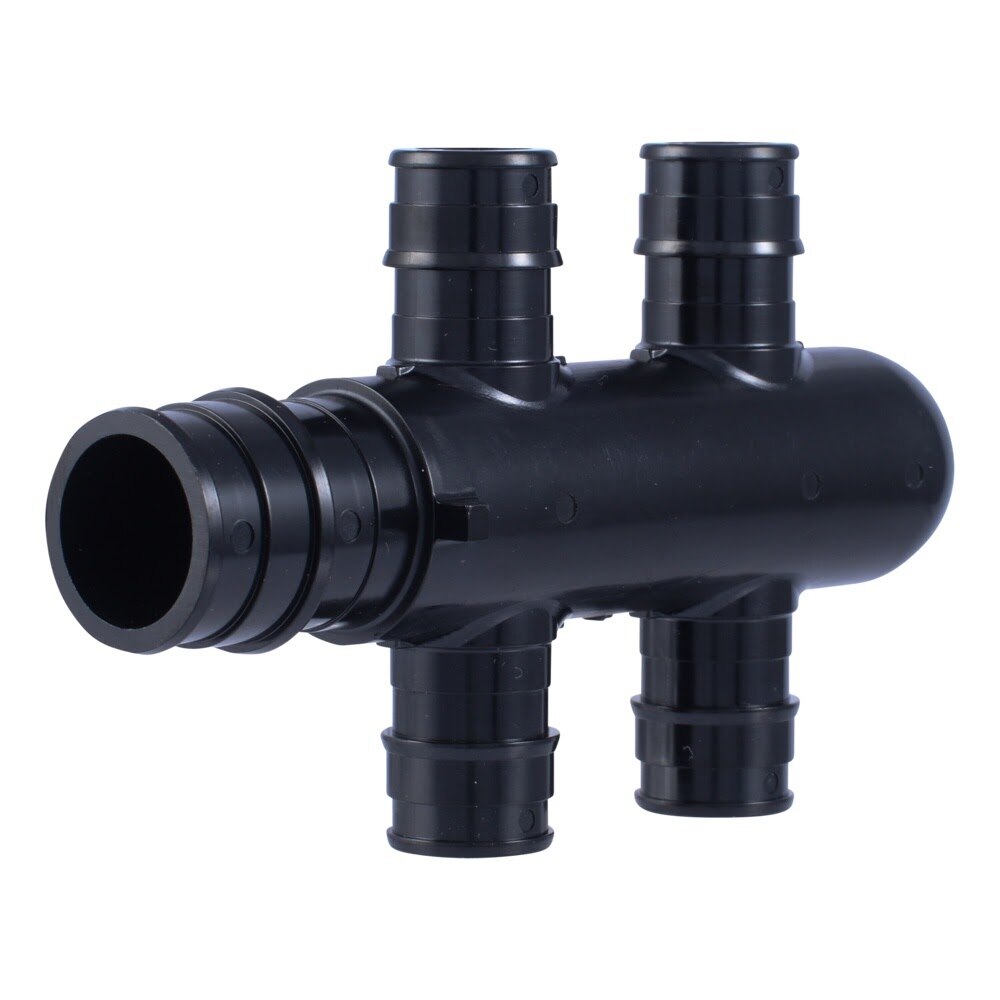

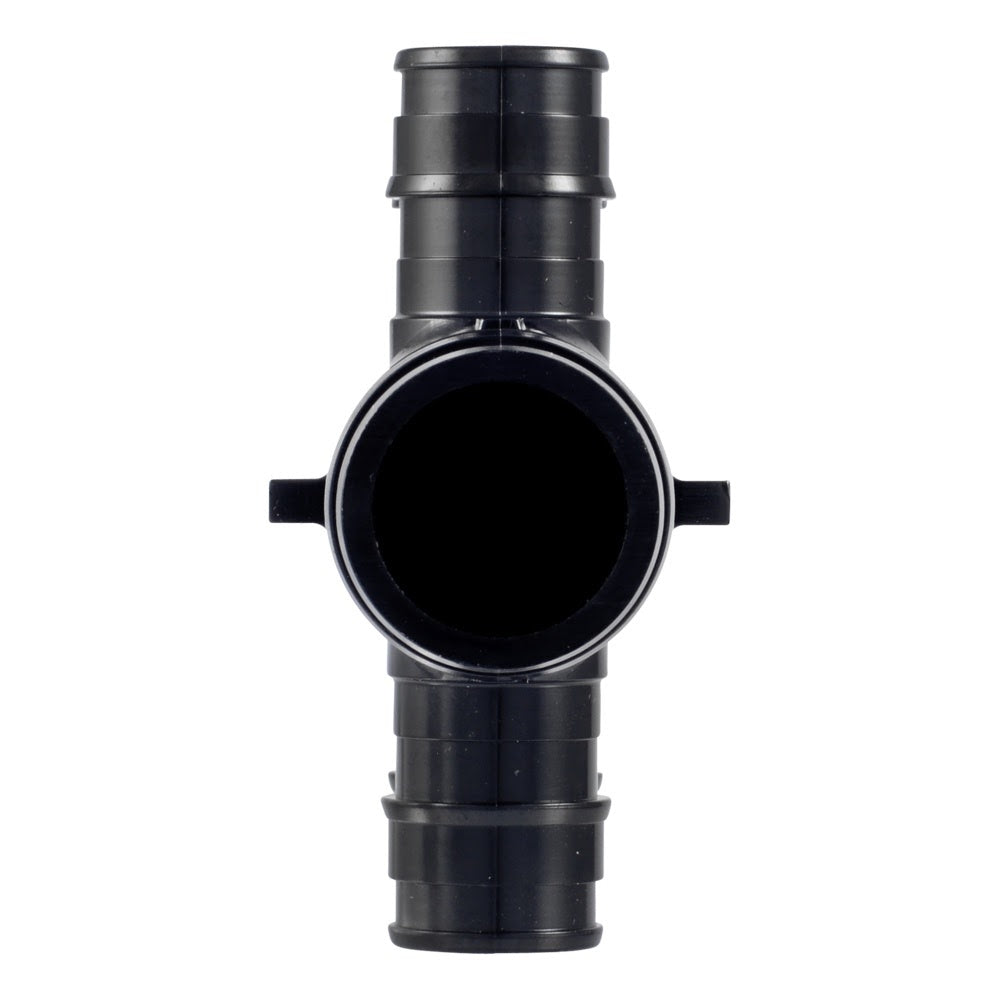

SharkBite UAMPT4CHW Description
The SharkBite UAMPT4CHW poly expansion multi-port tee is a 3/4 in. PEX-A fitting with four 1/2 in. opposing outlets for efficient water distribution. Made from PPSU, it is designed for use with PEX-A tubing and SharkBite expansion rings in potable water, recirculation, reclaimed water, hydronic heating and cooling, and direct burial applications.
SharkBite UAMPT4CHW Includes
- (1) PEX-A 4-Port Closed Opposing Multi-Port Tee
SharkBite UAMPT4CHW Features
- 3/4 in. trunk connection with four 1/2 in. outlet connections
- Closed opposing multi-port tee design helps create organized branch runs
- PPSU body provides durable corrosion-resistant performance
- Designed for use with PEX-A tubing
- Requires SharkBite expansion rings for installation
- Suitable for potable water, recirculation, reclaimed water, and hydronic heating and cooling systems
- Approved for direct burial applications
- Rated for 160 psi at 73.4 F, 100 psi at 180 F, and 80 psi at 200 F
SharkBite UAMPT4CHW Specifications
| Brand | SharkBite |
| Product Type | Multi-Port Tee |
| Fitting Type | PEX-A Expansion |
| Trunk Size | 3/4 in. |
| Outlet Size | 1/2 in. |
| Number of Outlets | 4 |
| Configuration | Closed, Opposing |
| Connection Type | PEX-A |
| Body Material | PPSU |
| Max Working Pressure | 80 psi at 200 F; 100 psi at 180 F; 160 psi at 73.4 F |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling up to 50% glycol, and direct burial |
| Certifications and Listings | ASTM F1960; ASTM F877; CSA B137.5; NSF/ANSI 14; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372; ASTM E84; CAN/ULC S102.2; ASTM E119; CAN/ULC S101 |
| Product Length (in) | 3.91 |
| Product Width (in) | 2.36 |
| Product Height (in) | 1.18 |
| Product Weight (lb) | 0.07 |
Toolup Part # :
885230
