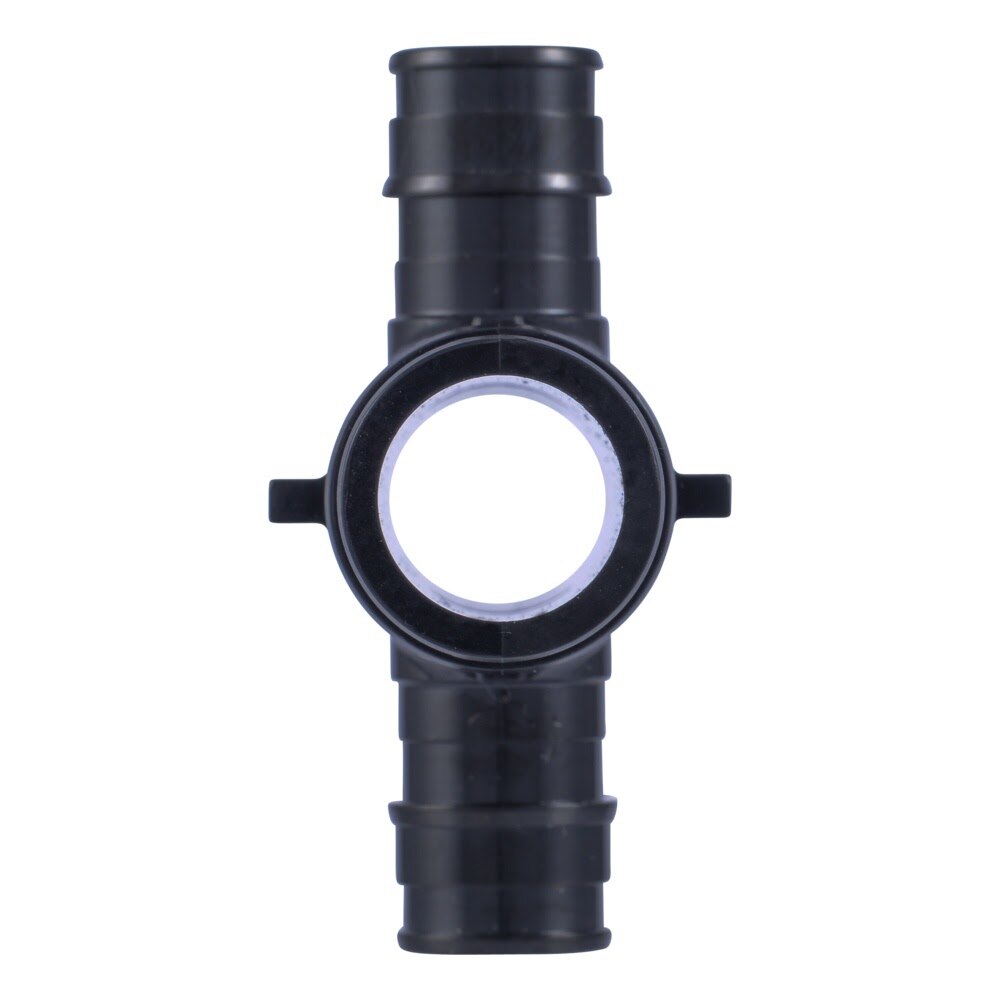

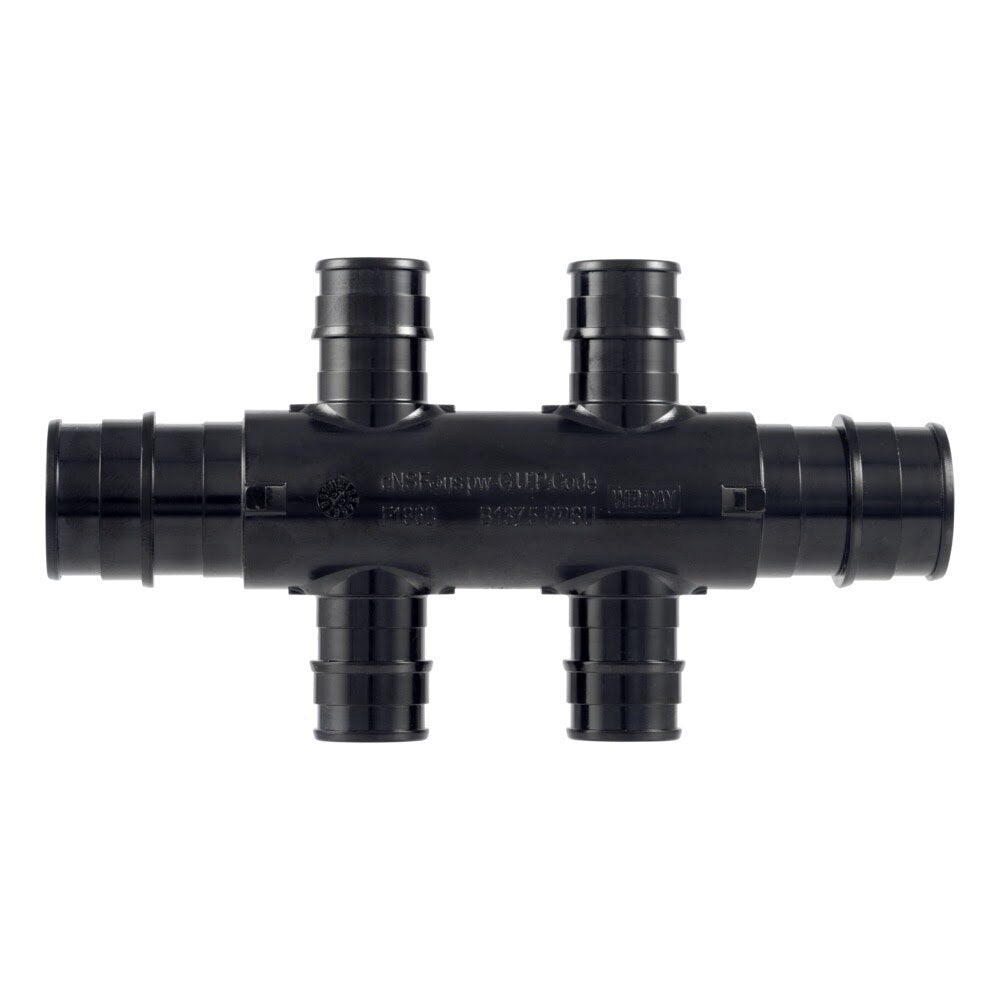

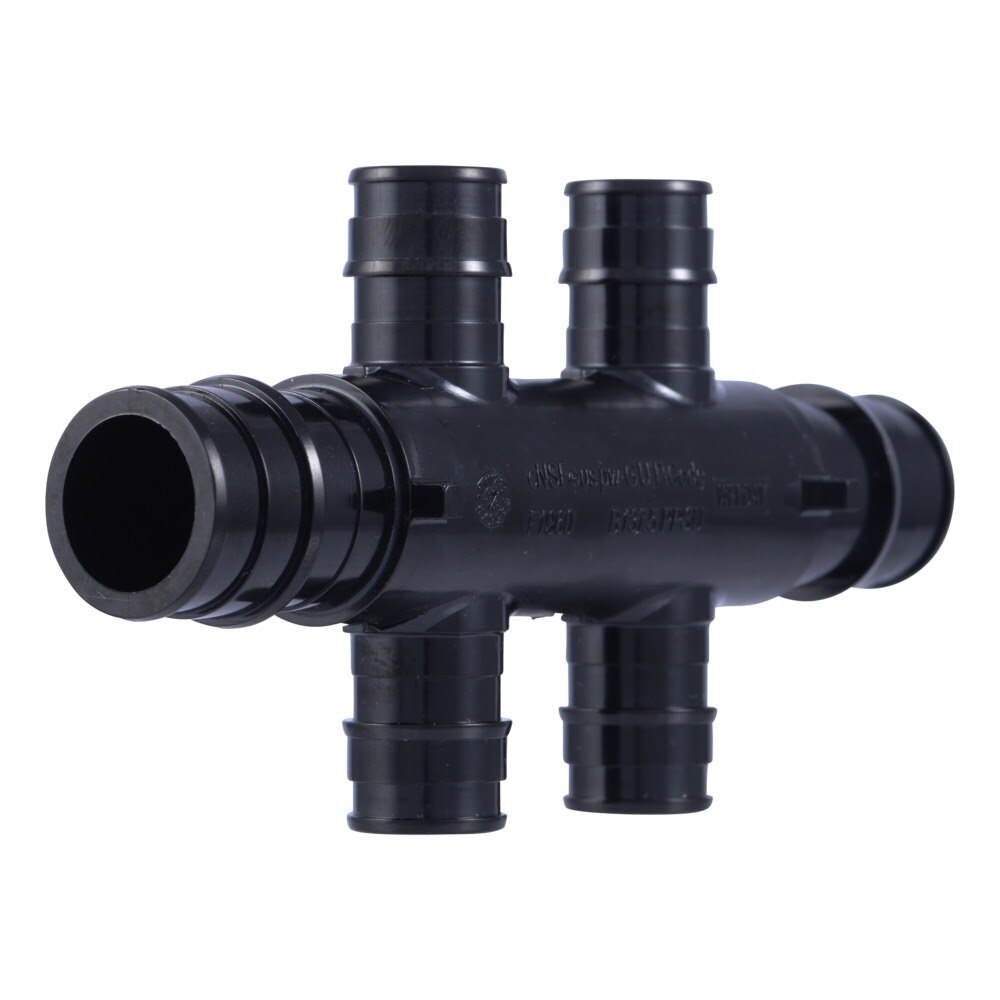

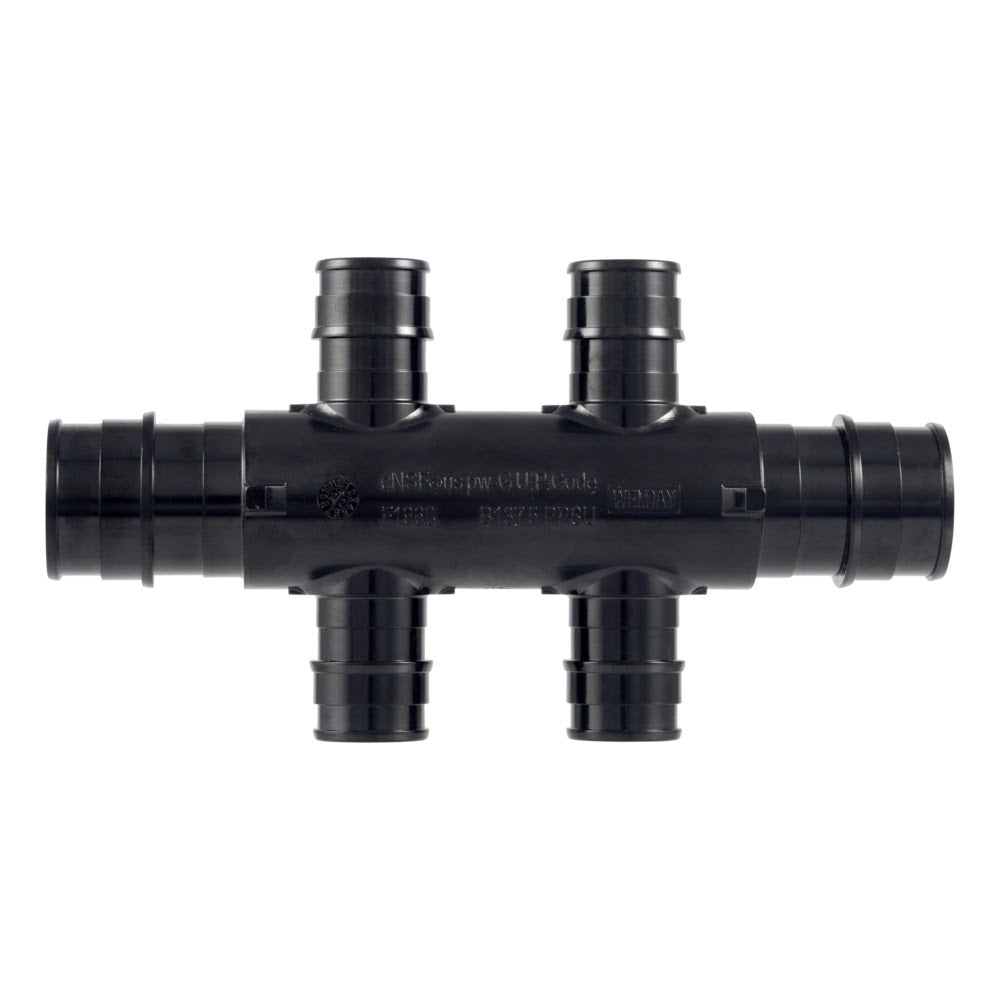

SharkBite UAMPT4OHW Description
The SharkBite UAMPT4OHW is a PPSU poly expansion multi-port tee designed for use with PEX-A tubing. It features a 3/4 in. main run with four 1/2 in. open opposing outlets for compact water distribution and is approved for potable water, recirculation, reclaimed water, hydronic heating and cooling, and direct burial applications.
SharkBite UAMPT4OHW Includes
- (1) SharkBite PEX-A Multi-Port Tee
SharkBite UAMPT4OHW Features
- Designed for use with PEX-A tubing
- 3/4 in. main run with four 1/2 in. open opposing outlets
- PPSU polymer body
- Use with SharkBite expansion rings
- Approved for potable water, recirculation, reclaimed water, hydronic heating and cooling, and direct burial applications
- Pressure rated to 80 psi at 200 F, 100 psi at 180 F, and 160 psi at 73.4 F
- Certified to ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, and NSF/ANSI/CAN 372
SharkBite UAMPT4OHW Specifications
| Brand | SharkBite |
| Part Number | UAMPT4OHW |
| Product Type | Poly Expansion Multi-Port Tee |
| Connection Type | PEX-A |
| Main Size | 3/4 in. x 3/4 in. |
| Outlet Size | 1/2 in. |
| Number of Outlets | 4 |
| Outlet Configuration | Open, Opposing |
| Body Material | PPSU |
| Maximum Working Pressure | 80 psi at 200 F; 100 psi at 180 F; 160 psi at 73.4 F |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling up to 50% glycol concentration, and direct burial |
| Certifications | ASTM F1960; ASTM F877; CSA B137.5; NSF/ANSI 14; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372; ASTM E84; CAN/ULC S102.2; ASTM E119; CAN/ULC S101 |
| Product Length (in) | 4.40 |
| Product Width (in) | 1.62 |
| Product Height (in) | 1.18 |
| Product Weight (lbs) | 0.07 |
