SharkBite UC0235 Description

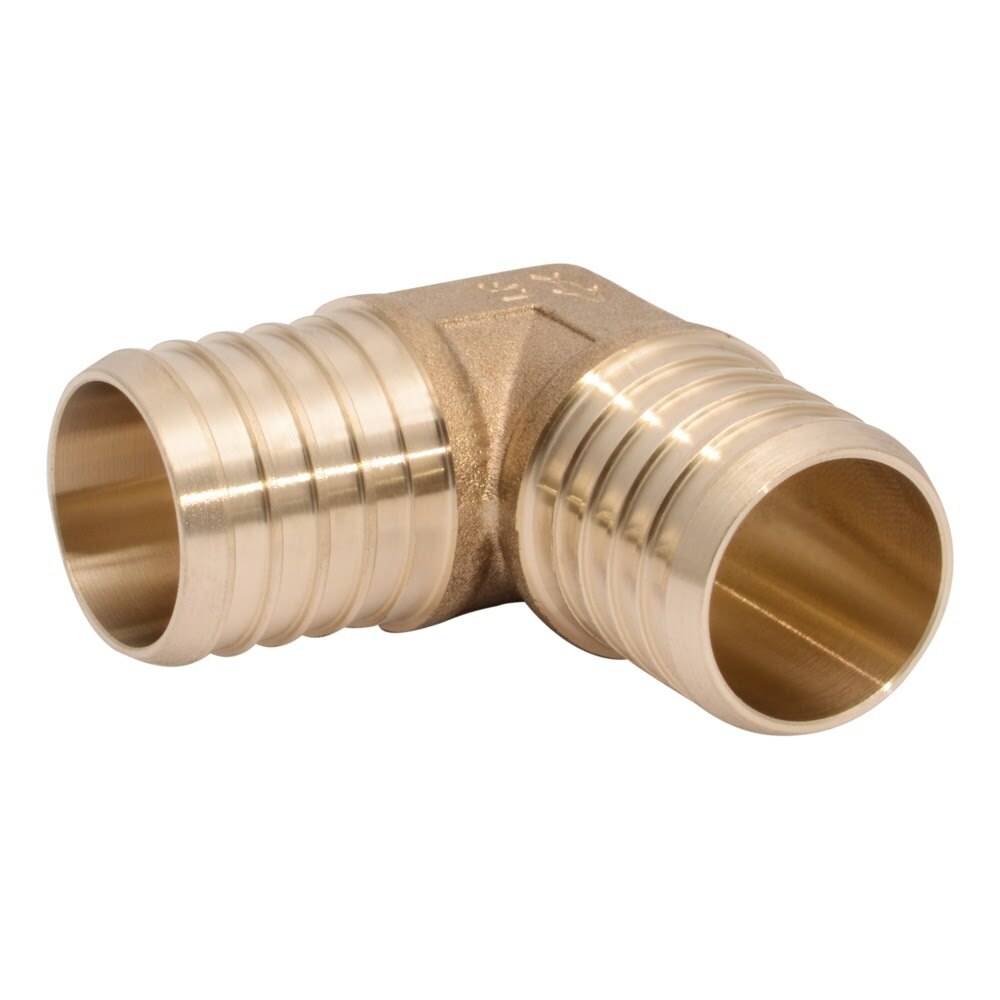

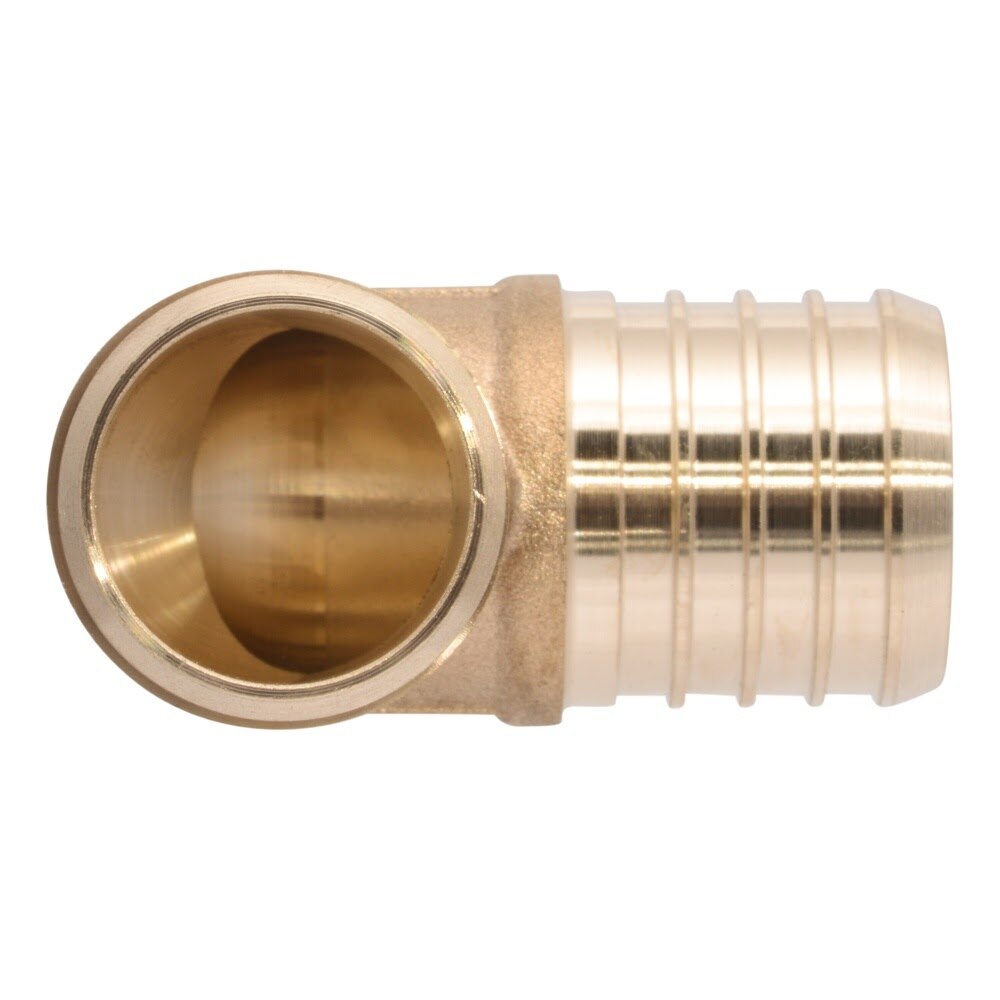

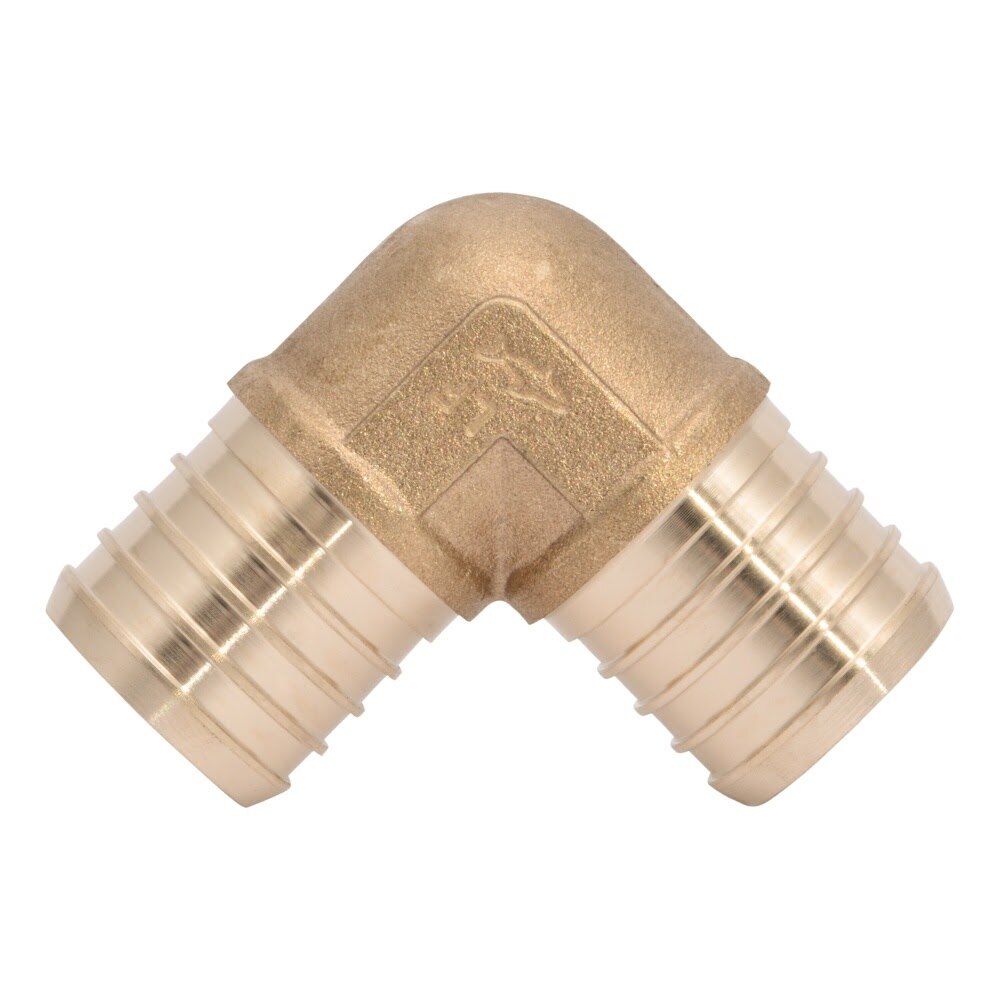

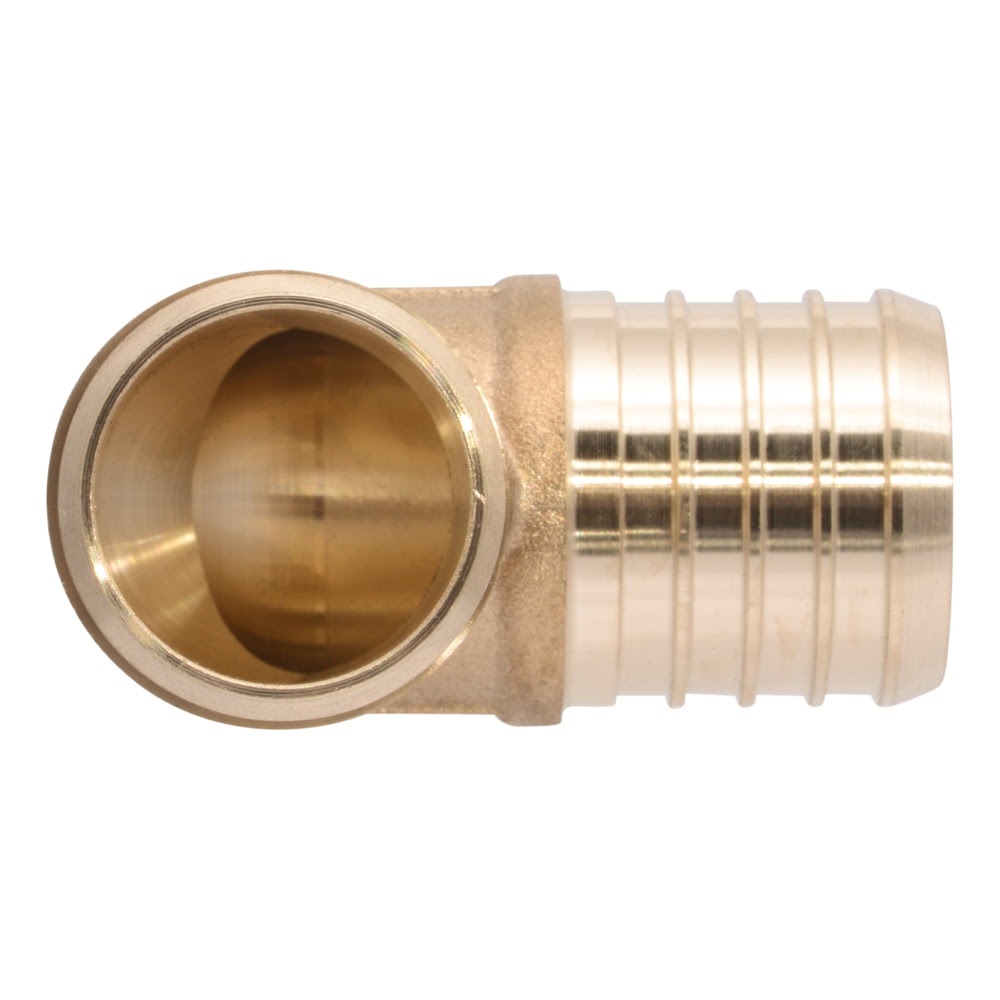

The SharkBite UC0235 is a 1-1/4 in. x 1-1/4 in. brass barb 90 degree elbow designed to connect two same-size PEX or PE-RT pipes. Made from lead-free DZR brass, it installs with copper crimp rings or stainless steel clamps and is certified for potable water and radiant heating applications.
SharkBite UC0235 Includes
- (1) 1-1/4 in. x 1-1/4 in. Brass Barb Elbow
SharkBite UC0235 Features
- 90 degree elbow connects two 1-1/4 in. same-size PEX lines
- Compatible with PEX and PE-RT pipe
- Lead-free DZR brass construction
- Installs with copper crimp rings or stainless steel clamps
- Certified for potable water and radiant heating applications
- Rated for 33 F at 160 psi minimum and 200 F at 80 psi maximum
SharkBite UC0235 Specifications
| Brand | SharkBite |
| SKU | UC0235 |
| Product Type | Brass barb elbow |
| Angle | 90 Degree |
| Nominal Size | 1-1/4 in. x 1-1/4 in. |
| Pipe Compatibility | PEX and PE-RT |
| Material | Lead-free DZR brass |
| Installation Method | Copper crimp rings or stainless steel clamps |
| Application | Potable water and radiant heating |
| Minimum Working Temperature | 33 F at 160 psi |
| Maximum Working Temperature | 200 F at 80 psi |
| Product Length (in.) | 5.63 |
| Product Width (in.) | 2.65 |
| Product Height (in.) | 5.63 |
| Shipping Weight (lb.) | 0.29 |
