SharkBite UC086LFZ Description

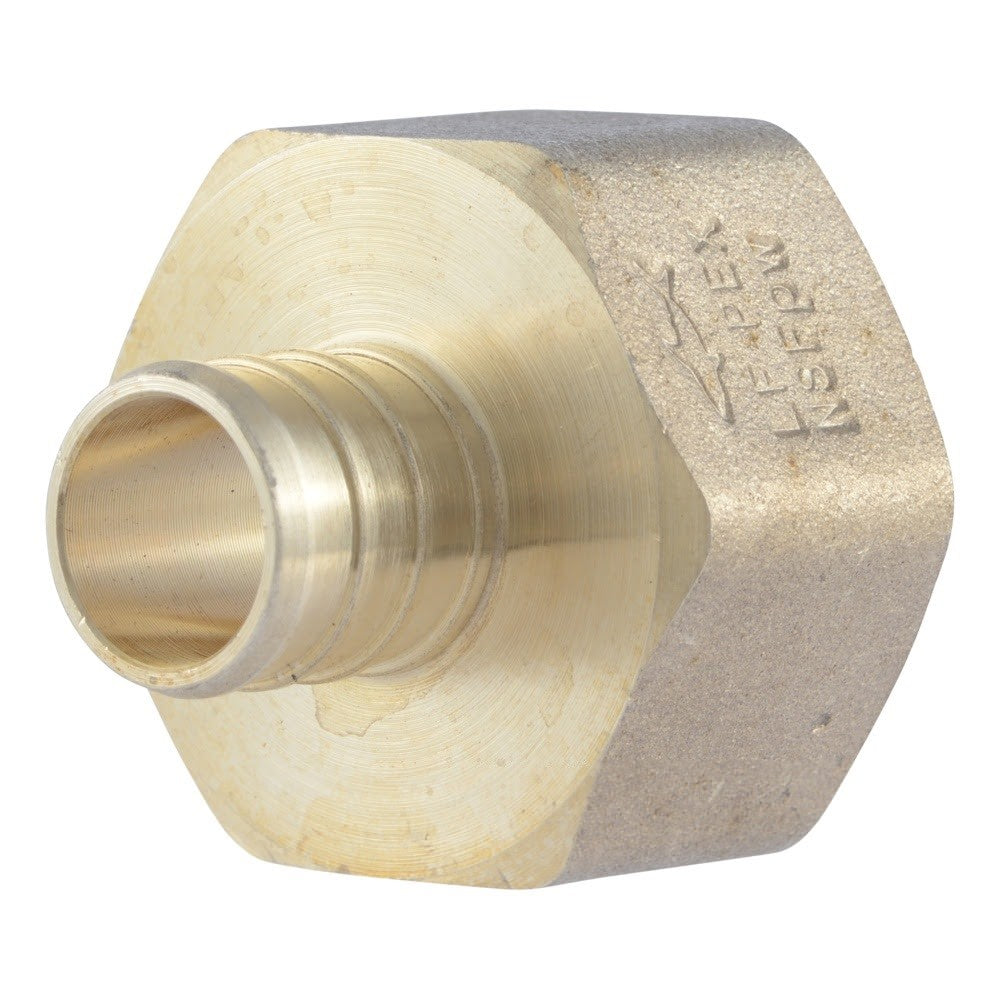

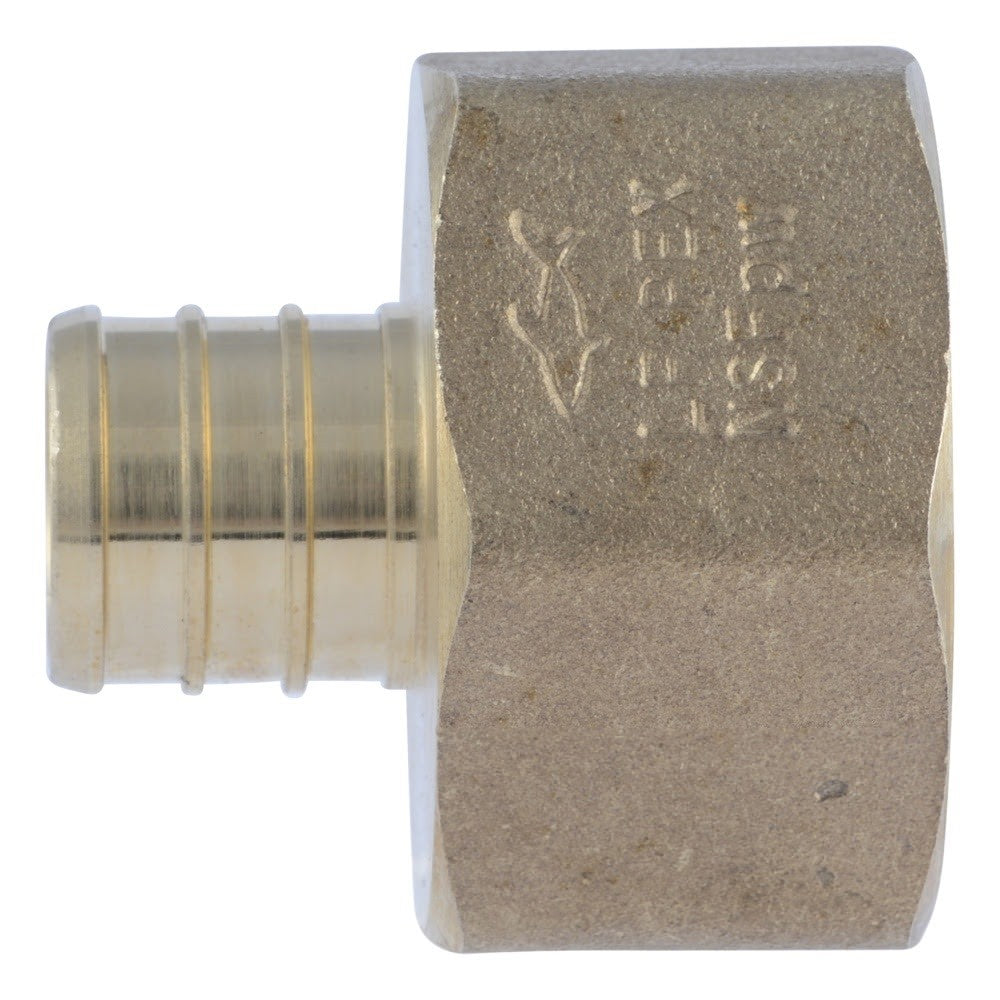

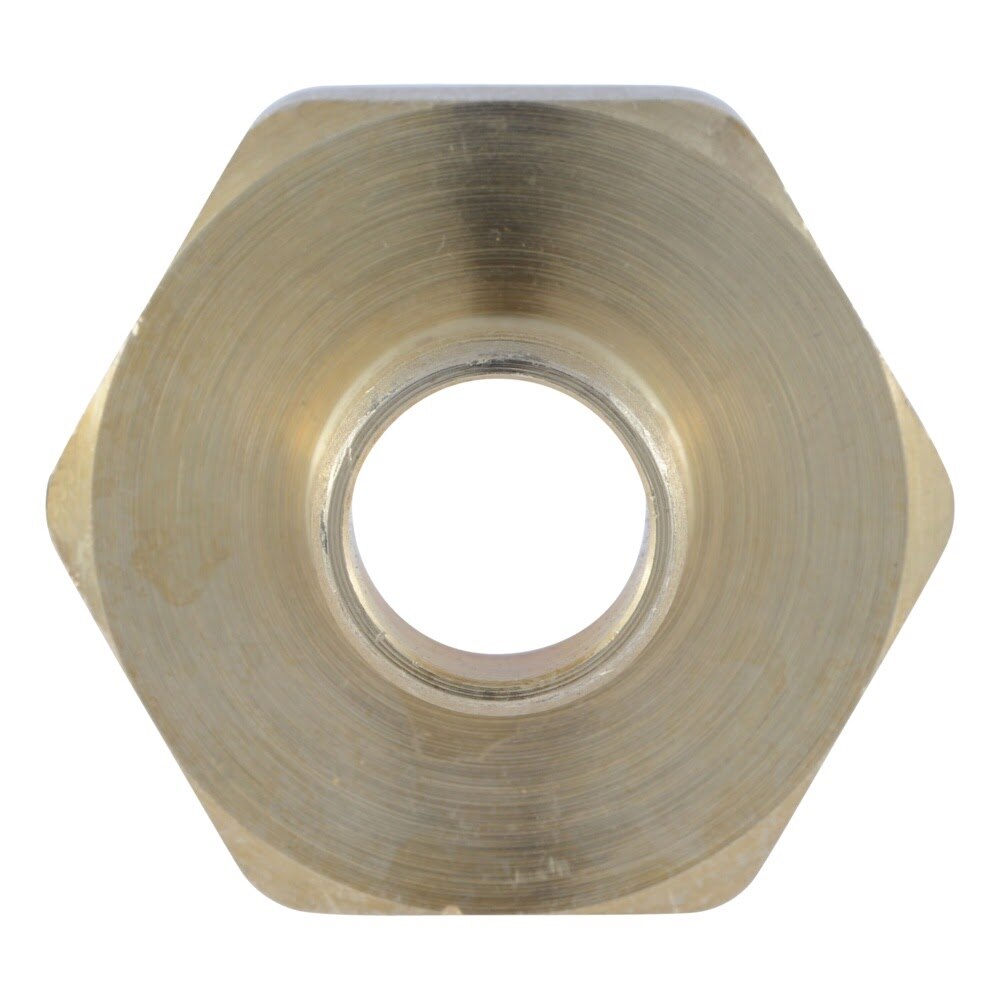

The SharkBite UC086LFZ brass PEX barb female adapter connects 3/4 in. PEX tubing to a 1 in. female threaded connection. Made from lead-free DZR brass, it is suitable for potable water distribution and hydronic heating applications and works with copper crimp rings or stainless steel clamps.
SharkBite UC086LFZ Includes
- (1) Brass PEX barb female adapter fitting
SharkBite UC086LFZ Features
- Lead-free DZR brass construction
- Connects 3/4 in. PEX tubing to a 1 in. female threaded connection
- Compatible with PEX-A, PEX-B, and PEX-C pipe
- Works with copper crimp ring or stainless steel clamp connection methods
- Suitable for potable water distribution and hydronic heating applications
- Rated for up to 160 PSI working pressure
- Maximum working temperature of 200 F
- No flames, glue, fluxes, or solvents needed
SharkBite UC086LFZ Specifications
| Material | Lead-free DZR brass |
| Fitting Type | Female adapter |
| End 1 Connection Type | PEX barb / crimp |
| End 1 Size | 3/4 in. |
| End 2 Connection Type | Female pipe thread |
| End 2 Size | 1 in. |
| Compatible PEX Type | PEX-A / PEX-B / PEX-C |
| Application | Potable water, hydronic heating |
| Maximum Working Pressure | 160 PSI |
| Maximum Working Temperature | 200 F |
| Minimum Working Temperature | 33 F |
| Safety Listing | NSF |
| Code Approvals | ASTM F876/CSA B137.5, UPC, IPC, cUPC listed, NSF 14 listed |
| Complies with Federal Lead Guidelines | Yes |
| Each Package Length | 1.68 in. |
| Each Package Width | 3.13 in. |
| Each Package Height | 5.00 in. |
| Each Shipping Weight | 0.25 lb |
| Pack Quantity | 1 |
| Minimum Order Quantity | 12 |
| UPC | 697285503144 |
