SharkBite UC088LF Description

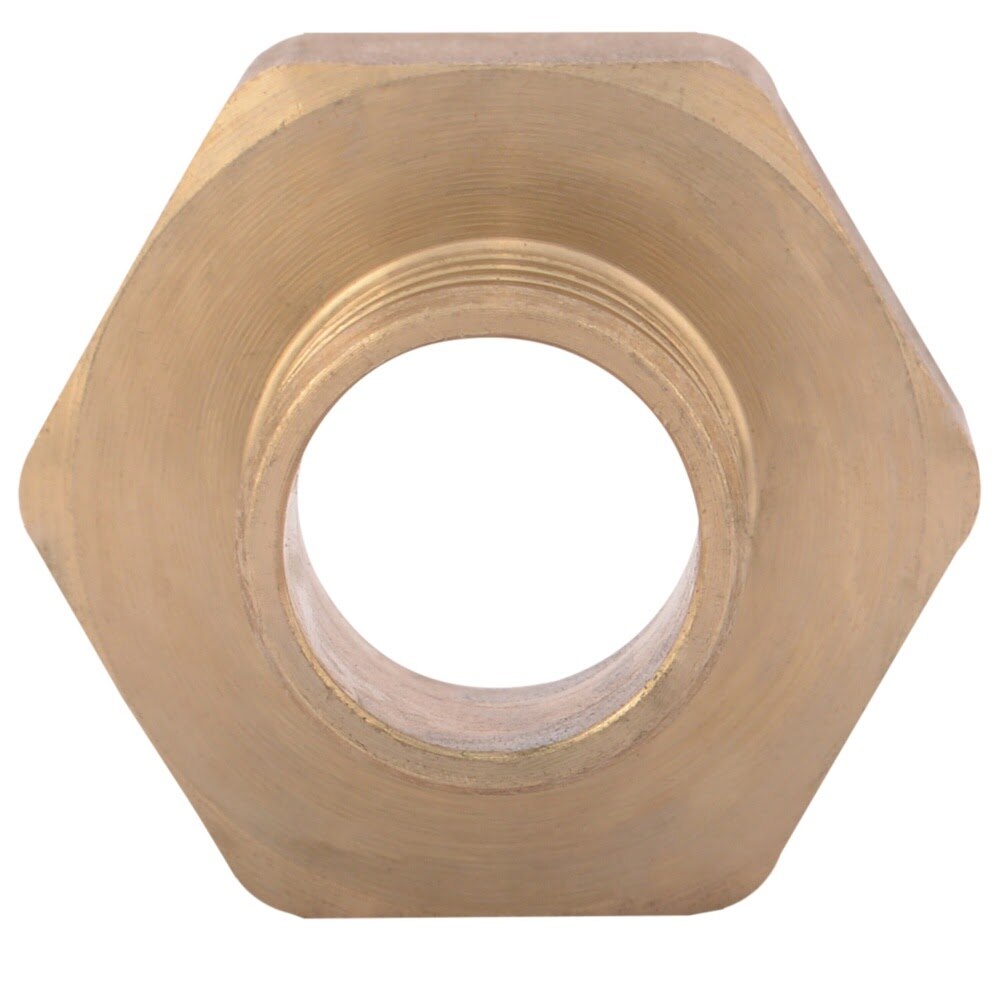

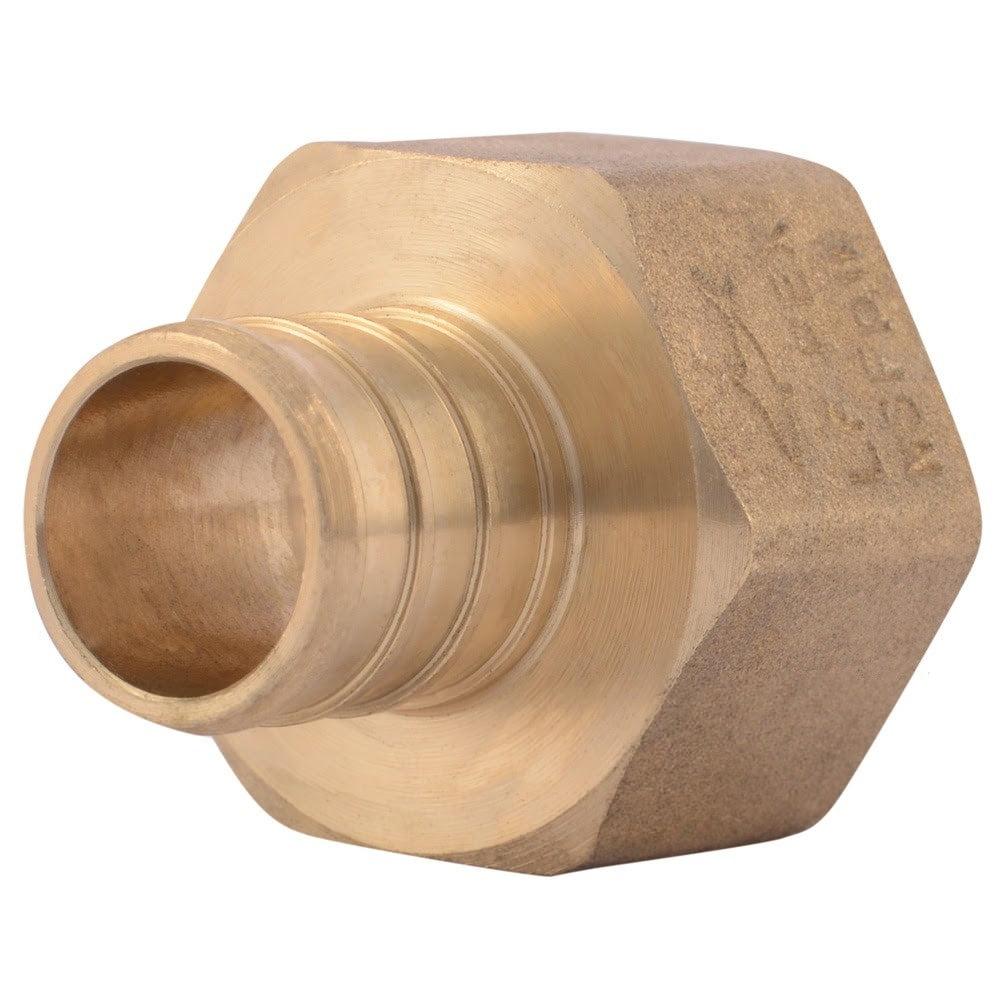

The SharkBite UC088LF is a 3/4 in. x 3/4 in. brass PEX barb x FNPT female adapter designed to connect PEX tubing to female threaded pipe connections. Made from lead-free DZR brass, it is compatible with PEX-A, PEX-B, and PEX-C and is suitable for potable water distribution and hydronic heating applications.
SharkBite UC088LF Includes
- (1) 3/4 in. x 3/4 in. brass PEX barb x FNPT female adapter
SharkBite UC088LF Features
- 3/4 in. PEX barb/crimp connection x 3/4 in. FNPT connection
- Lead-free DZR brass construction
- Compatible with PEX-A, PEX-B, and PEX-C pipe
- Suitable for potable water distribution and hydronic heating applications
- Works with copper crimp ring or stainless steel clamp connection methods
- Easy to install with no flame, glue, flux, or solvents required
- Maximum working pressure of 160 PSI
- Maximum working temperature of 200 F
- NSF listed and complies with federal lead guidelines
SharkBite UC088LF Specifications
| Product Type | Female adapter |
| Material | Lead-free DZR brass |
| Connection Type End 1 | Crimp |
| Connection Type End 2 | FNPT |
| Diameter End 1 | 3/4-in |
| Diameter End 2 | 3/4-in |
| PEX Type | PEX-A/PEX-B/PEX-C |
| Common Use | Potable water |
| Applications | Potable water distribution and hydronic heating |
| Maximum Working Pressure | 160 PSI |
| Minimum Working Temperature | 33 F |
| Maximum Working Temperature | 200 F |
| Package Quantity | 1 |
| Color/Finish Family | Bronze |
| Complies with Federal Lead Guidelines | Yes |
| Safety Listing | NSF safety listing |
| Code Approvals | ASTM F876/CSA B137.5, UPC, IPC cUPC Listed, NSF 14 Listed |
| Warranty | 25-year limited |
| Product Length | 0.75 in. |
| Product Width | 1.80 in. |
| Product Height | 0.75 in. |
| Product Weight | 0.14 lb |
