SharkBite UC24616 Description

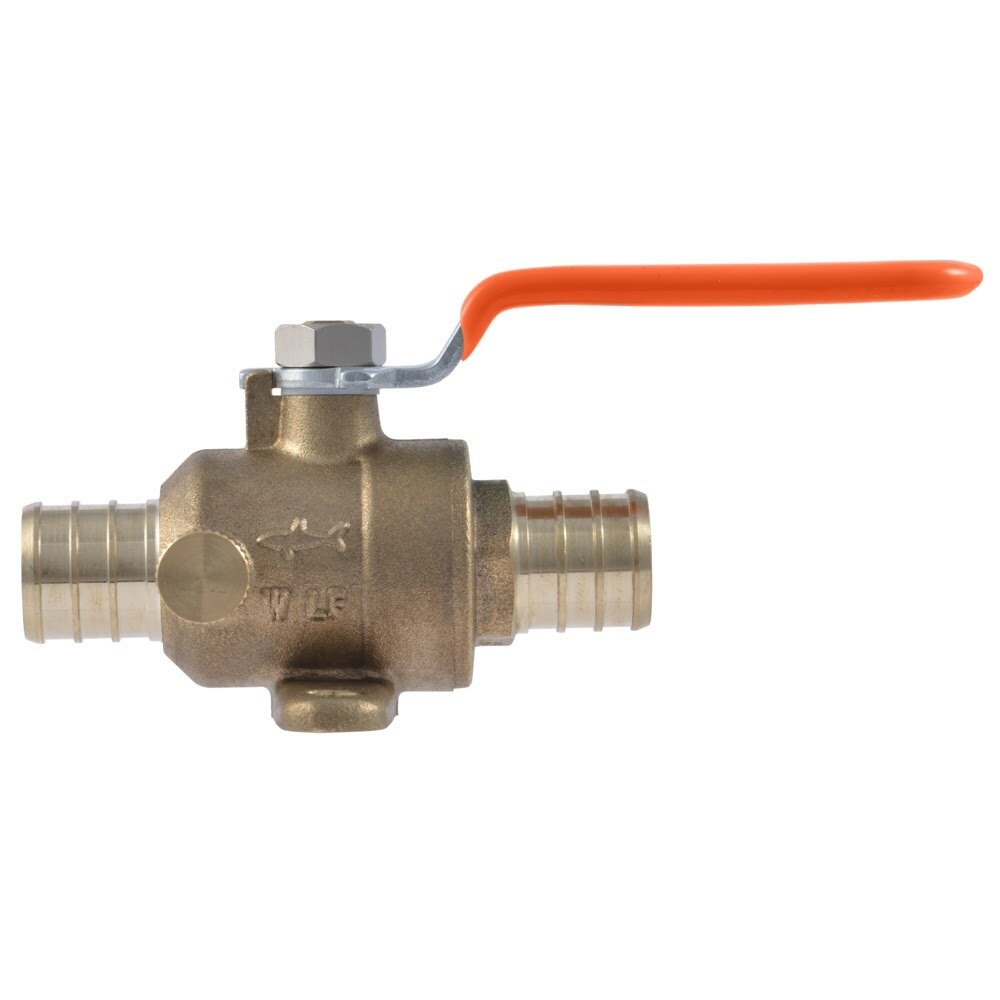

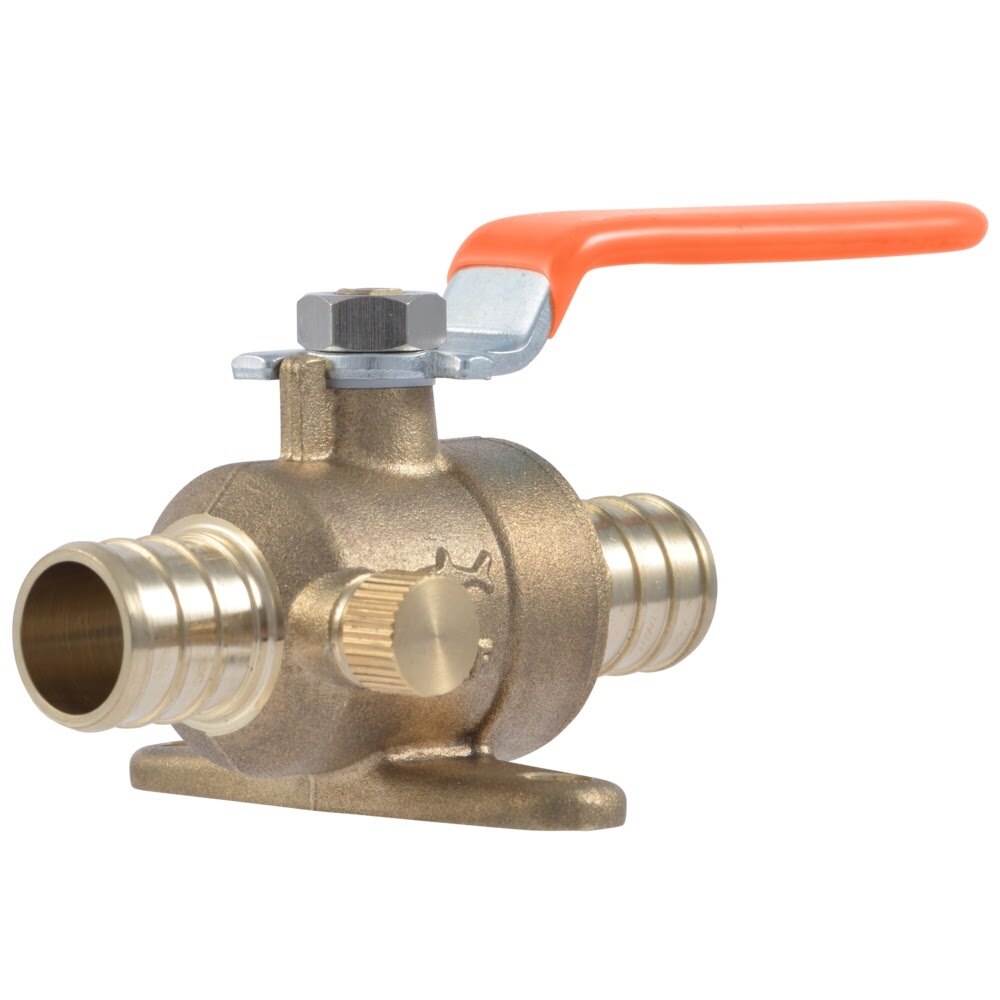

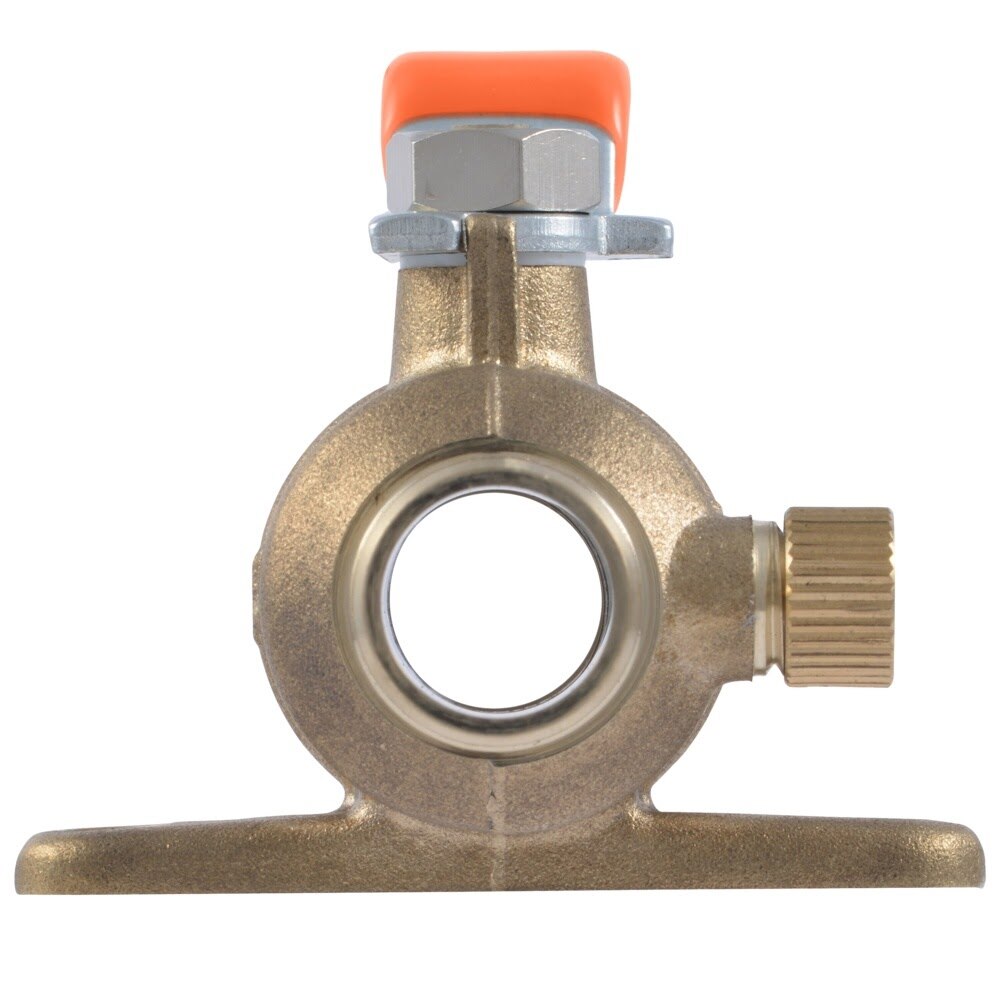

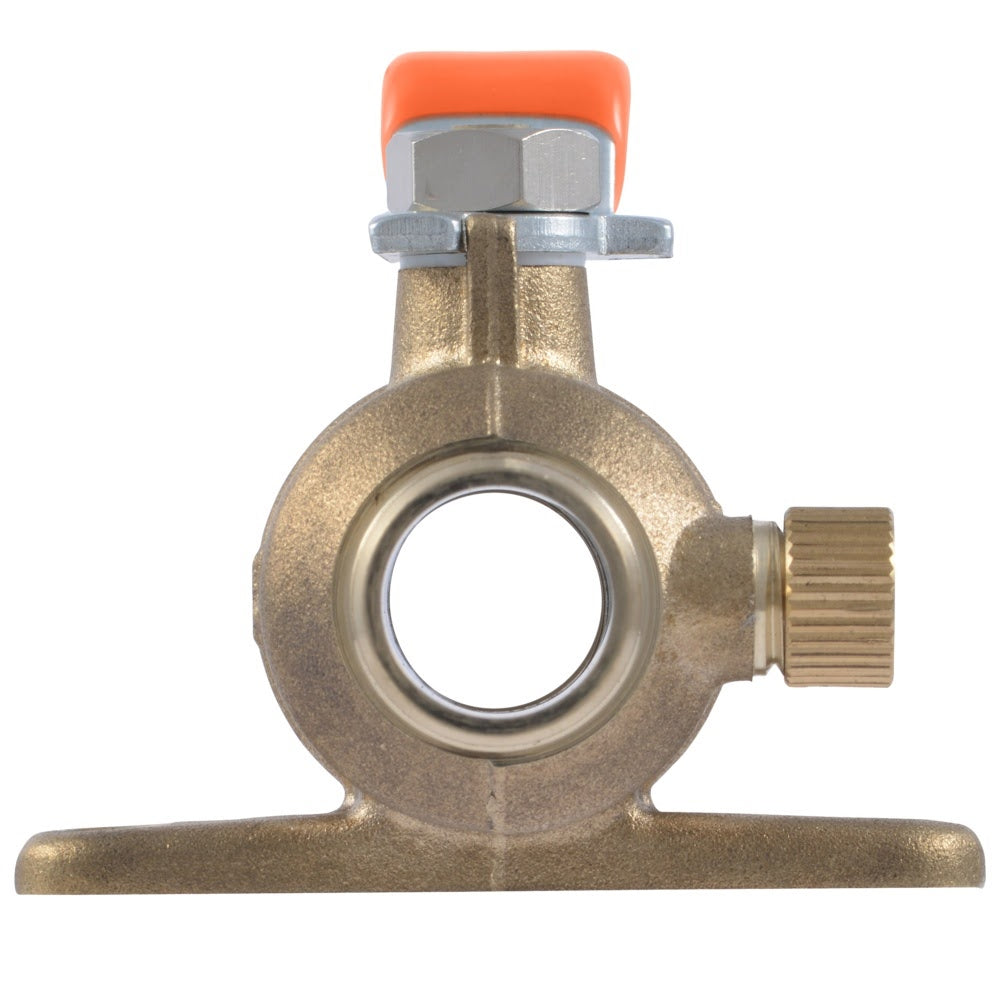

The SharkBite UC24616 is a 3/4 in x 3/4 in quarter-turn brass ball valve designed for PEX and PE-RT plumbing systems. It features a lever handle for quick shutoff, an integrated drain and mounting bracket, and lead-free DZR brass construction for potable water and radiant heating applications.
SharkBite UC24616 Includes
- (1) 3/4 in x 3/4 in Quarter-Turn Ball Valve with Drain and Mounting Bracket
SharkBite UC24616 Features
- Quarter-turn lever handle provides quick shutoff control
- Integrated drain and mounting bracket support cleaner installation
- Compatible with PEX-A, PEX-B, PEX-C, and PE-RT pipe
- Connects to PEX pipe with copper crimp rings or stainless steel clamps
- Made from lead-free DZR brass
- Certified for potable water and radiant heating applications
- Rated for up to 160 PSI
- Suitable for indoor and outdoor use
SharkBite UC24616 Specifications
| Material | Lead-free DZR brass |
| Valve Type | Quarter-turn ball valve |
| Connection Type | PEX barb |
| Inlet Diameter | 3/4 in. |
| Outlet Diameter | 3/4 in. |
| Compatible Pipe Material | PEX-A, PEX-B, PEX-C, PE-RT |
| Handle Style | Lever |
| Application | Potable water, radiant heating |
| Maximum Pressure | 160 PSI |
| Minimum Working Temperature | 33 F at 160 PSI |
| Maximum Working Temperature | 200 F at 80 PSI |
| Indoor/Outdoor | Indoor, Outdoor |
| Product Length | 4.41 in. |
| Product Width | 2.13 in. |
| Product Height | 2.33 in. |
| Shipping Weight | 0.52 lb |
