SharkBite UC248LF Description

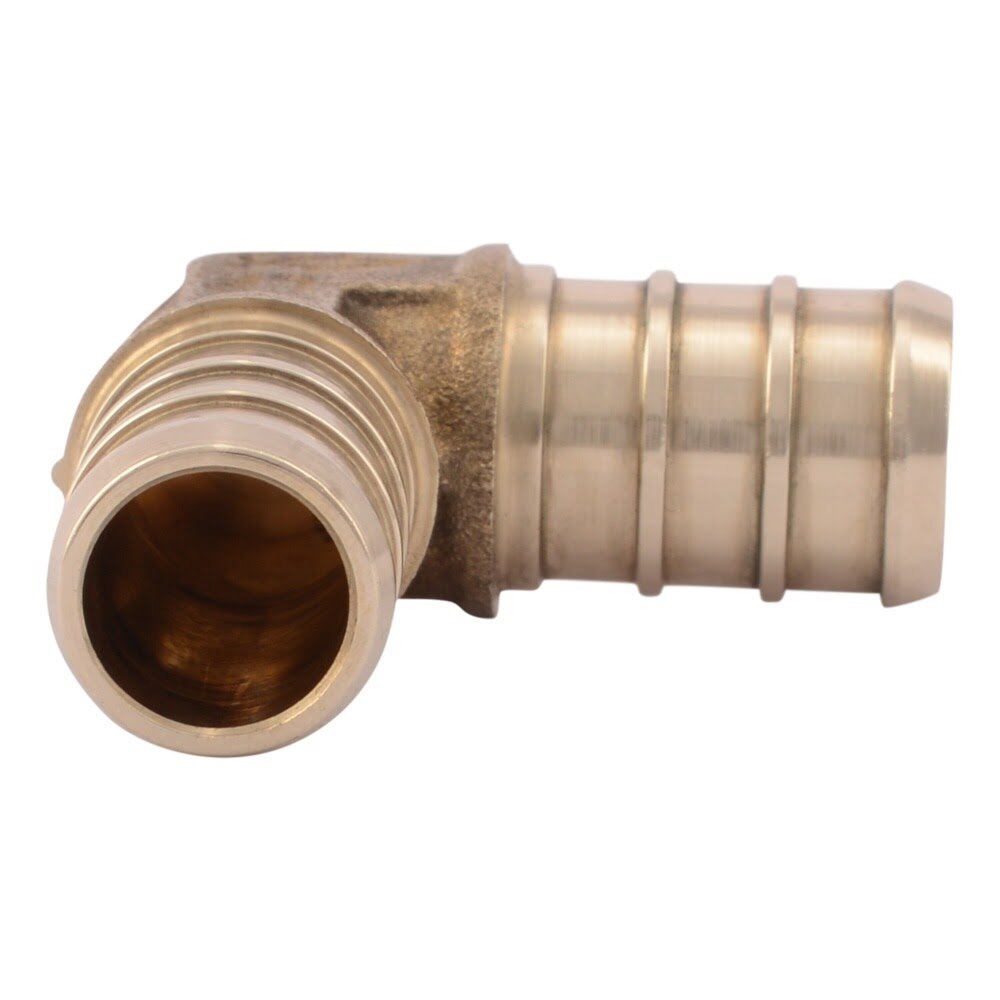

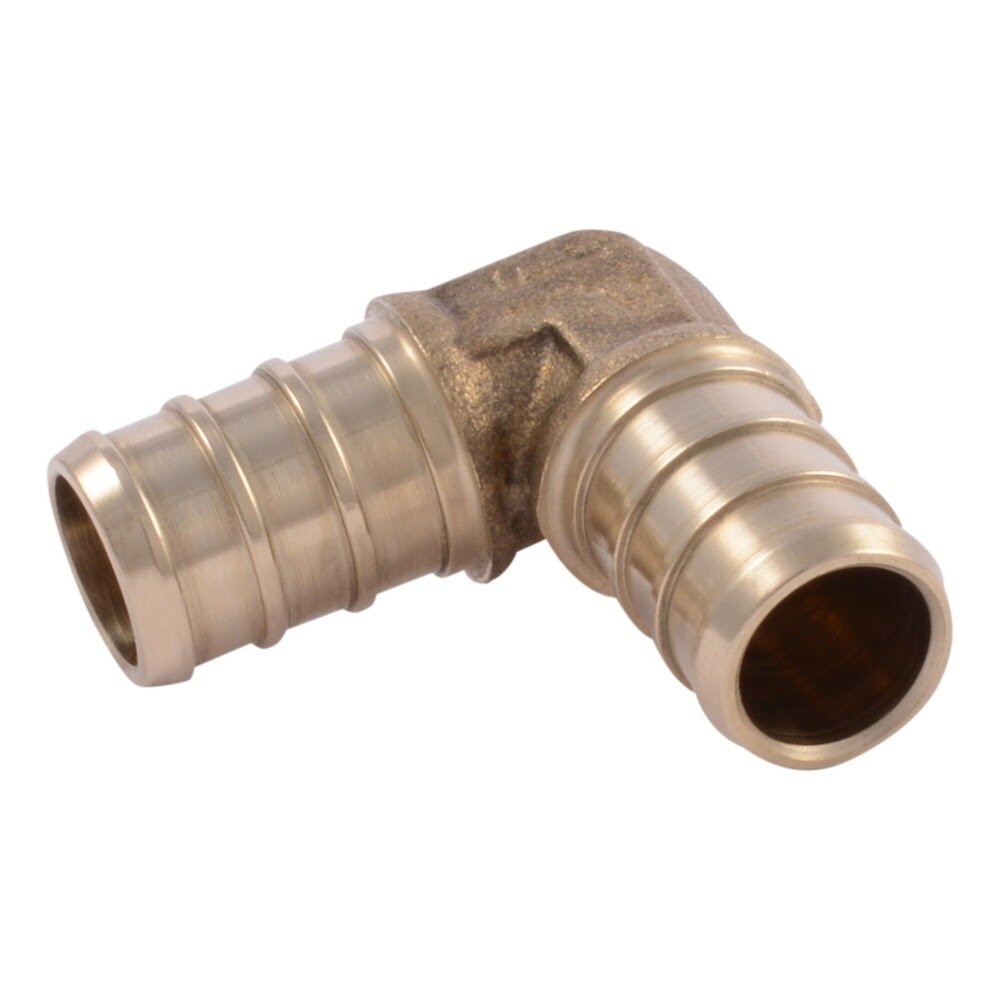

The SharkBite UC248LF is a 1/2 in. x 1/2 in. brass PEX barb 90 Degree elbow designed to create durable right-angle connections in PEX plumbing systems. Made from lead-free DZR brass, it is suitable for potable water distribution and hydronic heating applications and works with either copper crimp rings or stainless steel clamp connection methods.
SharkBite UC248LF Includes
- (1) 1/2 in. x 1/2 in. Brass PEX Barb 90 Degree Elbow
SharkBite UC248LF Features
- 1/2 in. barb x 1/2 in. barb elbow for PEX tubing
- 90 Degree design creates clean right-angle turns
- Lead-free DZR brass construction for durability
- Compatible with PEX-A, PEX-B, and PEX-C pipe
- Suitable for potable water distribution and hydronic heating applications
- Works with copper crimp rings or stainless steel clamp connection methods
- No flames, glue, flux, or solvents are needed for installation
SharkBite UC248LF Specifications
| Product Type | PEX Fitting |
| Fitting Type | Elbow |
| Fitting Style | Barb |
| Angle | 90 Degree |
| Material | Brass |
| Construction | Lead-Free DZR Brass |
| Connection Type End 1 | Crimp |
| Connection Type End 2 | Crimp |
| Diameter End 1 | 1/2 in. |
| Diameter End 2 | 1/2 in. |
| PEX Compatibility | PEX-A/PEX-B/PEX-C |
| Application | Potable water, hydronic heating |
| Maximum Working Temperature | 200 F |
| Minimum Working Temperature | 33 F |
| Maximum Working Pressure | 160 PSI |
| Complies with Federal Lead Guidelines | Yes |
| Safety Listing | NSF safety listing |
| Code Approvals | ASTM F876/CSA B137.5, UPC, IPC cUPC Listed, NSF 14 Listed |
| Warranty | 25-year limited |
| Package Quantity | 1 |
Toolup Part # :
885343
