SharkBite UC24984 Description

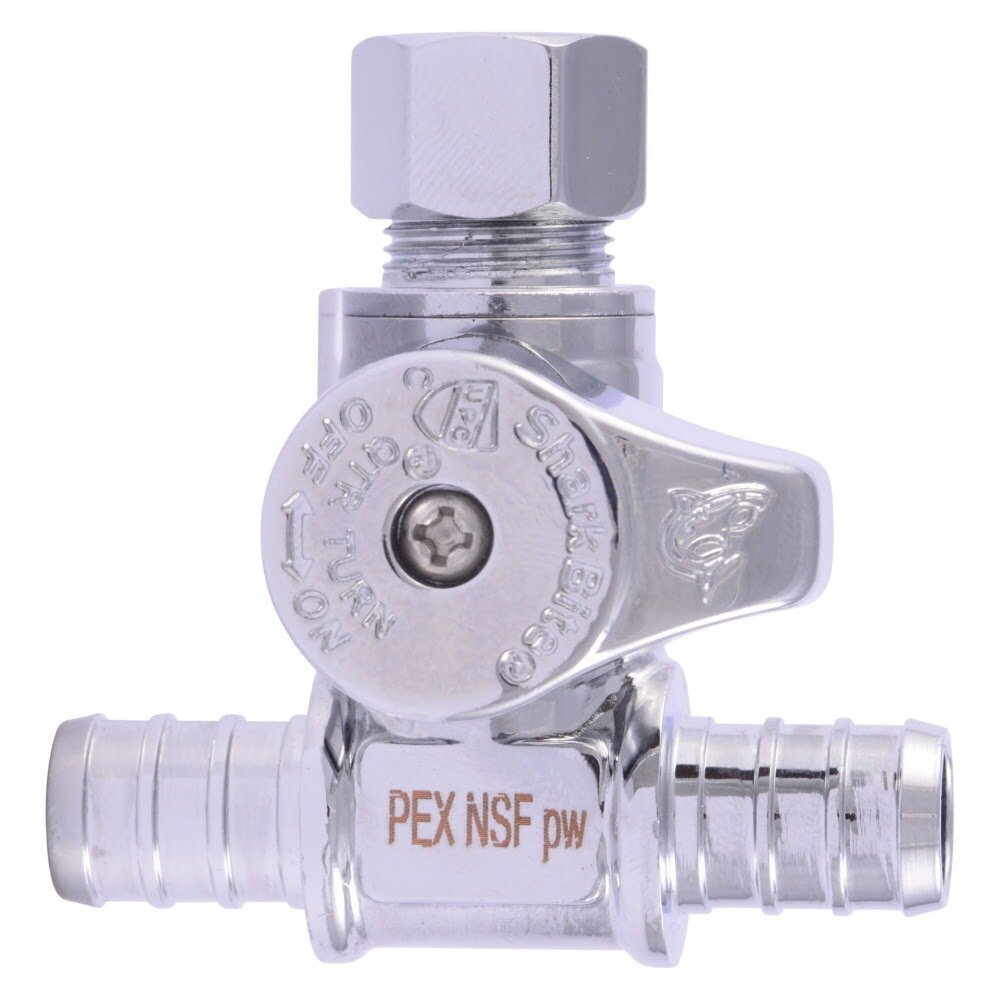

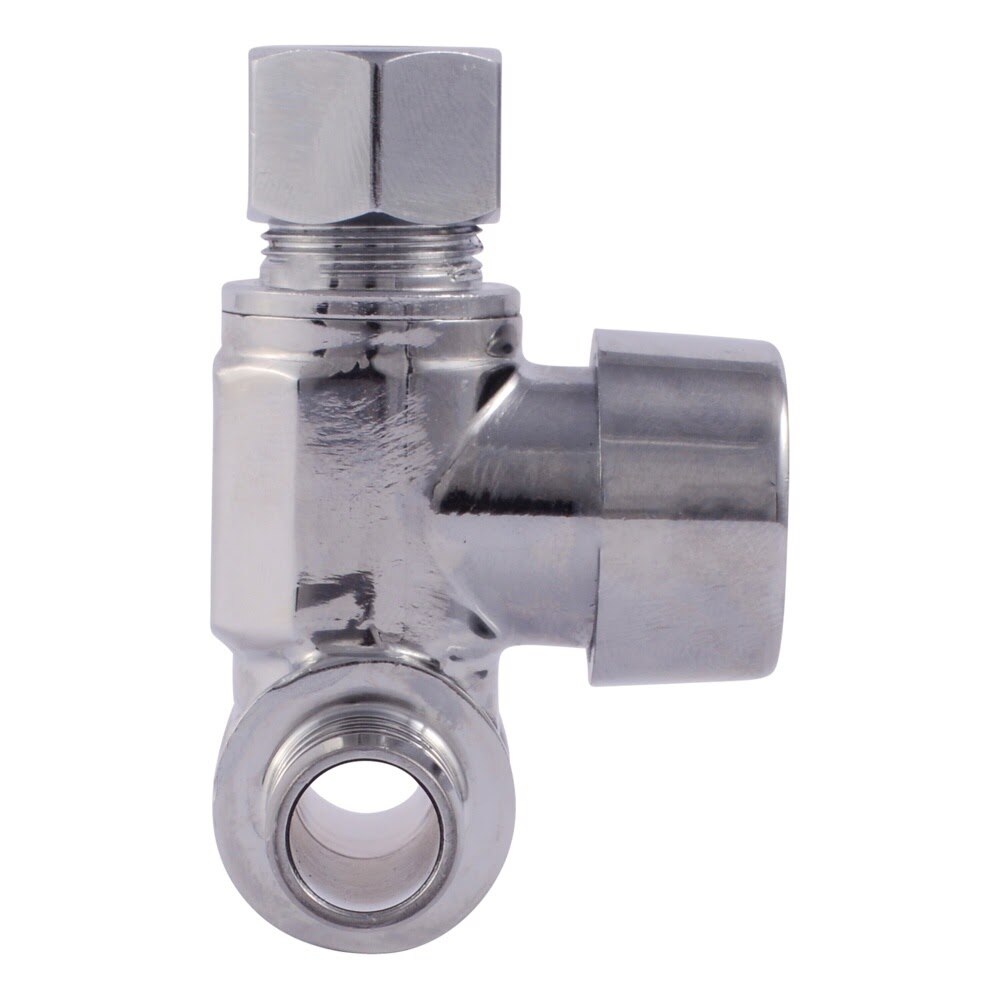

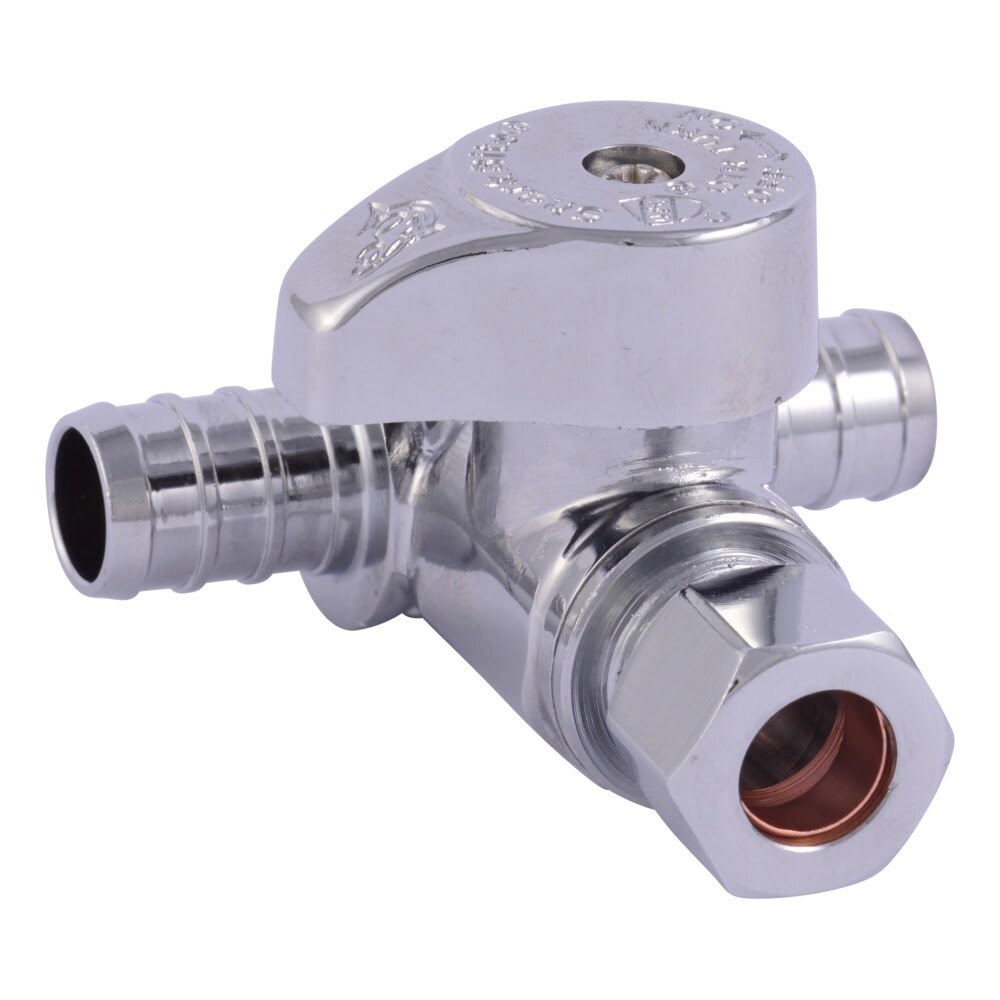

This quarter turn tee stop valve connects 1/2 in. PEX lines to a 3/8 in. OD compression outlet for water supply applications. Made from lead-free brass, it is compatible with PEX-A, PEX-B, PEX-C, and PERT pipe and installs using copper crimp rings or stainless steel clamps.
SharkBite UC24984 Includes
- (1) 1/2 in. PEX x 1/2 in. PEX x 3/8 in. OD Compression Quarter Turn Tee Stop Valve
SharkBite UC24984 Features
- Quarter turn shutoff design for water supply applications
- 1/2 in. barb x 1/2 in. barb x 3/8 in. OD compression connection
- Compatible with PEX-A, PEX-B, PEX-C, and PERT pipe
- Made from lead-free DZR brass
- Installs with copper crimp rings or stainless steel PEX clamps
- Certified for potable water and radiant heating applications
- Maximum pressure rated to 125 PSI
- Maximum working temperature up to 200 F
SharkBite UC24984 Specifications
| Application | Water Supply |
| Material | Brass |
| Construction | Lead-free DZR brass |
| Compatible Pipe Material | PEX |
| Compatible Pipe Types | PEX-A, PEX-B, PEX-C, PERT |
| Connection Type | Barb x Compression |
| Connection Size | 1/2 in. x 1/2 in. x 3/8 in. OD |
| Valve Type | Quarter Turn Tee Stop Valve |
| Valve Configuration | Three Way |
| Indoor/Outdoor | Indoor |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 200 F |
| Minimum Working Temperature | 33 F at 160 psi |
| Compatible Products | Faucet, Humidifier, Ice Maker, Refrigerator, Toilet |
| Product Length | 2.26 in. |
| Product Width | 2.46 in. |
| Product Height | 1.46 in. |
| Shipping Weight | 0.36 lb |
Toolup Part # :
884224
