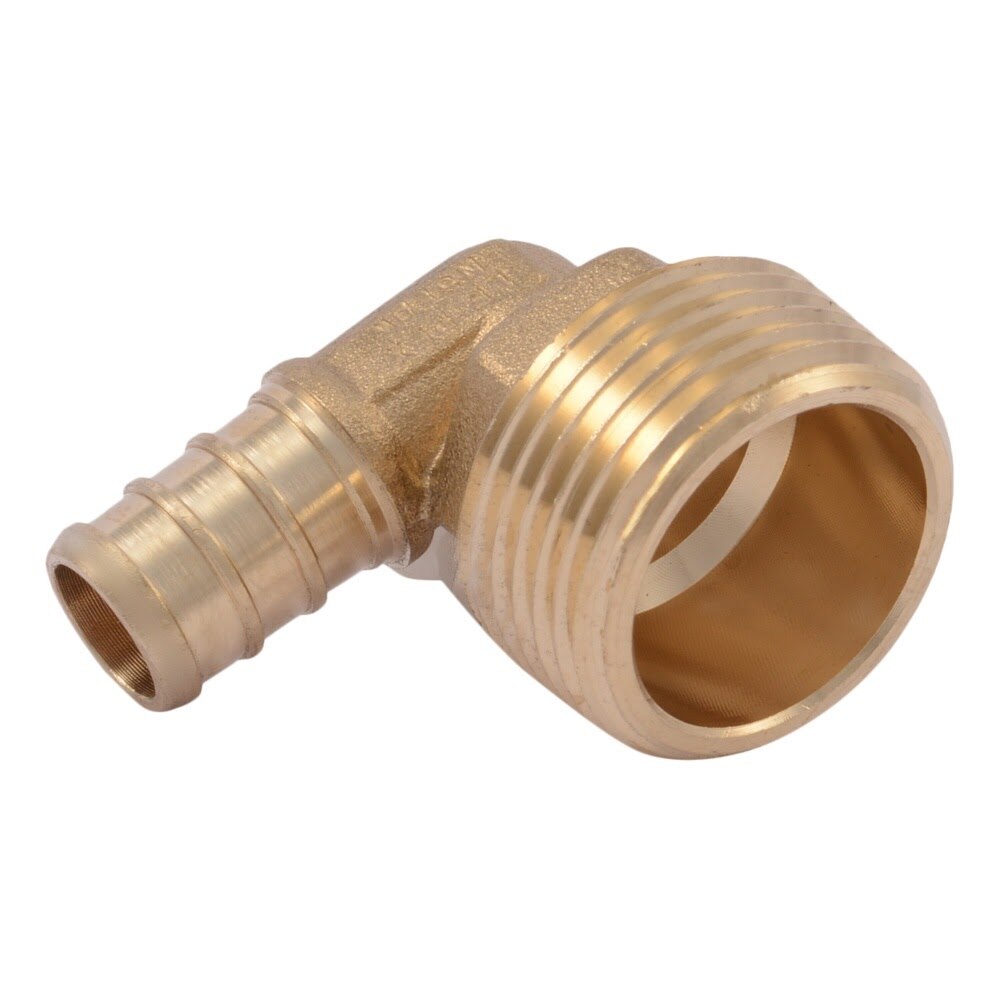

SharkBite UC278LF Description
The SharkBite brass barb adapter elbow makes a 90 degree transition from 1/2 in. PEX or PE-RT pipe to a 3/4 in. male NPT threaded connection. Made from lead-free DZR brass, it is certified for potable water and radiant heating applications and is rated for up to 160 PSI and 200 Degree F.
SharkBite UC278LF Includes
- (1) Brass Barb 90 Degree Adapter Elbow
SharkBite UC278LF Features
- Creates a 90 degree connection from 1/2 in. PEX to 3/4 in. MNPT
- Compatible with PEX and PE-RT pipe
- Made from lead-free DZR brass
- Certified for potable water and radiant heating applications
- Rated for up to 160 PSI maximum working pressure
- Maximum working temperature of 200 Degree F
- Compatible with PEX-A, PEX-B, and PEX-C systems
SharkBite UC278LF Specifications
| Brand | SharkBite |
| SKU | UC278LF |
| Fitting Type | Adapter elbow |
| Angle | 90 Degree |
| Material | Brass |
| Material Details | Lead-free DZR brass |
| Connection Type End 1 | PEX barb / crimp |
| Connection Size End 1 | 1/2 in. |
| Connection Type End 2 | MNPT |
| Connection Size End 2 | 3/4 in. |
| Compatible Pipe | PEX and PE-RT |
| PEX Type | PEX-A/PEX-B/PEX-C |
| Application | Potable water and radiant heating |
| Maximum Working Pressure | 160 PSI |
| Minimum Working Temperature | 33 Degree F |
| Maximum Working Temperature | 200 Degree F |
| Package Quantity | 1 |
| Product Length (in) | 1.64 |
| Product Width (in) | 1.83 |
| Product Height (in) | 1.64 |
| Product Weight (lb) | 0.18 |
| Complies with Federal Lead Guidelines | Yes |
| Safety Listing | NSF safety listing |
| Warranty | 25-year limited |
| Code Approvals | ASTM F1807, NSF/ANSI/CAN 61, NSF/ANSI 372, ASTM E84, and CAN/ULC S102.2 |
