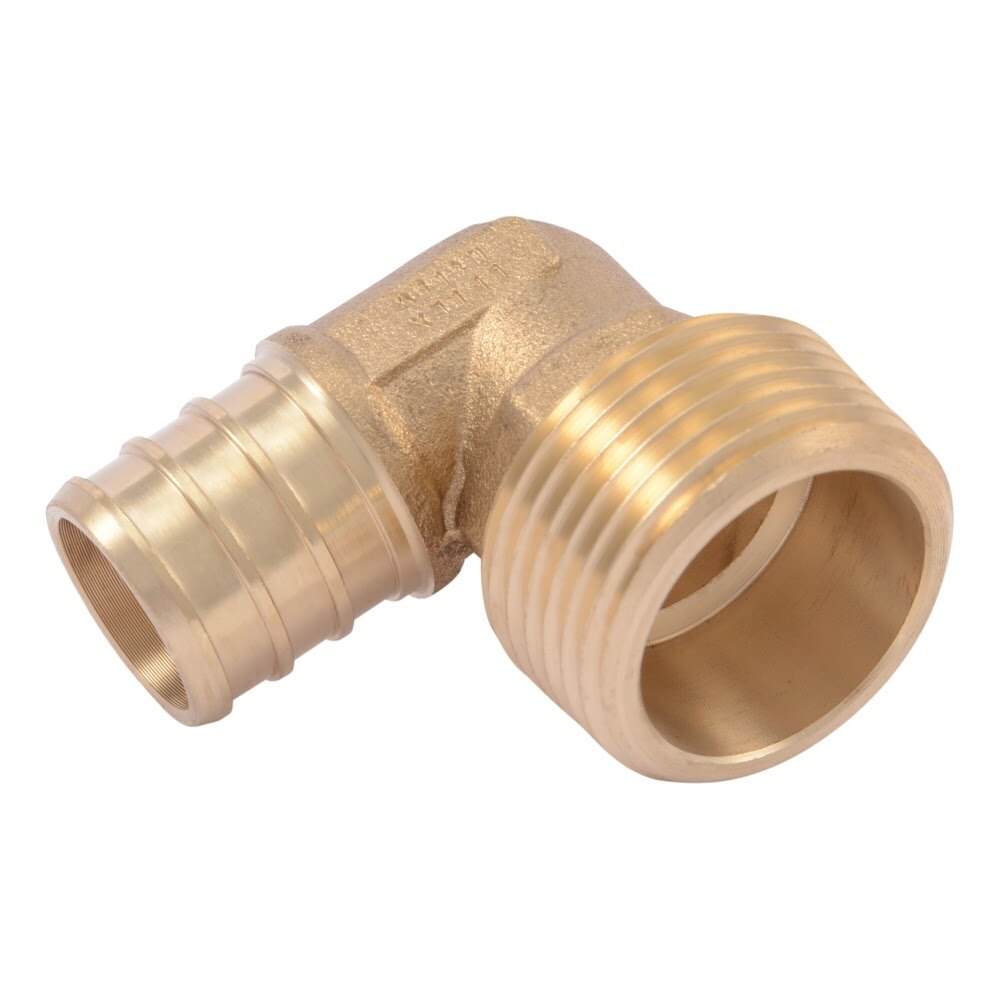

SharkBite UC286LF Description
This lead-free DZR brass 90 degree adapter elbow connects 3/4 in. PEX barb to 3/4 in. male NPT threads. It is designed for potable water and radiant heating applications and is compatible with PEX and PE-RT pipe.
SharkBite UC286LF Includes
- (1) Brass Barb Adapter Elbow 3/4 in. PEX x 3/4 in. MNPT
SharkBite UC286LF Features
- 90 degree adapter elbow transitions from PEX barb to male NPT threads
- Compatible with PEX and PE-RT pipe
- Made from lead-free DZR brass
- Certified for potable water and radiant heating applications
- Maximum working pressure of 160 psi
- Working temperature range from 33 degrees F to 200 degrees F
SharkBite UC286LF Specifications
| Material | Brass |
| Fitting Type | Adapter elbow |
| Angle | 90 degree |
| End 1 Connection | PEX barb |
| End 2 Connection | Male NPT |
| End 1 Size | 3/4 in. |
| End 2 Size | 3/4 in. |
| Compatible Pipe | PEX, PE-RT |
| PEX Type | PEX-A, PEX-B, PEX-C |
| Maximum Working Pressure | 160 psi |
| Minimum Working Temperature | 33 degrees F |
| Maximum Working Temperature | 200 degrees F |
| Applications | Potable water, radiant heating |
| Lead Free | Yes |
| Package Quantity | 1 |
| Product Length | 1.63 in. |
| Product Width | 1.03 in. |
| Product Height | 1.63 in. |
| Shipping Weight | 0.17 lb |
| Code Approvals | ASTM F1807; NSF/ANSI/CAN 61; NSF/ANSI 372; ASTM E84; CAN/ULC S102.2 |
| Warranty | 25-year limited |
