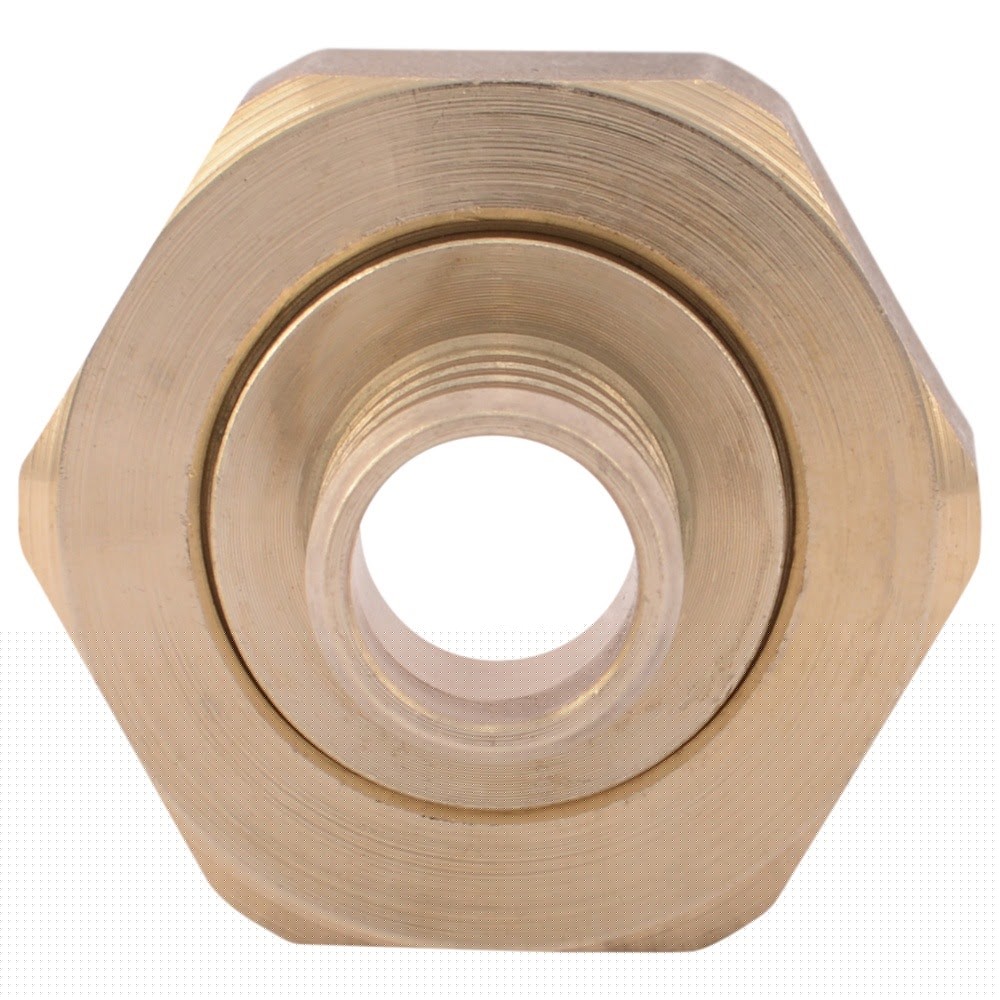

SharkBite UC534LF Description
The SharkBite UC534LF brass barb swivel adapter connects 1/2 in. PEX or PE-RT tubing to a 3/4 in. male NPSM threaded connection. Made from lead-free brass, it is designed for potable water and radiant heating applications and installs with copper crimp rings or stainless steel clamps.
SharkBite UC534LF Includes
- (1) Brass Barb Swivel Adapter 1/2 in. x 3/4 in. Female NPSM
SharkBite UC534LF Features
- Connects 1/2 in. PEX or PE-RT tubing to a 3/4 in. male NPSM threaded connection
- Lead-free brass construction
- Compatible with copper crimp rings or stainless steel clamps
- Suitable for potable water and radiant heating applications
- Operating temperature range from 33 F to 200 F
SharkBite UC534LF Specifications
| Product Type | Brass Barb Swivel Adapter |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | PEX Barb |
| Connection 2 Size | 3/4 in. |
| Connection 2 Type | Female Swivel |
| Thread Type | NPSM |
| Material | Brass |
| Lead Free | Yes |
| Compatible Pipe | PEX and PE-RT |
| Installation Method | Copper Crimp Ring or Stainless Steel Clamp |
| Application | Potable Water and Radiant Heating |
| Minimum Operating Temperature | 33 F |
| Maximum Operating Temperature | 200 F |
| Pressure Rating at 33 F | 160 psi |
| Pressure Rating at 200 F | 80 psi |
| Pack Quantity | 1 |
Toolup Part # :
884909
