SharkBite UCP308Z Description

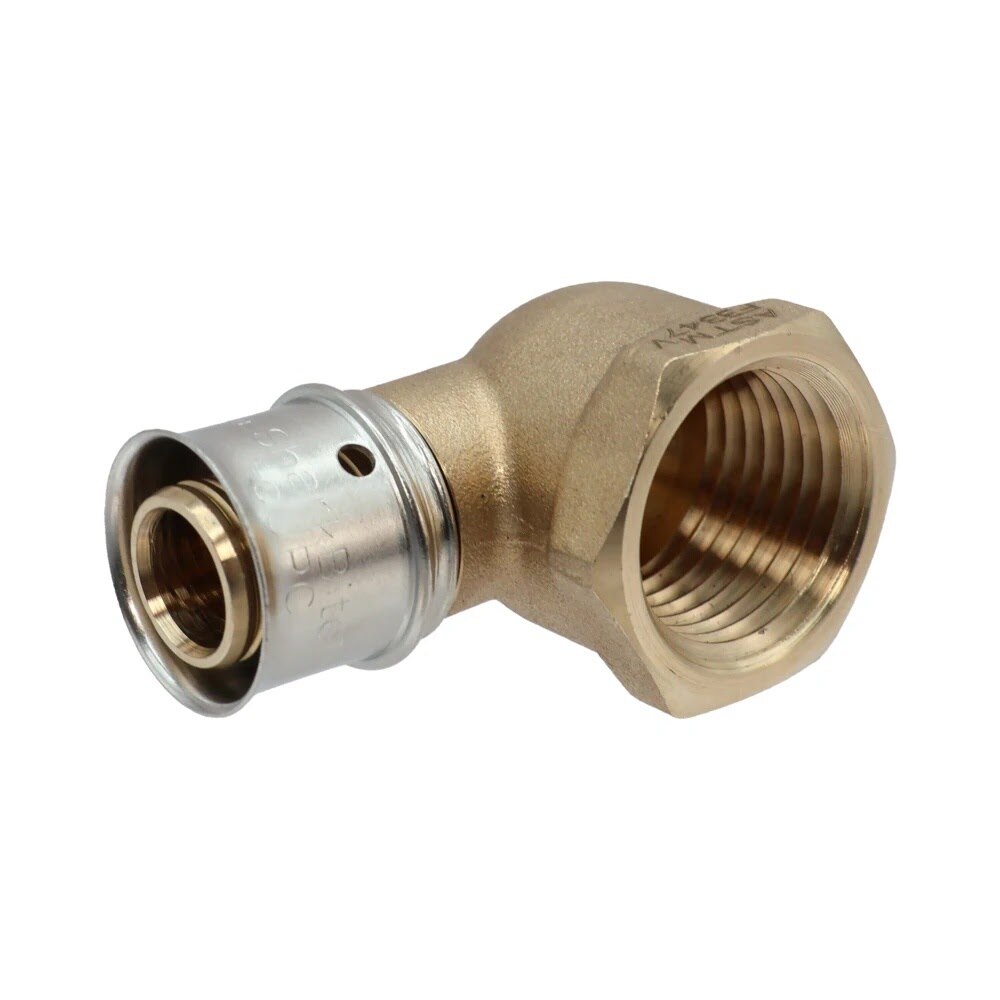

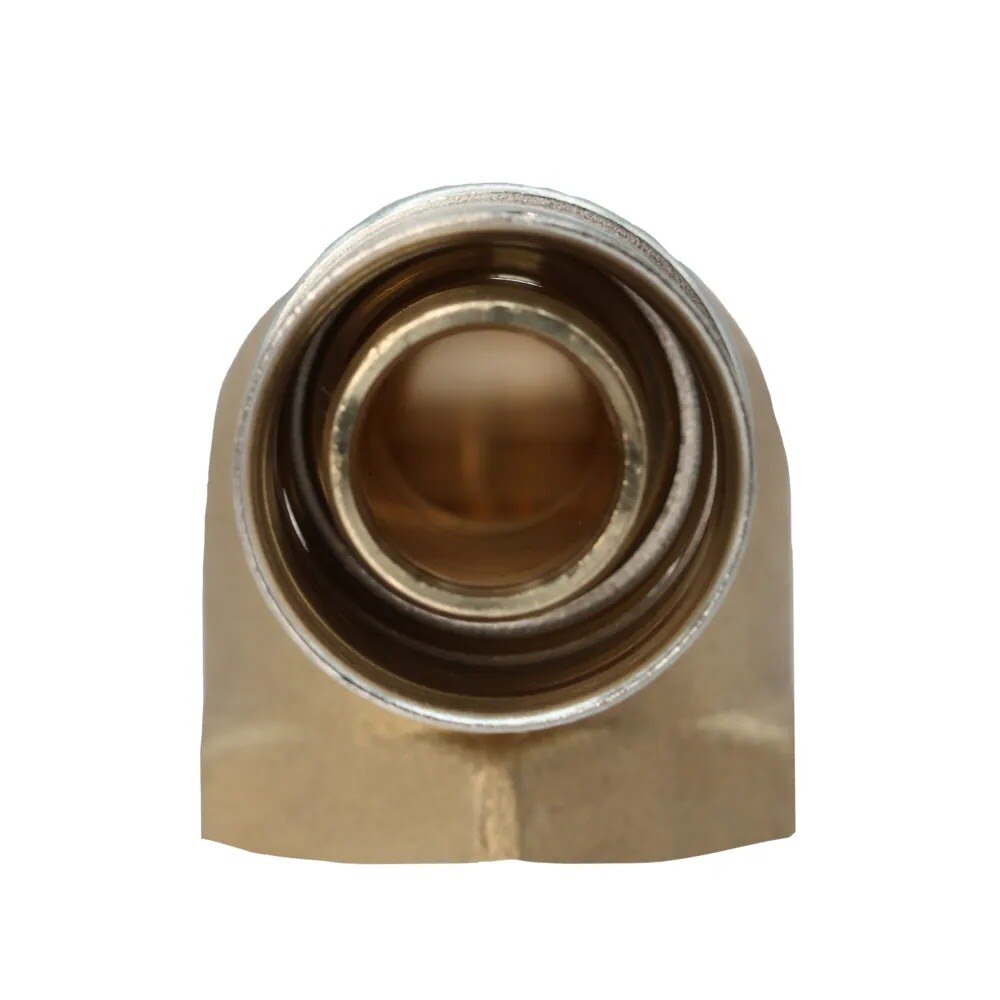

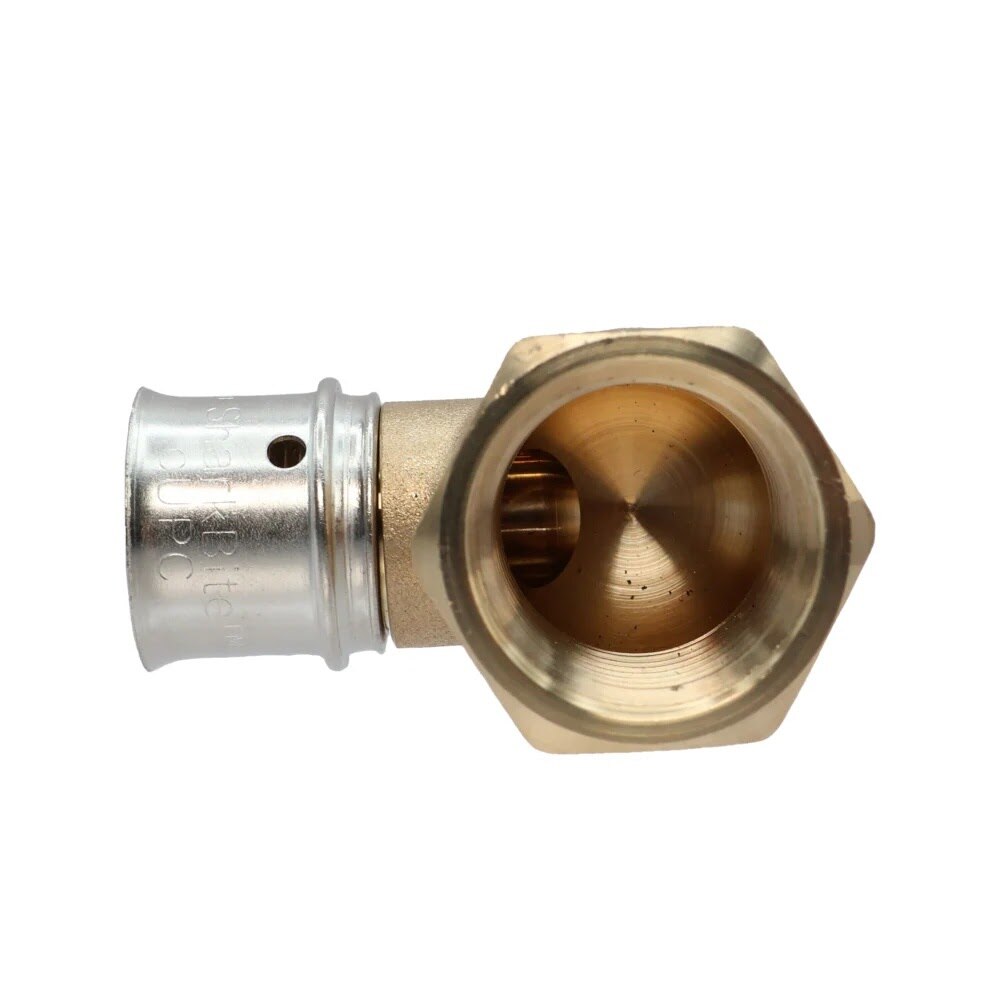

The SharkBite UCP308Z is a brass 90 Degree PEX press female adapter elbow that connects 1/2 in. PEX pipe to a 1/2 in. FNPT threaded connection for potable water applications. Its pre-attached stainless steel sleeve, integrated tool locator, and insertion viewing windows help speed installation and support consistent, reliable seals without flame, glue, or cure time.
SharkBite UCP308Z Includes
- (1) Brass PEX Press to FNPT Female Adapter Elbow
SharkBite UCP308Z Features
- Connects 1/2 in. PEX press pipe to a 1/2 in. FNPT threaded connection
- 90 Degree elbow design for directional changes in plumbing runs
- Brass construction for durability in potable water applications

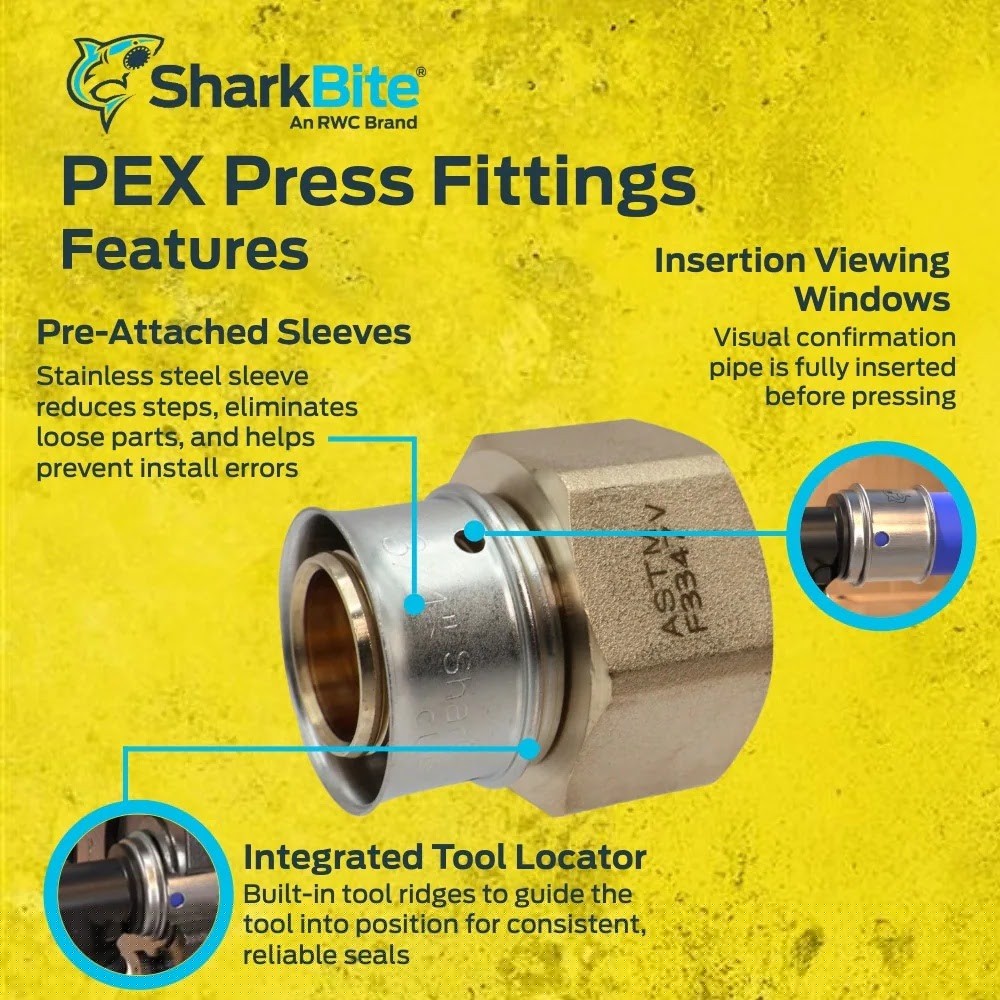

- Pre-attached stainless steel sleeve reduces loose parts and installation steps
- Integrated tool locator helps align the press tool for consistent connections
- Insertion viewing windows provide visual confirmation of full pipe insertion before pressing
- Compatible with PEX-A, PEX-B, and PEX-C and works with most PEX sleeve press tools
- Supports installation with no flame, glue, or cure time
- Rated for up to 200 Degree F and 160 psi
- Tested for corrosion resistance and durability and compliant with federal lead guidelines
SharkBite UCP308Z Specifications
| Material | Brass |
| Fitting Type | Female adapter elbow |
| Angle | 90 Degree |
| Connection Type End 1 | PEX Press |
| Connection Type End 2 | FNPT |
| End 1 Diameter | 1/2 in. |
| End 2 Diameter | 1/2 in. |
| PEX Type | PEX-A/PEX-B/PEX-C |
| Maximum Working Temperature | 200 Degree F |
| Minimum Working Temperature | 33 Degree F |
| Maximum Working Pressure | 160 psi |
| Common Use | Potable water |
| Safety Listing | NSF safety listing |
| Code Approvals | NSF 14/61 |
| Federal Lead Compliance | Yes |
| Package Quantity | 1 |
| Package Length | 5.31 in. |
| Package Width | 3.50 in. |
| Package Height | 1.08 in. |
| Each Shipping Weight | 0.14 lb |
