SharkBite UCP314 Description

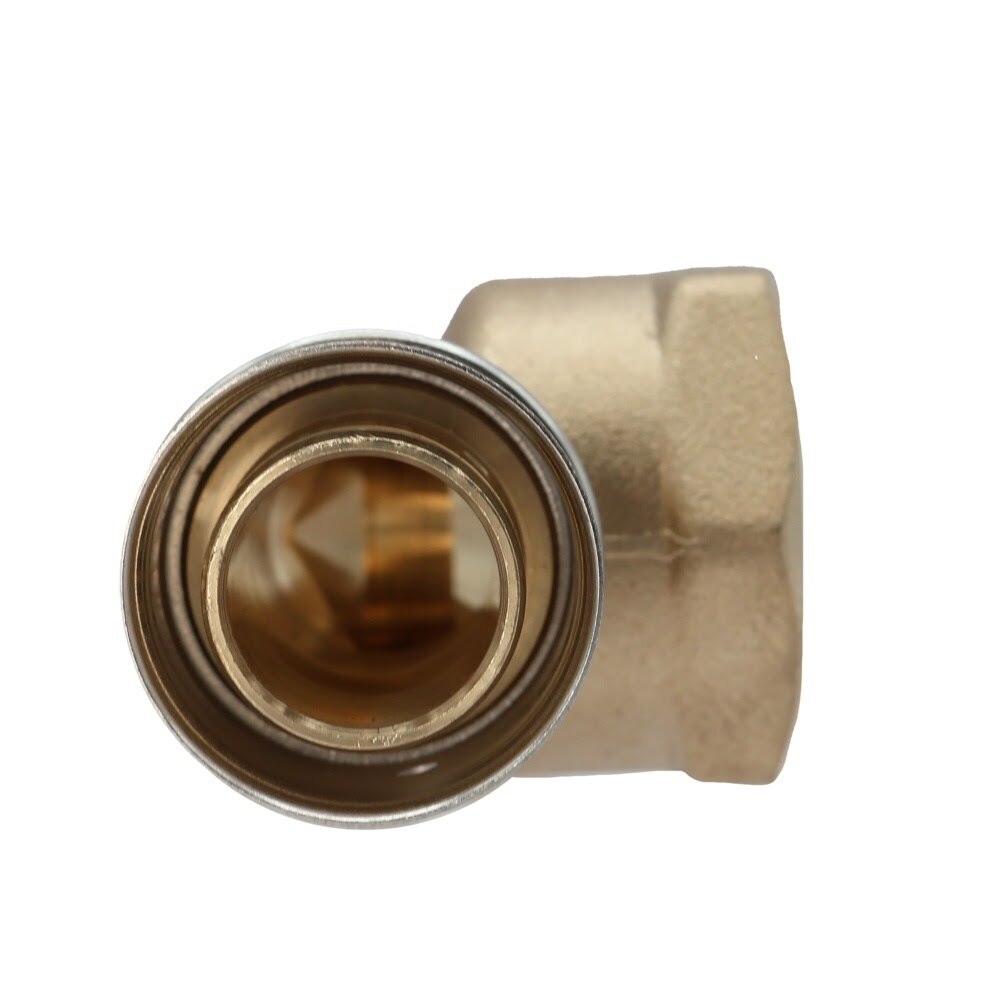

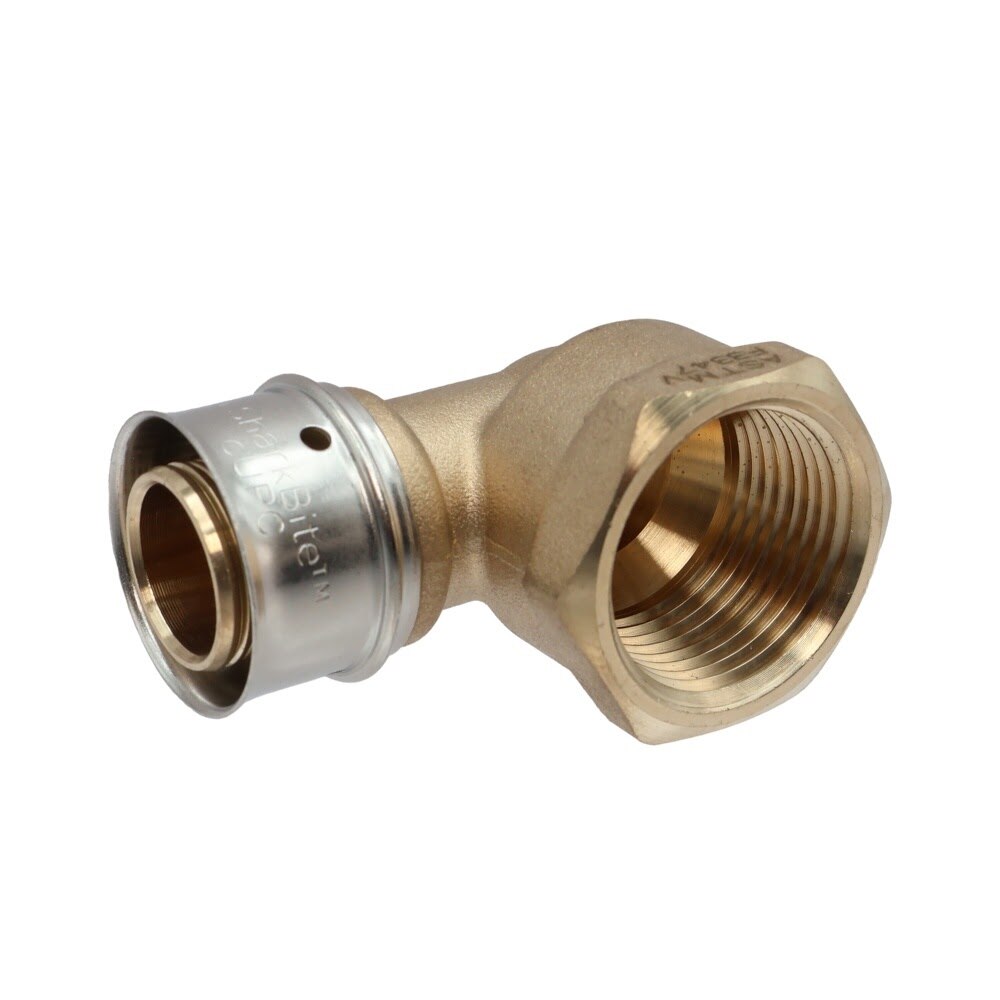

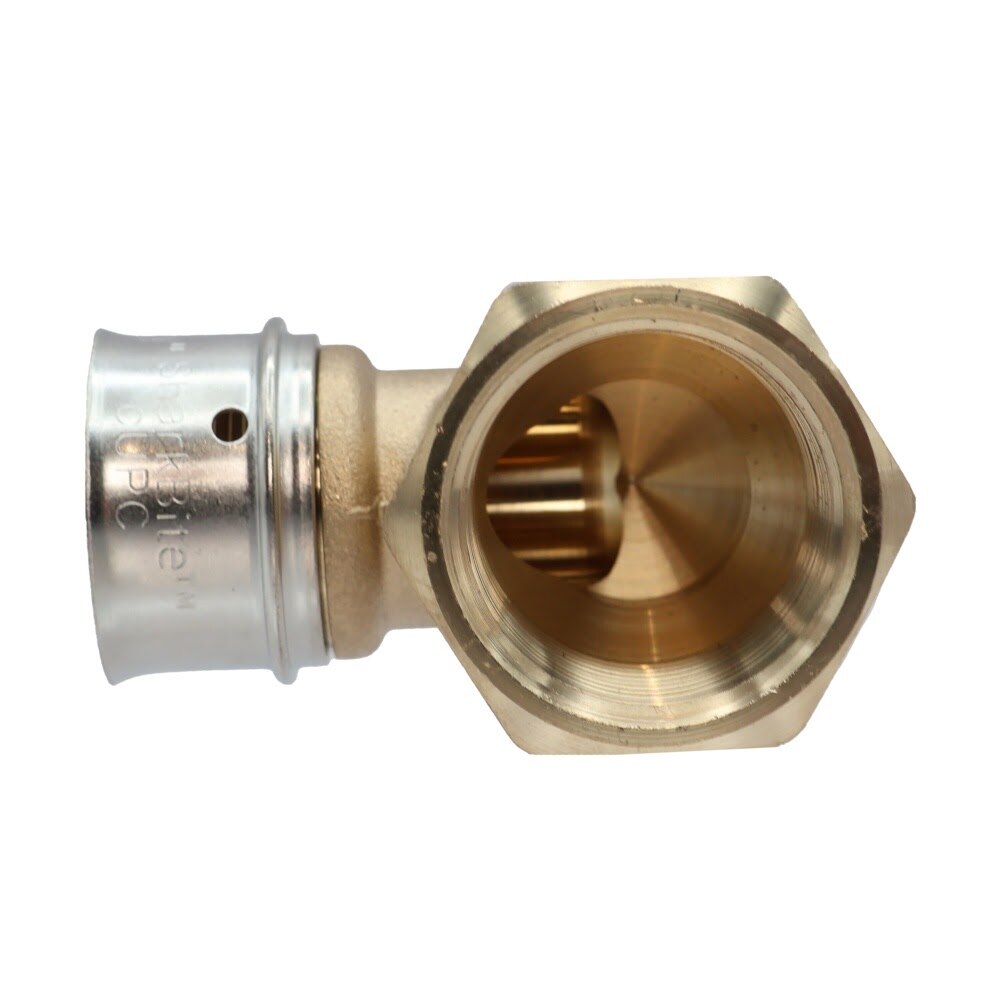

The SharkBite UCP314 PEX press brass female adapter elbow creates a 90 Degree transition from 3/4 in. PEX tubing to a 3/4 in. FNPT threaded connection. Its one-piece DZR brass body with an integrated stainless steel sleeve helps deliver fast, accurate, and consistent press connections for potable water, recirculation, and hydronic heating applications.
SharkBite UCP314 Includes
- (1) Brass PEX Press Female Adapter Elbow
SharkBite UCP314 Features
- 90 Degree elbow transitions from PEX tubing to an FNPT threaded connection
- One-piece design with integrated non-removable stainless steel sleeve
- Built-in tool locator supports fast, accurate, and consistent press connections
- Compatible with PEX-a and PEX-b pipe
- Works with F3347/F3348 press tools
- DZR brass body for durability
- Rated for up to 160 PSI working pressure
- Rated for up to 200 F working temperature
- Certified to ASTM F3347 and multiple NSF/CSA standards
- Suitable for potable water, recirculation, and hydronic heating applications
SharkBite UCP314 Specifications
| Size | 3/4 in. x 3/4 in. FNPT |
| Fitting Type | Female Adapter Elbow |
| Angle | 90 Degree |
| Connection Type 1 | PEX Press |
| Connection Type 2 | FNPT |
| Material | DZR Brass |
| Compatible Pipe Type | PEX-a and PEX-b |
| Compatible Press Tools | F3347/F3348 press tools |
| Max Working Pressure | 160 PSI |
| Max Working Temperature | 200 F |
| Application | Potable water, recirculation, and hydronic heating |
| Certification | ASTM F3347 and NSF/CSA standards |
