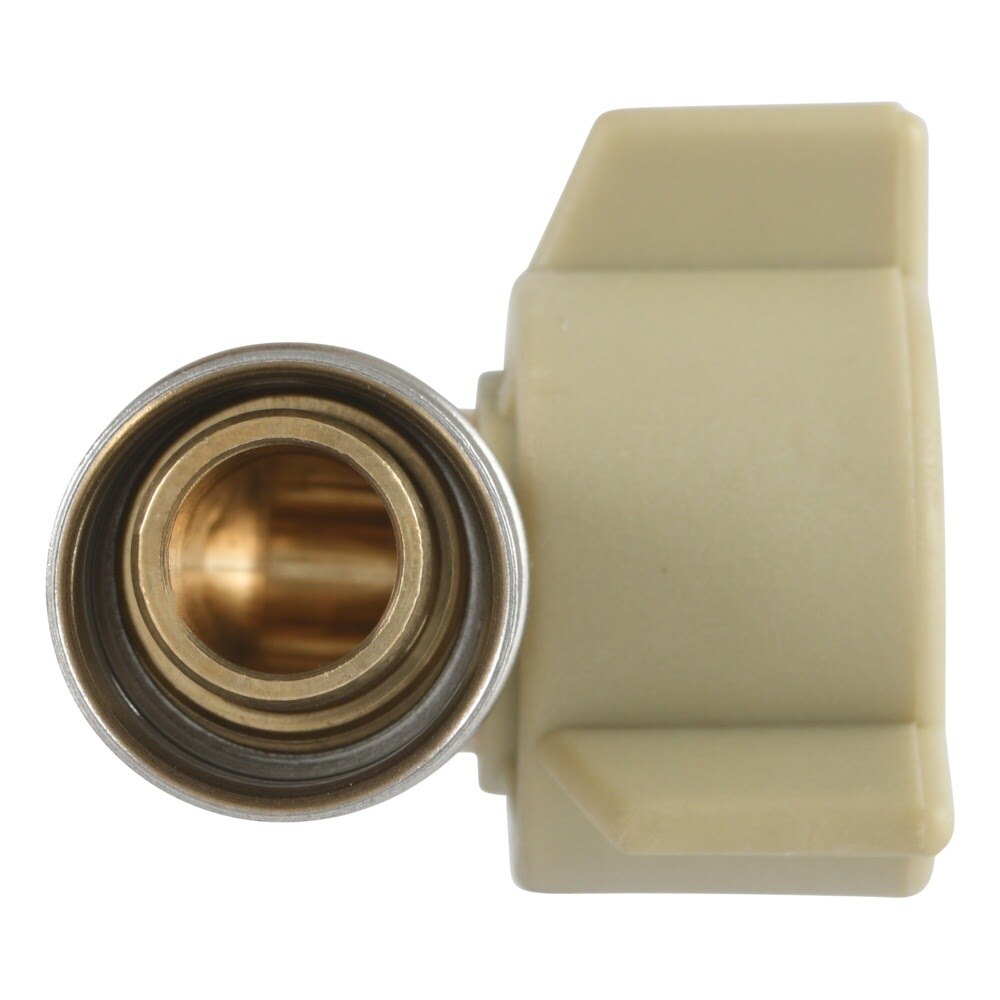

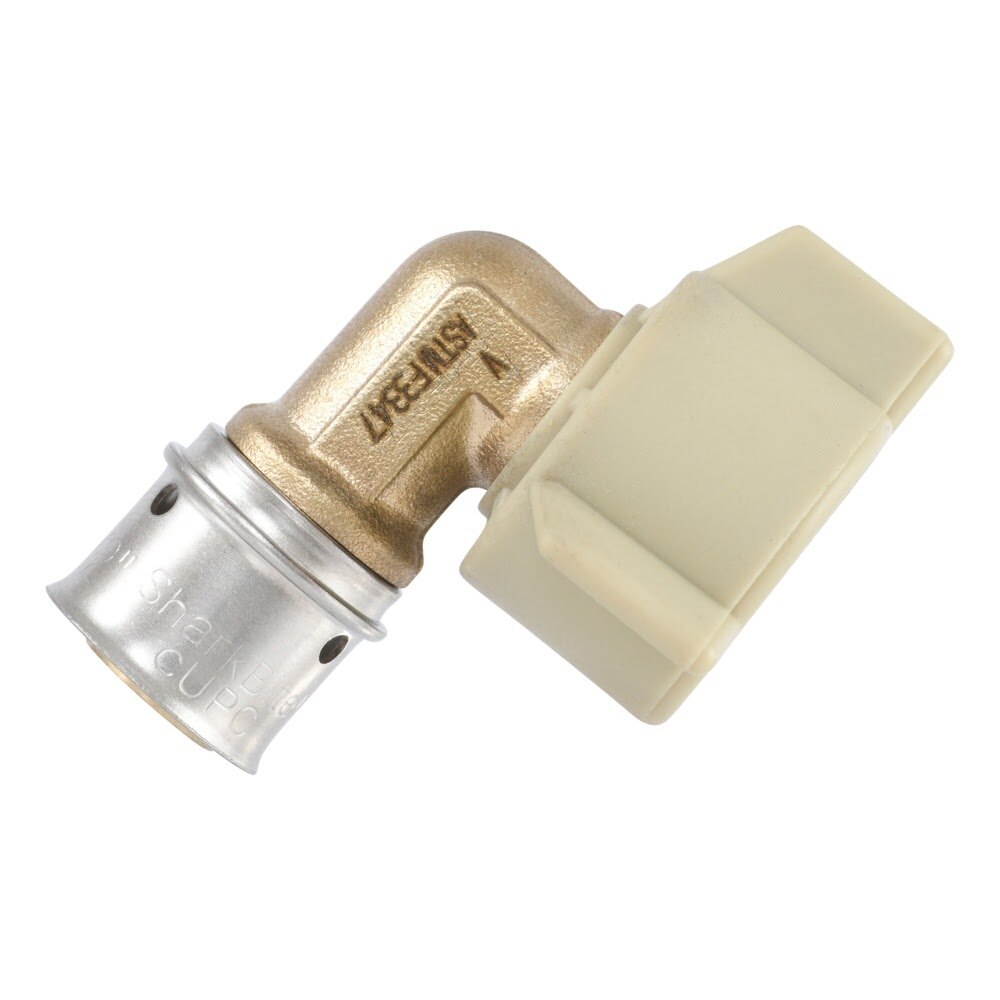

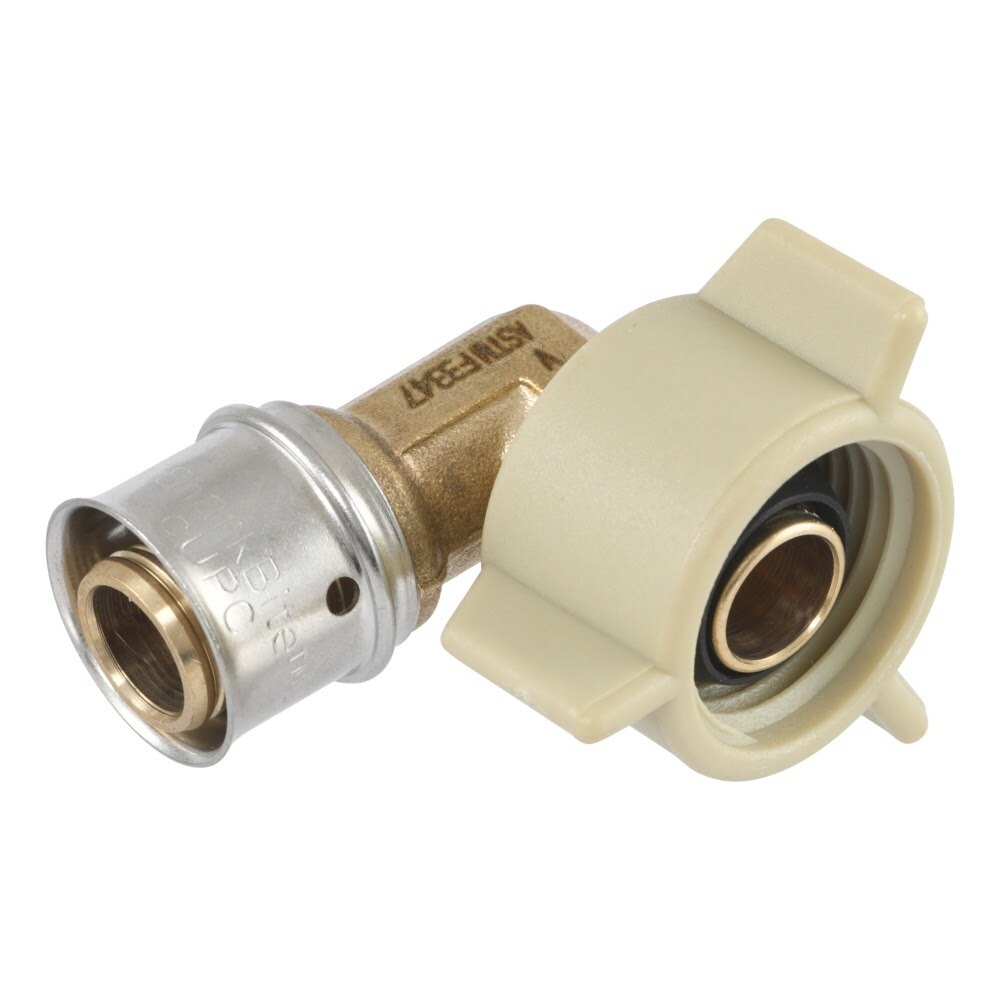

SharkBite UCP532 Description
This brass PEX press swivel elbow adapter connects 1/2 in. PEX pipe to a 1/2 in. NPSM threaded connection at a 90 Degree angle. Its one-piece DZR brass body features an integrated stainless-steel sleeve and built-in tool locator for fast, consistent press connections in potable water, recirculation, and hydronic heating applications.
SharkBite UCP532 Includes
- (1) Brass PEX Press Swivel Elbow Adapter 1/2 in. x 1/2 in. NPSM
SharkBite UCP532 Features
- Connects 1/2 in. PEX pipe to a 1/2 in. NPSM threaded connection at a 90 Degree angle
- One-piece design with integrated non-removable stainless-steel sleeve
- Built-in tool locator helps ensure fast, accurate and consistent press connections
- Compatible with PEX-a and PEX-b pipe
- Works with F3347 and F3348 press tools
- DZR brass body provides durability
- Rated for up to 160 PSI maximum working pressure
- Rated for up to 200 Degrees F maximum working temperature
- Suitable for potable water, recirculation, and hydronic heating applications
- Certified to ASTM F3347 and multiple NSF/CSA standards
SharkBite UCP532 Specifications
| Product Type | Swivel Elbow Adapter |
| Pipe Size | 1/2 in. |
| Connection 1 | 1/2 in. PEX Press |
| Connection 2 | 1/2 in. NPSM Swivel |
| Angle | 90 Degree |
| Material | DZR Brass |
| Max Working Pressure | 160 PSI |
| Max Working Temperature | 200 Degrees F |
| Compatible Pipe | PEX-a and PEX-b |
| Compatible Tools | F3347/F3348 press tools |
| Application | Potable water, recirculation, and hydronic heating |
| Standards | ASTM F3347; NSF/CSA standards |
| Package Length | 6.69 in. |
| Package Height | 1.46 in. |
| Package Width | 5.51 in. |
| Shipping Weight | 0.49 lb |
Toolup Part # :
883951
