At a Glance
Thread Type
Male NPT
Pipe Size
1 in
Connection Type
Push-Fit
Sold As
Individual
Description
Description

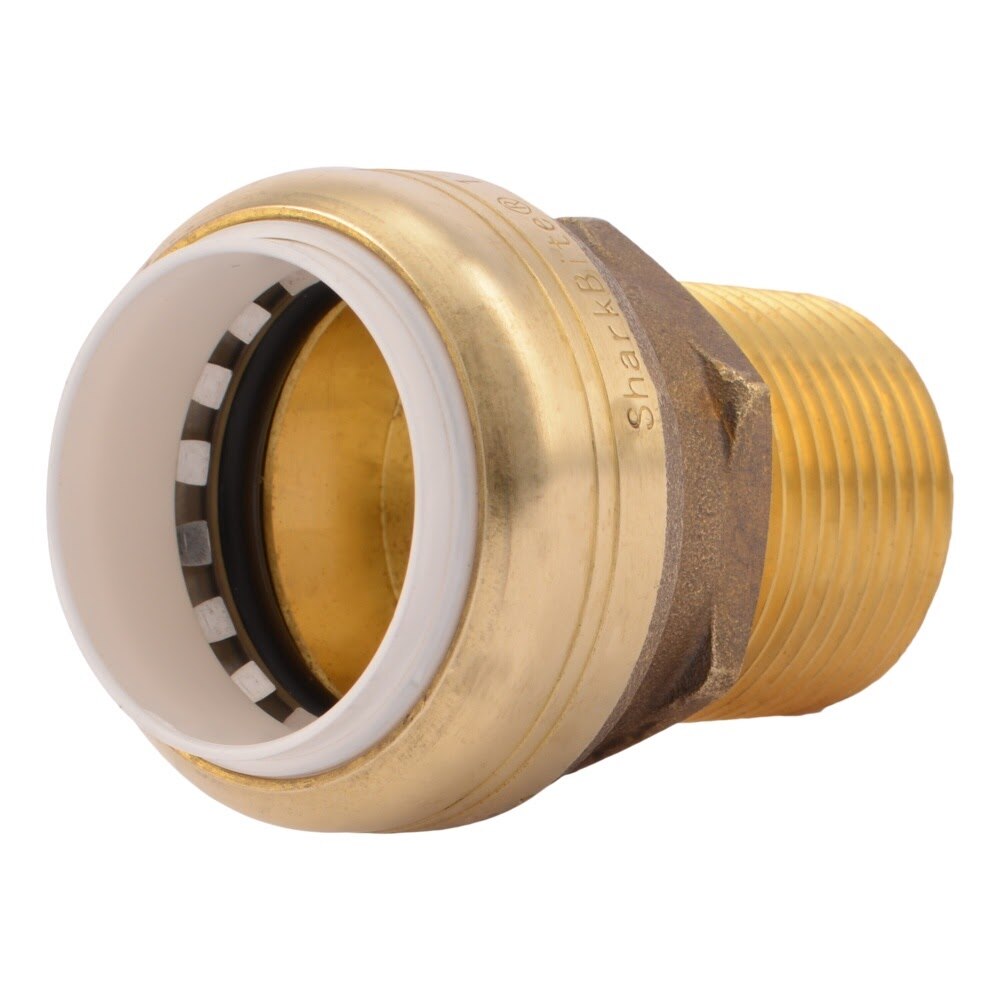

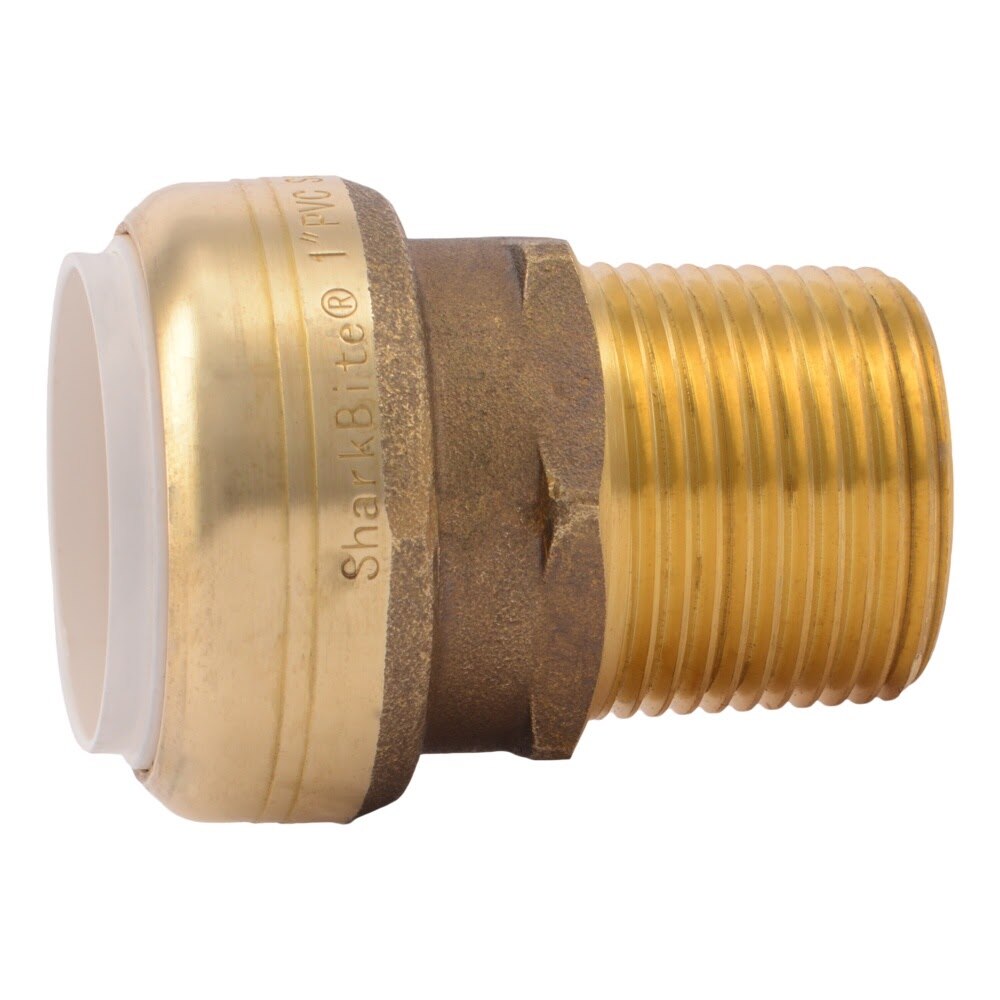

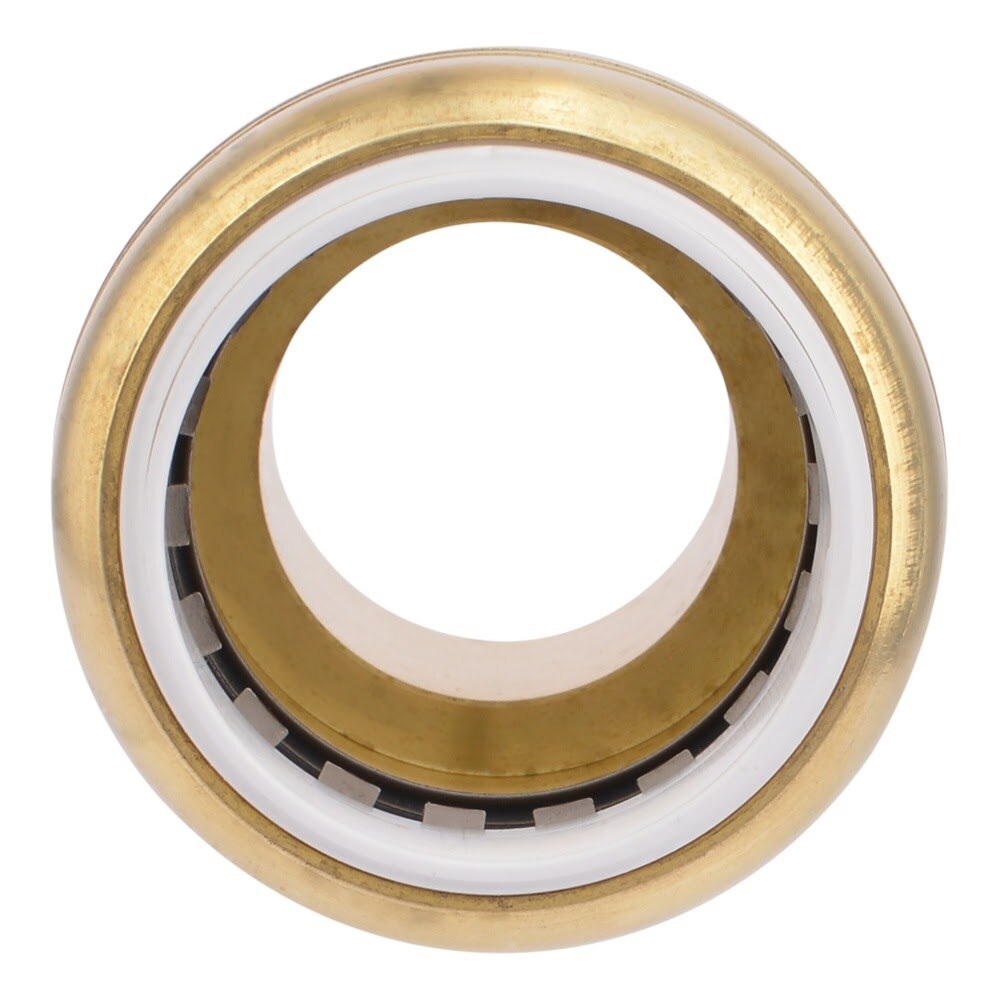

SharkBite UIP140A Description
The SharkBite UIP140A is a 1 in. PVC x 1 in. MNPT push-to-connect male adapter designed for use with Schedule 40, 80, and 120 PVC pipe. It installs without special tools or glue, can be used on wet lines, and is rated for 200 psi and 200°F (93°C).
SharkBite UIP140A Includes
- (1) 1 in. PVC x 1 in. MNPT Push-to-Connect Male Adapter
SharkBite UIP140A Features
- Compatible with Schedule 40, 80, and 120 PVC pipe
- Push-to-connect installation requires no special tools or glue
- Can be installed in wet lines
- Approved for underground and behind-the-wall applications with no access panels
- Removable with the PVC Disconnect Clip and Depth Gauge or Disconnect Clip, sold separately
- Rated for 200 psi and 200°F (93°C)
SharkBite UIP140A Specifications
| Product Type | Push-to-Connect PVC Male Adapter |
| Size | 1 in. x 1 in. |
| End 1 Connection | 1 in. PVC |
| End 2 Connection | 1 in. MNPT |
| Connection Type | Push-to-Connect x Male NPT |
| Compatible Pipe | Schedule 40, 80, and 120 PVC pipe |
| Pressure Rating | 200 psi |
| Maximum Temperature | 200°F (93°C) |
| Wet Line Installation | Yes |
| Underground Application | Yes, wrapping required when burying underground |
| Behind-the-Wall Application | Yes, no access panel required |
| Removable | Yes, with PVC Disconnect Clip and Depth Gauge or Disconnect Clip sold separately |
Toolup Part # :
884270
