SharkBite UP280 Description

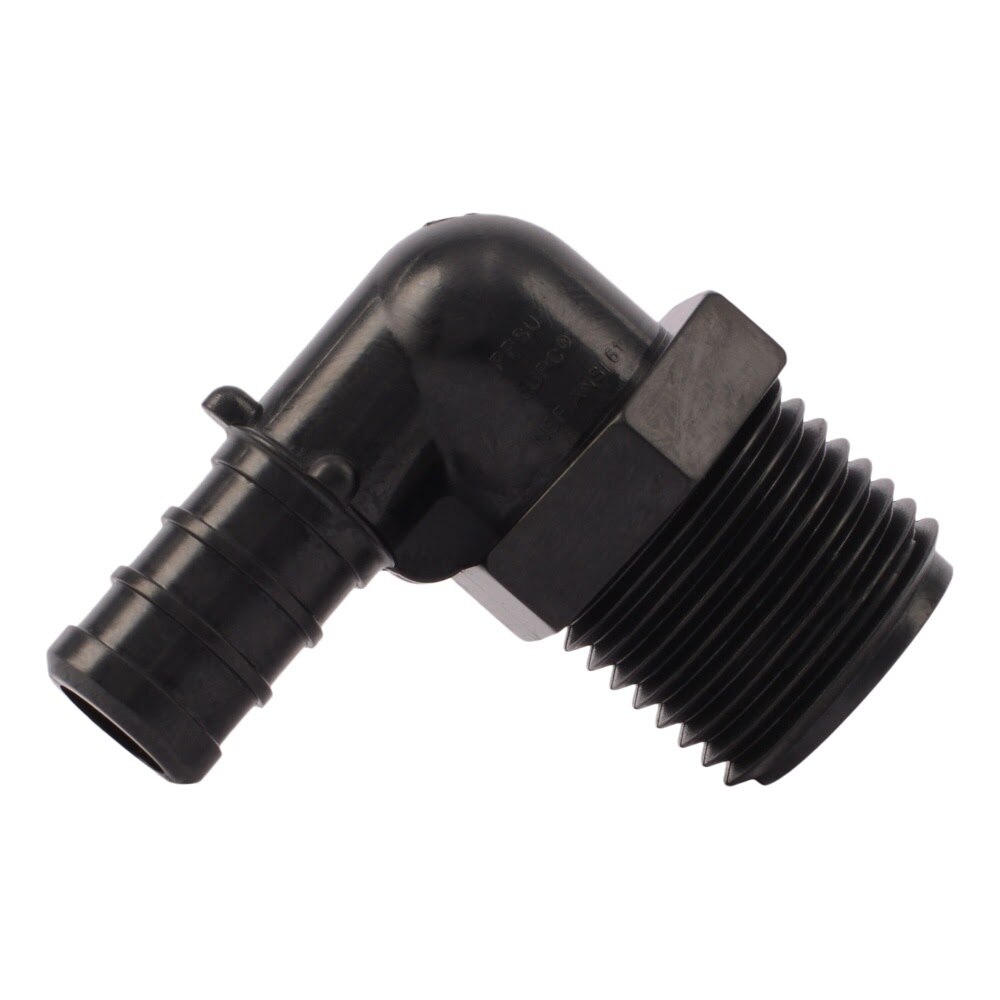

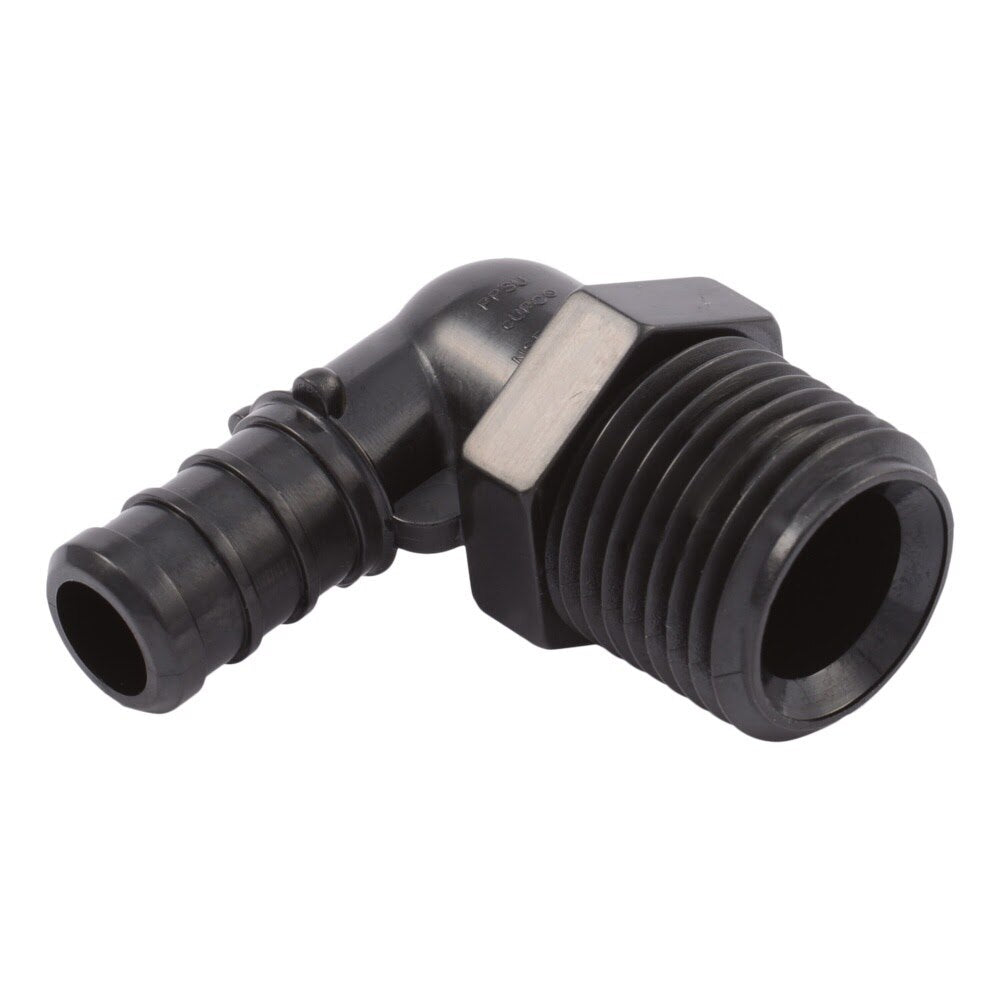

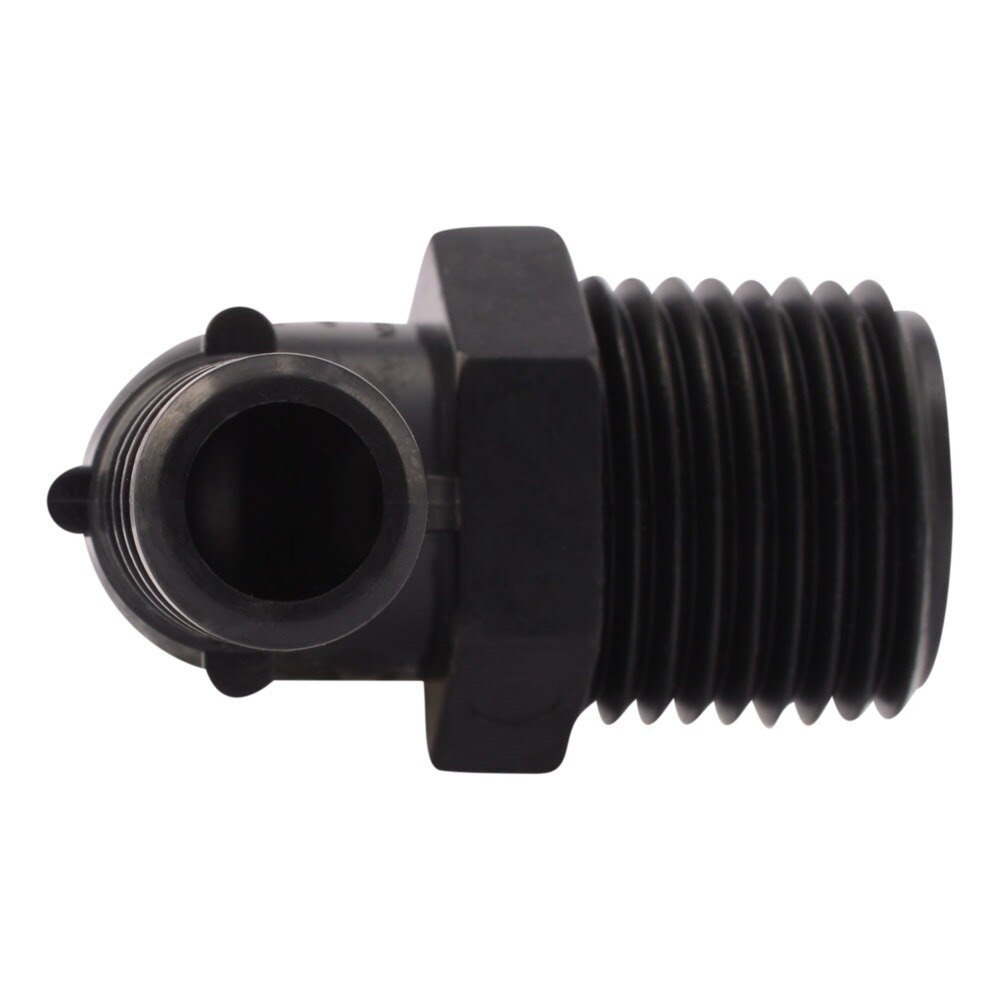

The SharkBite UP280 poly barb adapter elbow creates a 90 Degree transition from 1/2 in. PEX or PE-RT pipe to a 1/2 in. male NPT threaded connection. Made from high performance Acudel polymer, this corrosion-resistant fitting is designed for use with copper crimp rings or stainless steel clamp rings in potable water and hydronic heating applications.
SharkBite UP280 Includes
- (1) Poly Barb Adapter Elbow 1/2 in. x 1/2 in. MNPT
SharkBite UP280 Features
- Creates a 90 Degree transition from PEX or PE-RT pipe to a male NPT threaded connection
- Compatible with PEX or PE-RT pipe
- Made from high performance Acudel polymer
- Connects using copper crimp rings or stainless steel clamp rings
- Corrosion resistant for potable water and hydronic heating system applications
- Rated for 33 DegreeF at 160 psi minimum and 200 DegreeF at 80 psi maximum
SharkBite UP280 Specifications
| Brand | SharkBite |
| Part Number | UP280 |
| Product Type | Poly barb adapter elbow |
| Size | 1/2 in. x 1/2 in. |
| Connection Type | Barb x Male NPT |
| Connection Size | 1/2 in. barb x 1/2 in. MNPT |
| Material | Acudel polymer |
| Compatible Pipe | PEX or PE-RT |
| Installation Method | Copper crimp rings or stainless steel clamp rings |
| Minimum Working Temperature | 33 DegreeF at 160 psi |
| Maximum Working Temperature | 200 DegreeF at 80 psi |
| Application | Potable water and hydronic heating systems |
| Product Length (in) | 1.70 |
| Product Height (in) | 1.58 |
| Product Width (in) | 0.86 |
| Product Weight (lb) | 0.02 |
