SharkBite UPMPT3O Description

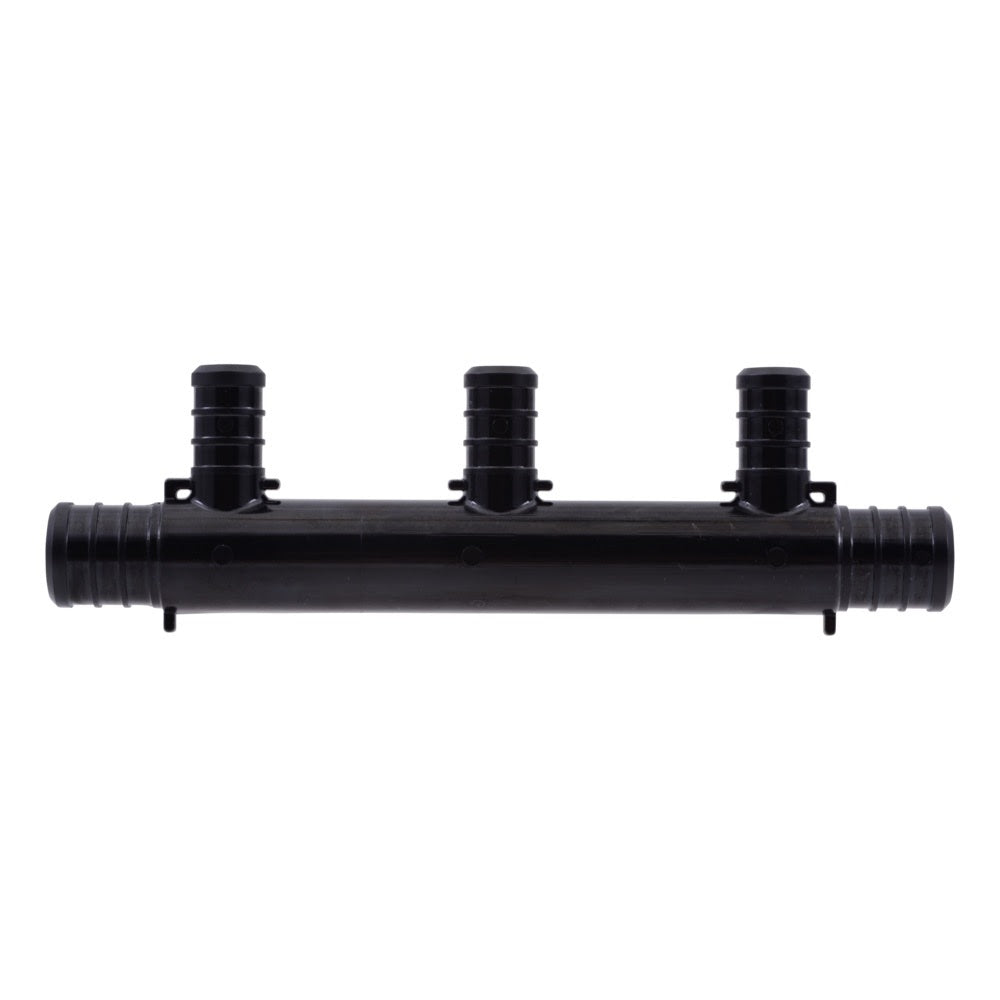

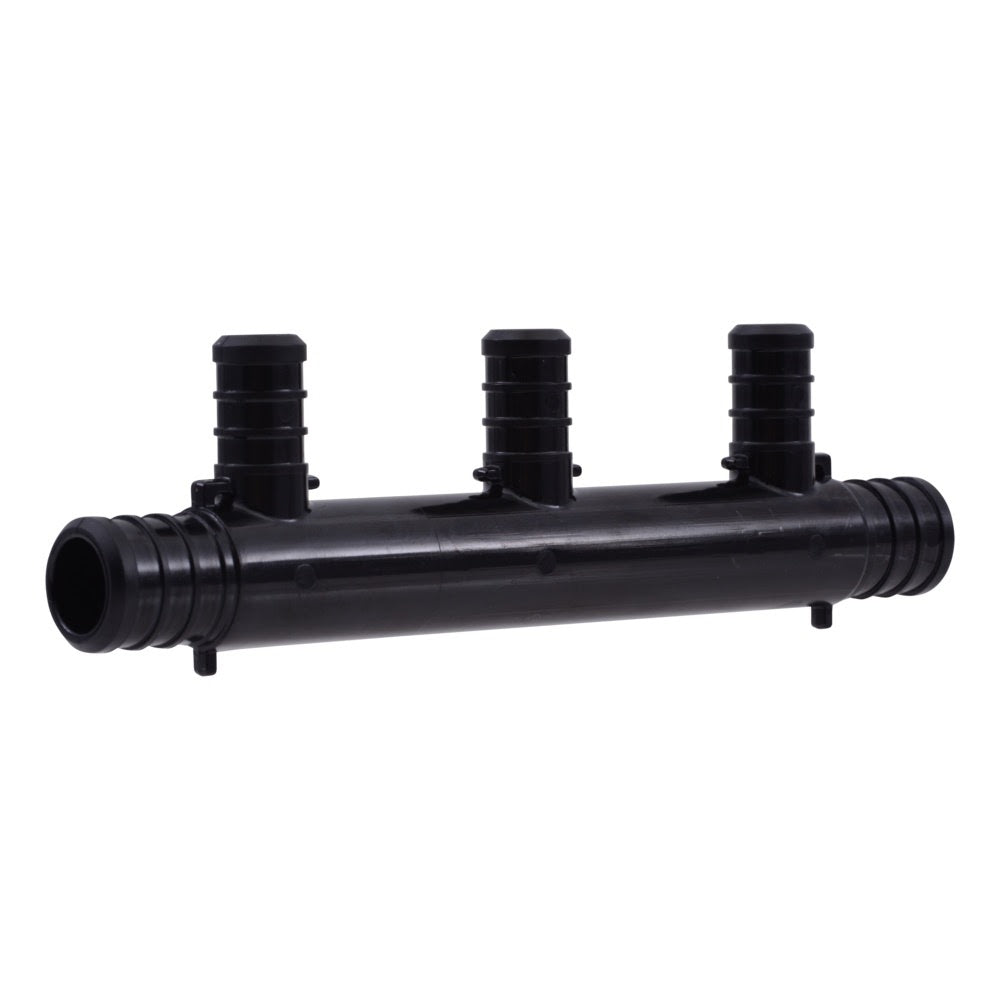

The SharkBite UPMPT3O poly barb 3-port multi-port open tee is designed to distribute water service from a 3/4 in. inlet to 1/2 in. outlet branches in PEX or PE-RT plumbing systems. Its polymer barb construction helps streamline installations in concentrated service areas such as bathrooms and kitchens while reducing extra connection points.
SharkBite UPMPT3O Includes
- (1) Poly Barb 3-Port Multi-Port Open Tee 3/4 in. Inlet x 1/2 in. Outlet
SharkBite UPMPT3O Features
- Compatible with PEX or PE-RT pipe
- Made from high-performance Acudel polymer
- 3/4 in. inlet with 1/2 in. outlet branches for multi-line water distribution
- Helps improve installation efficiency by reducing extra connection points
- Connects to pipe with copper crimp rings or stainless steel clamp rings
- Ideal for areas where water service is concentrated, such as bathrooms and kitchens
- Approved for behind-the-wall applications with no access panels
SharkBite UPMPT3O Specifications
| Brand | SharkBite |
| SKU | UPMPT3O |
| Product Type | Multi-Port Open Tee |
| Fitting Type | Poly Barb |
| Port Count | 3 |
| Inlet Size | 3/4 in. |
| Outlet Size | 1/2 in. |
| Compatible Pipe Material | PEX or PE-RT |
| Material | Acudel polymer |
| Connection Method | Copper crimp rings or stainless steel clamp rings |
| Minimum Working Temperature | 33 Degrees F at 160 psi |
| Maximum Working Temperature | 200 Degrees F at 80 psi |
| Product Length (in) | 1.92 |
| Product Width (in) | 0.72 |
| Product Height (in) | 1.69 |
| Product Weight (lbs) | 0.07 lbs |
Toolup Part # :
885221
