SharkBite UPMPT4C Description

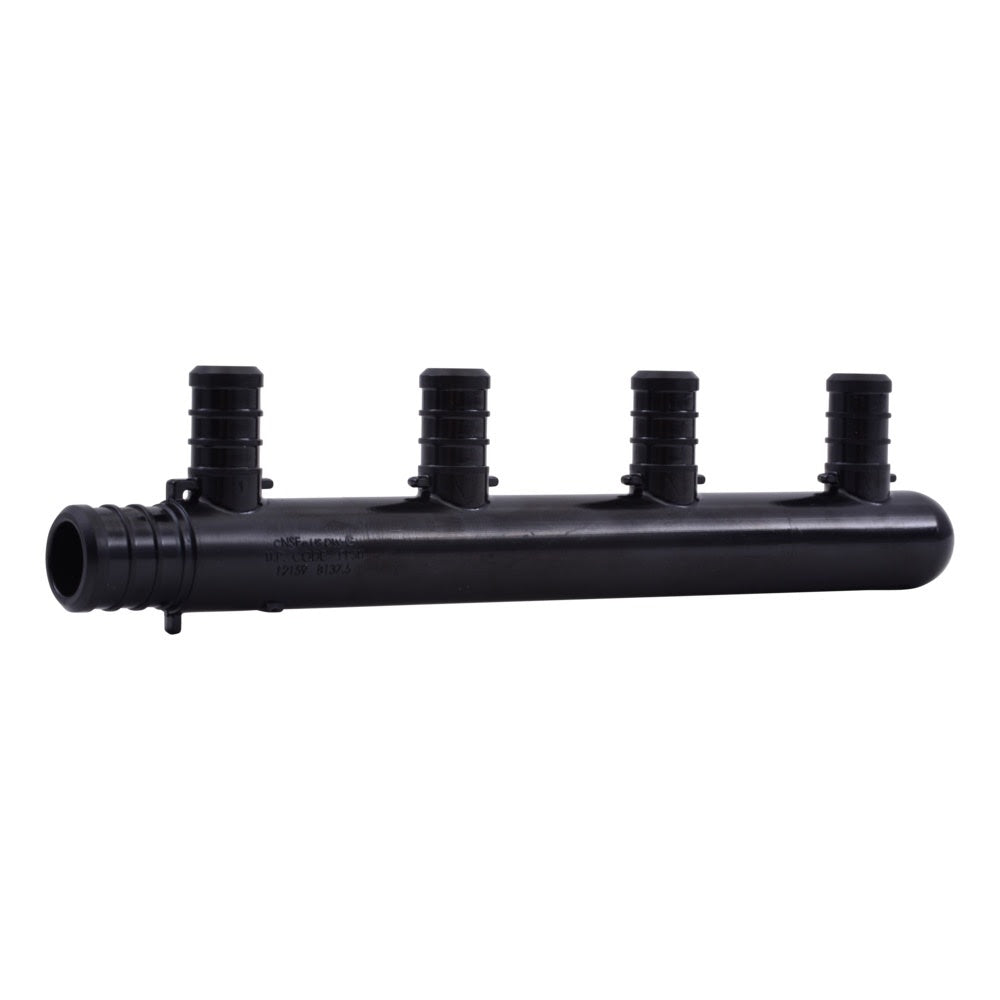

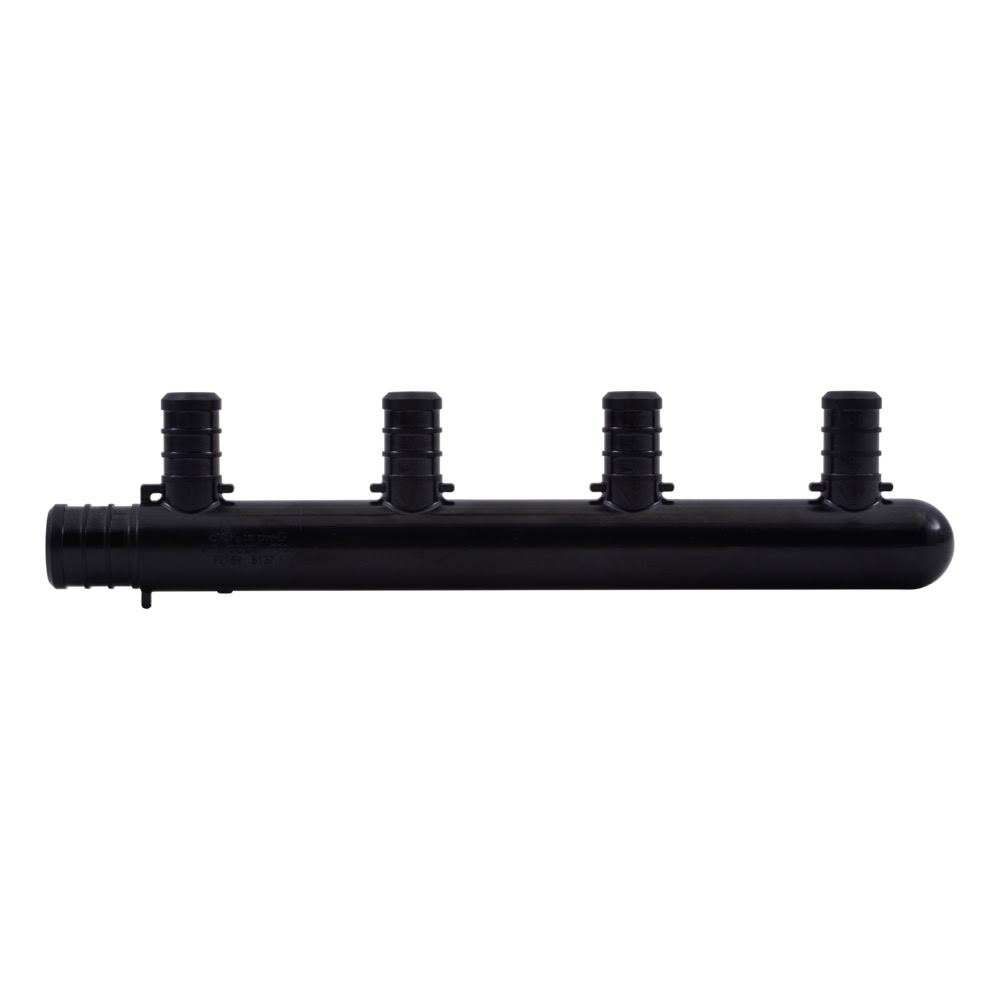

The SharkBite Poly Barb 4-Port Multi-Port Closed Tee is a polymer crimp fitting designed to distribute water from a 3/4 in. inlet to four 1/2 in. outlets in PEX or PE-RT plumbing systems. Its closed multi-port design helps streamline installation, reduce extra connection points, and support behind-the-wall applications.
SharkBite UPMPT4C Includes
- (1) Poly Barb 4-Port Multi-Port Closed Tee
SharkBite UPMPT4C Features
- Compatible with PEX or PE-RT pipe
- Made from high-performance Acudel polymer
- Connects to pipe with copper crimp rings or stainless steel clamp rings
- 4-port closed tee design helps reduce excess connection points
- Ideal for areas where water service is concentrated, such as bathrooms and kitchens
- Approved for behind-the-wall applications with no access panels
- Rated for 33 DegreeF at 160 psi and 200 DegreeF at 80 psi
SharkBite UPMPT4C Specifications
| Brand | SharkBite |
| Part Number | UPMPT4C |
| Product Type | Poly Barb 4-Port Multi-Port Closed Tee |
| Inlet Size | 3/4 in. |
| Outlet Size | 1/2 in. |
| Number of Outlet Ports | 4 |
| Connection Type | Barb / Crimp |
| Material | Acudel Polymer |
| Compatible Pipe Material | PEX or PE-RT |
| Working Temperature Minimum | 33 DegreeF at 160 psi |
| Working Temperature Maximum | 200 DegreeF at 80 psi |
| Application | Behind-the-wall |
| Product Length | 7.17 in. |
| Product Width | 0.72 in. |
| Product Height | 1.69 in. |
| Product Weight | 0.09 lb |
