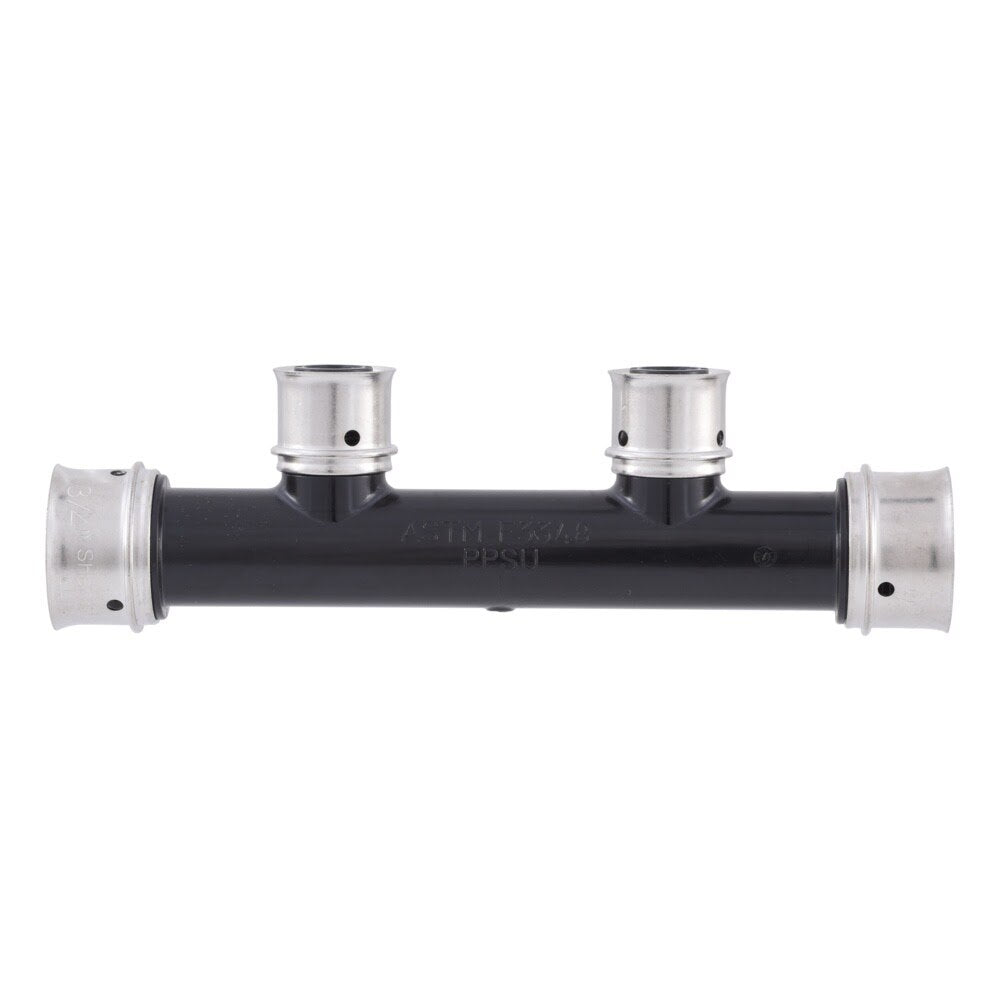

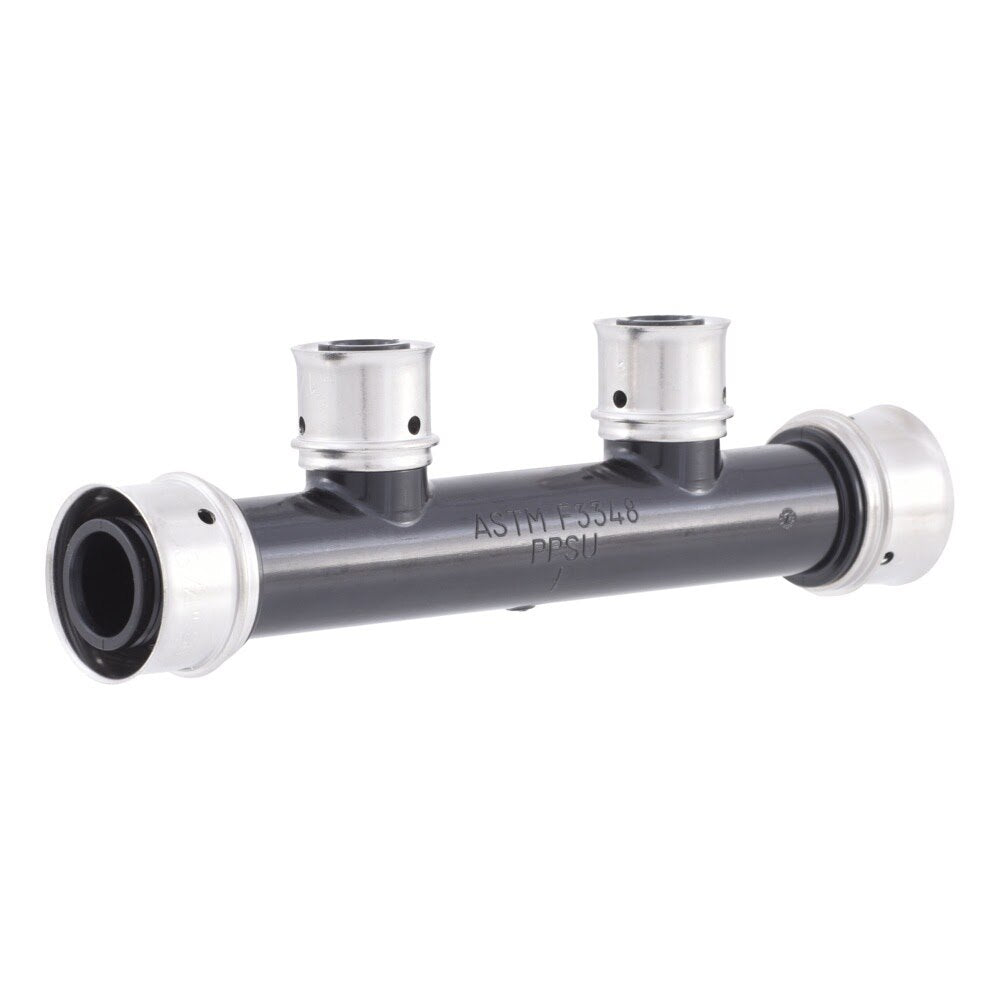

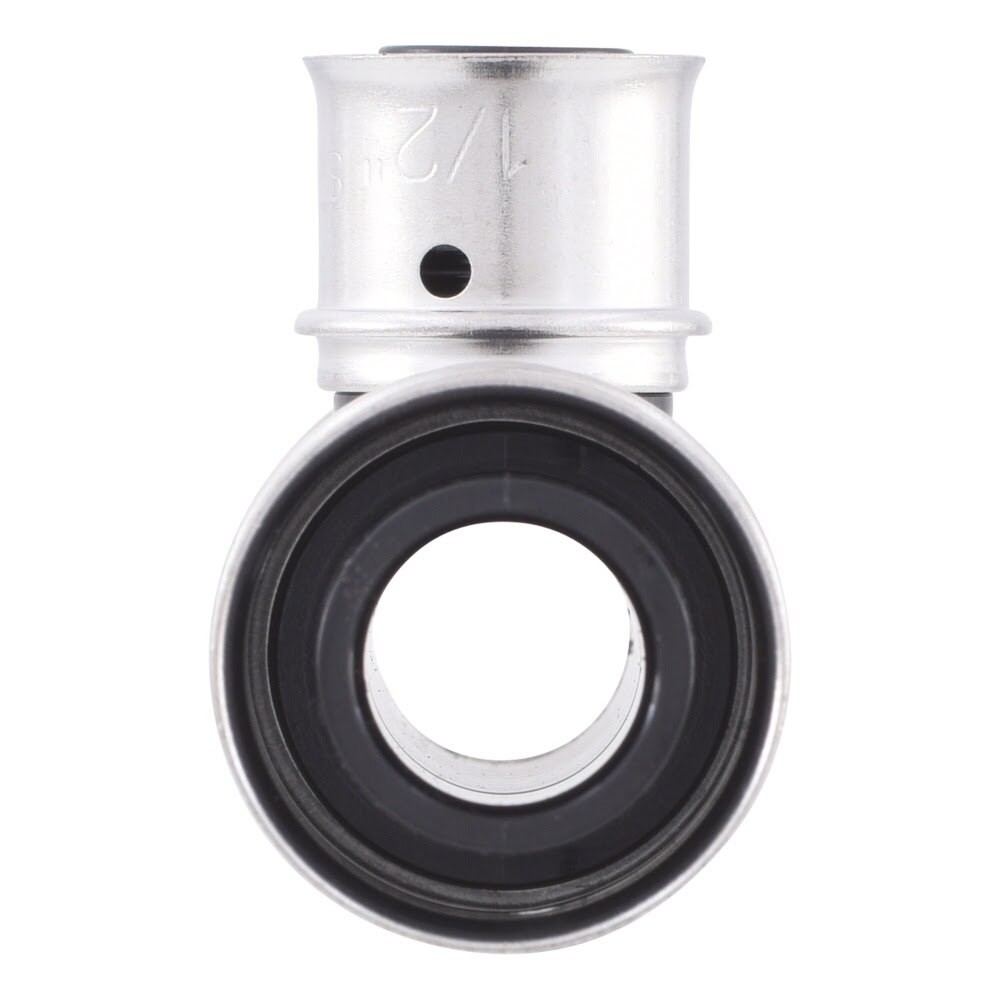

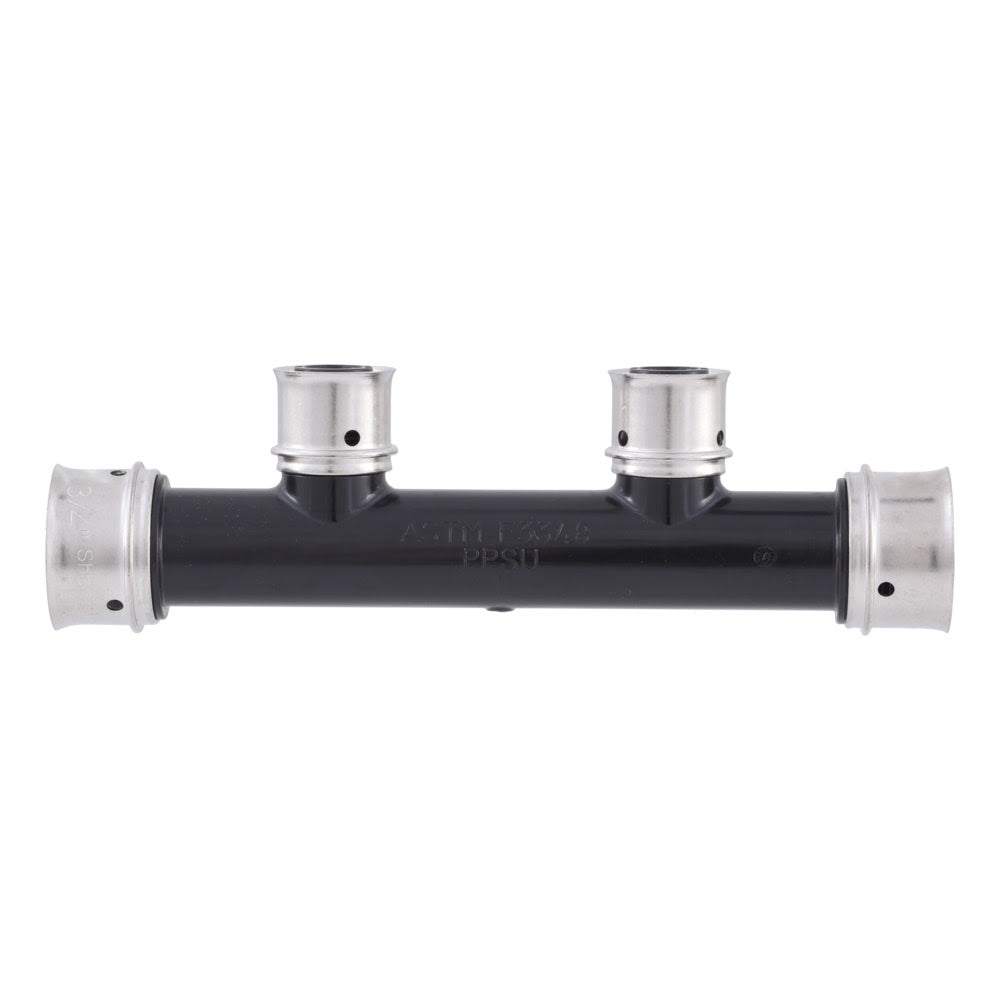

SharkBite UPP-2PO-757550 Description
This open SharkBite PEX Press Multi Port Tee features a 3/4 in. inlet with two 1/2 in. outlets for distributing flow in potable water, recirculation, and hydronic heating systems. Its one-piece PPSU body with integrated stainless-steel sleeves and built-in tool locator supports fast, accurate, and reliable press connections.
SharkBite UPP-2PO-757550 Includes
- (1) PEX Press Multi Port Tee 2 Port 3/4 in. x 1/2 in. Open
SharkBite UPP-2PO-757550 Features
- One-piece design with integrated non-removable stainless-steel sleeves
- Built-in tool locator helps ensure fast, accurate, and consistent press connections
- Manufactured from NSF-certified PPSU with stainless-steel sleeves
- Compatible with PEX-a and PEX-b pipe
- Compatible with F3347 and F3348 press tools
- Maximum working pressure of 160 PSI
- Maximum working temperature of 200 Degree F
- Certified to ASTM F3348 and multiple NSF and CSA standards
- Suitable for potable water, recirculation, and hydronic heating applications
SharkBite UPP-2PO-757550 Specifications
| Product Type | PEX Press Multi Port Tee |
| Port Configuration | 2 Port |
| Inlet Size | 3/4 in. |
| Outlet Size | 1/2 in. |
| Outlet Count | 2 |
| Configuration | Open |
| Connection Type | PEX Press |
| Material | PPSU with stainless-steel sleeves |
| Maximum Working Pressure | 160 PSI |
| Maximum Working Temperature | 200 Degree F |
| Pipe Compatibility | PEX-a and PEX-b |
| Tool Compatibility | F3347/F3348 press tools |
| Certification | ASTM F3348; NSF and CSA standards |
| Application | Potable water, recirculation, and hydronic heating |
| Product Length (in) | 9.45 |
| Product Width (in) | 3.94 |
| Product Height (in) | 1.61 |
| Product Weight (lbs) | 0.11 |
Toolup Part # :
885033
