SharkBite UPP-3PO-757550 Description

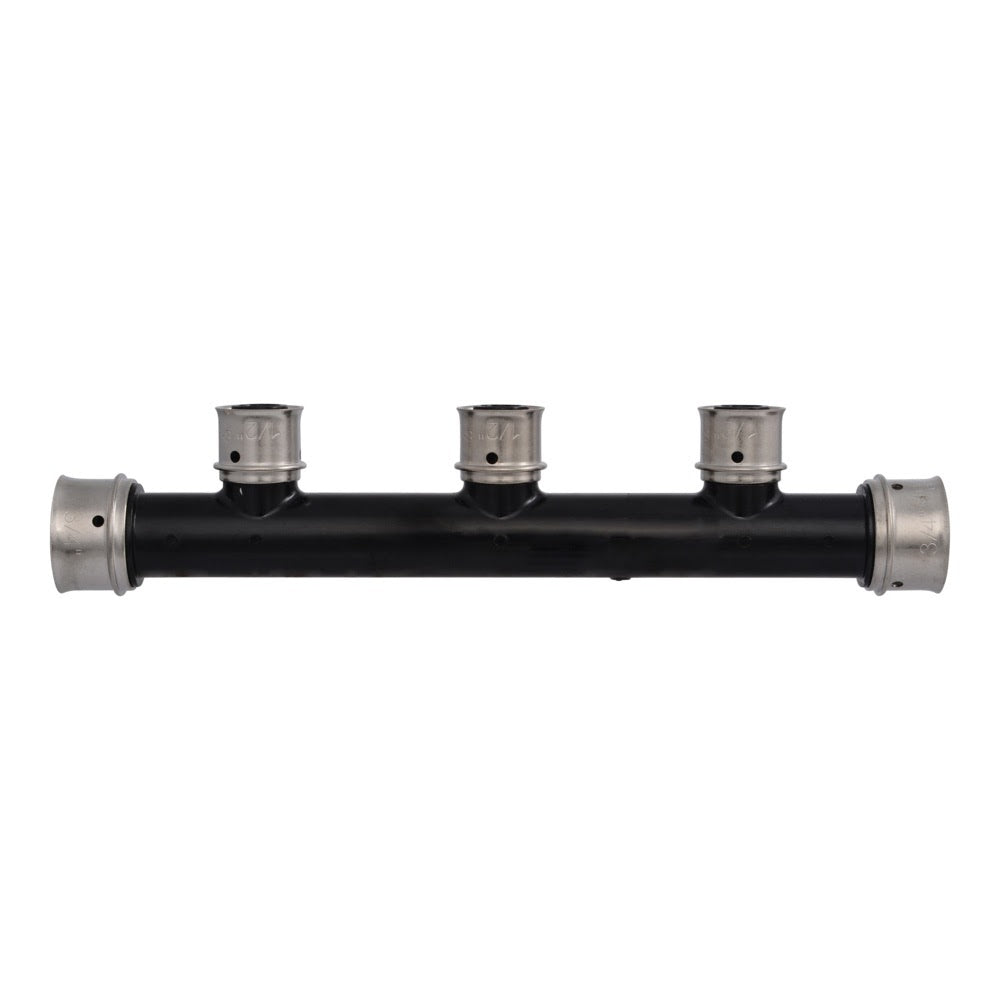

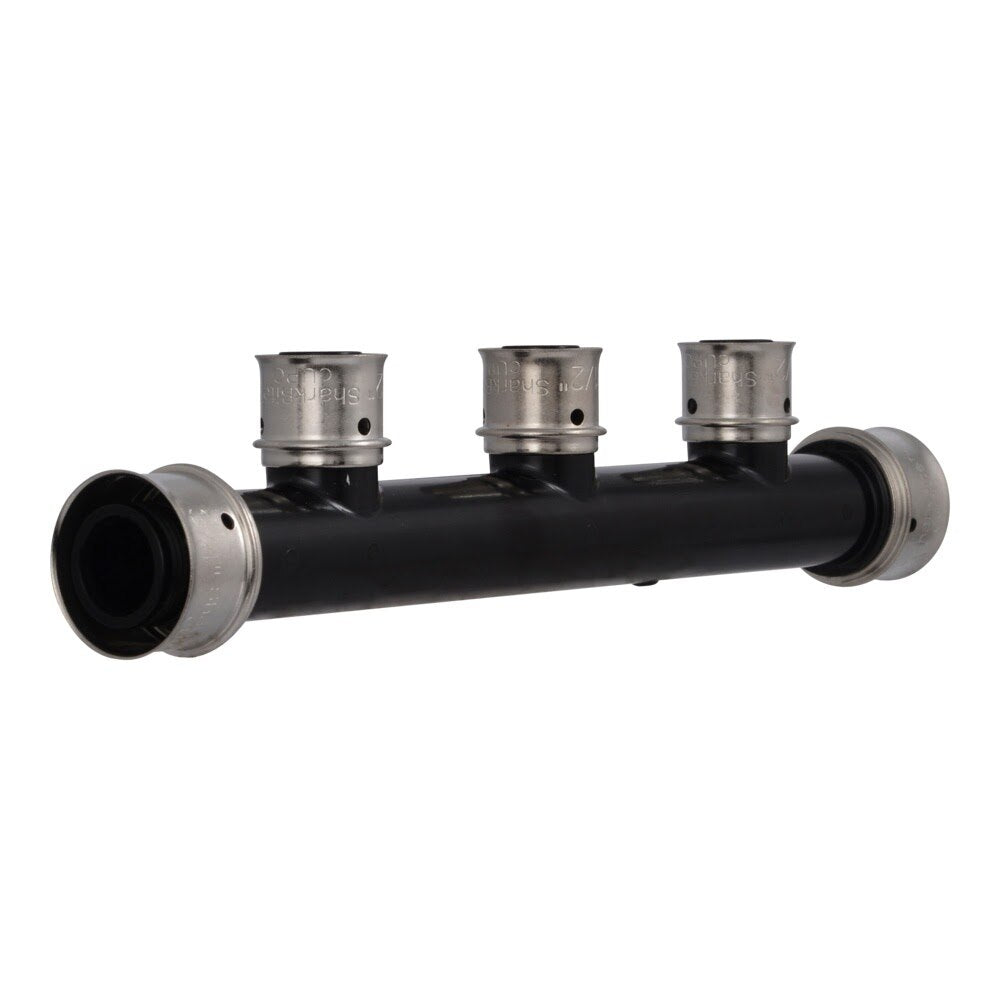

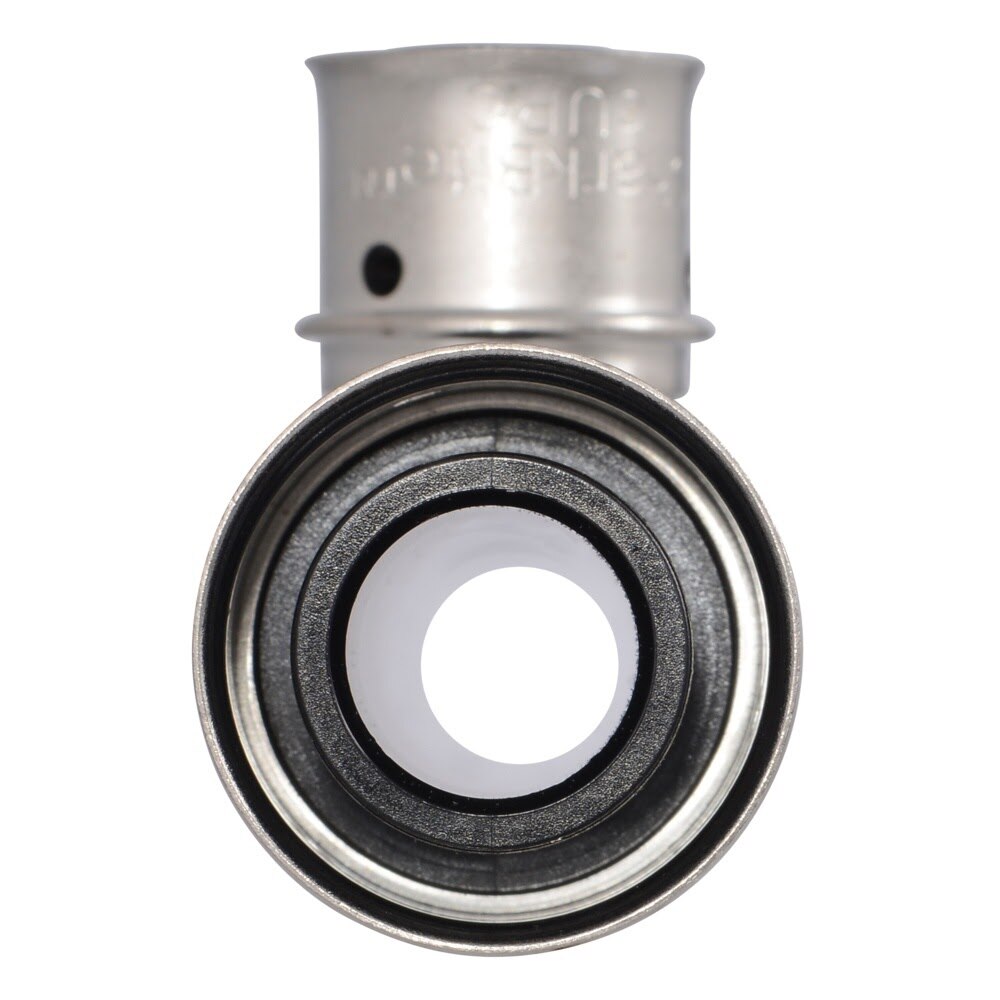

The SharkBite PEX Press Poly Multi Port Tee features a 3/4 in. inlet with three 1/2 in. outlets for efficient water distribution in potable water, recirculation, and hydronic heating systems. Its one-piece PPSU body with integrated stainless-steel press sleeves is designed for fast, accurate, and reliable connections with compatible PEX-a or PEX-b pipe and F3347/F3348 press tools.
SharkBite UPP-3PO-757550 Includes
- (1) PEX Press Poly Multi Port Tee 3/4 in. x 1/2 in.
SharkBite UPP-3PO-757550 Features
- One-piece design with integrated non-removable stainless-steel sleeve
- Built-in tool locator helps provide fast, accurate, and consistent press connections
- Manufactured from NSF-certified PPSU with stainless-steel sleeve
- Compatible with PEX-a and PEX-b pipe
- Works with F3347/F3348 press tools
- Maximum working pressure is 160 PSI
- Maximum working temperature is 200 Degree F
- Certified to ASTM F3348 and multiple NSF/CSA standards
- Suitable for potable water, recirculation, and hydronic heating applications
SharkBite UPP-3PO-757550 Specifications
| Product Type | PEX Press Poly Multi Port Tee |
| Configuration | Open |
| Inlet Size | 3/4 in. |
| Outlet Size | 1/2 in. |
| Outlet Count | 3 |
| Connection Type | PEX Press |
| Material | PPSU |
| Sleeve Material | Stainless Steel |
| Compatible Pipe | PEX-a and PEX-b |
| Compatible Tools | F3347/F3348 press tools |
| Maximum Working Pressure | 160 PSI |
| Maximum Working Temperature | 200 Degree F |
| Certifications | ASTM F3348; NSF/CSA |
| Applications | Potable water, recirculation, and hydronic heating |
| Product Length (in) | 9.45 |
| Product Width (in) | 3.94 |
| Product Height (in) | 1.61 |
| Shipping Weight (lb) | 0.15 |
Toolup Part # :
884902
