SharkBite UPP-4PC-757550 Description

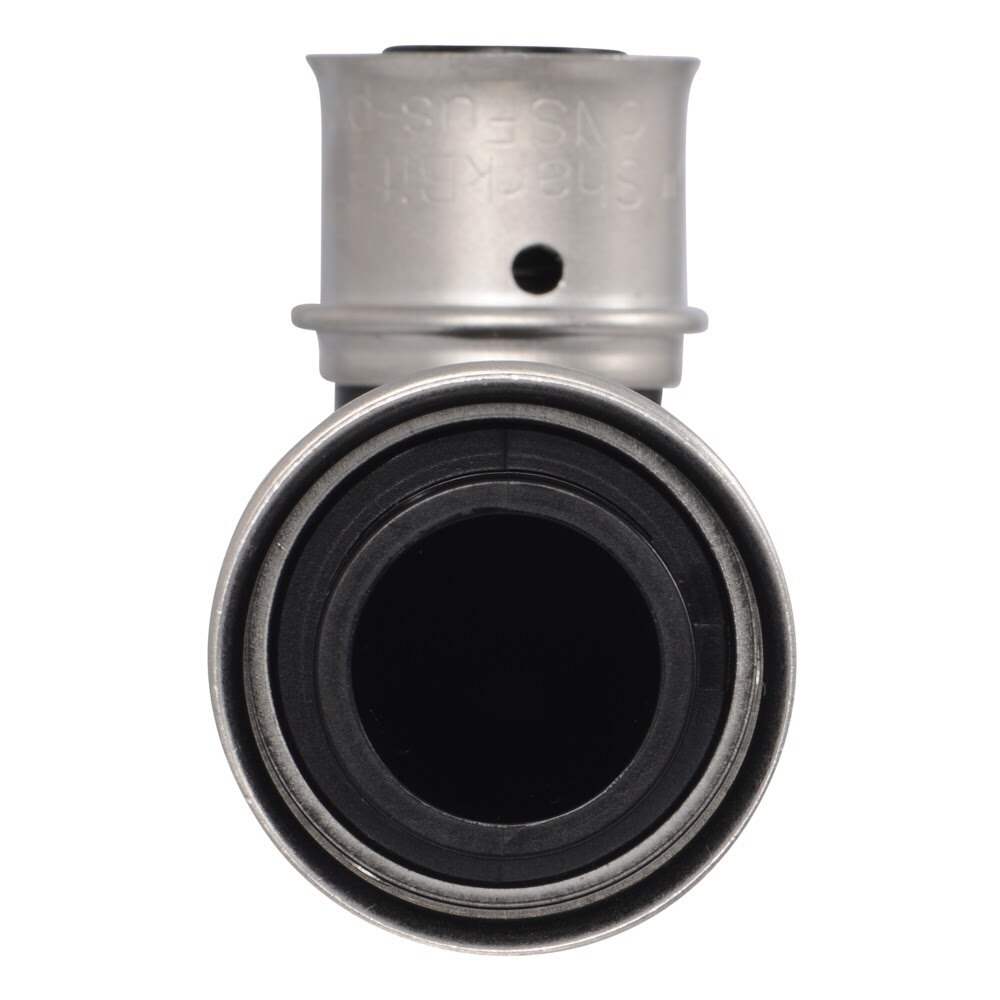

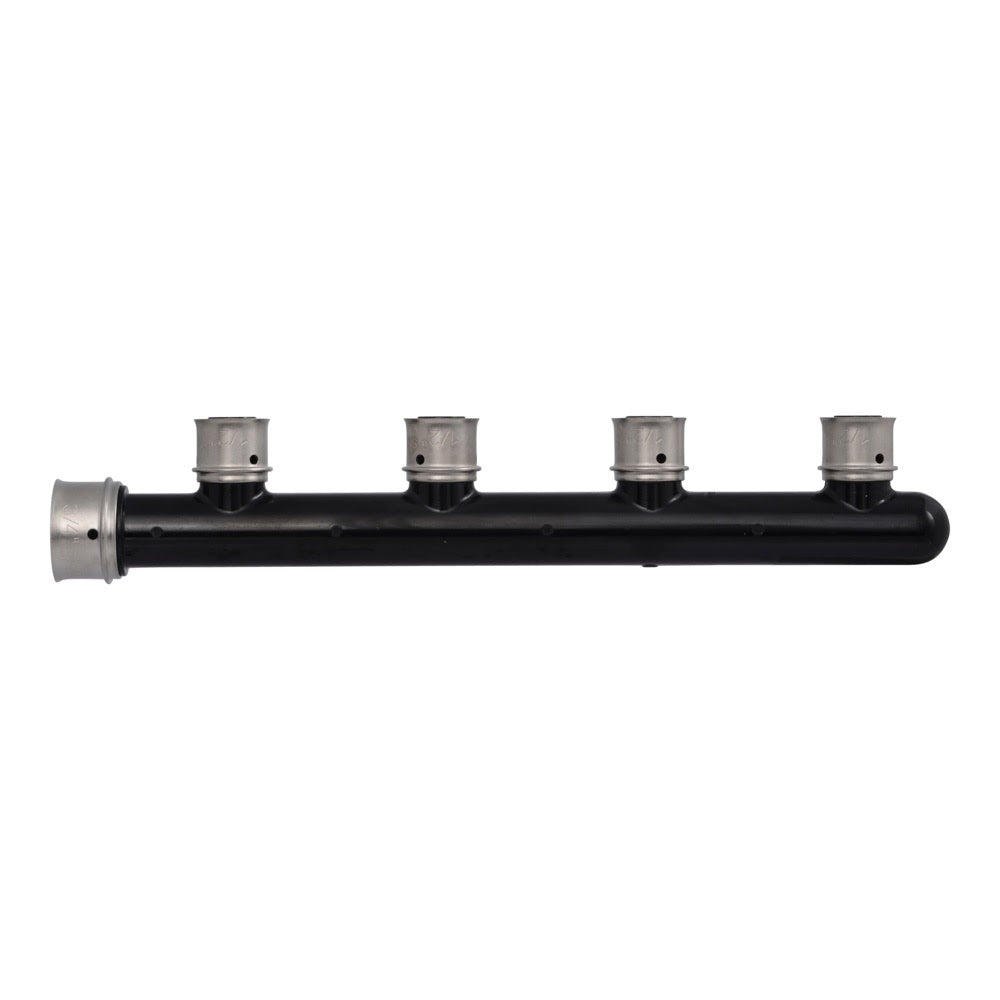

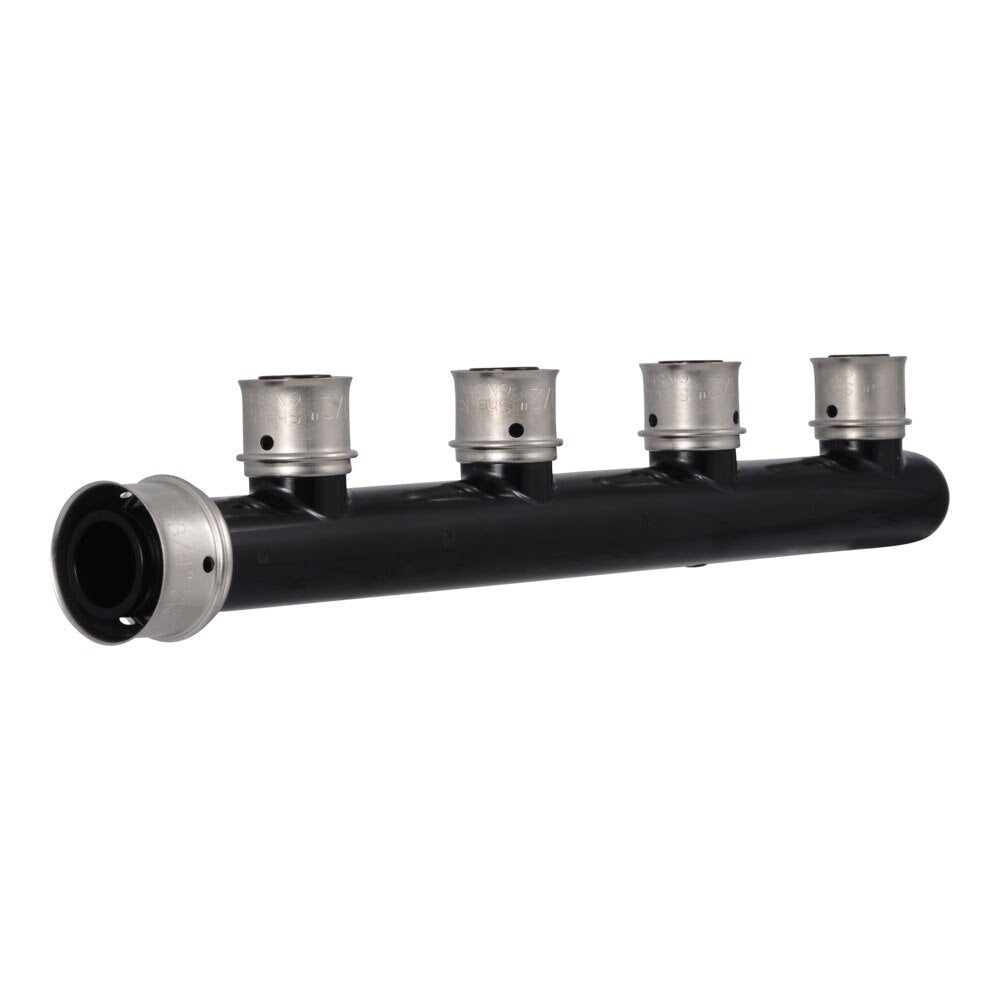

This SharkBite PEX Press poly multi-port tee features a 3/4 in. inlet and four 1/2 in. closed outlets for efficient water distribution in PEX plumbing systems. Its one-piece PPSU body with integrated stainless-steel sleeves supports fast, accurate press connections and is suitable for potable water, recirculation, and hydronic heating applications.
SharkBite UPP-4PC-757550 Includes
- (1) PEX Press Poly Multi-Port Tee
SharkBite UPP-4PC-757550 Features
- 3/4 in. inlet with four 1/2 in. closed outlets for multi-line distribution
- One-piece design with integrated non-removable stainless-steel sleeves
- Built-in tool locator helps provide fast, accurate, and consistent press connections
- Manufactured from NSF-certified PPSU with stainless-steel sleeves
- Compatible with PEX-a and PEX-b pipe
- Works with F3347 and F3348 press tools
- Rated for maximum working pressure of 160 PSI
- Rated for maximum working temperature of 200 DegreeF
- Suitable for potable water, recirculation, and hydronic heating systems
- Tested beyond industry standards for long-term reliability
SharkBite UPP-4PC-757550 Specifications
| Product Type | PEX Press Poly Multi-Port Tee |
| Inlet Size | 3/4 in. |
| Outlet Size | 1/2 in. |
| Number of Outlets | 4 |
| Outlet Configuration | Closed |
| Connection Type | PEX Press |
| Material | NSF-certified PPSU with stainless-steel sleeve |
| Compatible Pipe | PEX-a and PEX-b |
| Compatible Tools | F3347/F3348 press tools |
| Maximum Working Pressure | 160 PSI |
| Maximum Working Temperature | 200 DegreeF |
| Standards | ASTM F3348 |
| Applications | Potable water, recirculation, and hydronic heating |
