SharkBite UPP0235 Description

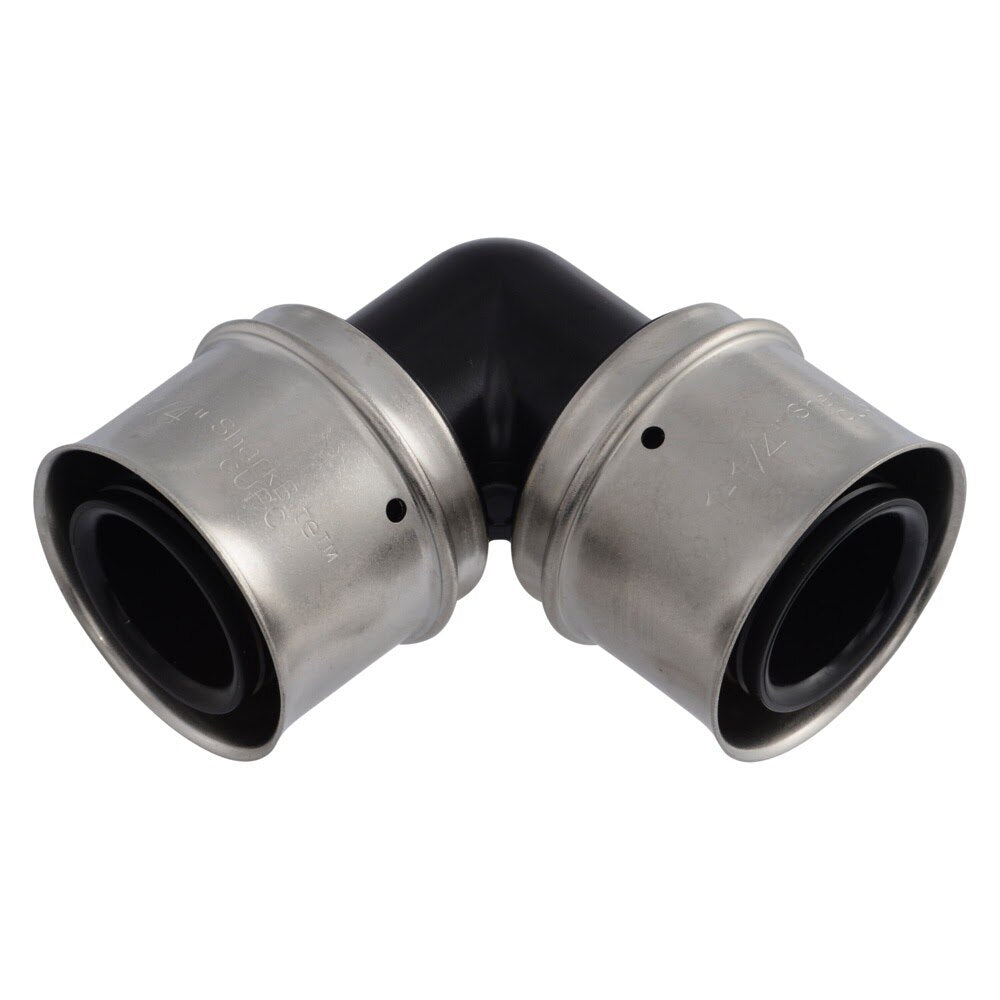

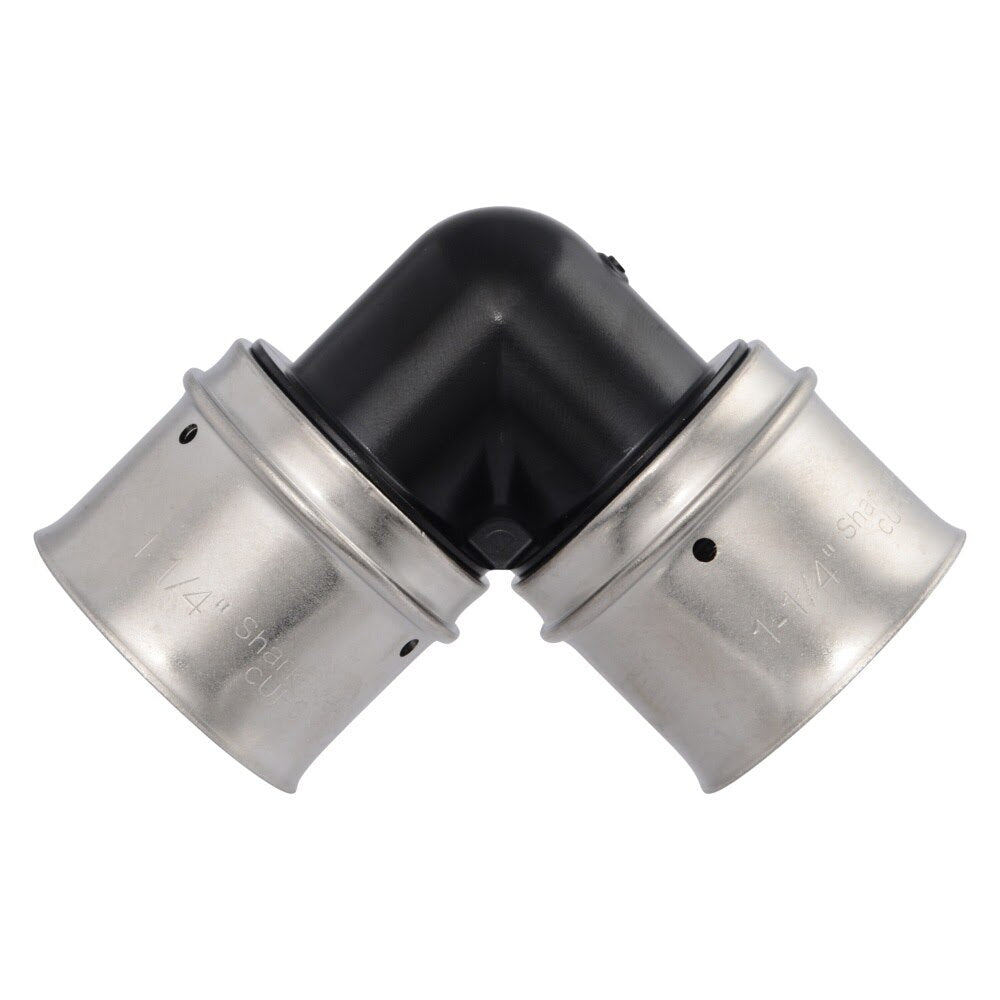

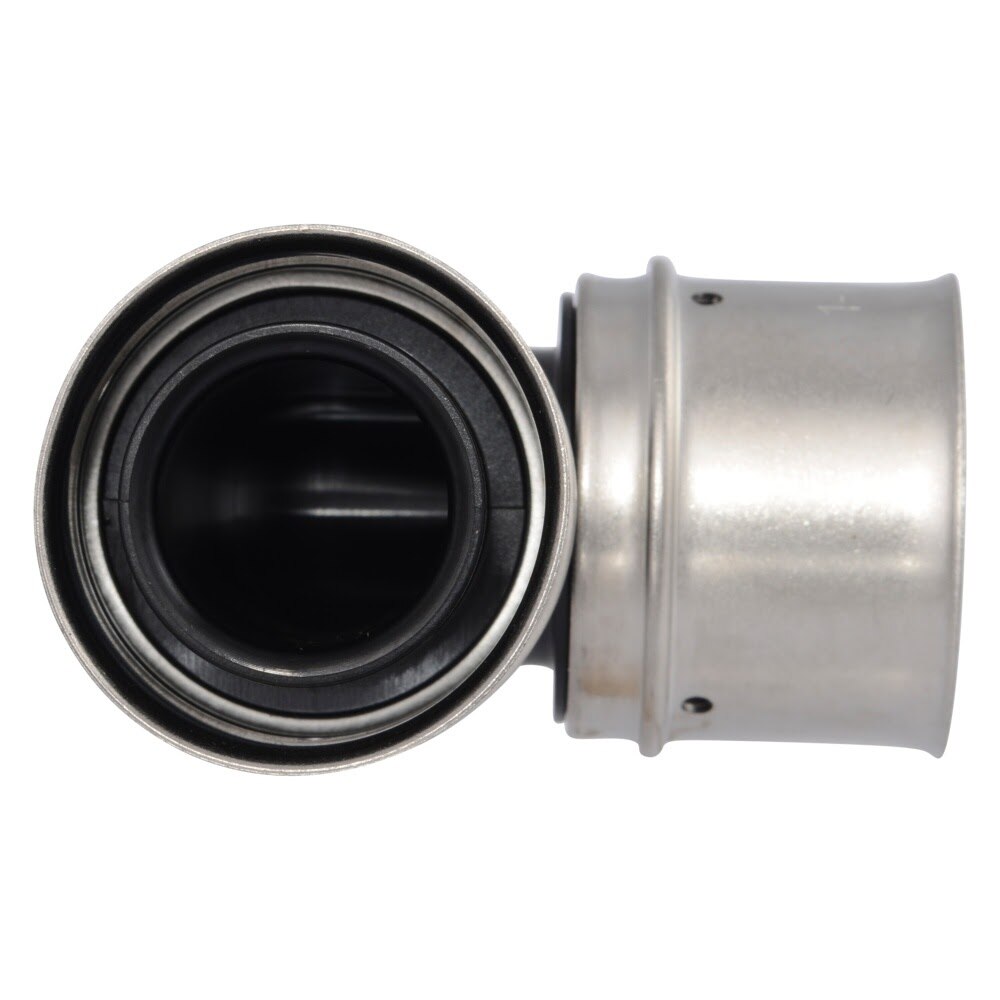

The SharkBite UPP0235 Poly PEX Press Elbow is a 1-1/4 in x 1-1/4 in polymer elbow fitting for PEX press systems. Its one-piece PPSU body with an integrated stainless-steel sleeve and built-in tool locator supports fast, consistent connections for potable water, recirculation, and hydronic heating applications.
SharkBite UPP0235 Includes
- (1) 1-1/4 in x 1-1/4 in Poly PEX Press Elbow
SharkBite UPP0235 Features
- One-piece design with integrated non-removable stainless-steel sleeve
- Built-in tool locator helps deliver fast, accurate, and consistent press connections
- Manufactured from NSF-certified PPSU with a stainless-steel sleeve
- Compatible with PEX-a and PEX-b pipe
- Compatible with F3347/F3348 press tools
- Rated for up to 160 PSI working pressure
- Rated for up to 200 Degrees F working temperature
- Certified to ASTM F3348 and multiple NSF/CSA standards
- Suitable for potable water, recirculation, and hydronic heating
SharkBite UPP0235 Specifications
| Connection Type | PEX Press |
| Fitting Type | Elbow |
| Nominal Size | 1-1/4 in x 1-1/4 in |
| Material | PPSU polymer with stainless steel sleeve |
| Max Working Pressure | 160 PSI |
| Max Working Temperature | 200 Degrees F |
| Compatible Pipe | PEX-a and PEX-b |
| Tool Compatibility | F3347/F3348 press tools |
| Standards | ASTM F3348; NSF/CSA |
| Application | Potable water, recirculation, and hydronic heating |
| Each Length | 9.45 in |
| Each Width | 7.09 in |
| Each Height | 2.76 in |
| Each Shipping Weight | 0.81 lb |
| Case Quantity | 25 |
| Minimum Order Quantity | 5 |
