Description
Description
SharkBite UPR058X5 Description

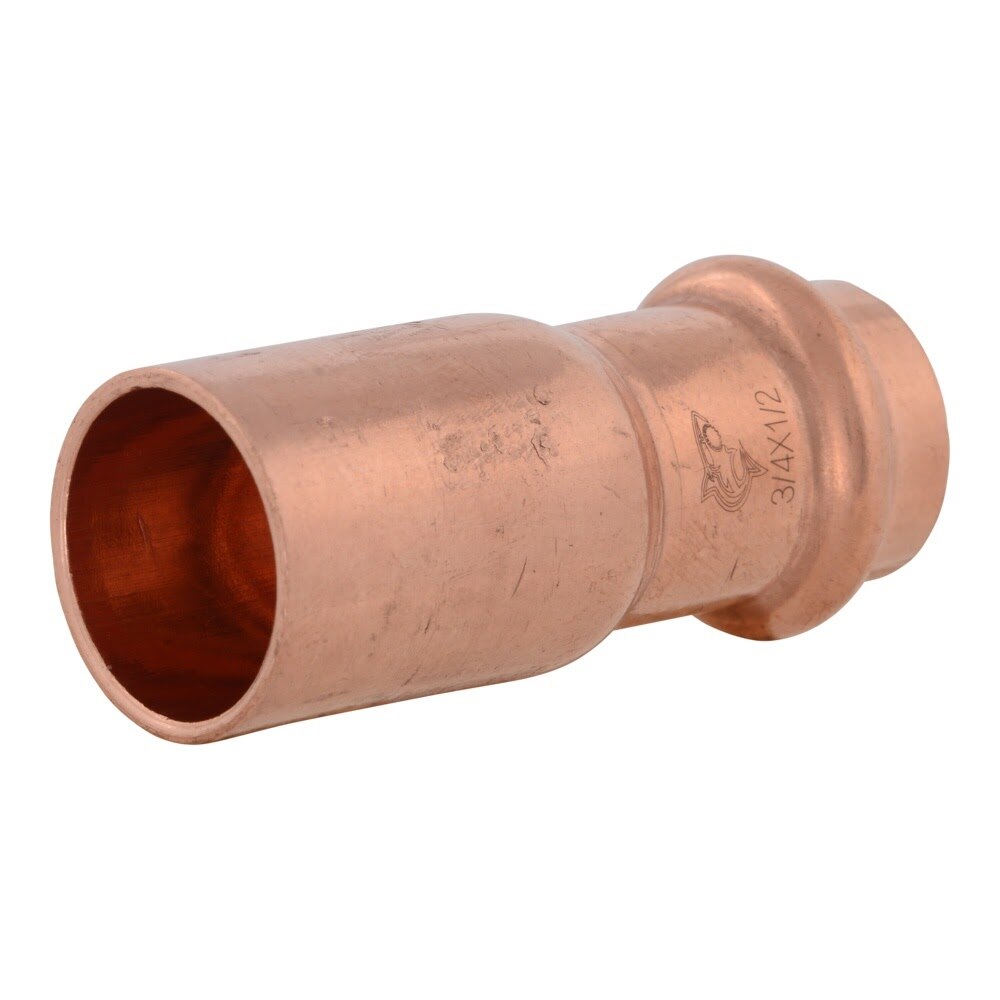

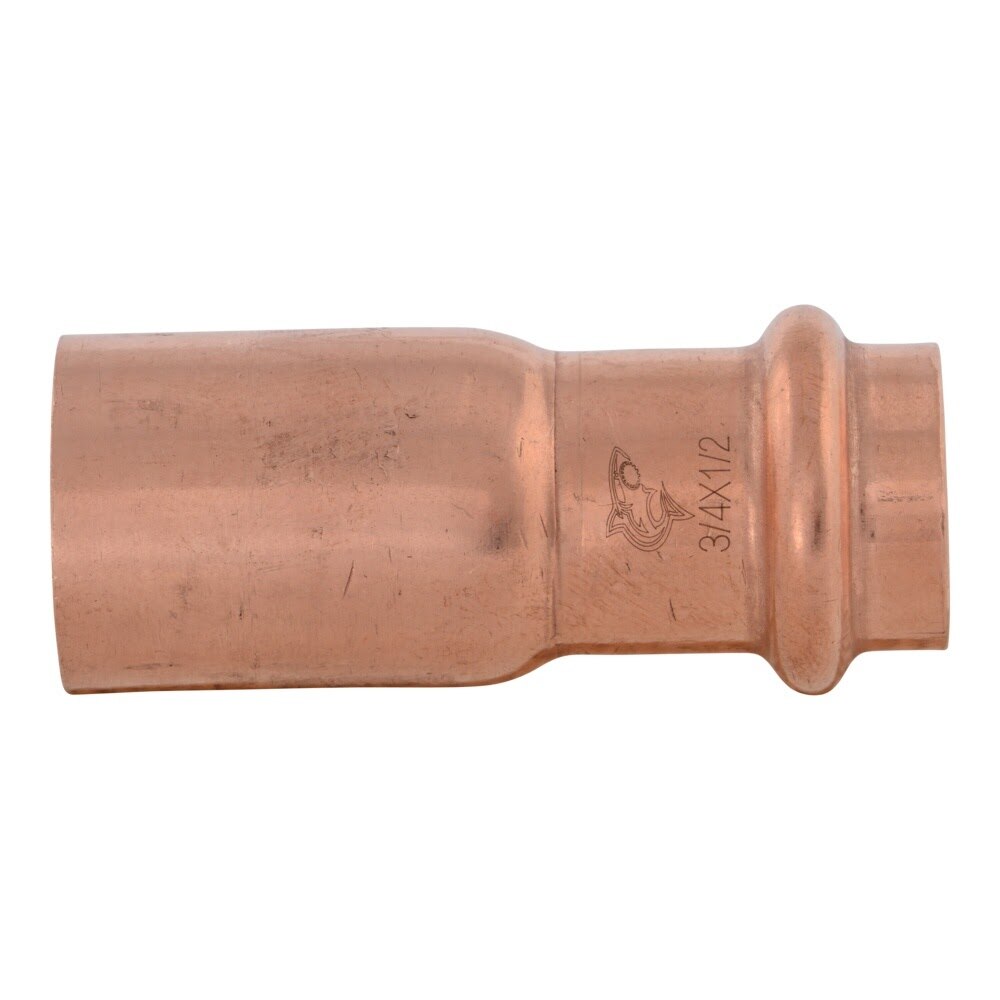

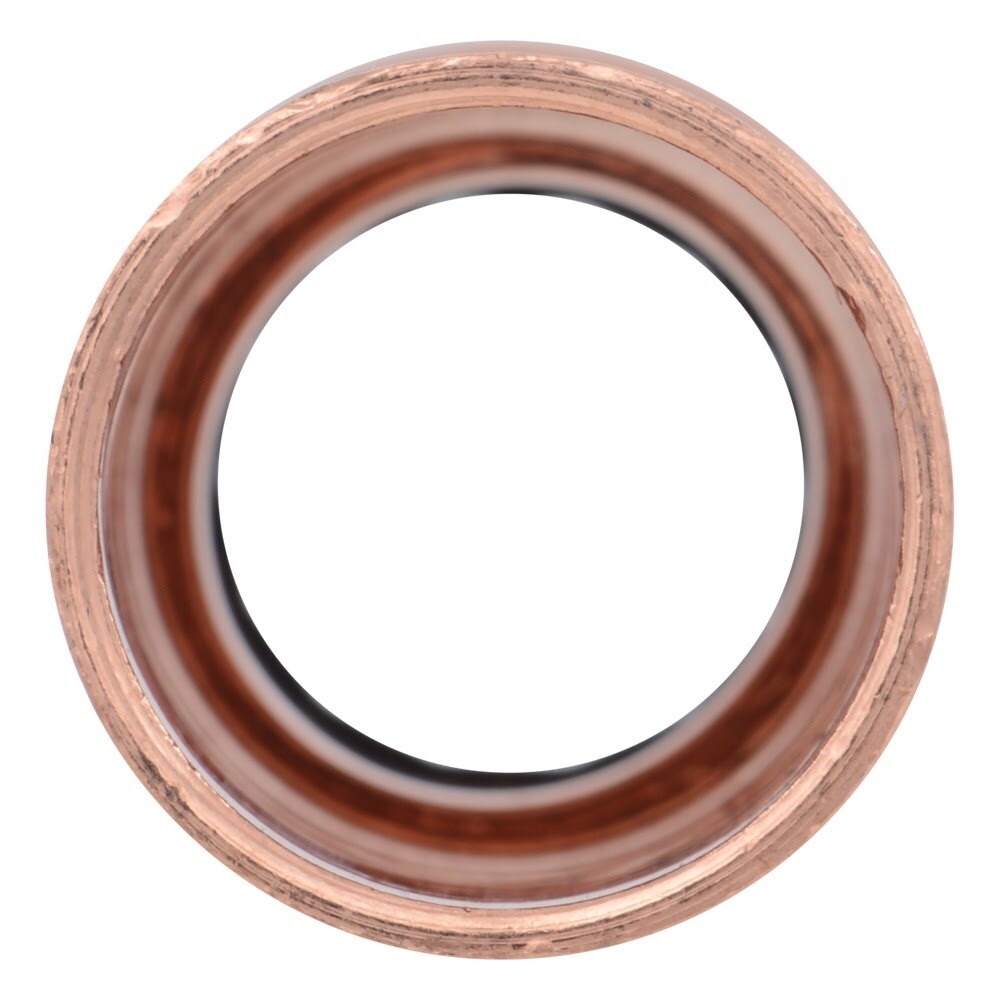

The SharkBite 3/4 in. x 1/2 in. copper press reducing coupling creates a permanent press connection between two copper tube sizes. Designed for ASTM B88 copper tubing Types K, L, and M, it installs with standard press tools and V-profile jaws without soldering, glue, or crimping, and it can be used on wet or dry lines.
SharkBite UPR058X5 Includes
- (5) 3/4 in. x 1/2 in. Copper Press Reducing Coupling
SharkBite UPR058X5 Features
- Copper press reducing coupling for 3/4 in. and 1/2 in. copper tubing
- Installs with standard press tools and V-profile jaws
- No soldering, glue, or crimping required
- Can be installed on wet or dry lines
- Designed for ASTM B88 copper tubing Types K, L, and M
- Certified for potable and non-potable water systems
- Permanent press-fit connection
- Rated for up to 250 PSI maximum working pressure
- Working temperature range from 33 F to 200 F
- Copper construction
- Helps reduce installation time compared to soldering
- No flame, fumes, or fire watch required on the jobsite
SharkBite UPR058X5 Specifications
| Manufacturer | SharkBite |
| Part Number | UPR058X5 |
| Product Type | Copper Press Reducing Coupling |
| Material | Copper |
| Color/Finish Family | Copper |
| Connection Type (End 1) | Press |
| Connection Type (End 2) | Press |
| Diameter (End 1) | 3/4 in. |
| Diameter (End 2) | 1/2 in. |
| Fitting Type | Press-fit |
| Sub Type | Reducer |
| Package Quantity | 5 |
| Common Use | Potable water |
| Compatible Tubing | ASTM B88 copper tubing Types K, L, M |
| Maximum Working Temperature (F) | 200 |
| Minimum Working Temperature (F) | 33 |
| Maximum Working Pressure (PSI) | 250 |
| Permanent or Removable | Permanent |
| Safety Listing | NSF safety listing |
| Complies with Federal Lead Guidelines | Yes |
| Warranty | 25-year limited |
| Package Length (in) | 7.87 |
| Package Width (in) | 5.91 |
| Package Height (in) | 0.875 |
| Shipping Weight (lb) | 0.57 |
