SharkBite UPR09105 Description

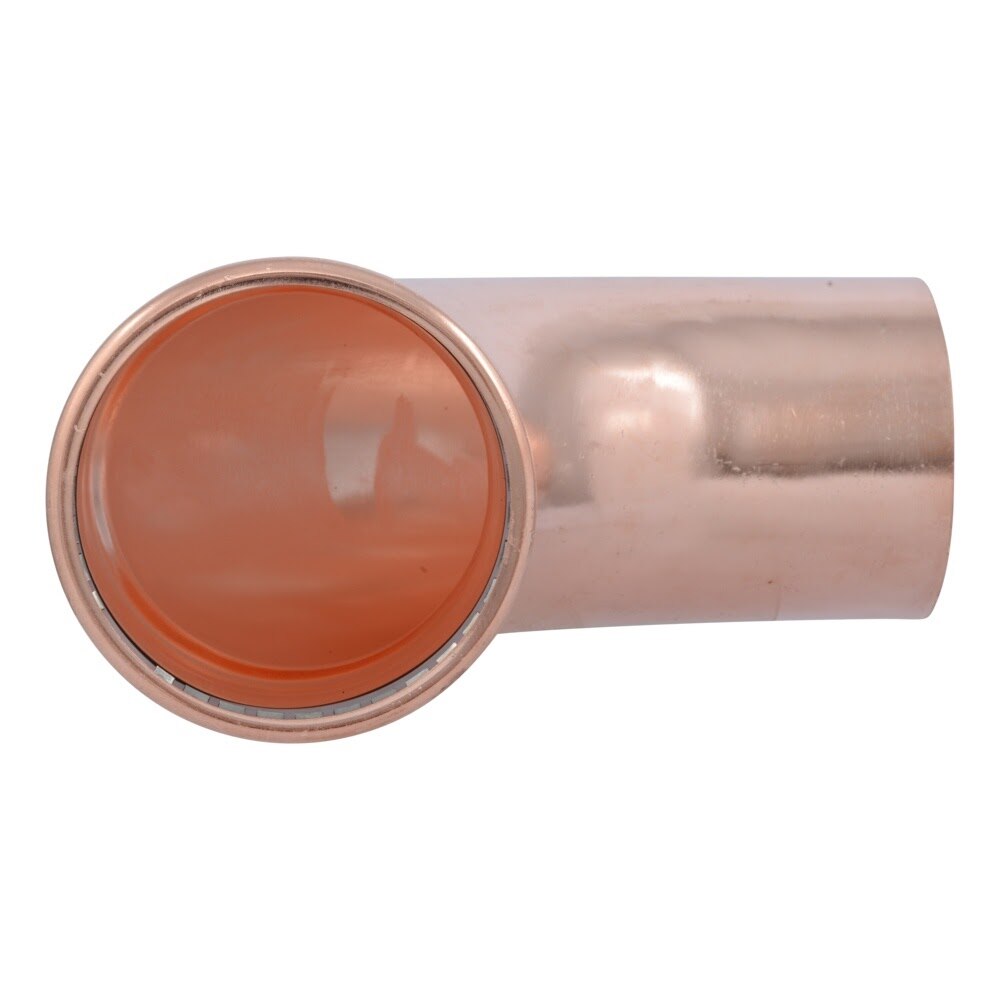

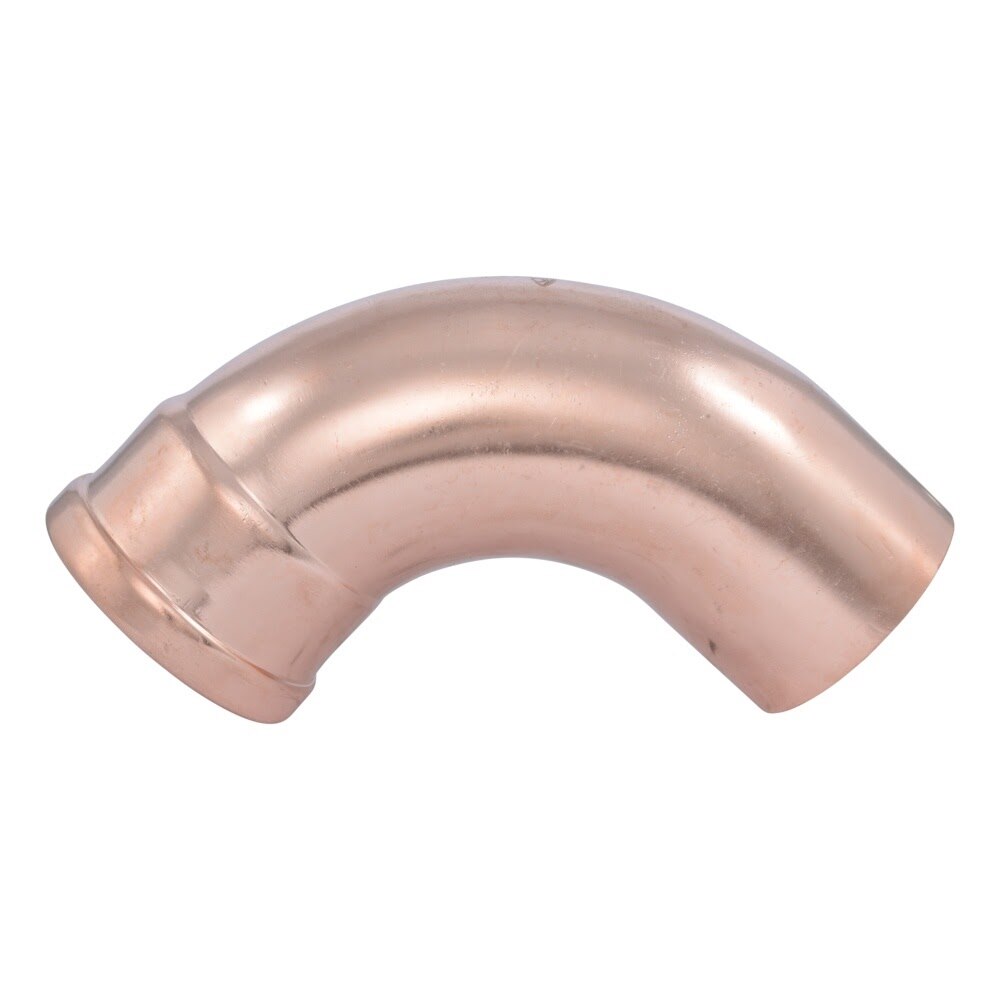

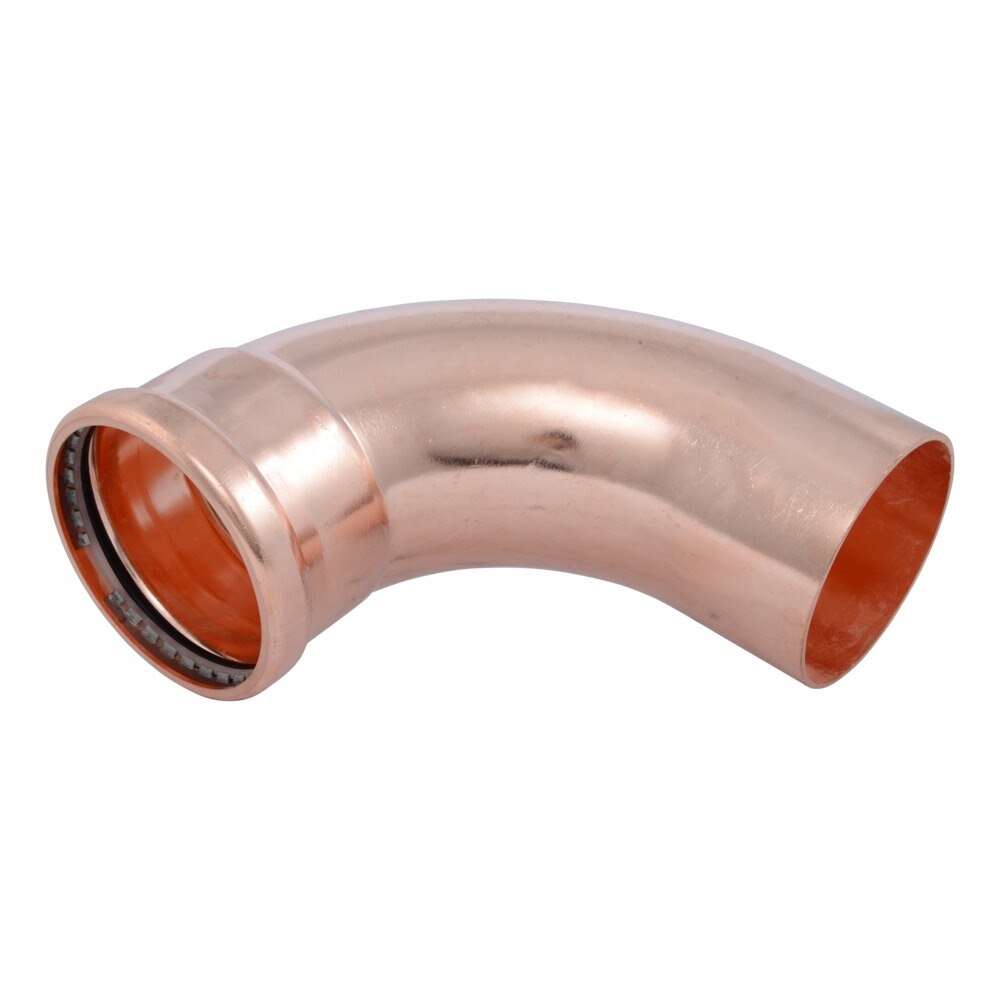

The SharkBite UPR09105 is a 4 in. large copper press 90 Degree street elbow fitting designed for use with ASTM B88 copper tubing in water system installations. It works with standard press tools and V-profile jaws to create a permanent connection without soldering, glue, or crimping.
SharkBite UPR09105 Includes
- (1) 4 in. Large Copper Press 90 Degree Street Elbow Fitting
SharkBite UPR09105 Features
- Large diameter 4 in. copper press 90 Degree street elbow fitting
- Compatible with ASTM B88 copper tubing types K, L, and M
- Installs with standard press tools and V-profile jaws
- No soldering, glue, or crimping required
- Can be installed on wet or dry lines
- Suitable for potable and non-potable water systems
- Helps reduce connection time compared to soldering
- No flame, fumes, or fire watch required during installation
SharkBite UPR09105 Specifications
| Material | Copper |
| Sub Type | Street Elbow |
| Fitting Type | Press-fit |
| Connection Type (End 1) | Press |
| Connection Type (End 2) | Press |
| Diameter (End 1) | 4 in. |
| Diameter (End 2) | 4 in. |
| Degree of Angle | 90 Degree |
| Compatible Tubing | ASTM B88 copper tubing Types K, L, M |
| Maximum Working Temperature | 200 F |
| Minimum Working Temperature | 33 F |
| Maximum Working Pressure | 250 psi |
| Permanent or Removable | Permanent |
| Safety Listing | NSF safety listing |
| Complies with Federal Lead Guidelines | Yes |
| Warranty | 25-year limited |
| Product Length (in.) | 19.69 |
| Product Width (in.) | 15.75 |
| Product Height (in.) | 4.125 |
| Product Weight (lb) | 5.73 |
