SharkBite UPR416X5 Description

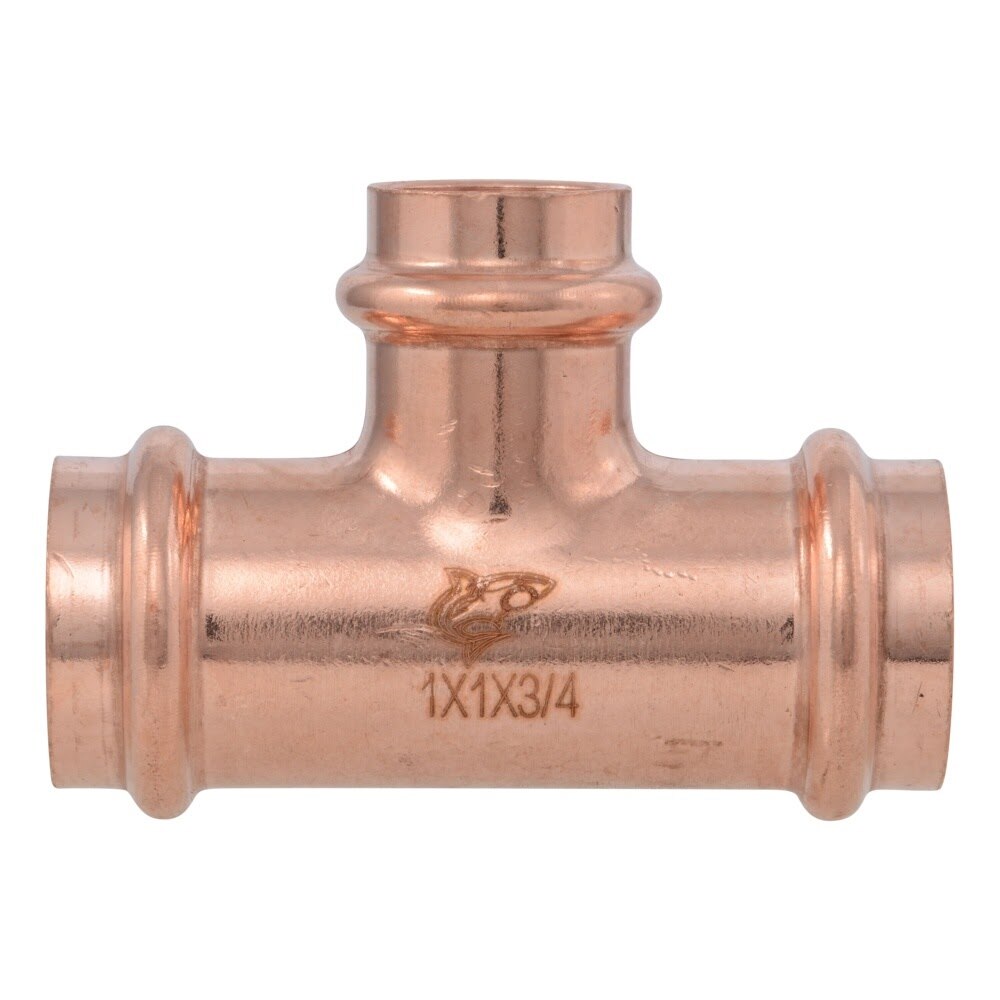

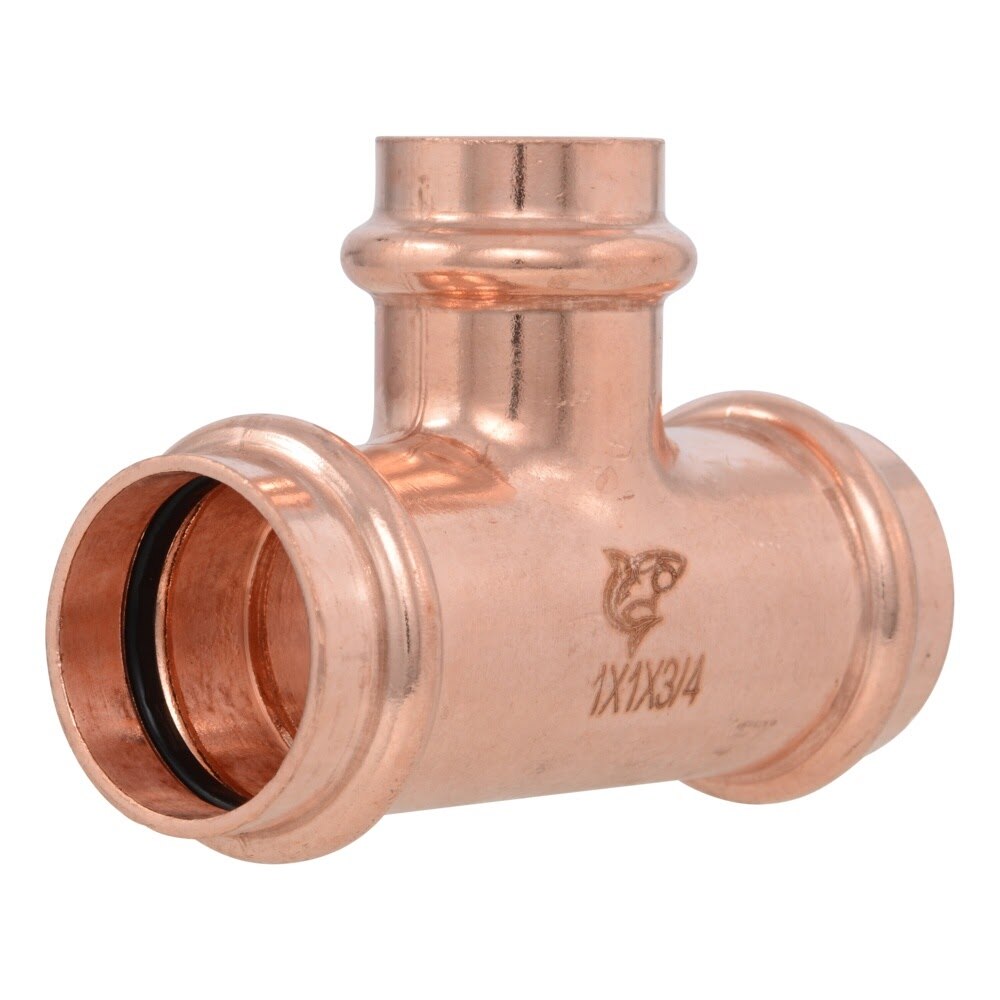

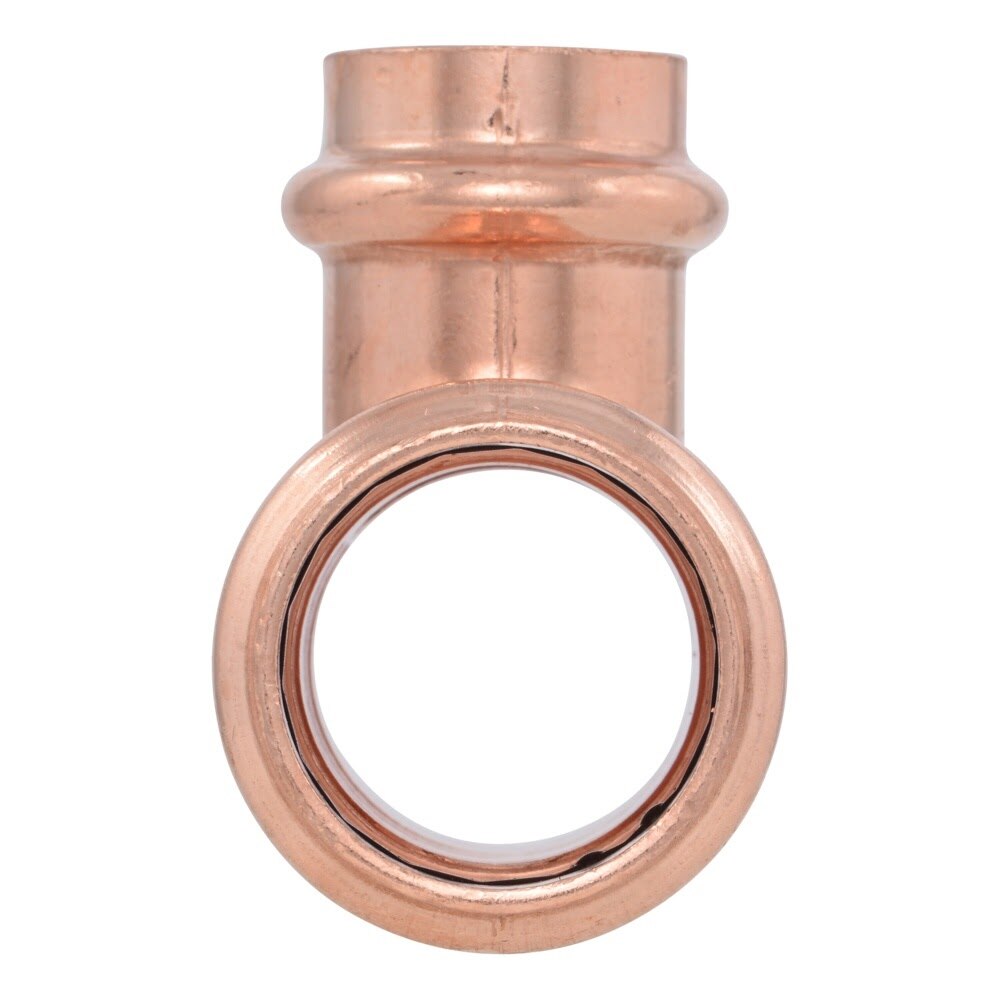

The SharkBite 1 in x 1 in x 3/4 in Copper Press Reducing Tee is a permanent press-fit fitting designed to create a reduced branch connection in copper water lines. Made for ASTM B88 copper tubing Types K, L, and M, it installs with standard press tools and V-profile jaws without soldering, glue, or crimping. It is certified for potable and non-potable water systems and is rated for up to 250 PSI and 200 F.
SharkBite UPR416X5 Includes
- (5) Copper Press Reducing Tee Fittings
SharkBite UPR416X5 Features
- Copper press reducing tee with 1 in x 1 in x 3/4 in configuration
- Press connections on all three ends
- No soldering, glue, or crimping required
- Can be installed on wet or dry lines
- Works with standard press tools and V-profile jaws
- Designed for ASTM B88 copper tubing Types K, L, and M
- Third-party certified for potable and non-potable water systems
- No flame, fumes, or fire watch required on the jobsite
- Maximum working pressure of 250 PSI
- Operating temperature range from 33 F to 200 F
SharkBite UPR416X5 Specifications
| Brand | SharkBite |
| Product Type | Copper press fitting |
| Fitting Type | Reducing tee |
| Material | Copper |
| Connection Type | Press |
| Diameter End 1 | 1 in |
| Diameter End 2 | 1 in |
| Diameter End 3 | 3/4 in |
| Package Quantity | 5 |
| Common Use | Potable water |
| Compatible Tubing | ASTM B88 copper tubing Types K, L, M |
| Maximum Working Temperature | 200 F |
| Minimum Working Temperature | 33 F |
| Maximum Working Pressure | 250 PSI |
| Permanent or Removable | Permanent |
| Safety Listing | NSF safety listing |
| Complies with Federal Lead Guidelines | Yes |
| Warranty | 25-year limited |
Toolup Part # :
882605
