SharkBite UR072A Description

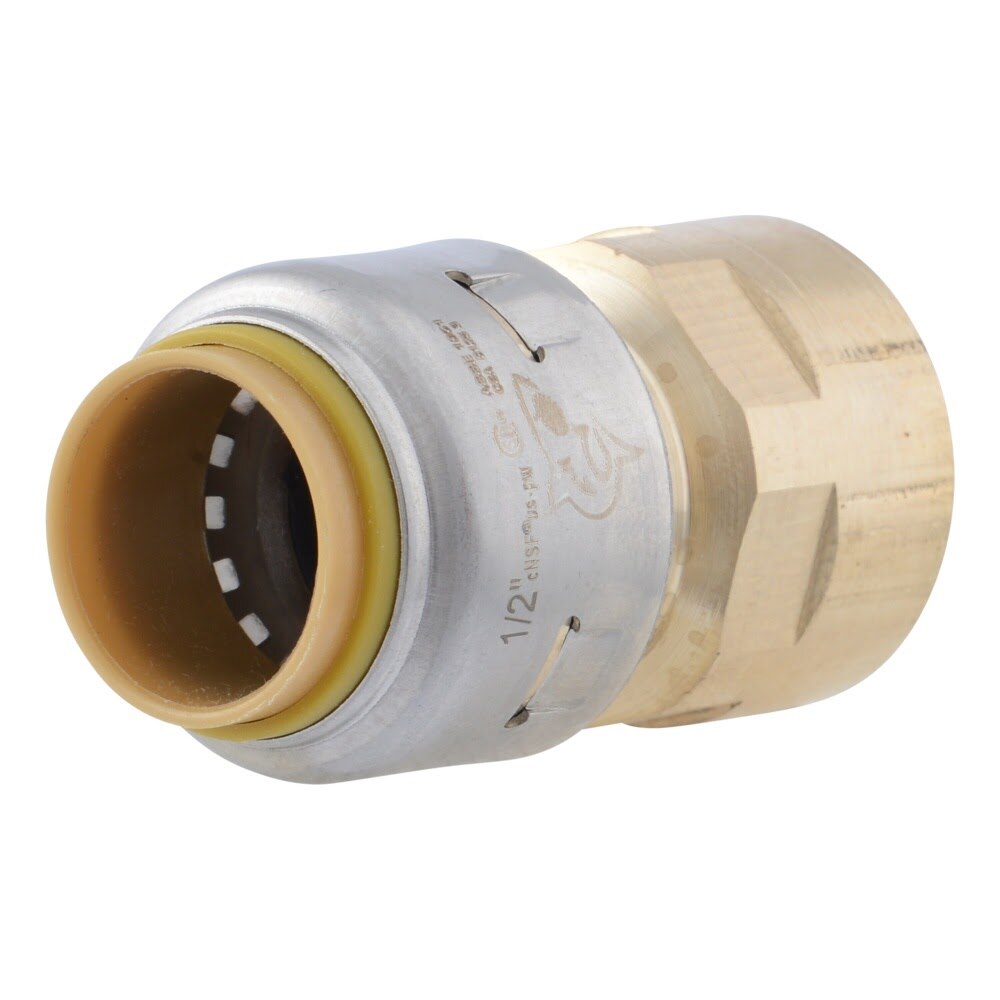

The SharkBite UR072A Max FNPT Adapter is a 1/2 in. x 1/2 in. push-to-connect fitting designed to connect CTS pipe to a female NPT threaded connection. Built with a DZR lead-free brass body and stainless steel retainer, it installs without crimping, soldering, or glue and can be used on wet lines with immediate pressure testing.
SharkBite UR072A Includes
- (1) 1/2 in. x 1/2 in. SharkBite Max FNPT Adapter
SharkBite UR072A Features
- Push-to-connect design for quick installation
- Adapts 1/2 in. CTS pipe to 1/2 in. FNPT threaded connections
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- DZR lead-free brass body for reliable performance
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation for easier alignment
- No tube liner required for PEX
- Rated to 200 DegreeF and 400 psi
- Can be removed using a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR072A Specifications
| Size | 1/2 in. x 1/2 in. |
| Fitting Type | Female Adapter |
| Connection Type | Push-to-Connect x FNPT |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE SDR-9 |
| Body Material | DZR Lead-Free Brass |
| Retainer Material | Stainless Steel |
| Maximum Temperature | 200 DegreeF |
| Maximum Pressure | 400 psi |
| Each Length | 6.75 |
| Each Width | 4.50 |
| Each Height | 1.01 |
| Each Shipping Weight | 0.11 lb |
| Case Quantity | 24 |
| Minimum Order Quantity | 24 |
