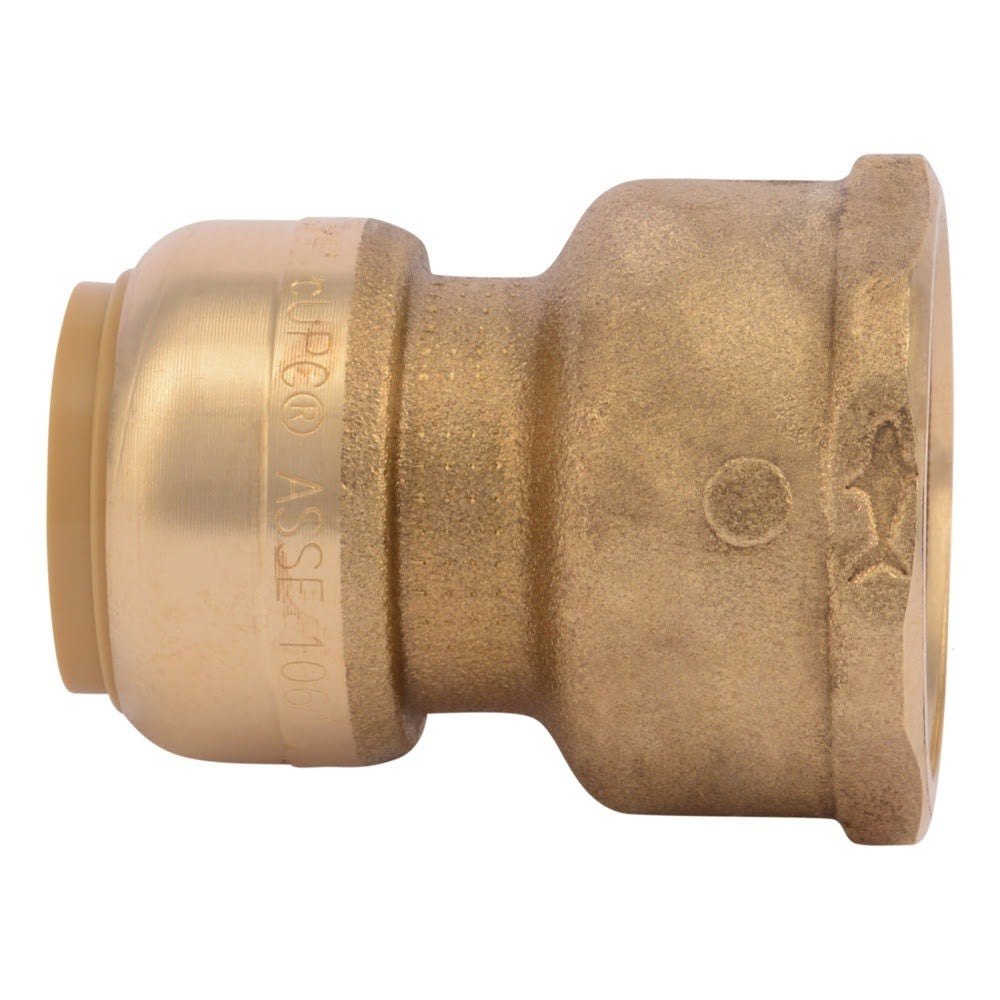

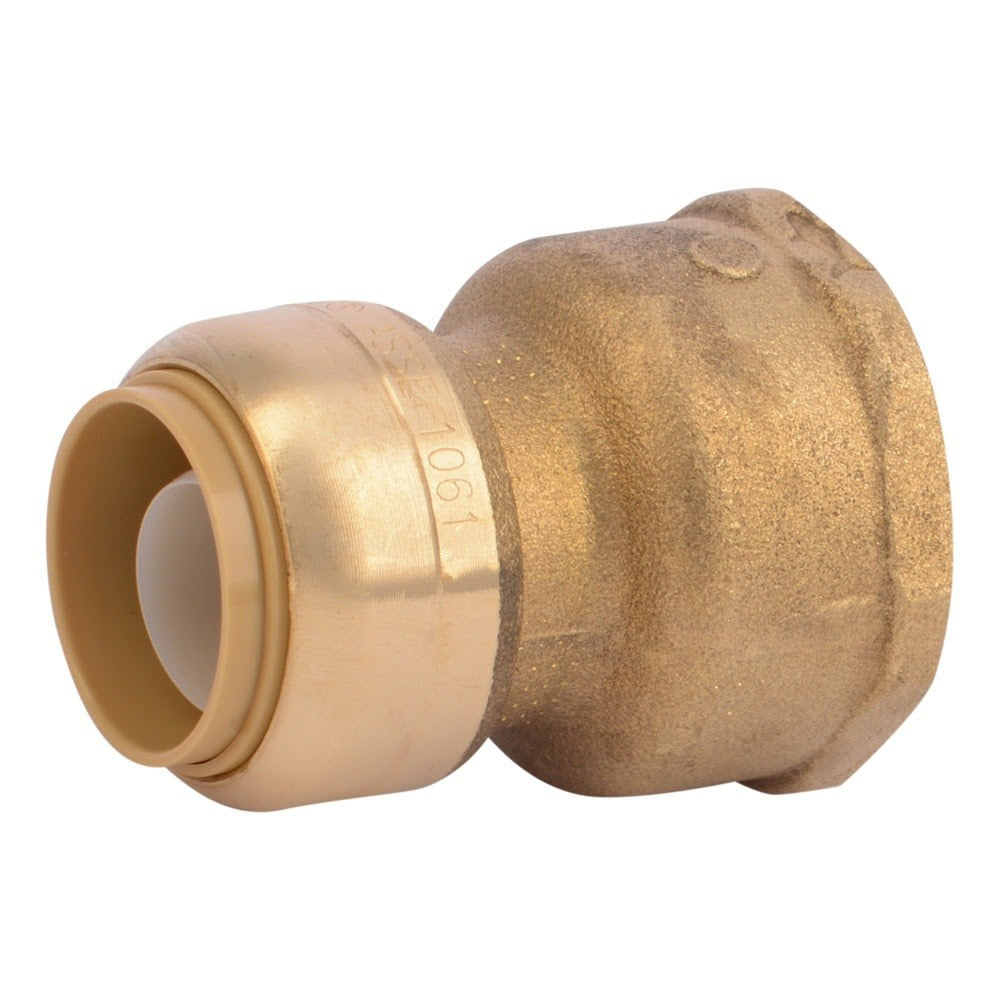

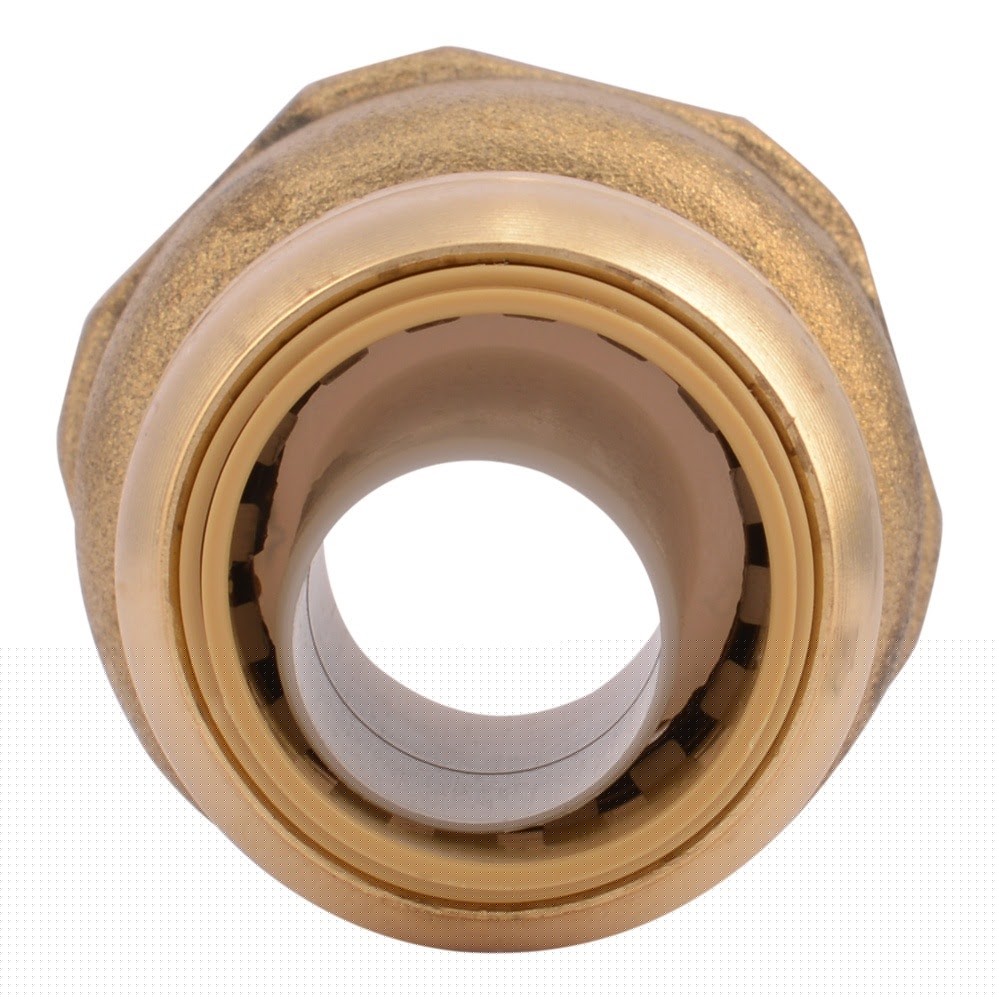

SharkBite UR086A Description
The SharkBite UR086A 3/4 in. x 1 in. FIP adapter provides a push-to-connect connection on one end and a female FNPT threaded connection on the other for fast, reliable plumbing installation. This lead-free brass fitting is compatible with copper, CPVC, and PEX pipe and is suitable for potable water, hydronic heating, underground, and behind-wall applications when installed properly.
SharkBite UR086A Includes
- (1) 3/4 in. x 1 in. FIP Adapter
SharkBite UR086A Features
- Push-to-connect end allows fast installation without soldering
- Adapts from 3/4 in. push-fit connection to 1 in. female FNPT thread
- Compatible with copper, CPVC, and PEX pipe
- Lead-free construction for potable water applications
- Corrosion-resistant DZR brass body
- Rated to 200 psi and 200 degrees F
- Approved for underground and behind-wall applications when properly installed
- Suitable for potable water distribution and hydronic heating systems
- Integrated design with no loose components
SharkBite UR086A Specifications
| Series | SharkBite Universal |
| Generation | Gen. 1 |
| Size | 3/4 in. x 1 in. |
| Connection Type | Push-Fit x FNPT |
| Adapter Type | Female Reducing Adapter |
| Lead Free | Yes |
| Insertion Depth | 1-1/8 in. |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 200 degrees F |
| Compatible Pipe Material | Copper, CPVC, PEX |
| Material | DZR Brass |
| Application | Potable Water, Hydronic Heating |
| Product Length (in) | 2.06 |
| Product Width (in) | 1.71 |
| Product Height (in) | 1.71 |
| Shipping Weight (lb) | 0.28 |
