SharkBite UR094A Description

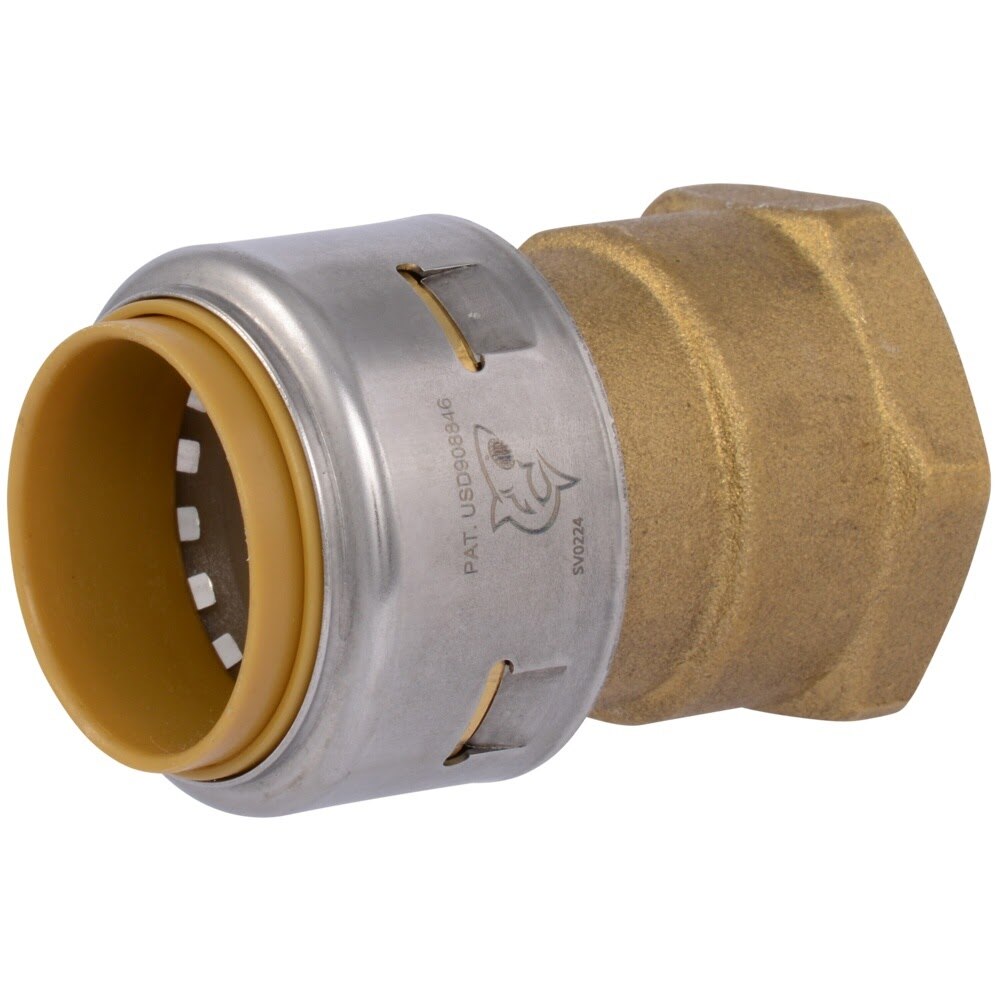

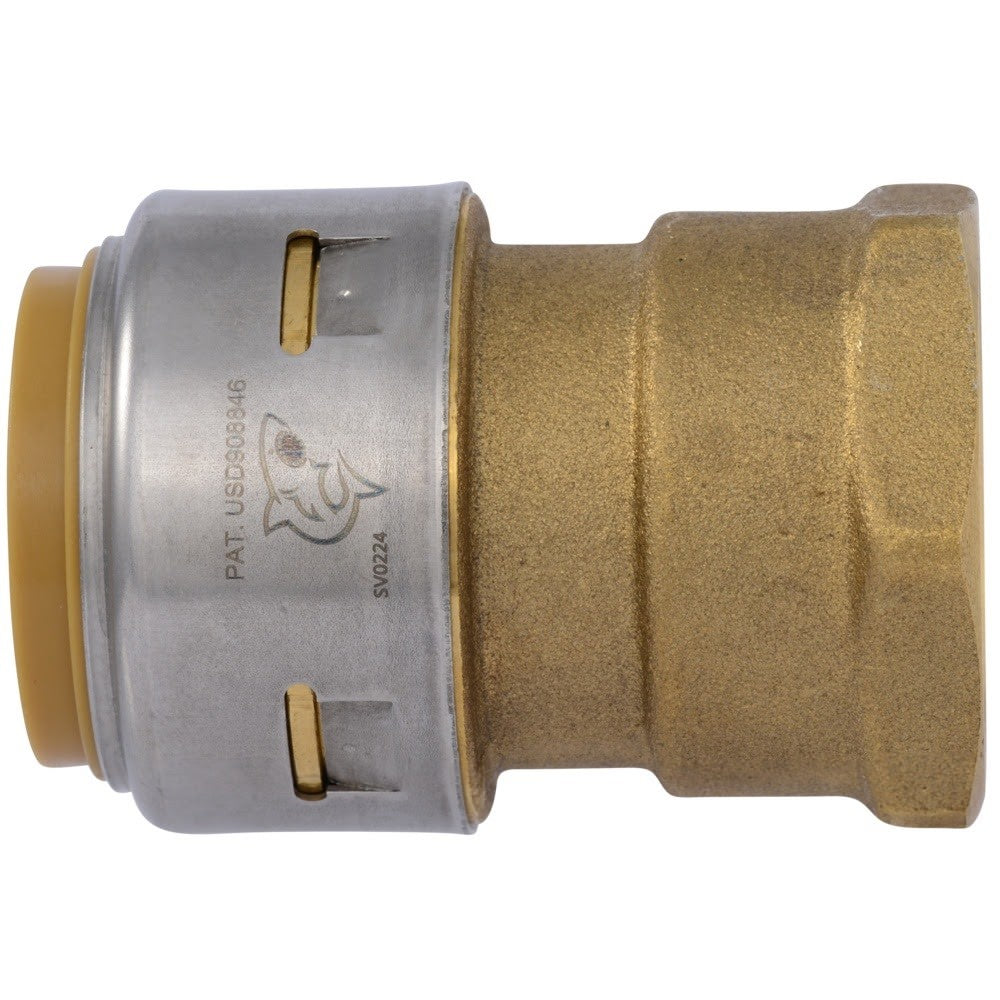

The SharkBite Max 1 in. x 1 in. adapter fitting provides a push-to-connect connection on one end and FNPT threads on the other for fast plumbing installation. Designed for potable water applications, it is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe, features a low-lead corrosion-resistant brass body with a stainless steel collet retainer, and can be rotated after installation and removed when needed.
SharkBite UR094A Includes
- (1) 1 in. x 1 in. Max Push-to-Connect x FNPT Brass Adapter Fitting
SharkBite UR094A Features
- Push-to-connect end connects quickly to PEX, copper, CPVC, PE-RT, and HDPE pipe
- FNPT threaded outlet provides a secure female pipe thread connection
- Newly designed stainless steel collet retainer adds strength
- Requires half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Rotatable after installation and removable
- PEX tube liner is not required
- Approved for underground and behind-the-wall applications; wrapping is required for underground burial
- Low-lead DZR corrosion-resistant brass body
- Rated up to 200 Degree F and 400 psi
SharkBite UR094A Specifications
| Series | SharkBite Max |
| Fitting Type | Adapter |
| Application | Potable Water |
| Material | Brass |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE |
| Connection 1 | Push-to-Connect |
| Connection 2 | FNPT |
| Fitting Size Dimensions | 1 in. x 1 in. |
| Fitting 1 Size | 1 in. |
| Fitting 2 Size | 1 in. |
| Connectivity | Push Fit |
| Removable | Yes |
| Maximum Working Temperature | 200 Degree F |
| Maximum Working Pressure | 400 psi |
| Pack Size | 1 |
Toolup Part # :
884139
