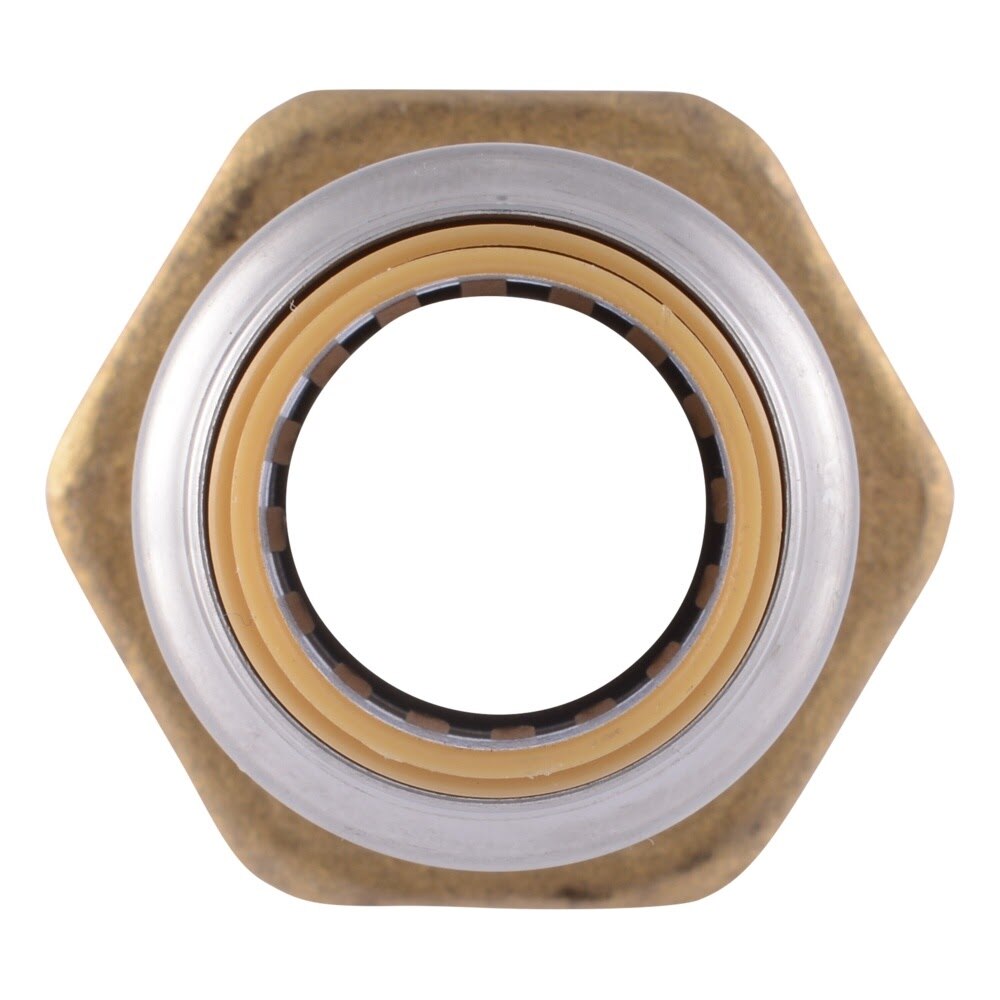

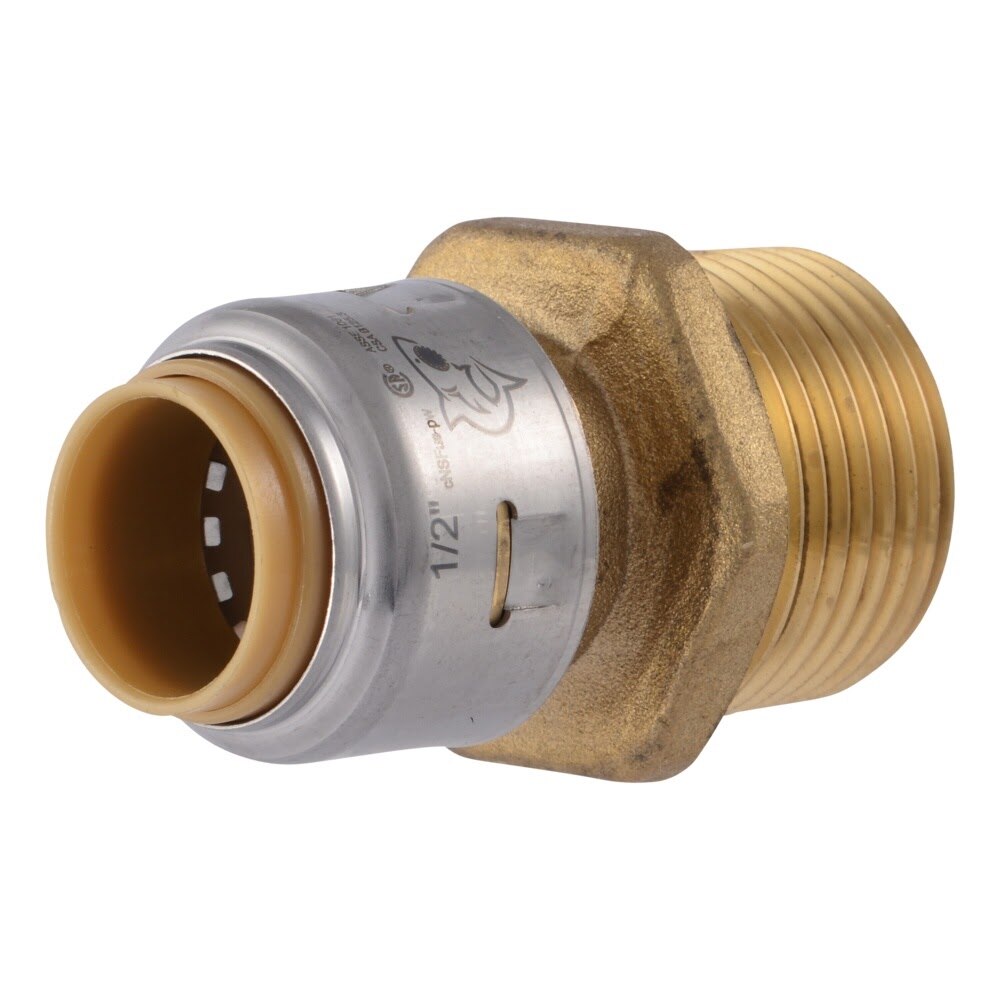

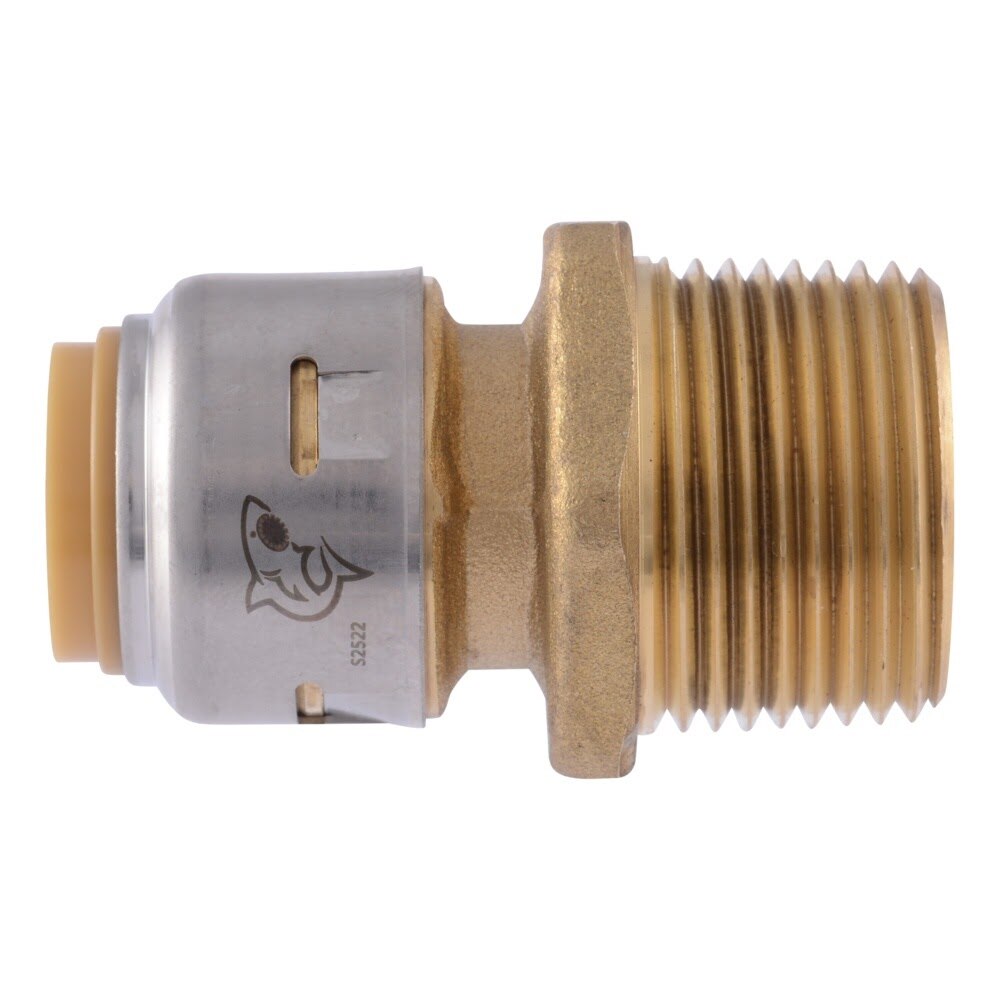

SharkBite UR116A Description
The SharkBite UR116A 1/2 in. x 3/4 in. Max push-to-connect MNPT reducing adapter provides a fast transition from CTS pipe to a male NPT threaded connection. Built with a lead-free DZR brass body and stainless steel retainer, it installs without crimping, soldering, or glue, can be used on wet lines, and is rated up to 200 DegreeF and 400 psi.
SharkBite UR116A Includes
- (1) 1/2 in. x 3/4 in. Max Push-to-Connect MNPT Reducing Adapter
SharkBite UR116A Features
- 1/2 in. push-to-connect x 3/4 in. MNPT reducing adapter
- Connects CTS pipe to a male NPT threaded connection
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Half the insertion force compared to SharkBite 1st Generation fittings
- Stainless steel retainer adds strength and durability
- Lead-free DZR brass body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 200 DegreeF and 400 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR116A Specifications
| Brand | SharkBite |
| Part Number | UR116A |
| Series | SharkBite Max |
| Product Type | Reducing Adapter |
| Size | 1/2 in. x 3/4 in. |
| Connection Type | Push-to-Connect x MNPT |
| Compatible Pipe Types | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Body Material | Lead-free DZR brass |
| Retainer Material | Stainless steel |
| Maximum Pressure | 400 psi |
| Maximum Temperature | 200 DegreeF |
| Wet Line Installation | Yes |
| PEX Tube Liner Required | No |
