SharkBite UR134A Description

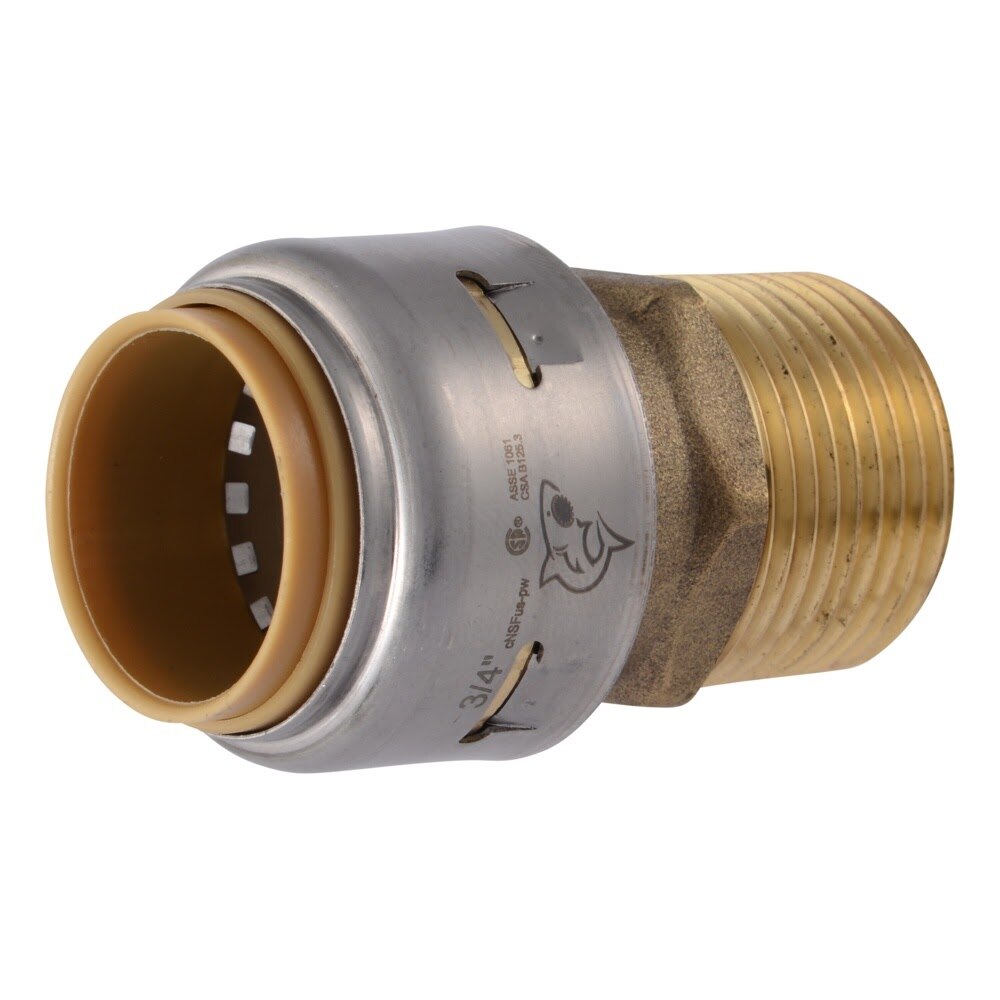

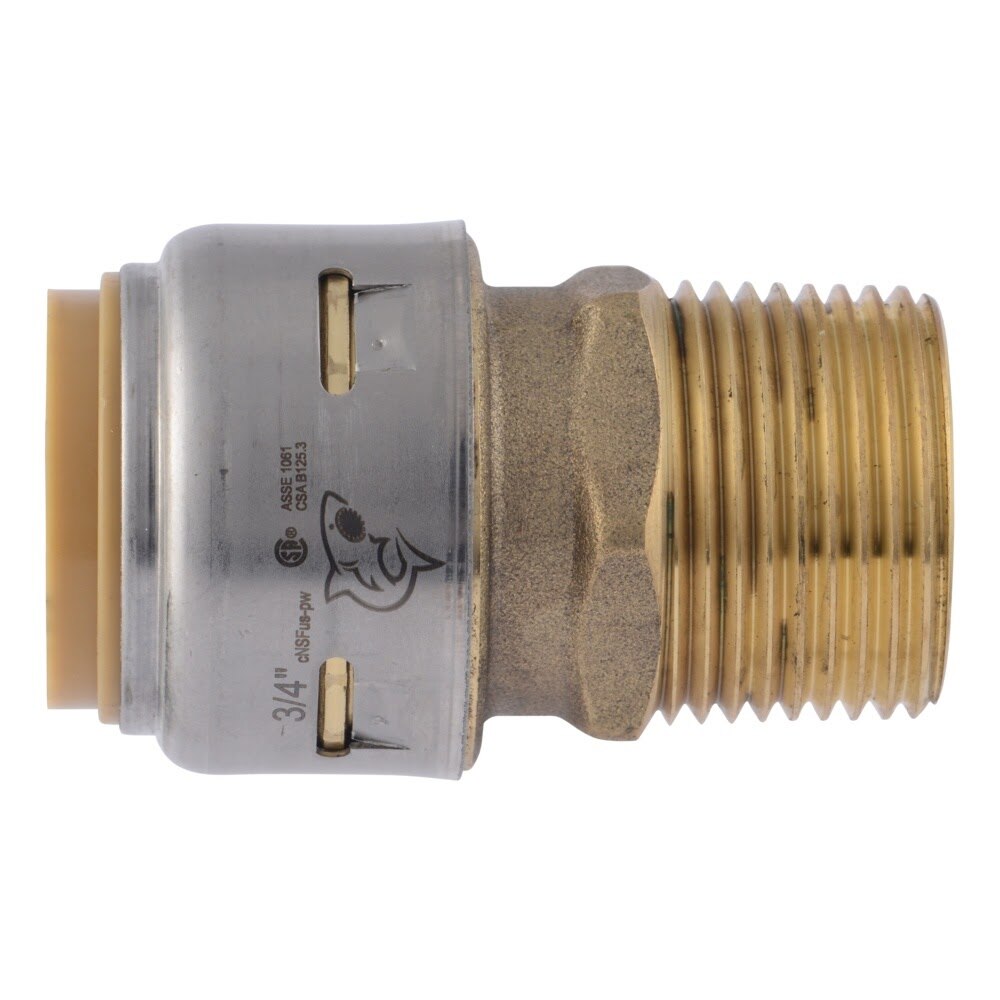

The SharkBite Max adapter fitting creates a fast transition from 3/4 in. push-to-connect pipe to 3/4 in. male NPT threads for potable water applications. Built with a high-performance DZR lead-free brass body and stainless steel retainer, it installs without soldering, crimping, or glue on PEX, copper, CPVC, and PE-RT pipe.
SharkBite UR134A Includes
- (1) Max 3/4 in. x 3/4 in. Push-to-Connect x MNPT Brass Adapter Fitting
SharkBite UR134A Features
- Push-to-connect connection works with PEX, copper, CPVC, and PE-RT pipe
- 3/4 in. male NPT threaded end transitions to threaded plumbing connections
- SharkBite Max design offers half the insertion force with double the burst pressure
- Installs without special tools, crimping, soldering, or glue
- Can be installed on wet lines and pressure tested immediately
- High-performance DZR lead-free brass body
- Stainless steel retainer adds strength and durability
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated to 200 Degree F and 400 psi
- Third-party listed and compliant with applicable US and Canadian plumbing codes
SharkBite UR134A Specifications
| Series | SharkBite Max |
| Application | Potable Water |
| Material | Brass |
| Retainer Material | Stainless Steel |
| Fitting Type | Adapter |
| Connection Type | Push-to-Connect x MNPT |
| Connection 1 | Push-to-Connect |
| Connection 2 | MNPT |
| Fitting Size | 3/4 in. x 3/4 in. |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Working Temperature | 200 Degree F |
| Maximum Working Pressure | 400 psi |
| Pack Size | 1 |
| Product Weight | 0.161 lb |
| Warranty | 25-year warranty on PEX, copper, CPVC, and PE-RT; 5-year warranty on HDPE SDR-9 when properly installed |
