Description
Description
SharkBite UR142A Description

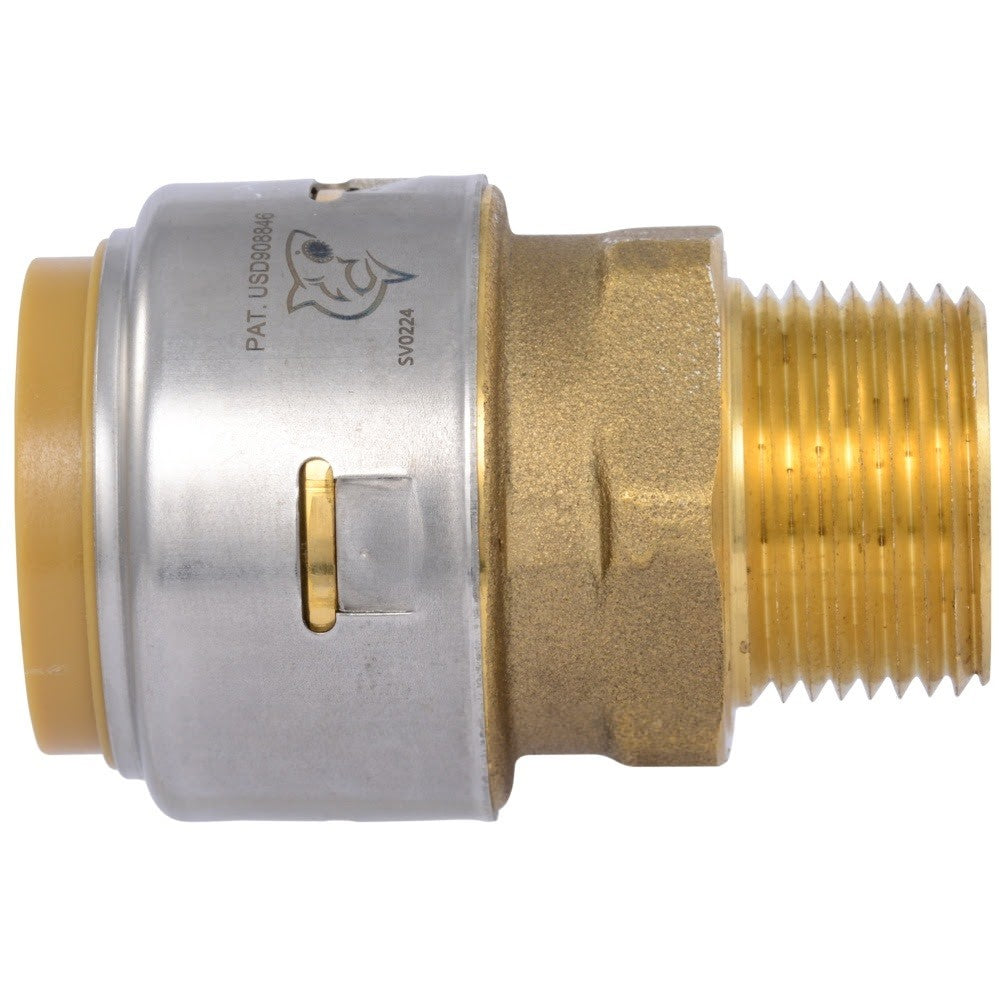

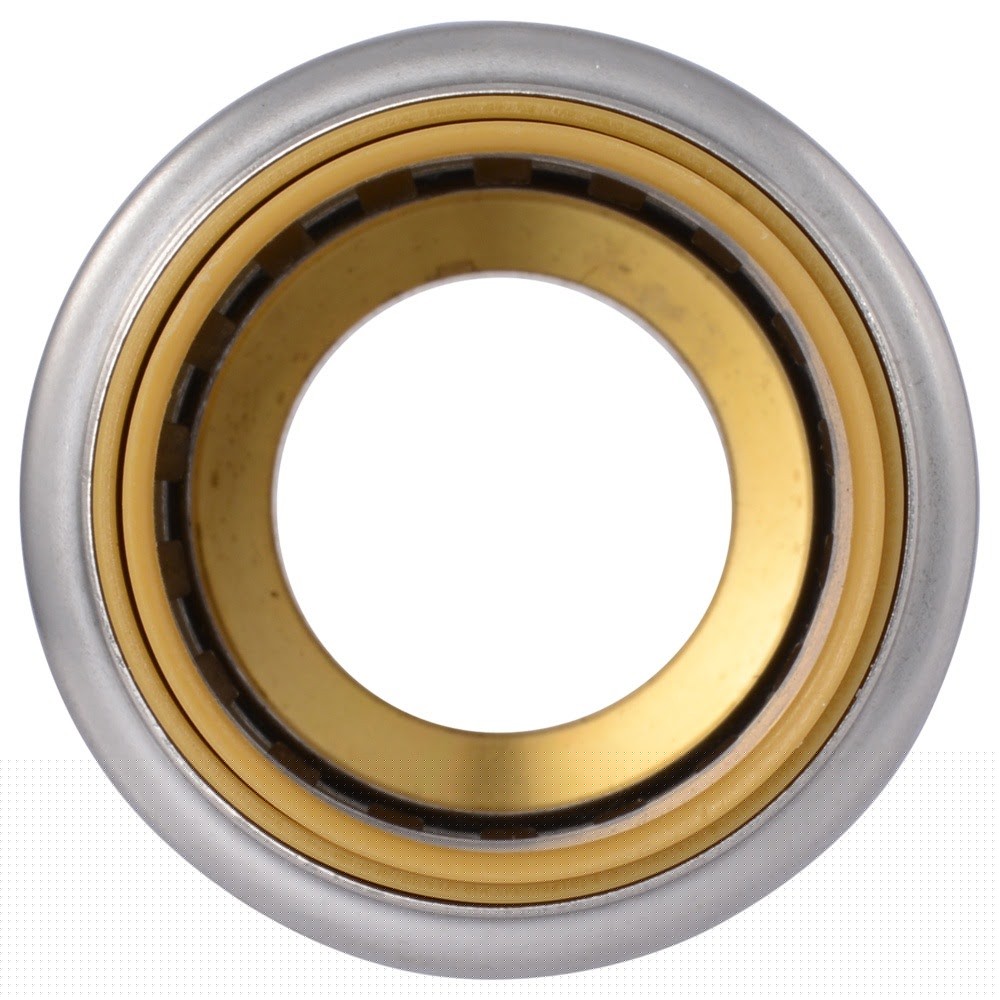

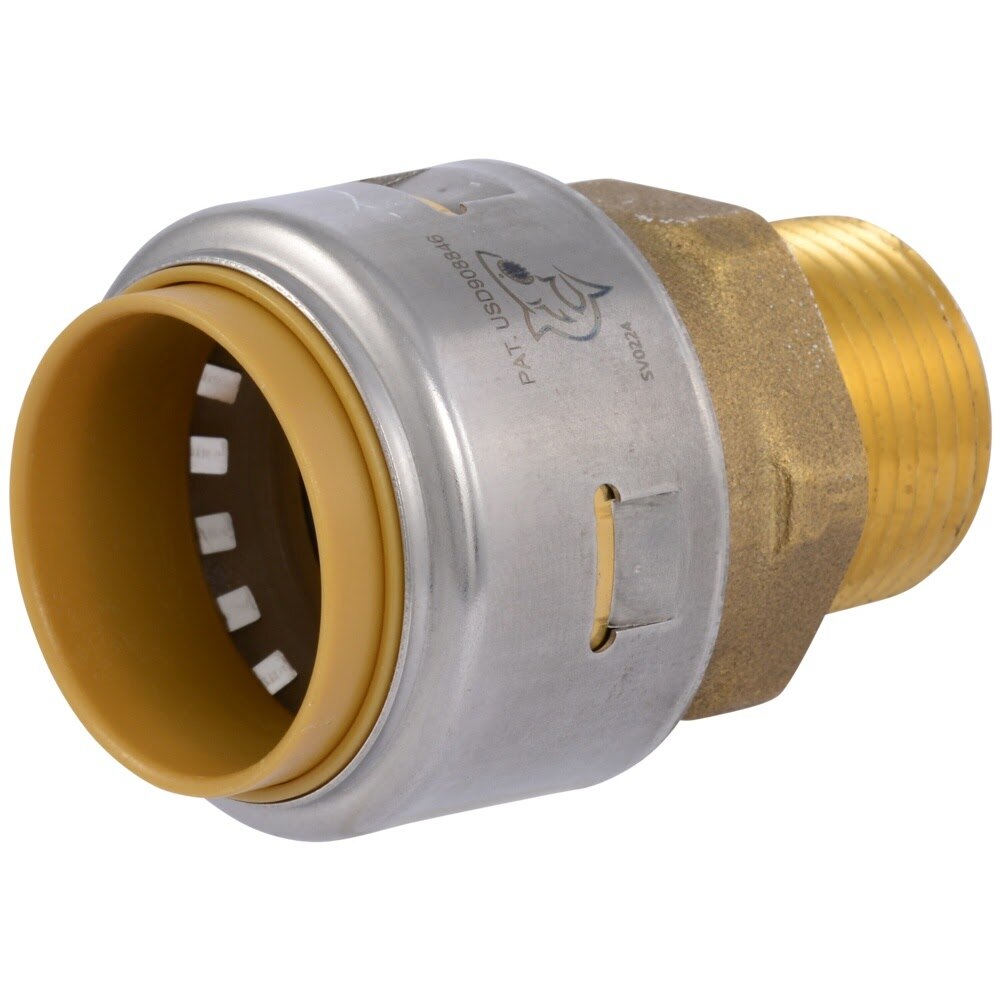

The SharkBite Max 1 in. x 3/4 in. MNPT adapter provides a fast push-to-connect transition from CTS pipe to a 3/4 in. male NPT threaded connection. Its lead-free DZR brass body and stainless steel retainer deliver durable performance, and installation requires no soldering, crimping, glue, or special tools.
SharkBite UR142A Includes
- (1) 1 in. x 3/4 in. SharkBite Max MNPT Adapter
SharkBite UR142A Features
- Push-to-connect design for quick transition from CTS pipe to a male NPT threaded connection
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Reduced insertion force compared to first-generation SharkBite fittings
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 200 DegreeF and 400 psi
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
- 5-year warranty when properly installed with HDPE SDR-9
SharkBite UR142A Specifications
| Size | 1 in. x 3/4 in. |
| Connection Type | Push-Fit x MNPT |
| Thread Size | 3/4 in. |
| Thread Type | Male |
| PEX Size | 1 in. |
| Insertion Depth | 1-5/16 in. |
| Lead Free | Yes |
| Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Maximum Temperature | 200 DegreeF |
| Maximum Pressure | 400 psi |
| Compatible Pipe Types | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Warranty | 25 years on PEX, copper, CPVC, and PE-RT; 5 years on HDPE SDR-9 |
Toolup Part # :
884238
