SharkBite UR22185 Description

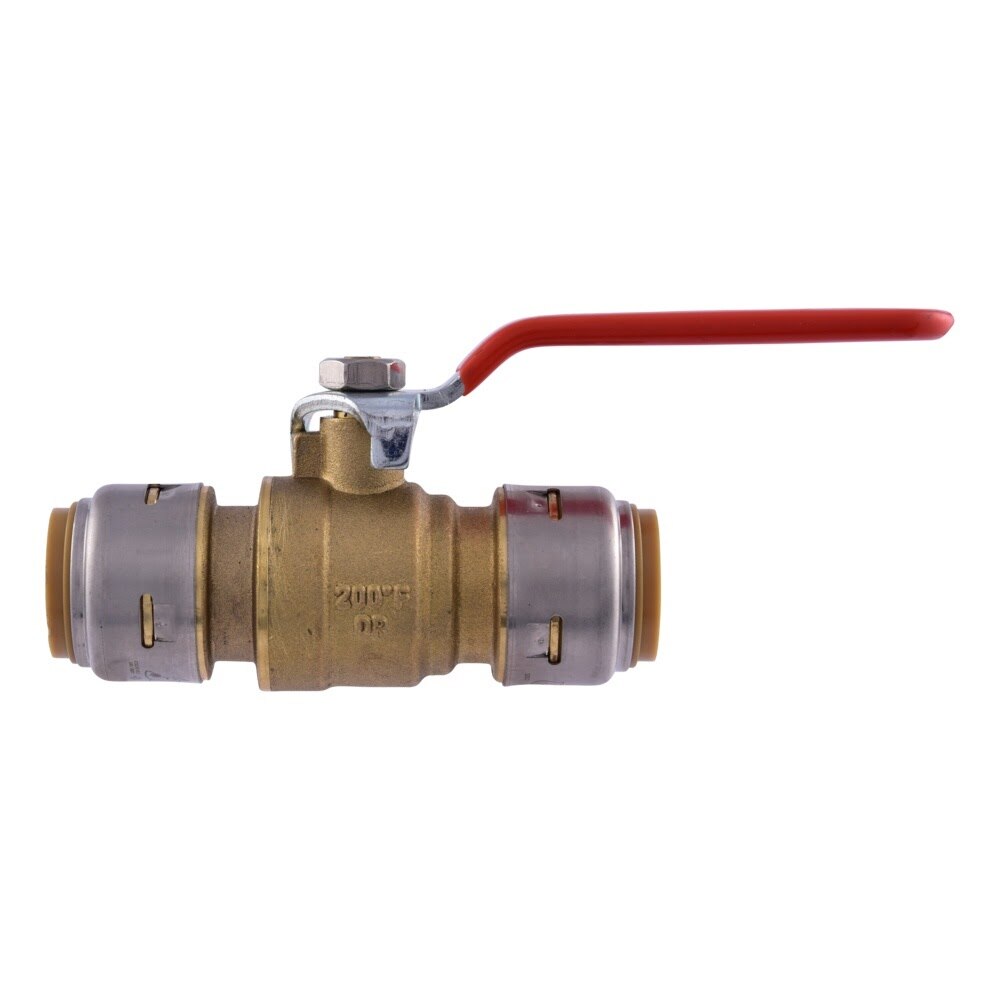

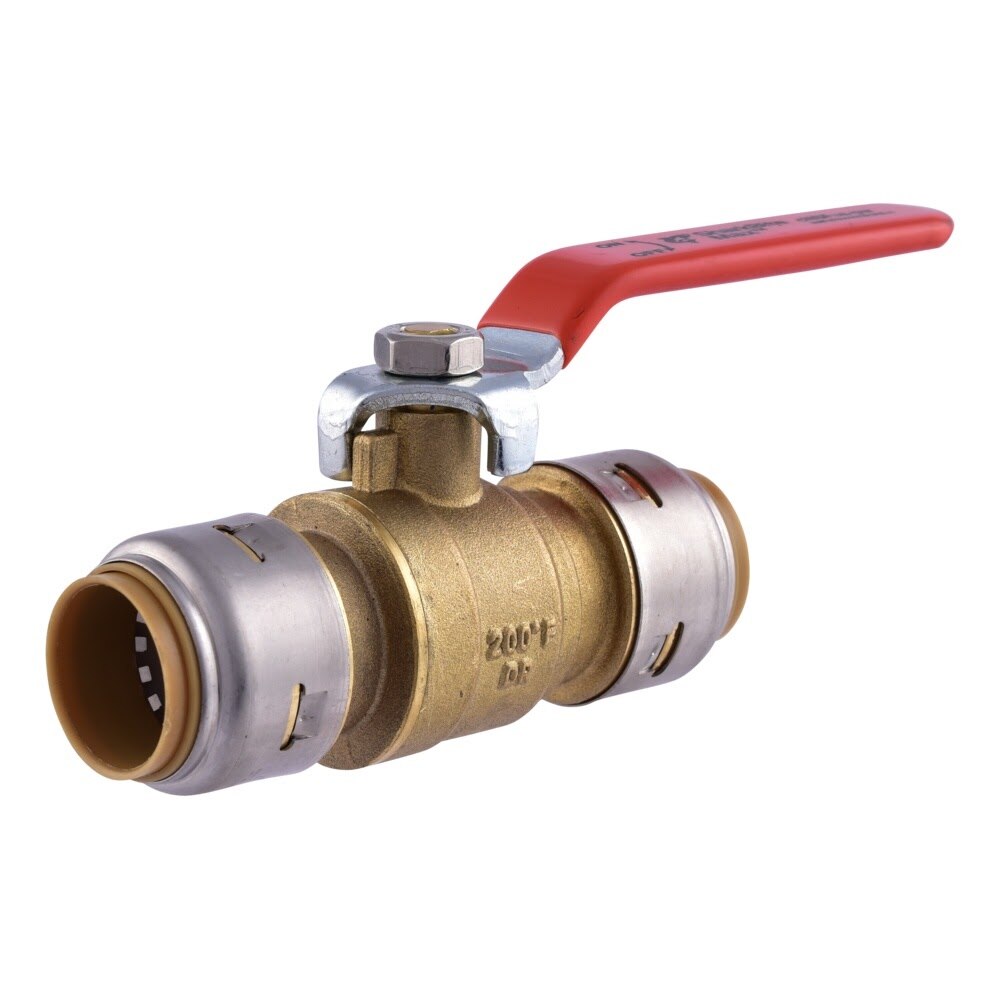

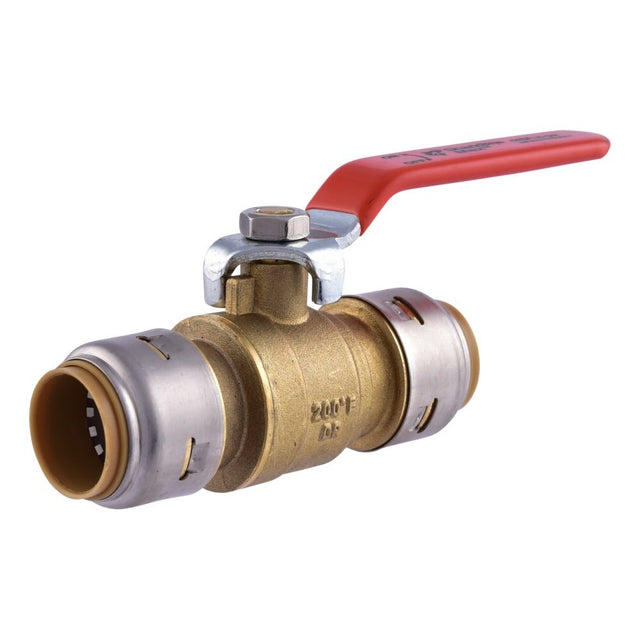

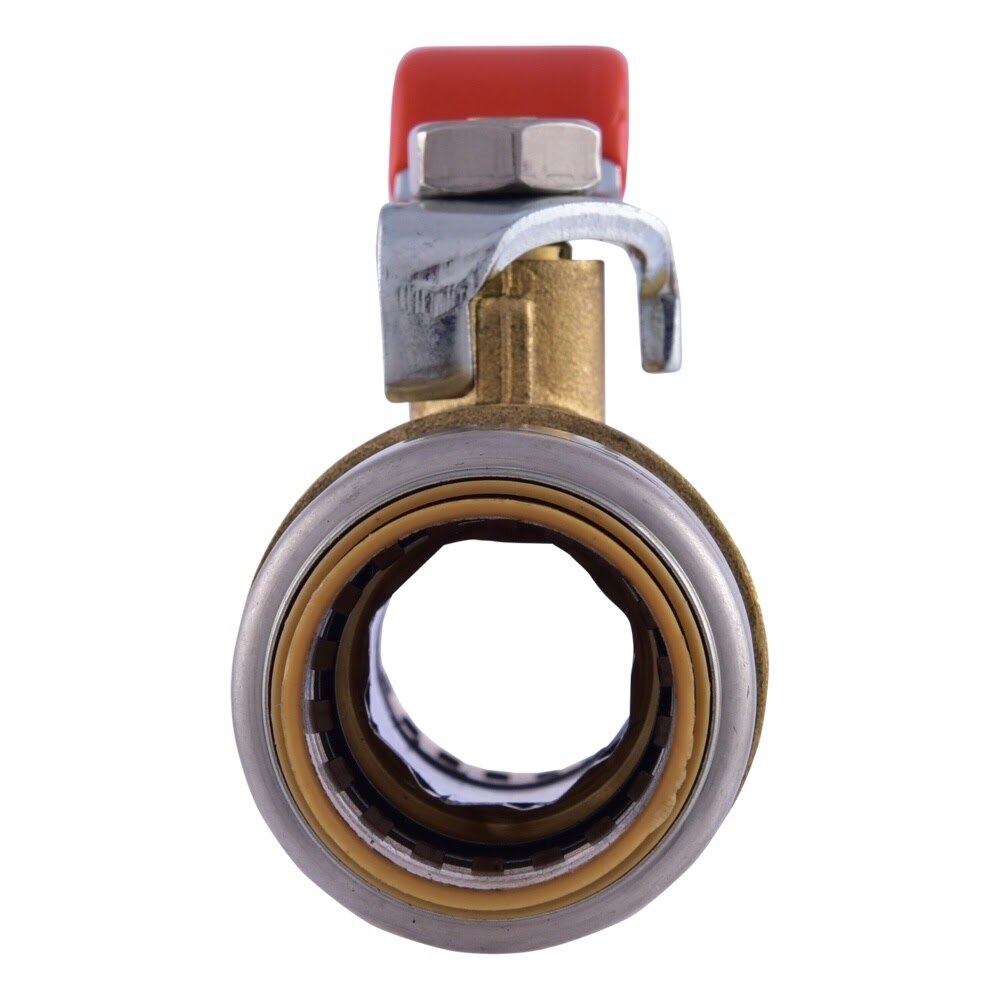

The SharkBite Max 3/4 in. x 3/4 in. quarter-turn ball valve uses a push-to-connect design for fast installation of new or replacement shutoff valves. It connects PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe without soldering, clamps, glue, or special tools, and features a durable DZR lead-free brass body with a stainless steel retainer rated to 200 degrees F and 400 psi.
SharkBite UR22185 Includes
- (1) 3/4 in. x 3/4 in. Max Quarter-Turn Ball Valve
SharkBite UR22185 Features
- Push-to-connect design allows quick installation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Quarter-turn valve operation for easy shutoff control
- No special tools, crimping, soldering, clamps, glue, or unions required
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Can be rotated after installation for easier positioning in tight spaces
- No tube liner required for PEX
- Rated to 200 degrees F and 400 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
- Designed with half the insertion effort and double the burst pressure compared to first generation SharkBite push-to-connect products
SharkBite UR22185 Specifications
| Size | 3/4 in. x 3/4 in. |
| Valve Type | Quarter-turn ball valve |
| Connection Type | Push-to-connect |
| Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Temperature | 200 degrees F |
| Maximum Pressure | 400 psi |
| Product Length (in) | 5.61 |
| Product Width (in) | 1.40 |
| Product Height (in) | 2.41 |
| Product Weight (lb) | 0.61 |
Toolup Part # :
883734
