SharkBite UR22186 Description

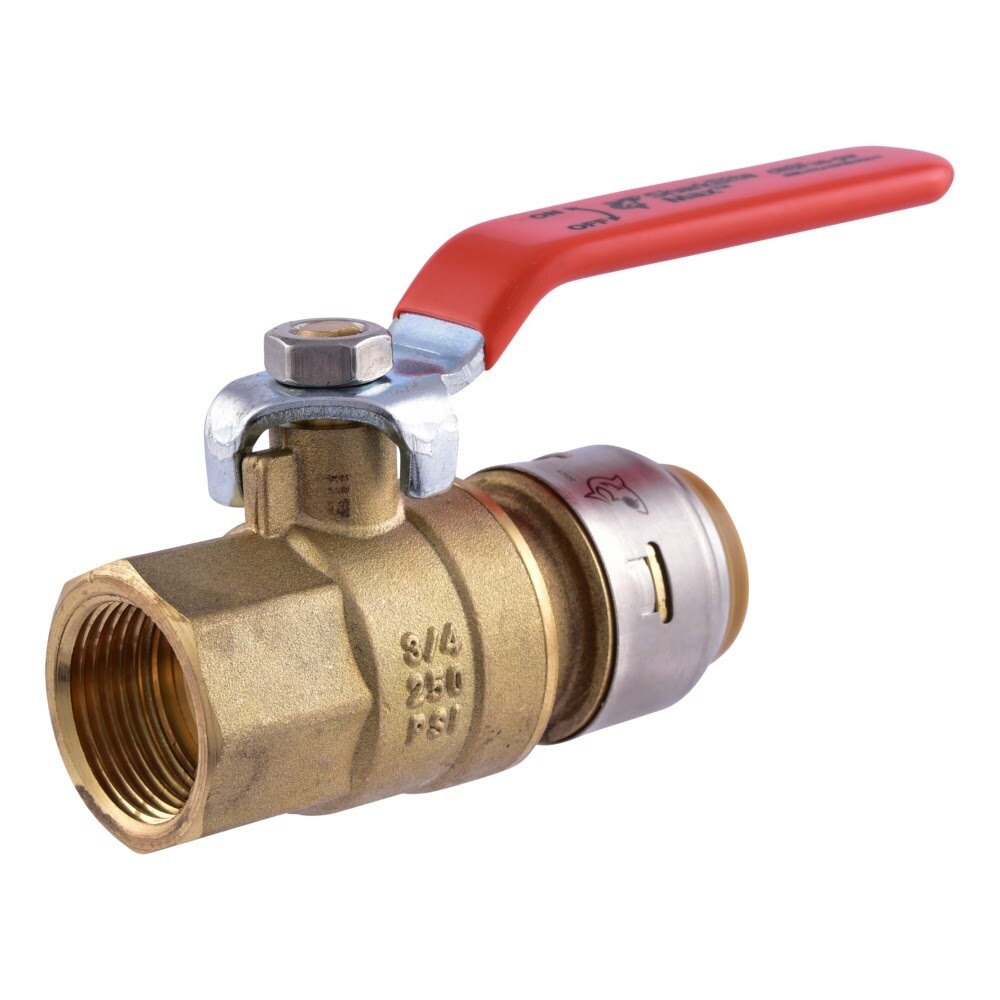

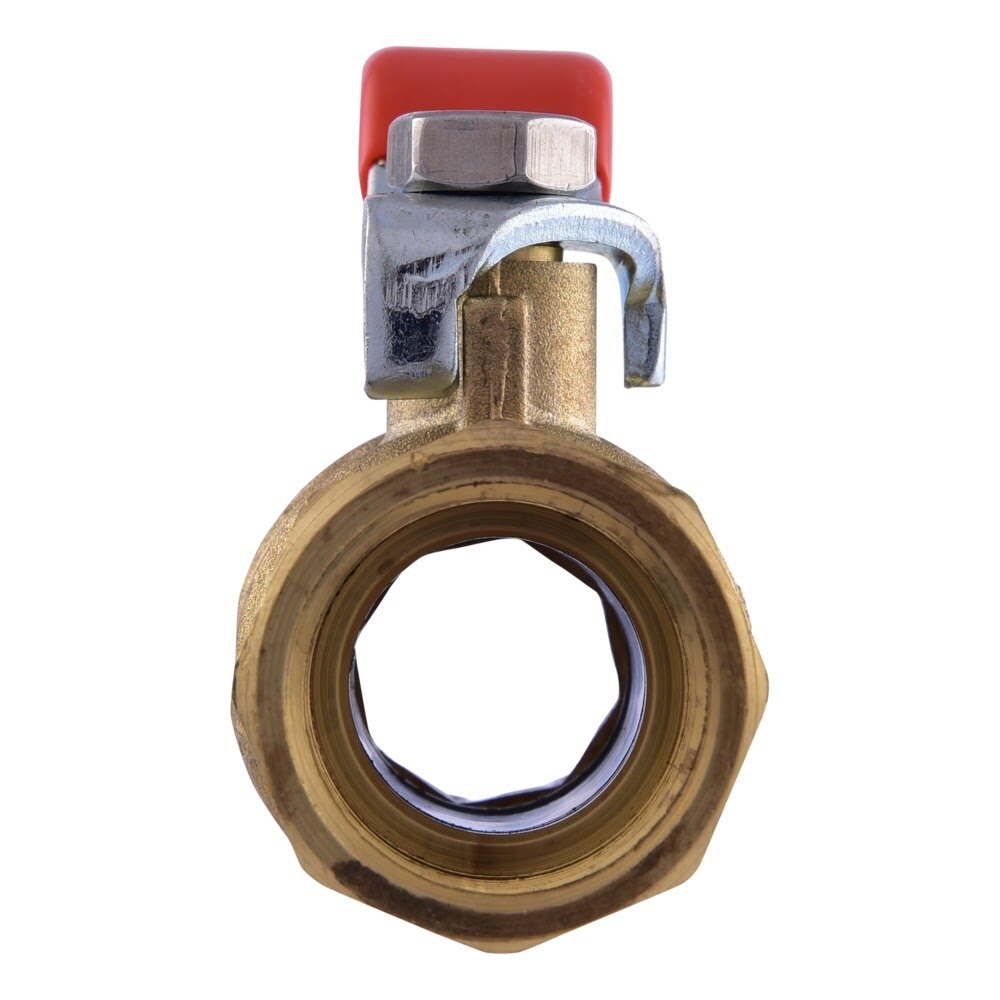

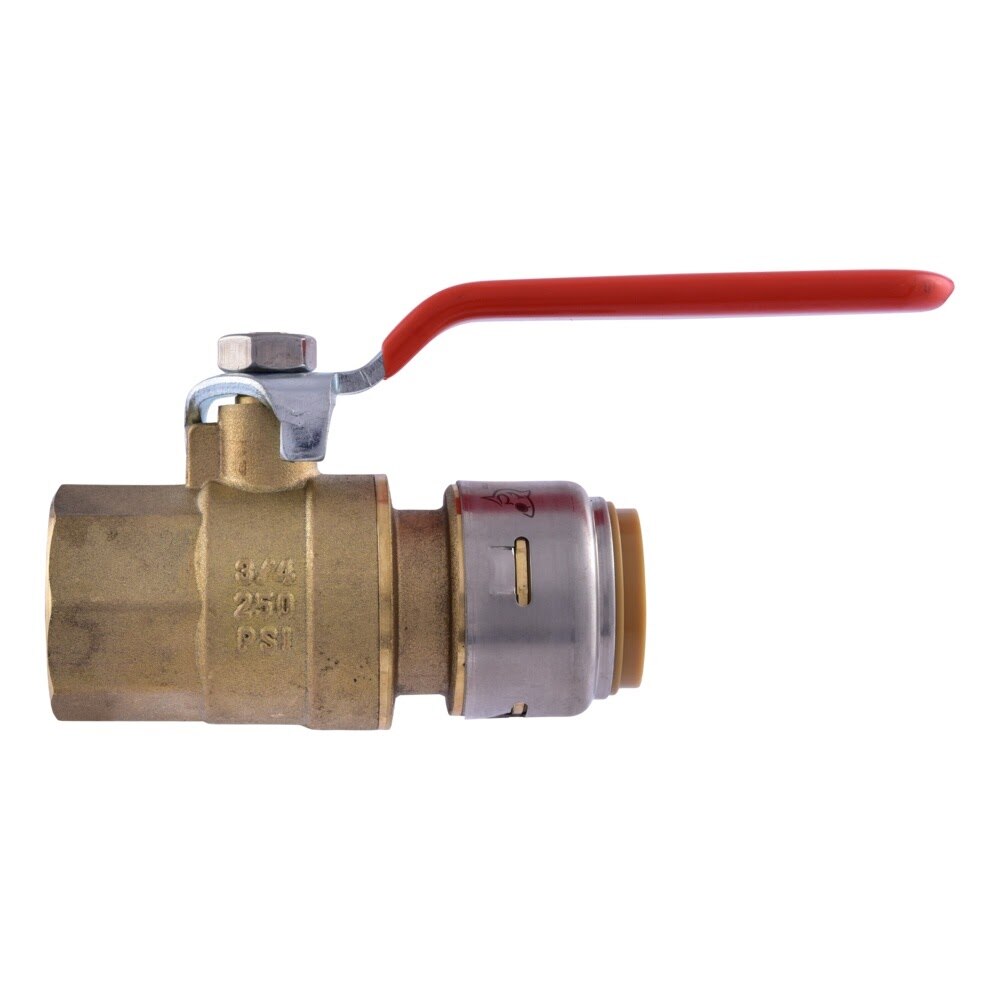

The SharkBite Max quarter-turn ball valve features a 3/4 in. push-to-connect end and a 3/4 in. FNPT threaded connection for quick transitions between pipe and threaded fittings. Its push-to-connect design installs without soldering, crimping, glue, or special tools, and the DZR lead-free brass body with stainless steel retainer delivers durable performance up to 200 degrees F and 400 psi.
SharkBite UR22186 Includes
- (1) 3/4 in. SharkBite Max x 3/4 in. FNPT Adapter Quarter-Turn Ball Valve
SharkBite UR22186 Features
- Push-to-connect design for fast installation
- Connects 3/4 in. pipe to 3/4 in. FNPT threads
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- No soldering, crimping, clamps, glue, or special tools required
- Quarter-turn handle for easy shutoff control
- Can be installed on wet lines and pressure tested immediately
- Can be rotated after installation for easier positioning in tight spaces
- Stainless steel retainer adds strength and durability
- DZR lead-free brass body
- No tube liner required for PEX
- Rated to 200 degrees F and 400 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR22186 Specifications
| Product Type | Ball valve |
| Valve Operation | Quarter-turn |
| Connection 1 | 3/4 in. SharkBite Max push-to-connect |
| Connection 2 | 3/4 in. FNPT |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, and HDPE SDR-9 |
| Body Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Maximum Temperature | 200 degrees F |
| Maximum Pressure | 400 psi |
| Rotatable After Installation | Yes |
| Wet Line Installation | Yes |
| PEX Tube Liner Required | No |
| Product Length (in) | 4.82 |
| Product Width (in) | 1.40 |
| Product Height (in) | 2.41 |
| Shipping Weight (lb) | 0.61 |
