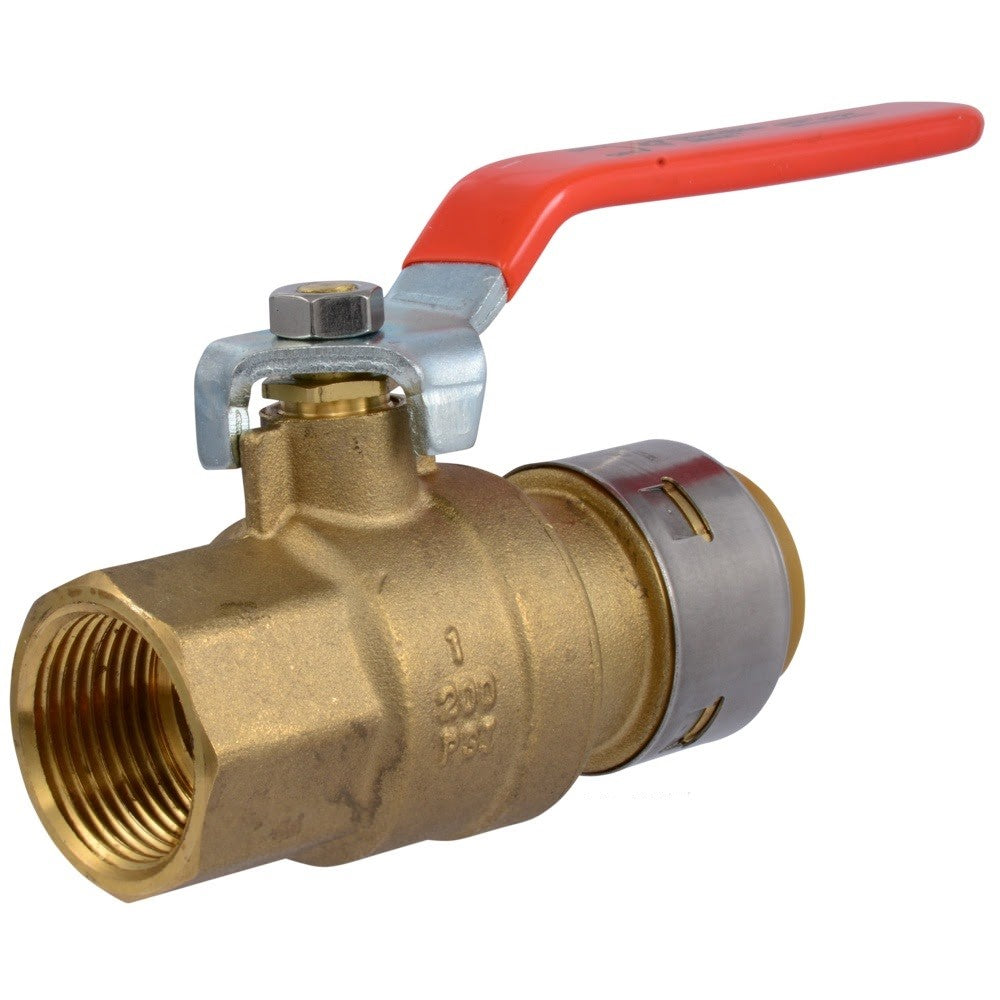

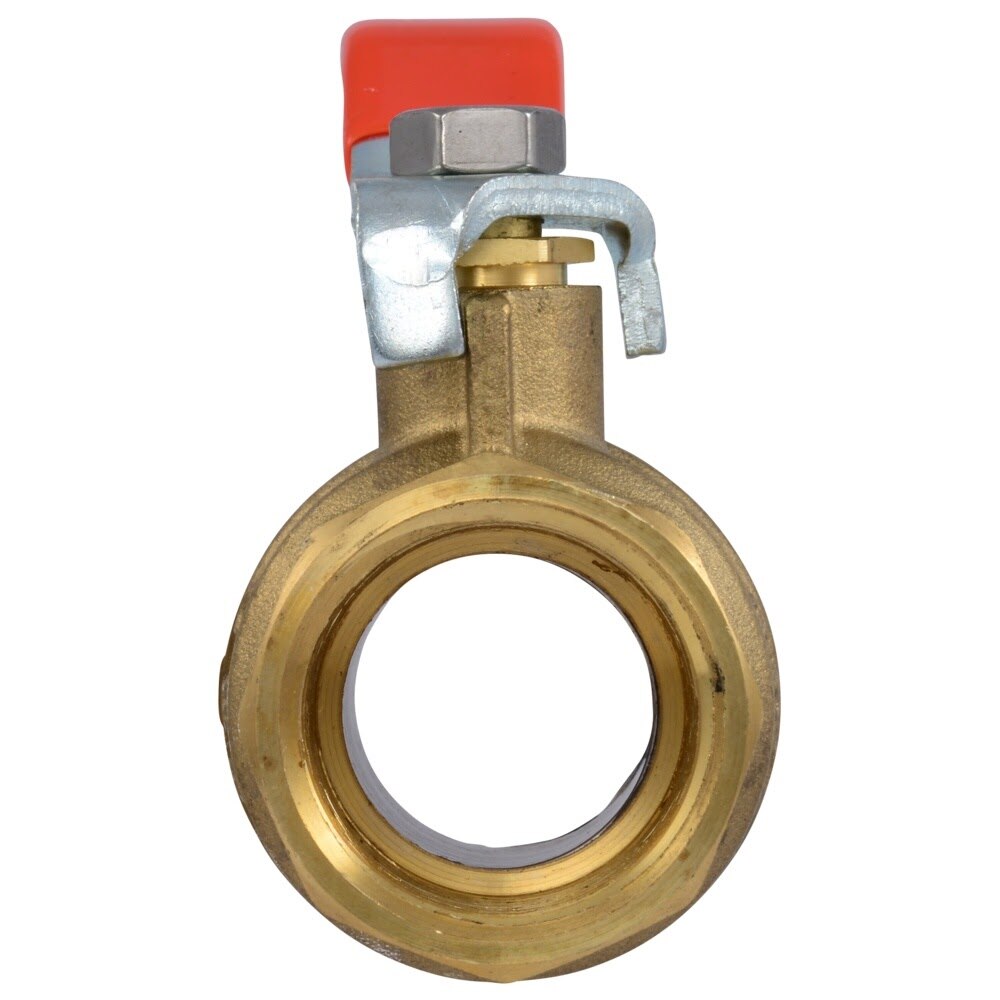

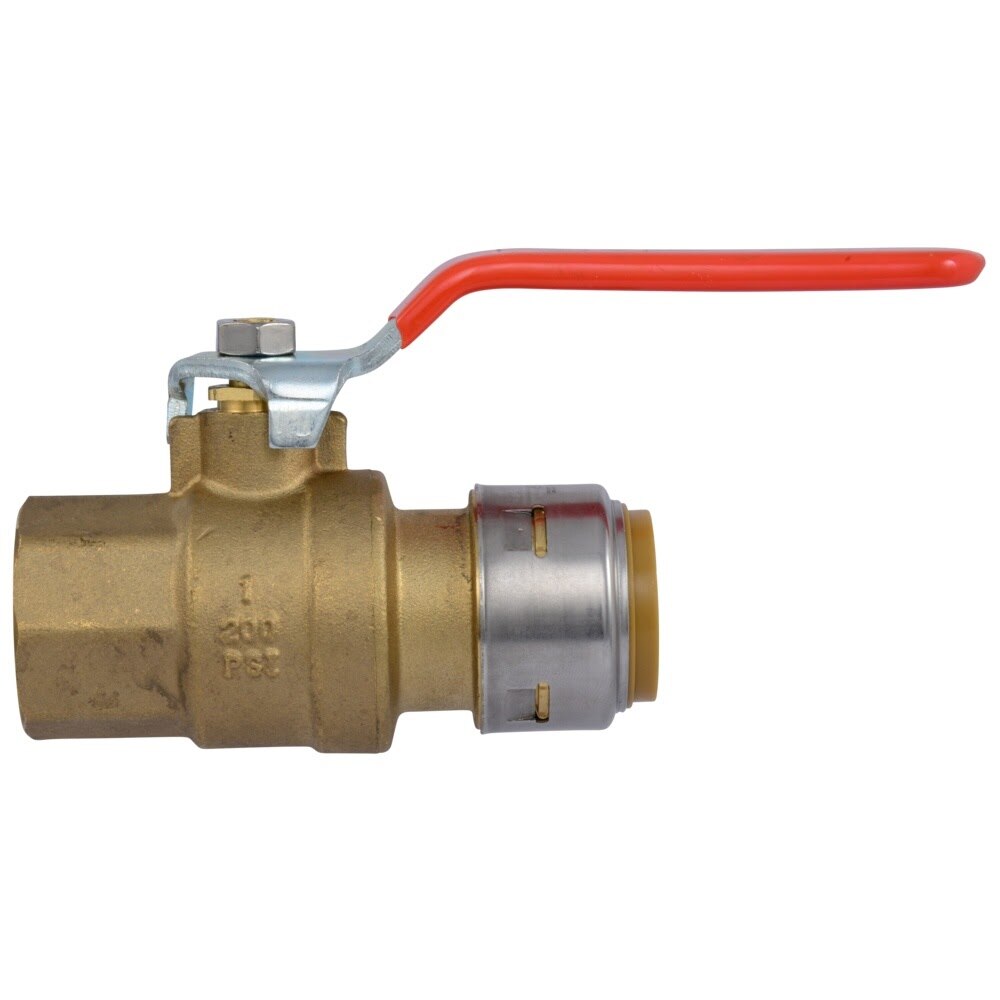

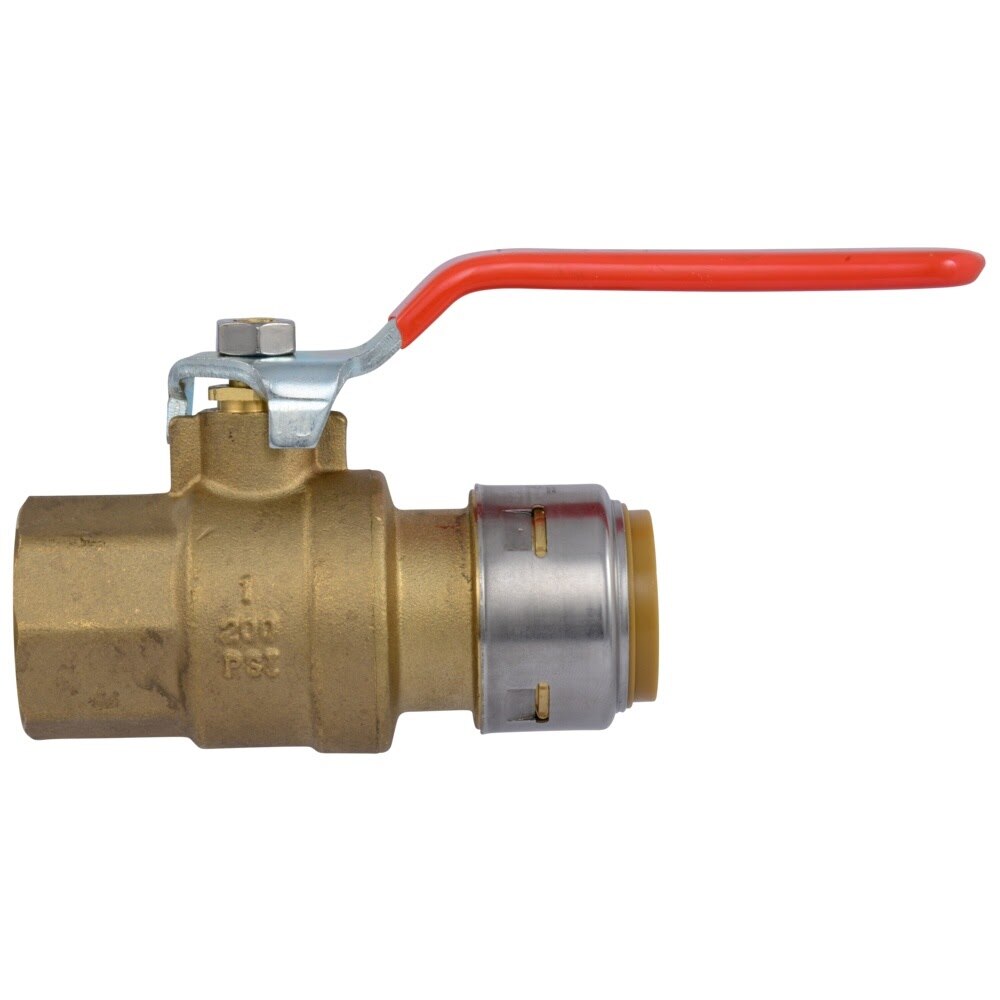

SharkBite UR22187 Description
The SharkBite Max 1 in. push-to-connect x 1 in. FNPT quarter-turn ball valve provides a fast, reliable way to add shutoff control while transitioning from female threaded pipe to PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe. Built with a DZR lead-free brass body and stainless steel retainer, it installs without solder, clamps, glue, or special tools and can be pressure tested immediately, even on wet lines.
SharkBite UR22187 Includes
- (1) 1 in. Max Push to Connect x 1 in. FNPT Quarter Turn Ball Valve
SharkBite UR22187 Features
- Quarter-turn ball valve for fast shutoff control
- Push-to-connect design installs without soldering, clamps, glue, or special tools
- Connects to PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Transitions from push-to-connect connection to 1 in. FNPT threads
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Can be rotated after installation for easier alignment in tight spaces
- No tube liner required for PEX
- Rated to 200 Degree F and 400 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR22187 Specifications
| Nominal Size | 1 in. x 1 in. |
| Connection 1 | 1 in. push-to-connect |
| Connection 2 | 1 in. FNPT |
| Valve Type | Ball valve |
| Handle Type | Quarter-turn lever |
| Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Max Pressure | 400 psi |
| Max Temperature | 200 Degree F |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Installation Type | Push-to-connect |
| Rotatable After Installation | Yes |
| Removable | Yes |
| Product Width (in) | 6.26 |
| Product Height (in) | 3.35 |
| Product Length (in) | 1.85 |
| Shipping Weight (lb) | 1.20 |
Toolup Part # :
882920
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
