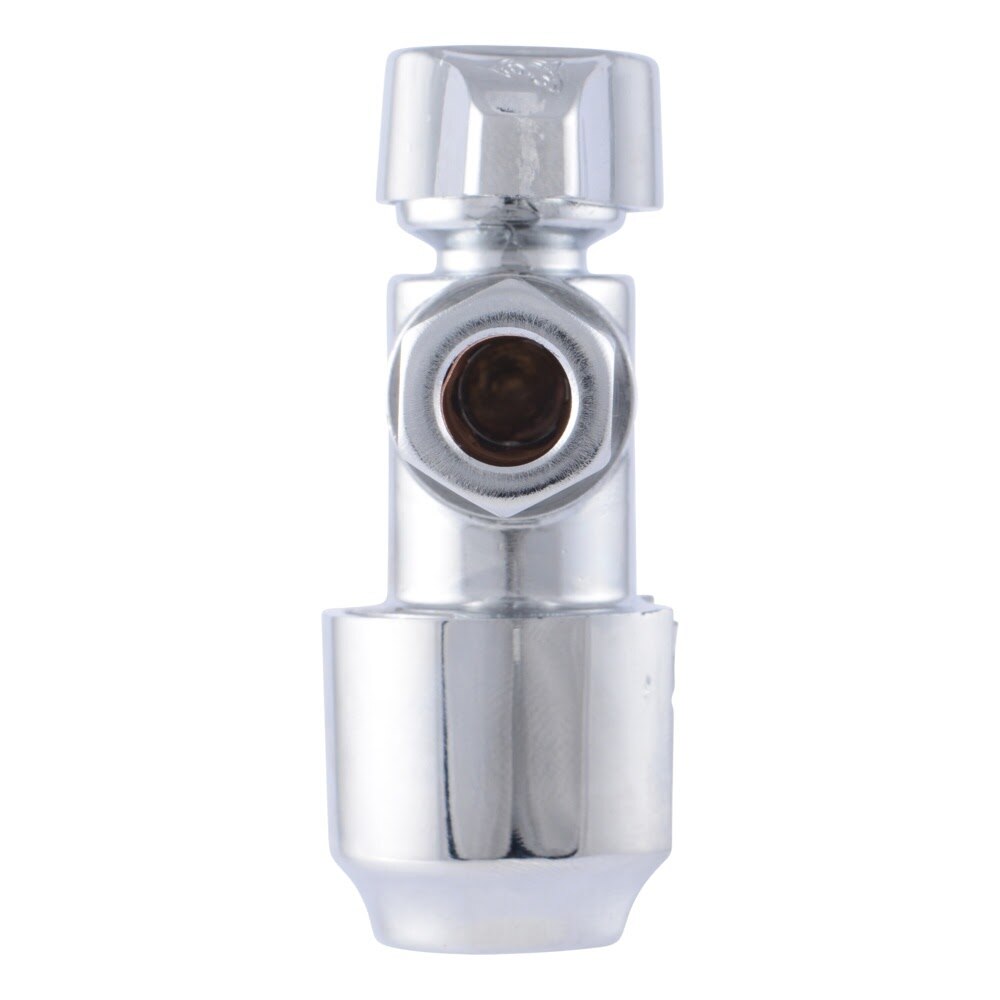

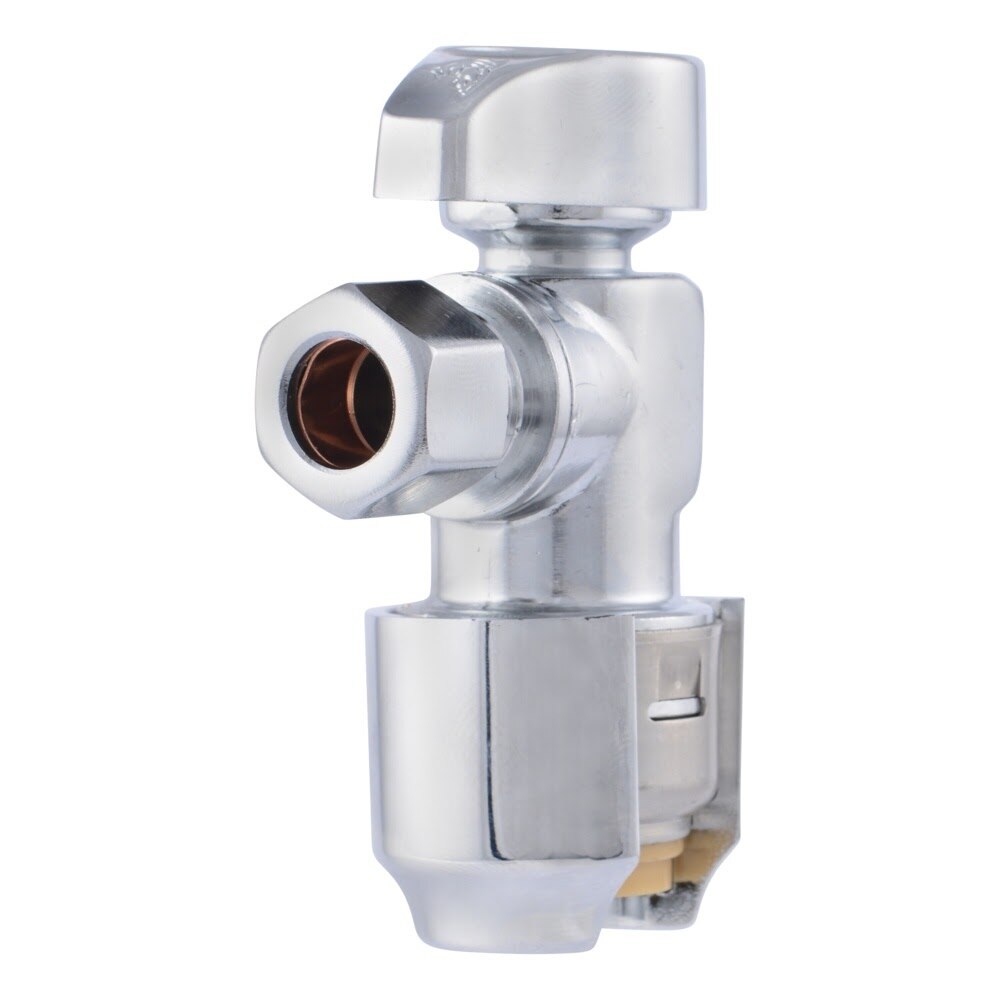

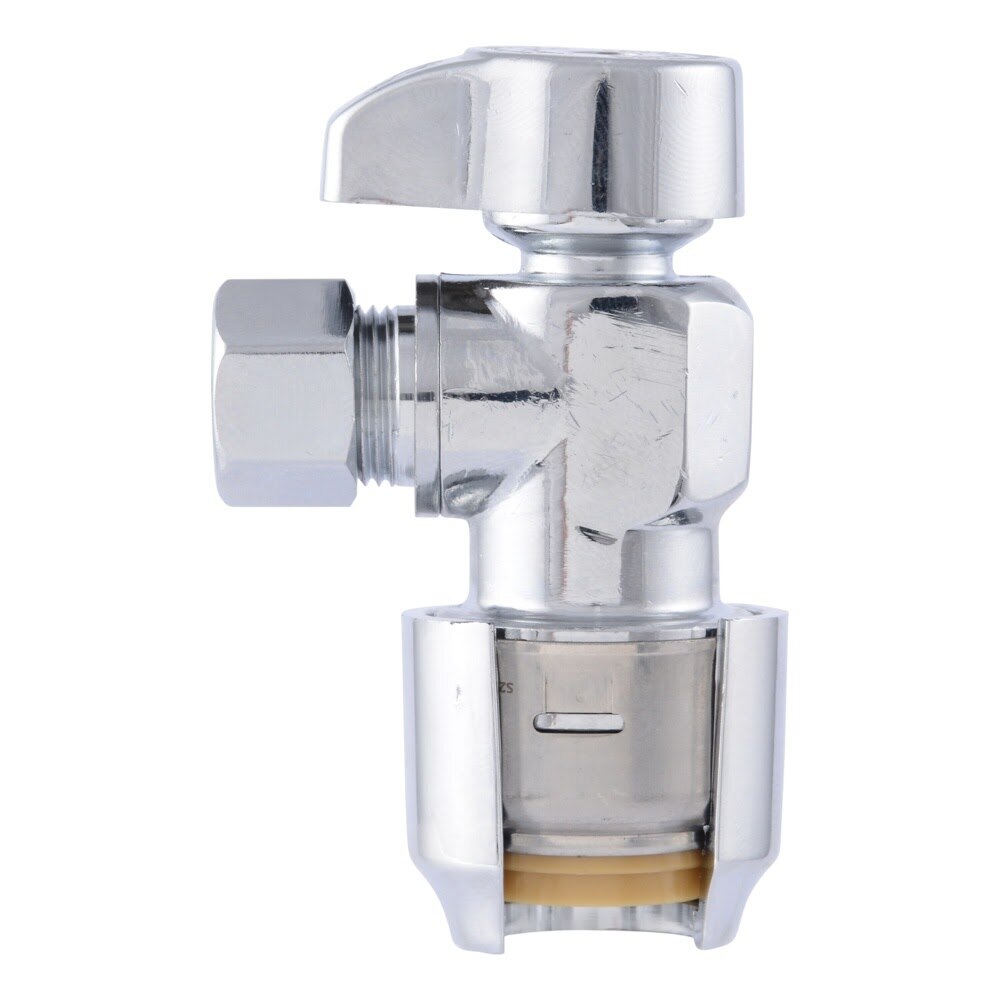

SharkBite UR23036 Description
The SharkBite Max angle stop valve provides a fast, solder-free shutoff solution for faucet and toilet supply connections. Featuring a 1/2 in. push-to-connect inlet and 3/8 in. OD compression outlet, this chrome-plated brass valve installs on PEX, copper, CPVC, or PE-RT pipe, works on wet lines, and can be pressure tested immediately.
SharkBite UR23036 Includes
- (1) 1/2 in. Push-to-Connect x 3/8 in. OD Compression Angle Stop Valve
SharkBite UR23036 Features
- 1/2 in. push-to-connect inlet for fast installation without soldering
- 3/8 in. OD compression outlet for faucet and toilet shutoff applications
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Quarter-turn angle stop design for simple on and off control
- Can be installed on wet or dry lines and pressure tested immediately
- Rotatable after installation and removable with a compatible disconnect clip
- Chrome-plated, corrosion-resistant brass body
- Rated to 125 PSI and 160 F
SharkBite UR23036 Specifications
| Application | Potable Water |
| Valve Type | Quarter Turn Angle Stop Valve |
| Valve Configuration | Angle |
| Connection Type | 1/2 in. Push-to-Connect x 3/8 in. OD Compression |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 3/8 in. |
| Material | Brass |
| Finish | Chrome Plated |
| Compatible Pipe Material | PEX, copper, CPVC, and PE-RT |
| Compatible Product | Faucet, Toilet |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Product Length | 2.618 in. |
| Indoor/Outdoor | Indoor |
| Features | Removable and rotatable after installation |
