SharkBite UR23036BN Description

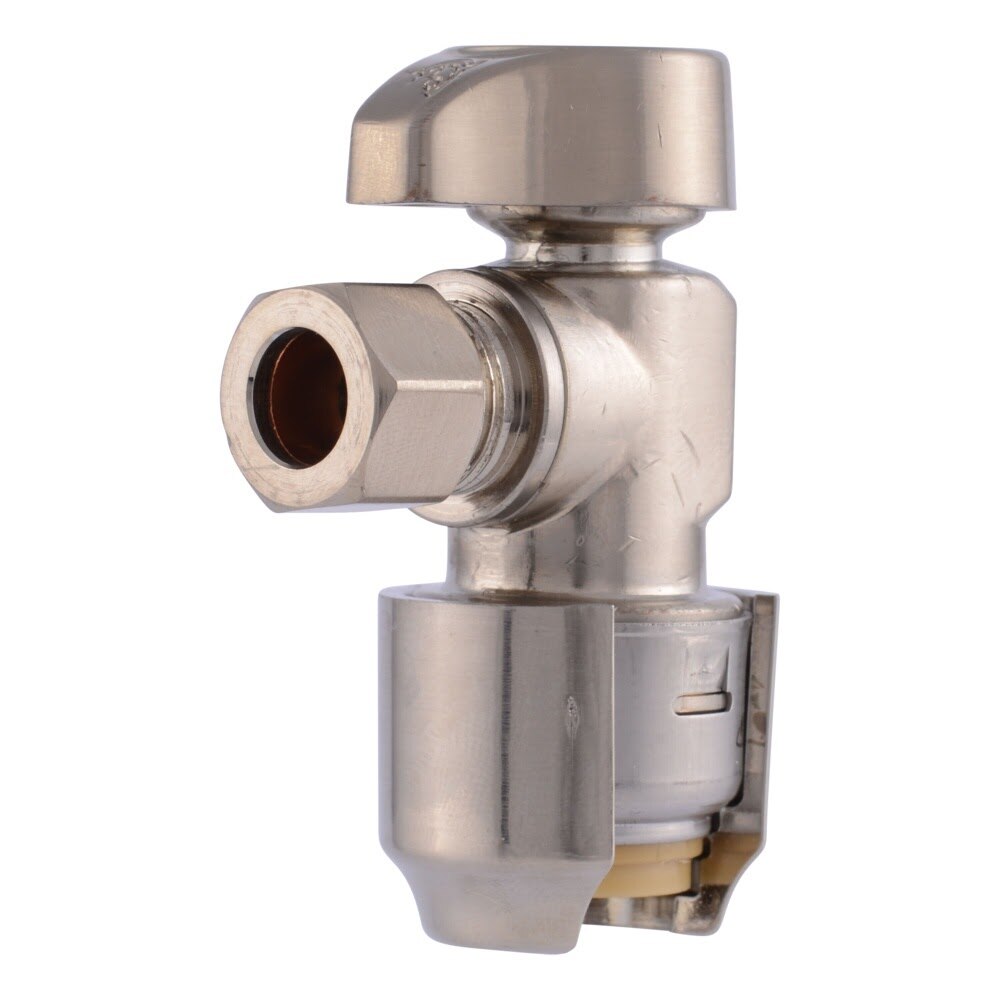

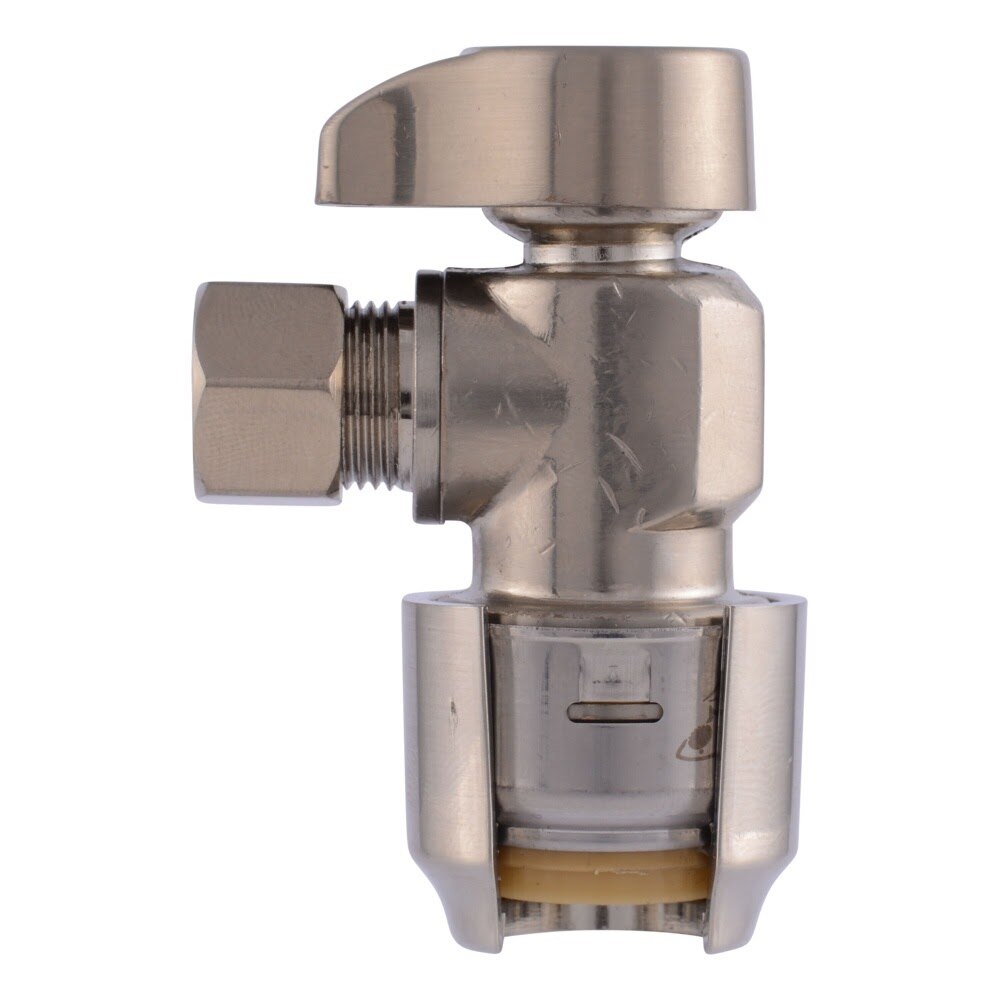

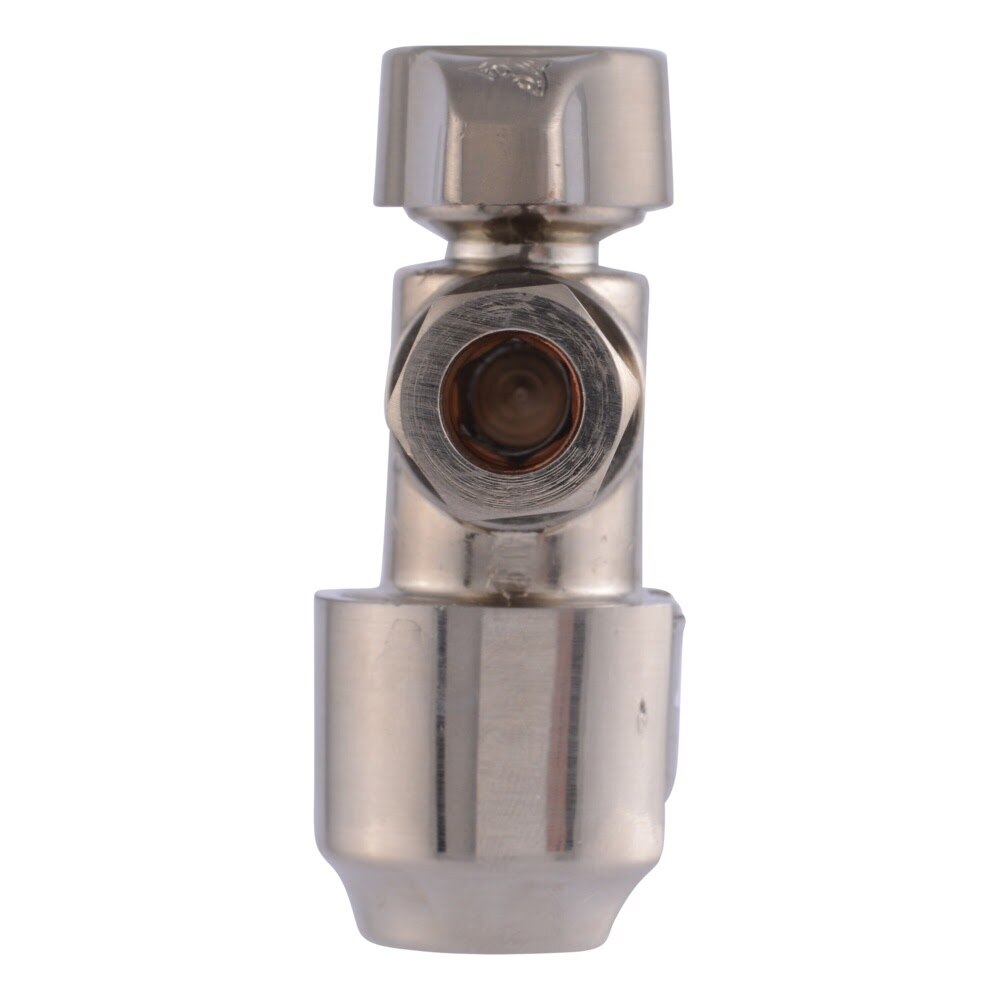

The SharkBite Max angle stop valve features a 1/2 in. push-to-connect inlet and a 3/8 in. compression outlet for fast shutoff connections to faucets and toilets. Its brushed nickel brass body installs without soldering, crimping, glue, or special tools and can be pressure tested immediately, even on wet lines.
SharkBite UR23036BN Includes
- (1) Angle stop valve
SharkBite UR23036BN Features
- 1/2 in. push-to-connect inlet with 3/8 in. compression outlet
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Installs without special tools, crimping, soldering, or glue
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when properly wrapped for burial
- Rated to 160 DegreeF and 125 PSI
- Brushed nickel finish
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR23036BN Specifications
| Application | Potable Water |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 3/8 in. |
| Connection Type | Push-to-Connect x Compression |
| Finish | Brushed Nickel |
| Material | Brass |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Compatible Product | Faucet, Toilet |
| Valve Configuration | Angle |
| Removable | Yes |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 DegreeF |
| Indoor/Outdoor | Indoor |
| Product Length | 1.693 in. |
| Warranty | 25-year when properly installed on PEX, copper, CPVC and PE-RT; 5-year with HDPE SDR-9 |
