SharkBite UR23037 Description

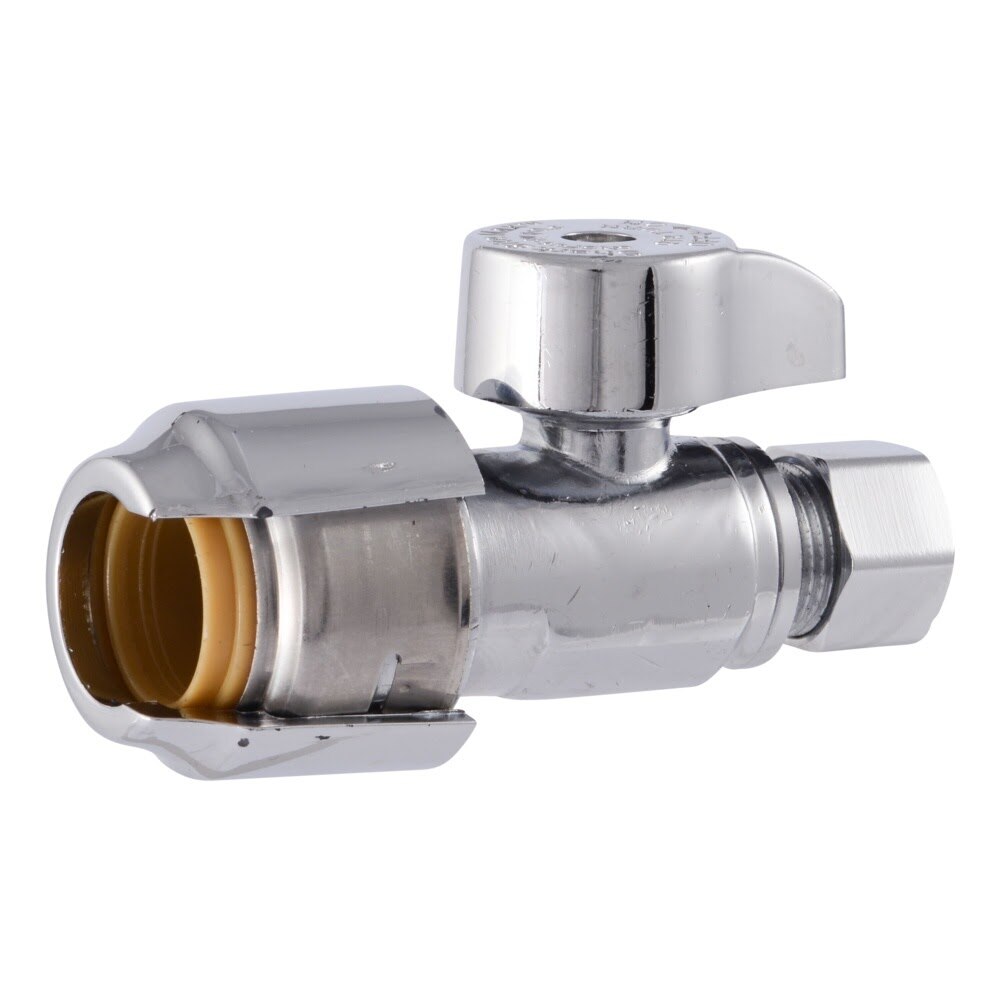

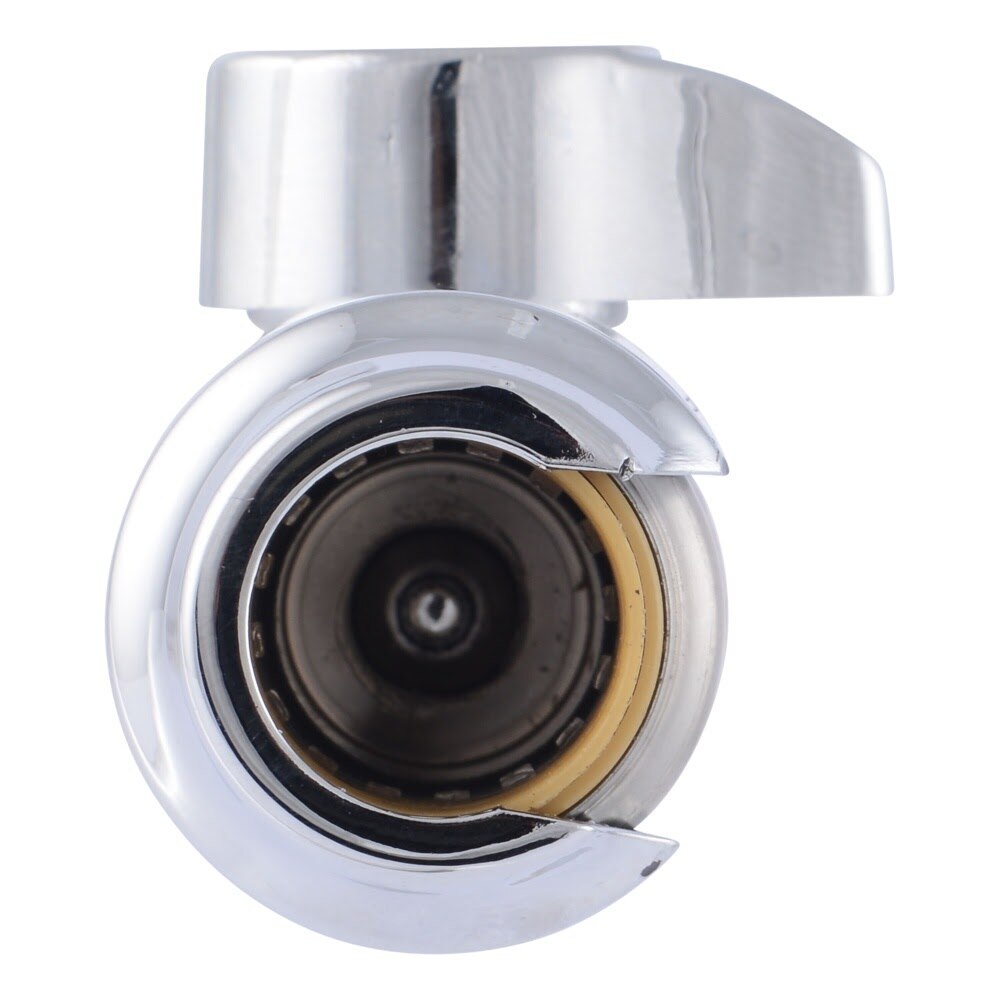

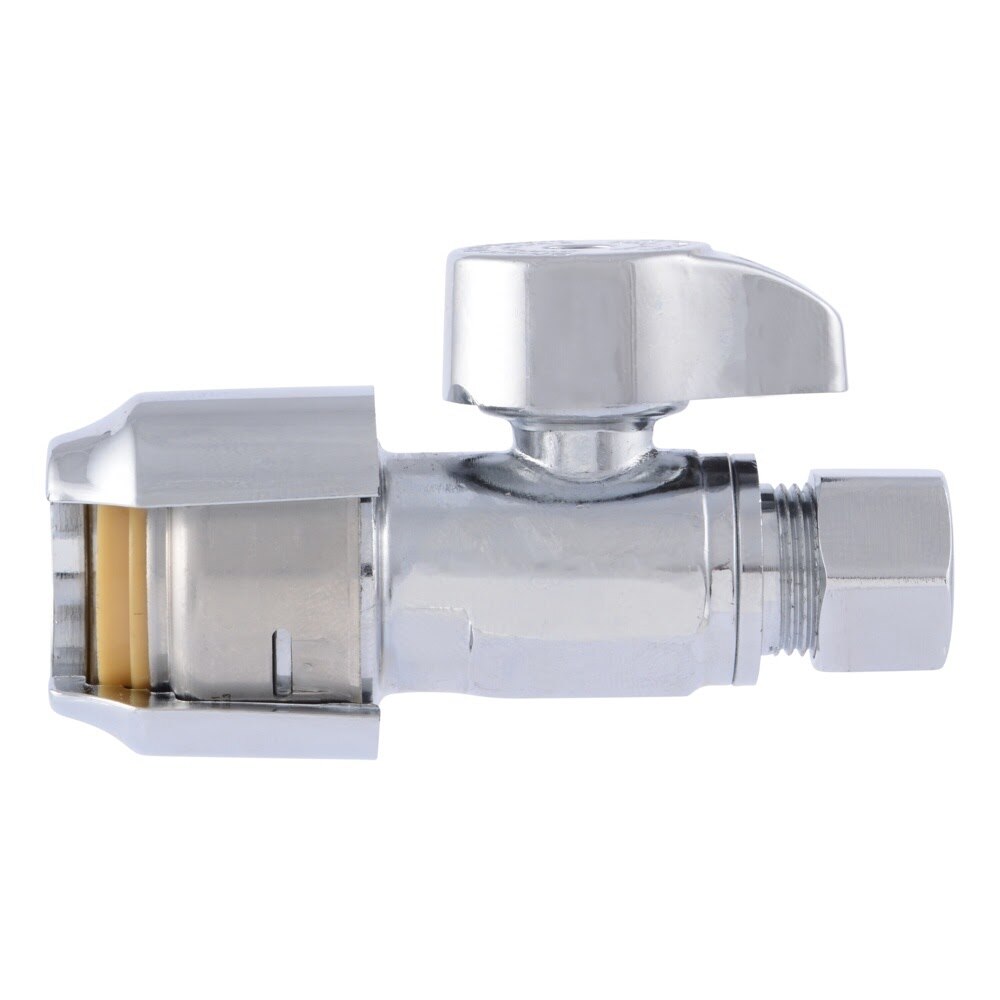

The SharkBite Max straight stop valve connects 1/2 in. pipe to a 3/8 in. compression outlet for faucet and toilet supply installations. Its chrome-plated brass body installs without soldering, crimping, glue, or special tools, and it can be installed on wet lines and pressure tested immediately.
SharkBite UR23037 Includes
- (1) Straight Stop Valve
SharkBite UR23037 Features
- 1/2 in. push-to-connect inlet x 3/8 in. compression outlet
- Quarter-turn straight stop valve for faucet and toilet supply lines
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Chrome-plated DZR lead-free brass body
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated to 160 DegreeF and 125 psi
- Third-party listed and compliant with applicable U.S. and Canadian plumbing codes
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR23037 Specifications
| Product Type | Straight Stop Valve |
| Series | SharkBite Max |
| Application | Potable Water |
| Material | Brass |
| Finish | Chrome Plated |
| Color/Finish | Silver |
| Valve Configuration | Straight |
| Operation Type | Quarter Turn |
| Inlet Size | 1/2 in. |
| Outlet Size | 3/8 in. |
| Connection Type | Push-to-Connect x Compression |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Compatible Product | Faucet, Toilet |
| Features | Removable |
| Indoor/Outdoor | Indoor |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 DegreeF |
| Product Length | 2.618 in. |
| Pack Size | 1 |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
