SharkBite UR23037BN Description

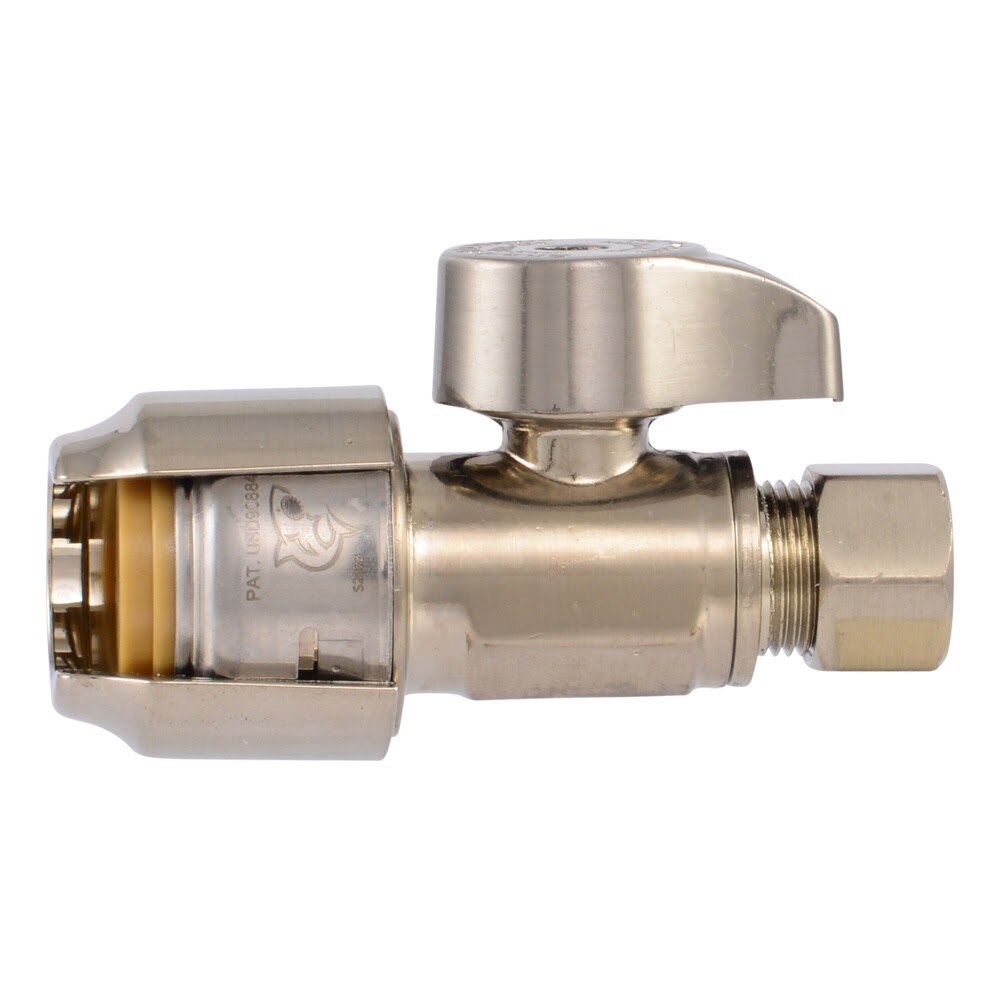

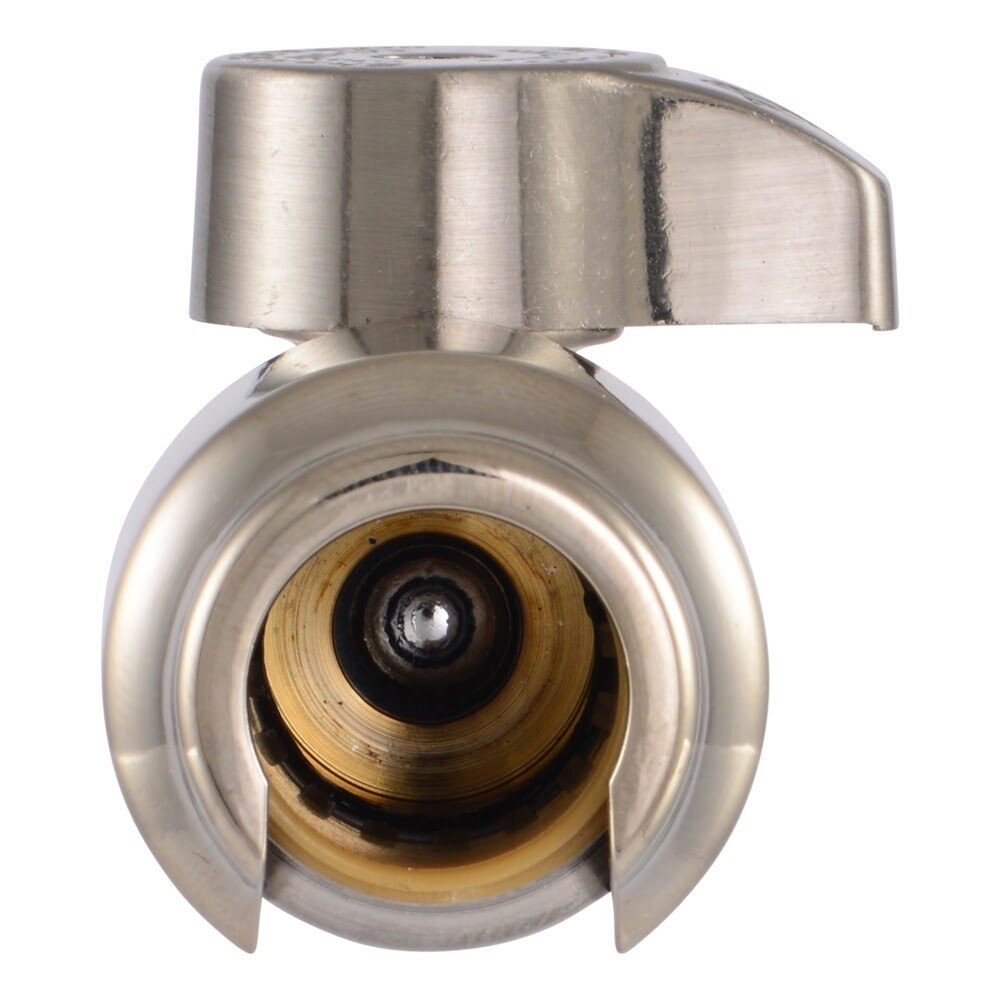

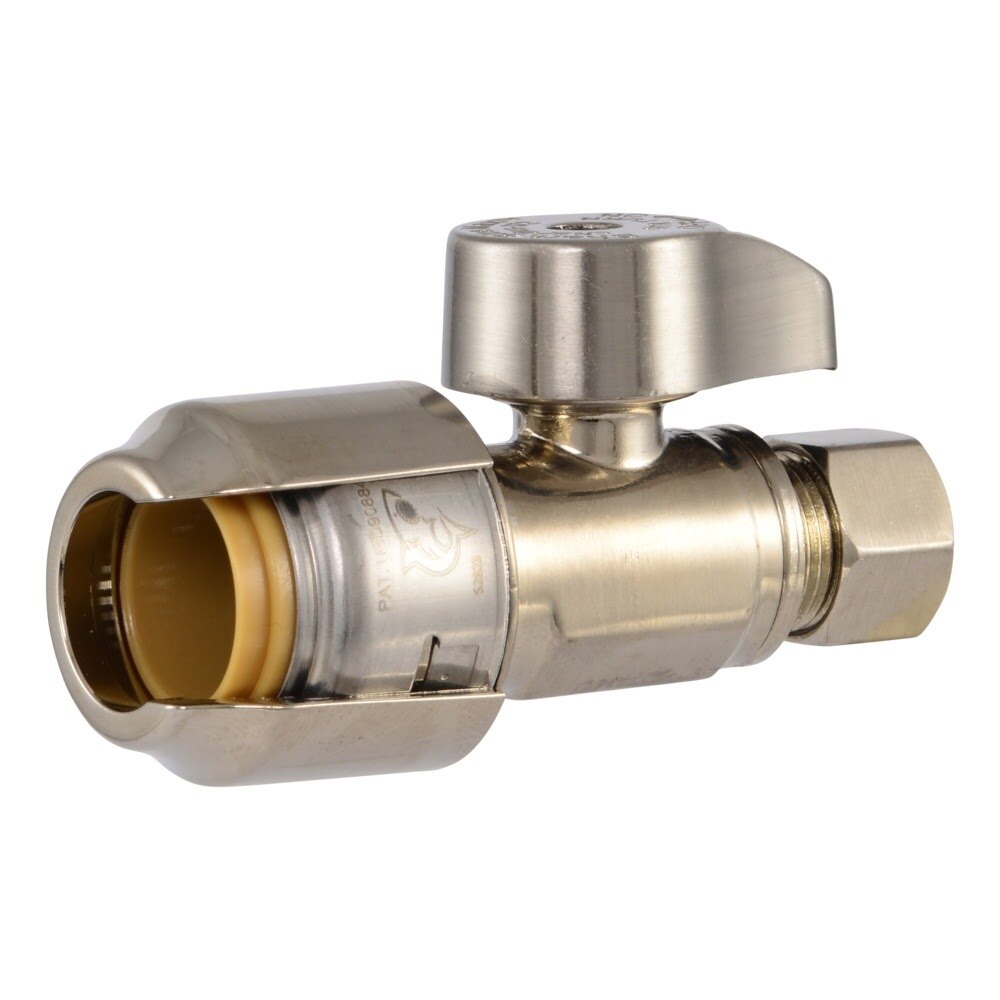

The SharkBite Max straight stop valve features a 1/2 in. push-to-connect inlet and 3/8 in. compression outlet for quick shut-off installation on potable water lines. Its brushed nickel lead-free brass body is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe, and it installs without crimping, soldering, glue, or special tools.
SharkBite UR23037BN Includes
- (1) 1/2 in. Push-to-Connect x 3/8 in. Compression Straight Stop Valve
SharkBite UR23037BN Features
- 1/2 in. push-to-connect inlet with 3/8 in. compression outlet
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Installs without special tools, crimping, soldering, or glue
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- Lead-free DZR brass body
- Can be rotated after installation
- Removable connection for serviceability
- Rated to 125 PSI and 160 F
- Approved for behind-the-wall and underground applications with proper burial wrap
SharkBite UR23037BN Specifications
| Application | Potable Water |
| Material | Brass |
| Finish | Brushed Nickel |
| Connection | Push-to-Connect x Compression |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 3/8 in. |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Compatible Product | Faucet, Toilet |
| Valve Configuration | Straight |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Indoor/Outdoor | Indoor |
| Removable | Yes |
| Product Length | 2.618 in. |
| Shipping Weight | 0.25 lb |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
| HDPE Warranty | 5-year warranty when properly installed with HDPE SDR-9 |
