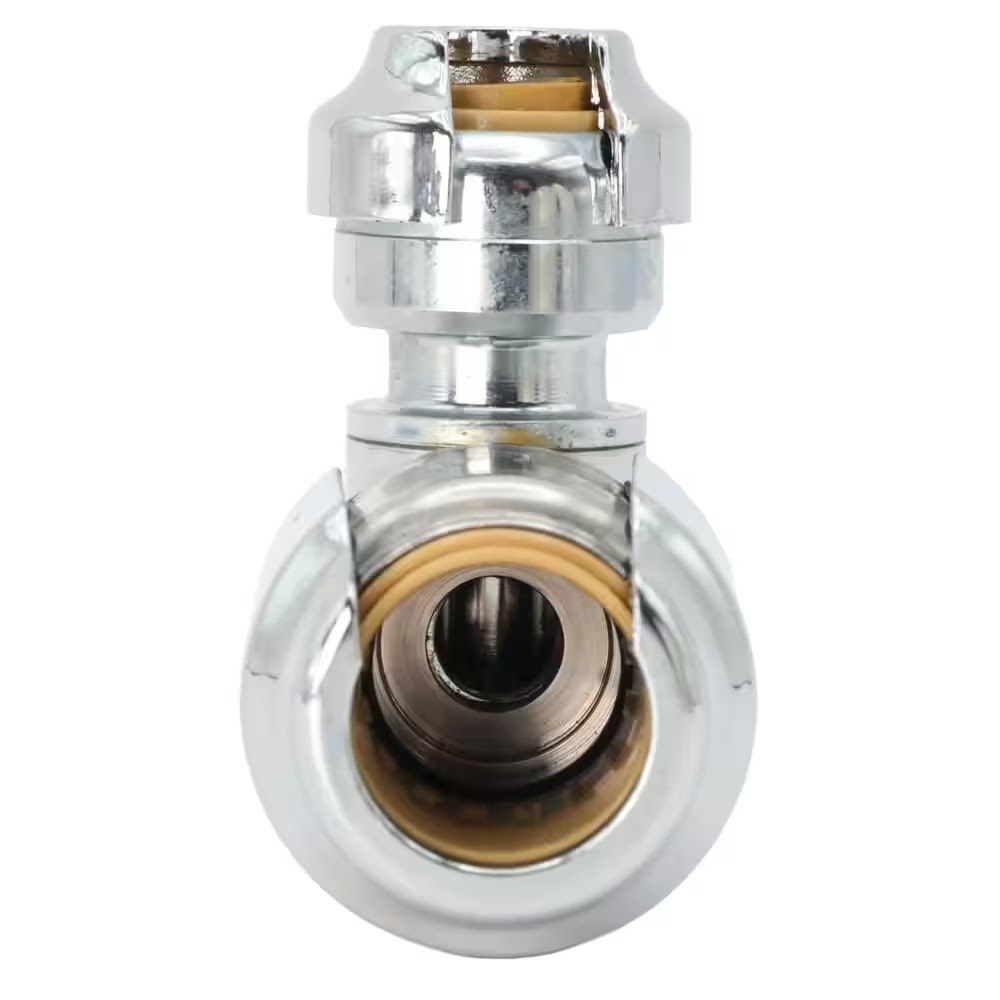

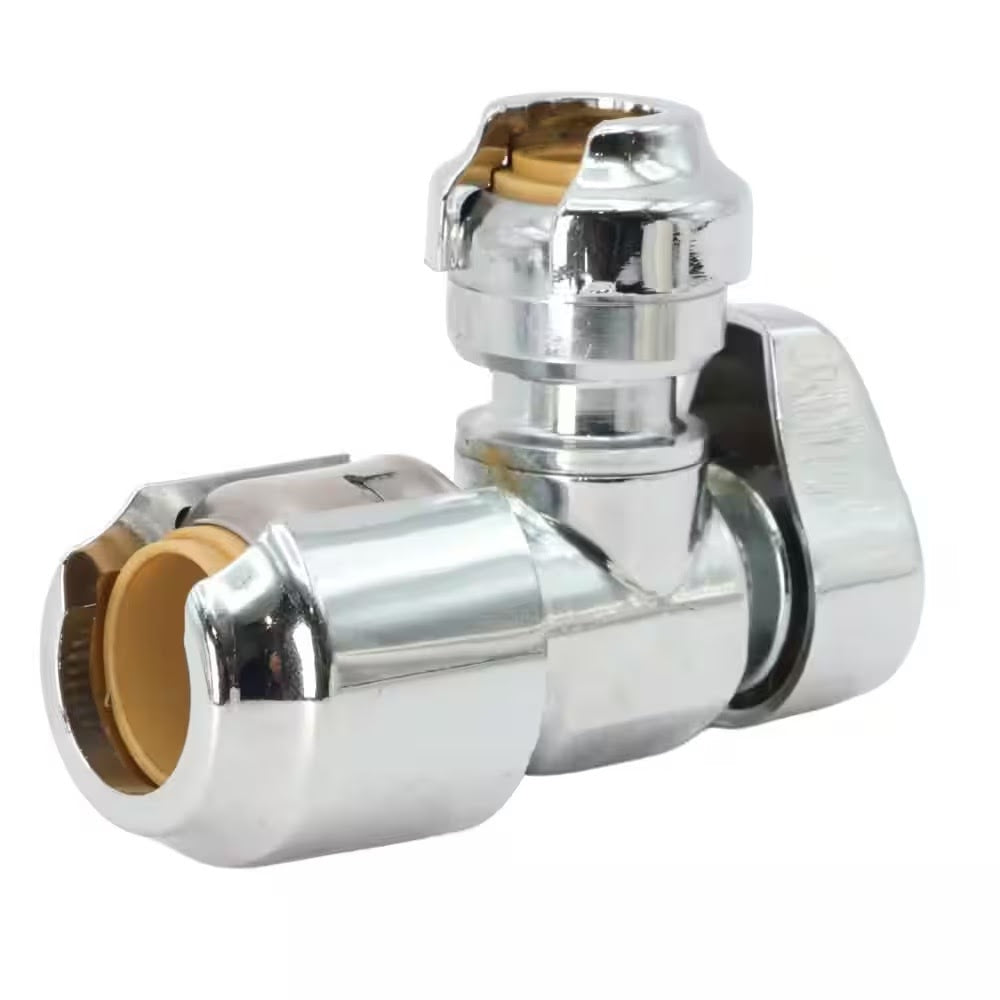

SharkBite UR23048 Description
The SharkBite UR23048 angle stop valve features a 1/2 in. push-to-connect inlet and a 1/4 in. compression outlet for 3/8 in. OD tubing, making it ideal for ice maker and refrigerator supply lines. Designed for quick installation in tight spaces, it works on wet or dry lines, rotates after installation, and uses a chrome-plated low-lead brass body rated up to 125 PSI and 160 F.
SharkBite UR23048 Includes
- (1) Angle Stop Valve
SharkBite UR23048 Features
- Push-to-connect design allows fast installation in tight spaces
- 1/2 in. push-to-connect inlet with 1/4 in. compression outlet for 3/8 in. OD tubing
- Suitable for ice maker and refrigerator water supply connections
- Works on wet or dry lines and can be pressure tested immediately
- Rotatable after installation for easier alignment
- Removable design for added installation flexibility
- Stainless steel gripping teeth provide a secure connection and seal
- Chrome-plated exterior body with low-lead DZR corrosion-resistant brass construction
- Rated for potable water applications up to 125 PSI and 160 F
- Compatible with PEX, copper, CPVC, and PE-RT pipe
SharkBite UR23048 Specifications
| Series | SharkBite Max |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/4 in. |
| Outlet Tubing OD | 3/8 in. |
| Connection Type | Push-to-Connect x Compression |
| Valve Configuration | Angle |
| Application | Potable Water |
| Compatible Product | Ice Maker, Refrigerator |
| Compatible Pipe Material | Multi-Purpose |
| Material | Brass |
| Finish | Chrome-Plated |
| Removable | Yes |
| Indoor/Outdoor | Indoor, Outdoor |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Product Length | 2.68 in. |
| Warranty | 2-year warranty when used with PEX, copper, CPVC and PE-RT pipe |
| Certifications | IAPMO listed; meets UPC, IPC and cUPC requirements |
Toolup Part # :
884240
