SharkBite UR23049 Description

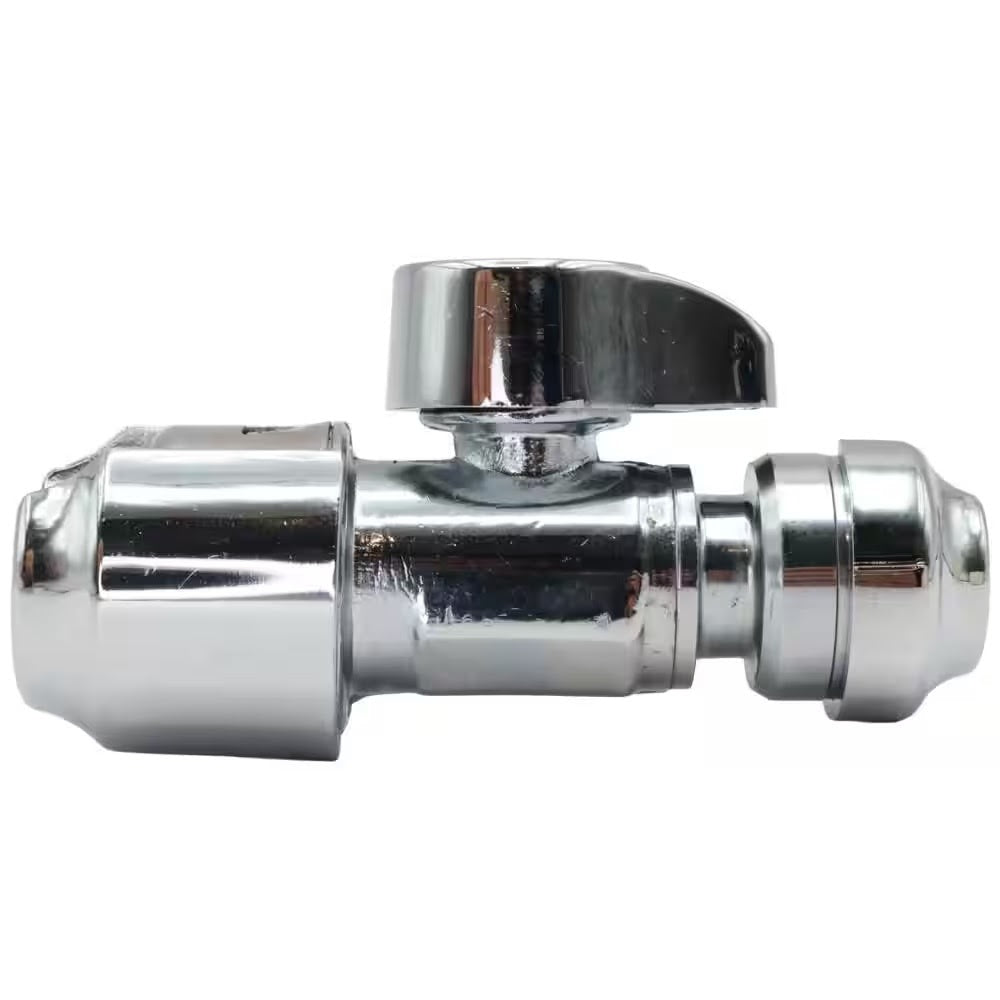

The SharkBite straight stop valve features a 1/2 in. push-to-connect inlet and a 1/4 in. compression outlet for 3/8 in. OD tubing, making it a convenient shutoff solution for ice makers and refrigerators. Its chrome-plated, low-lead DZR brass body installs quickly in tight spaces, works on wet or dry lines, and is rated for potable water use up to 125 PSI and 160 Degree F.
SharkBite UR23049 Includes
- (1) Push-to-Connect Compression Straight Stop Valve
SharkBite UR23049 Features
- 1/2 in. push-to-connect inlet with 1/4 in. compression outlet for 3/8 in. OD tubing
- Straight stop valve design for shutoff applications
- Ideal for ice maker and refrigerator connections
- Push-to-connect installation is well suited for tight spaces
- Works on wet or dry lines and can be pressure tested immediately
- Rotatable after installation and removable
- Chrome-plated exterior with low-lead DZR corrosion-resistant brass body
- Stainless steel gripping teeth and chlorine-resistant O-ring
- Rated for up to 125 PSI and 160 Degree F
- Suitable for potable water use indoors or outdoors
SharkBite UR23049 Specifications
| Application | Potable Water |
| Material | Brass |
| Color/Finish | Silver |
| Connection | PTC x Comp |
| Valve Configuration | Straight |
| Inlet Diameter (In.) | 1/2 |
| Outlet Diameter (In.) | 1/4 |
| Outlet Tubing OD (In.) | 3/8 |
| Compatible Pipe Material | Multi-Purpose |
| Compatible Product | Ice Maker, Refrigerator |
| Maximum Pressure (PSI) | 125 PSI |
| Maximum Working Temperature (F) | 160 |
| Indoor/Outdoor | Indoor, Outdoor |
| Features | Removable |
