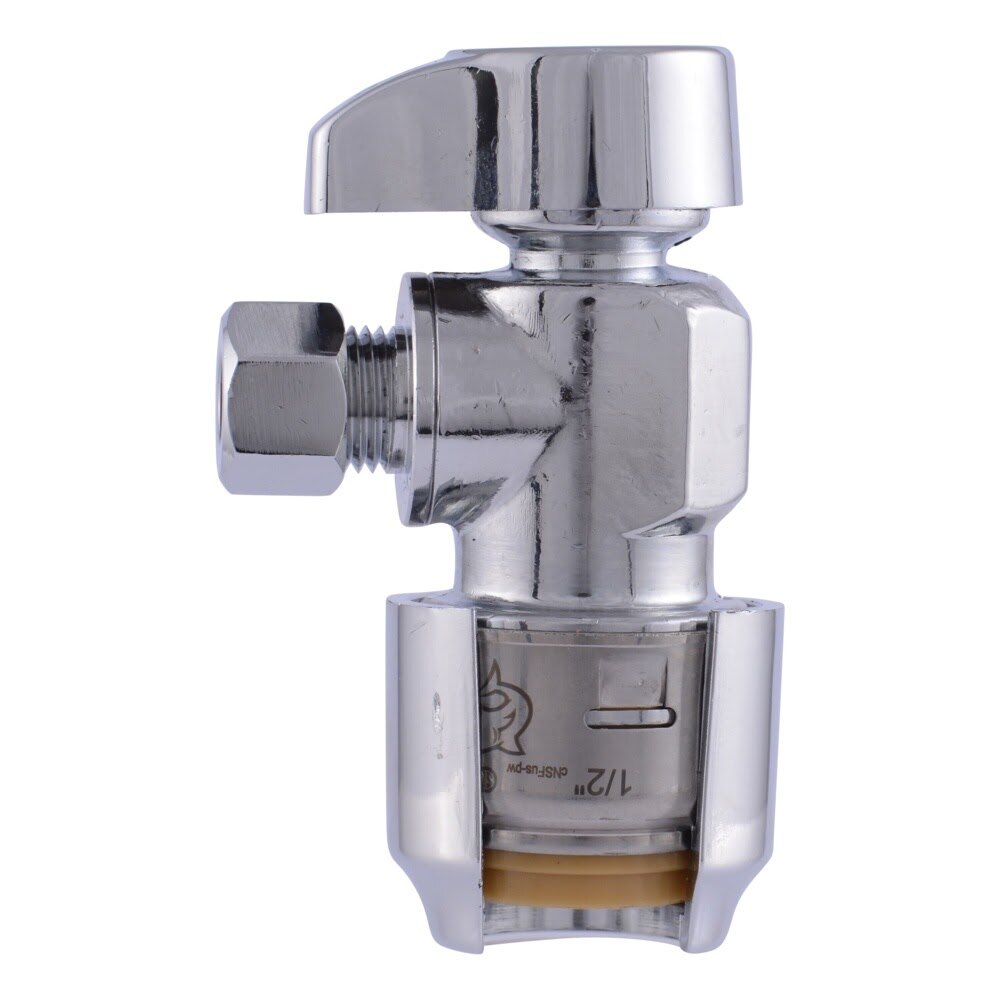

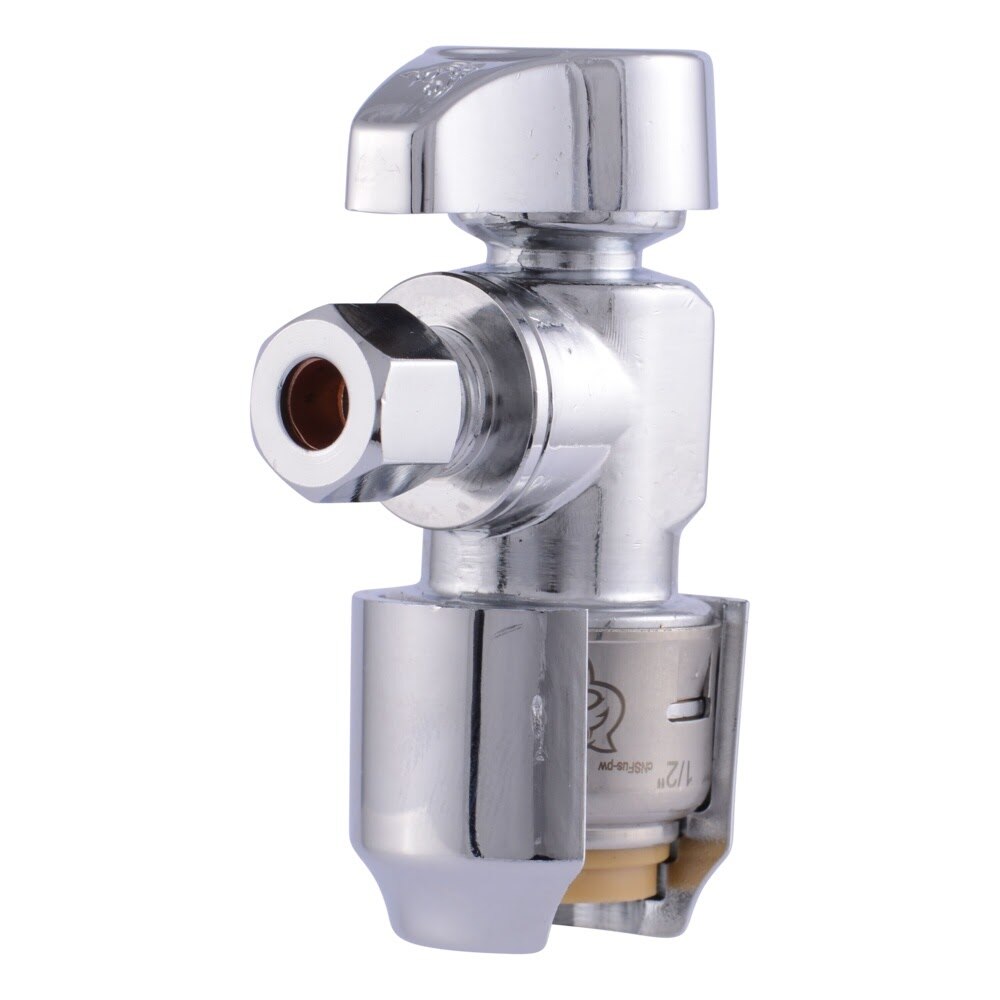

SharkBite UR23336 Description
The SharkBite Max UR23336 is a 1/2 in. push-to-connect x 1/4 in. compression quarter-turn angle stop valve designed to control and shut off water flow to faucets, toilets, and similar fixtures. Its chrome-plated lead-free brass body installs quickly on PEX, copper, CPVC, PE-RT, or HDPE pipe without soldering, crimping, glue, or special tools.
SharkBite UR23336 Includes
- (1) 1/2 in. Push-to-Connect x 1/4 in. Compression Quarter-Turn Angle Stop Valve
SharkBite UR23336 Features
- Quarter-turn angle stop design allows quick shutoff of water flow
- Push-to-connect inlet installs on PEX, copper, CPVC, PE-RT, and HDPE pipe
- Chrome-plated DZR lead-free brass body for durability
- Stainless steel retainer adds strength and durability
- No soldering, crimping, clamps, glue, or special tools required
- Can be rotated after installation for easier alignment
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated for up to 125 PSI and 160 F
- Can be installed on wet lines and pressure tested immediately
- Removable with a disconnect tool for reuse
SharkBite UR23336 Specifications
| Product Type | Angle Stop Valve |
| Valve Configuration | Angle |
| Operation | Quarter-Turn |
| Connection Type | Push-to-Connect x Compression |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/4 in. O.D. |
| Material | Chrome-Plated DZR Lead-Free Brass |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Compatible Product | Faucet, Toilet |
| Application | Potable Water |
| Indoor/Outdoor | Indoor |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Product Length | 1.555 in. |
| Warranty | 25-year warranty on PEX, copper, CPVC, and PE-RT; 5-year warranty on HDPE SDR-9 |
