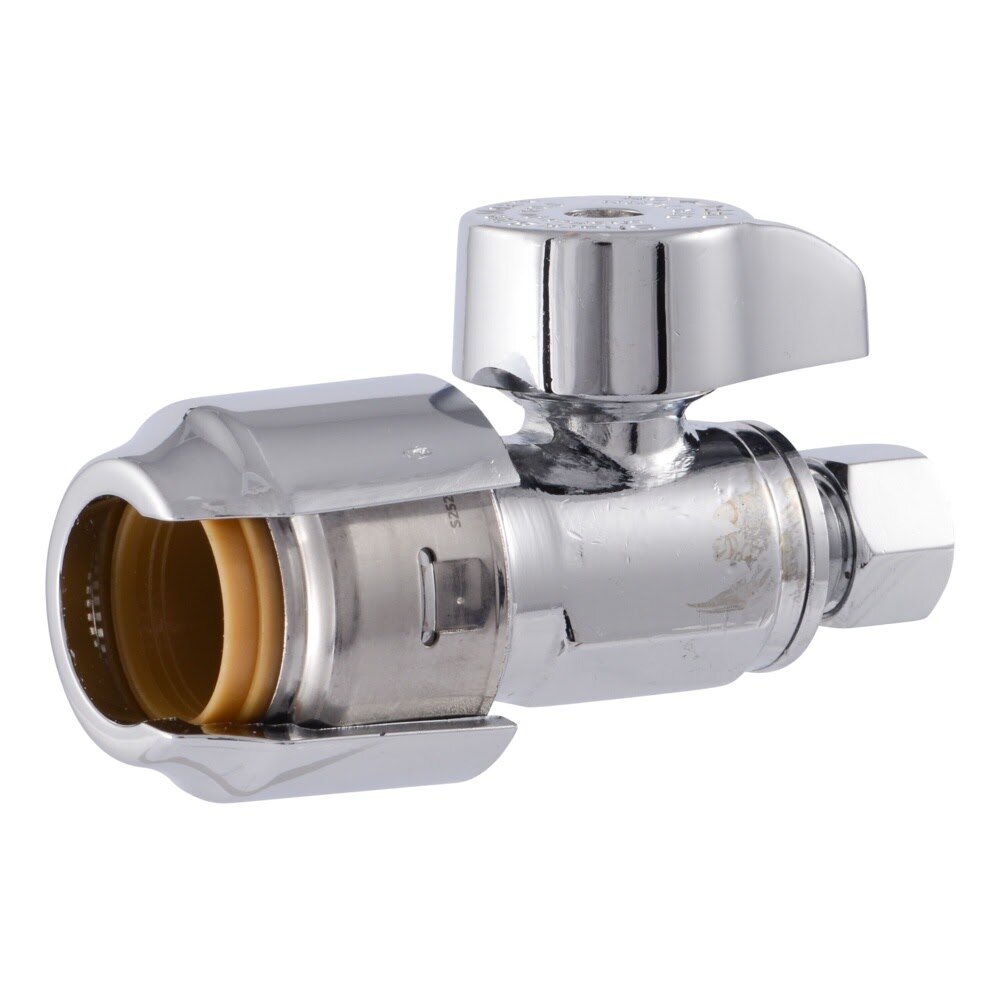

SharkBite UR23337 Description
The SharkBite Max UR23337 is a quarter-turn straight stop valve with a 1/2 in. push-to-connect inlet and 1/4 in. O.D. compression outlet for faucet and toilet supply connections. Its chrome-plated brass body installs quickly on PEX, copper, CPVC, PE-RT, and HDPE pipe without crimping, soldering, or glue, and it can be installed on wet lines for immediate pressure testing.
SharkBite UR23337 Includes
- (1) 1/2 in. Push-to-Connect x 1/4 in. Compression Straight Stop Valve
SharkBite UR23337 Features
- Quarter-turn straight stop design for faucet and toilet shutoff applications
- 1/2 in. push-to-connect inlet x 1/4 in. O.D. compression outlet
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body with chrome-plated finish
- Removable and can be rotated after installation
- No PEX tube liner required
- Rated to 125 psi and 160 DegreeF
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR23337 Specifications
| Series | SharkBite Max |
| Product Type | Straight Stop Valve |
| Valve Configuration | Straight |
| Turn Type | Quarter-Turn |
| Inlet Connection | Push-to-Connect |
| Outlet Connection | Compression |
| Inlet Diameter (In.) | 1/2 |
| Outlet Diameter (In.) | 1/4 |
| Outlet Size | 1/4 in. O.D. |
| Material | Brass |
| Finish | Chrome-Plated |
| Application | Potable Water |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Compatible Product | Faucet, Toilet |
| Maximum Pressure (PSI) | 125 PSI |
| Maximum Working Temperature (F) | 160 |
| Indoor/Outdoor | Indoor |
| Removable | Yes |
| Product Length (in.) | 2.658 in |
| Shipping Weight (lb) | 0.23 |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
Toolup Part # :
884607
