SharkBite UR24438 Description

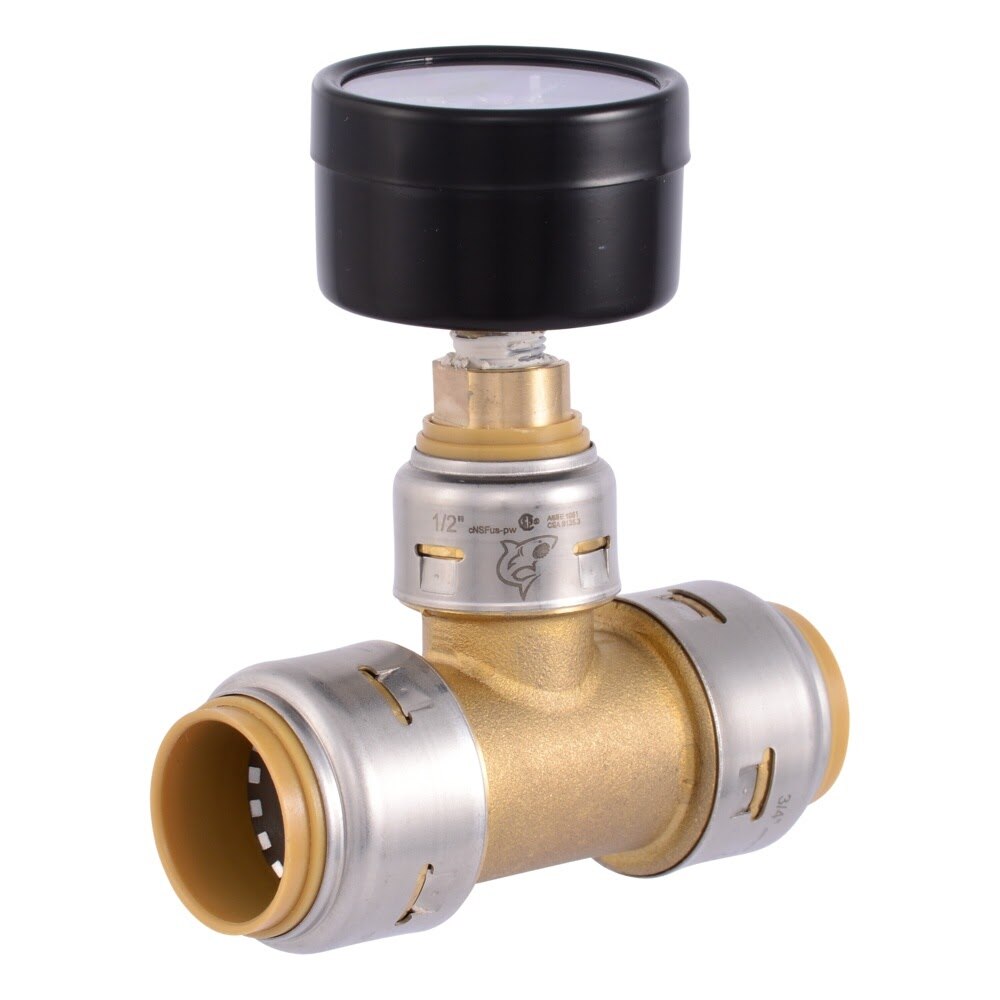

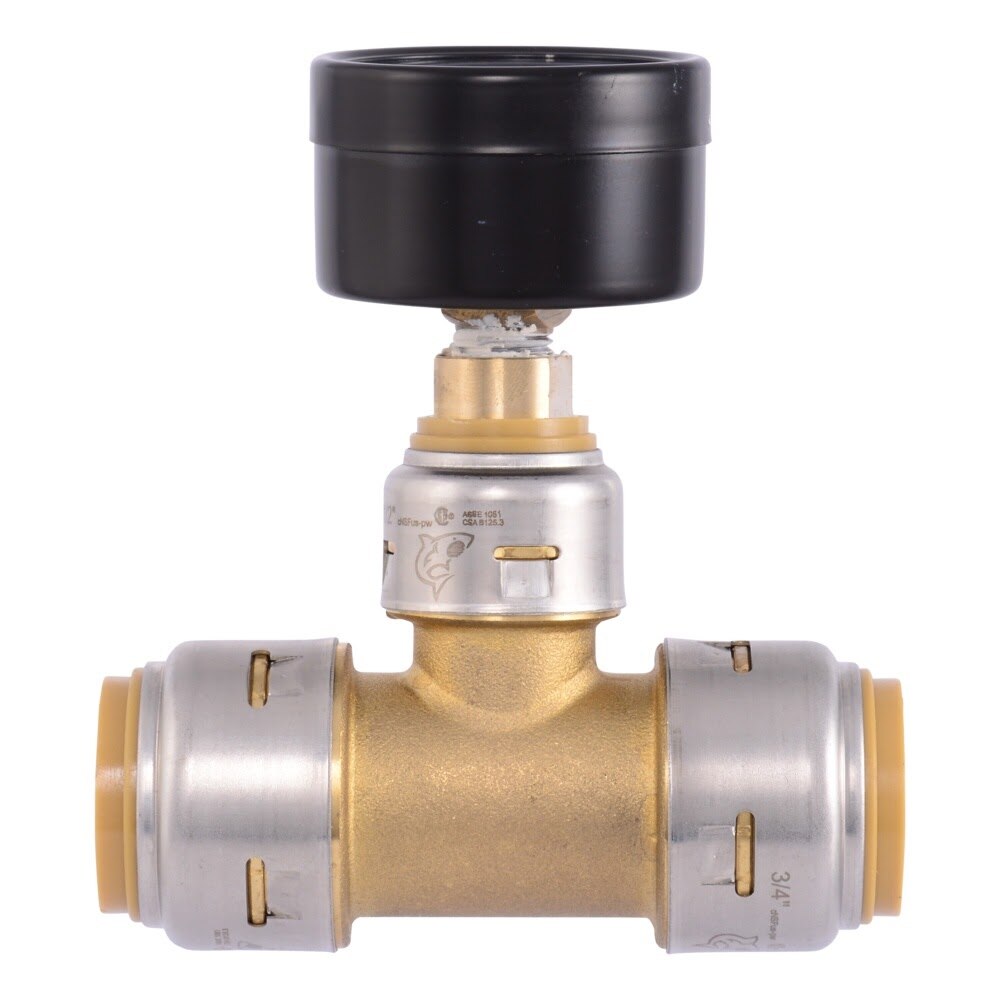

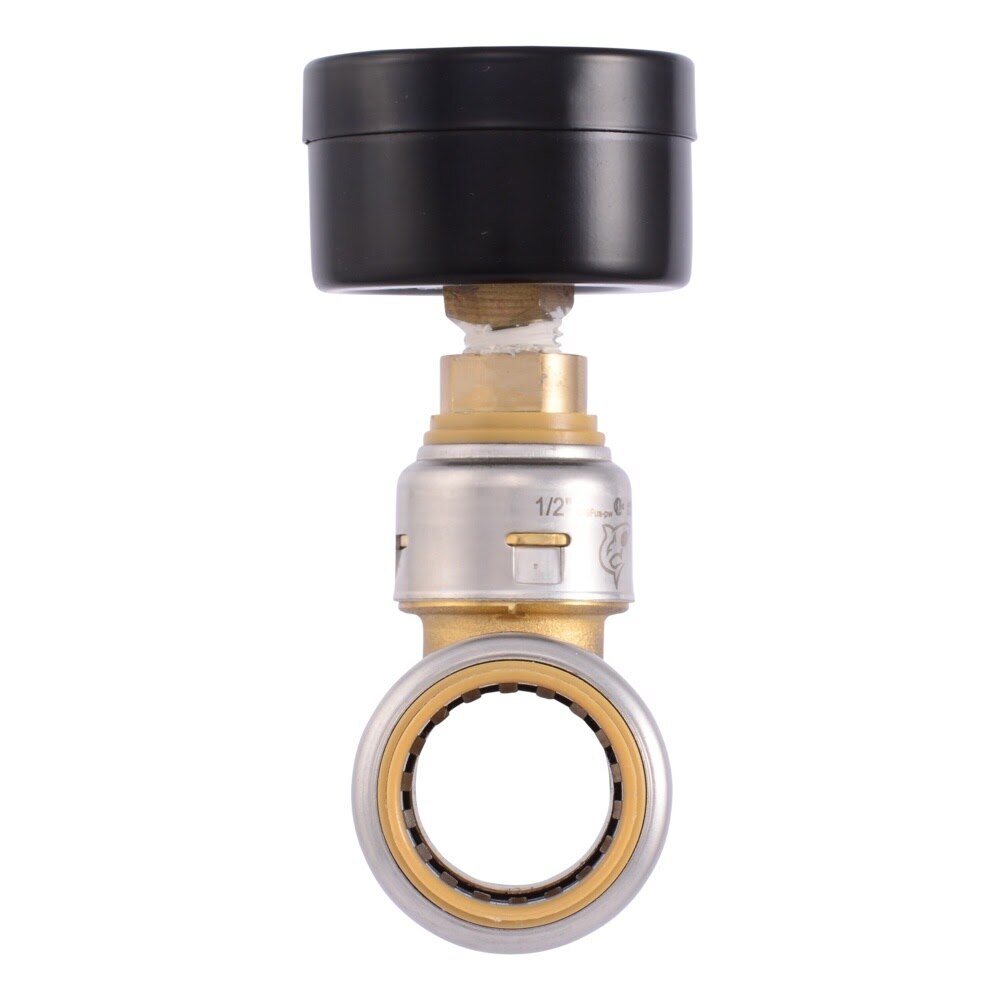

The SharkBite Max 3/4 in. pressure gauge assembly is designed for domestic potable water and radiant systems, combining a pressure gauge with a Max tee for fast push-to-connect installation. It can be installed on wet lines, works well in tight spaces, and features a durable lead-free DZR brass body with a stainless steel retainer for reliable performance up to 150 psi and 150 Degrees F.
SharkBite UR24438 Includes
- (1) 3/4 in. Pressure Gauge Assembly with Max Tee
SharkBite UR24438 Features
- Push-to-connect design allows quick and easy installation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines
- Durable DZR lead-free brass body
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated up to 150 psi and 150 Degrees F
- Can be installed as a reusable or permanent device
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR24438 Specifications
| Product Type | Pressure Gauge Assembly with Tee |
| Size | 3/4 in. |
| Pipe Size | 3/4 in. |
| Connection Style | Push-to-Connect |
| Body Material | DZR Brass |
| Retainer Material | Stainless Steel |
| Lead Free | Yes |
| Maximum Pressure | 150 psi |
| Maximum Temperature | 150 Degrees F |
| Compatible Pipe Types | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Application | Domestic potable water and radiant systems |
Toolup Part # :
883970
